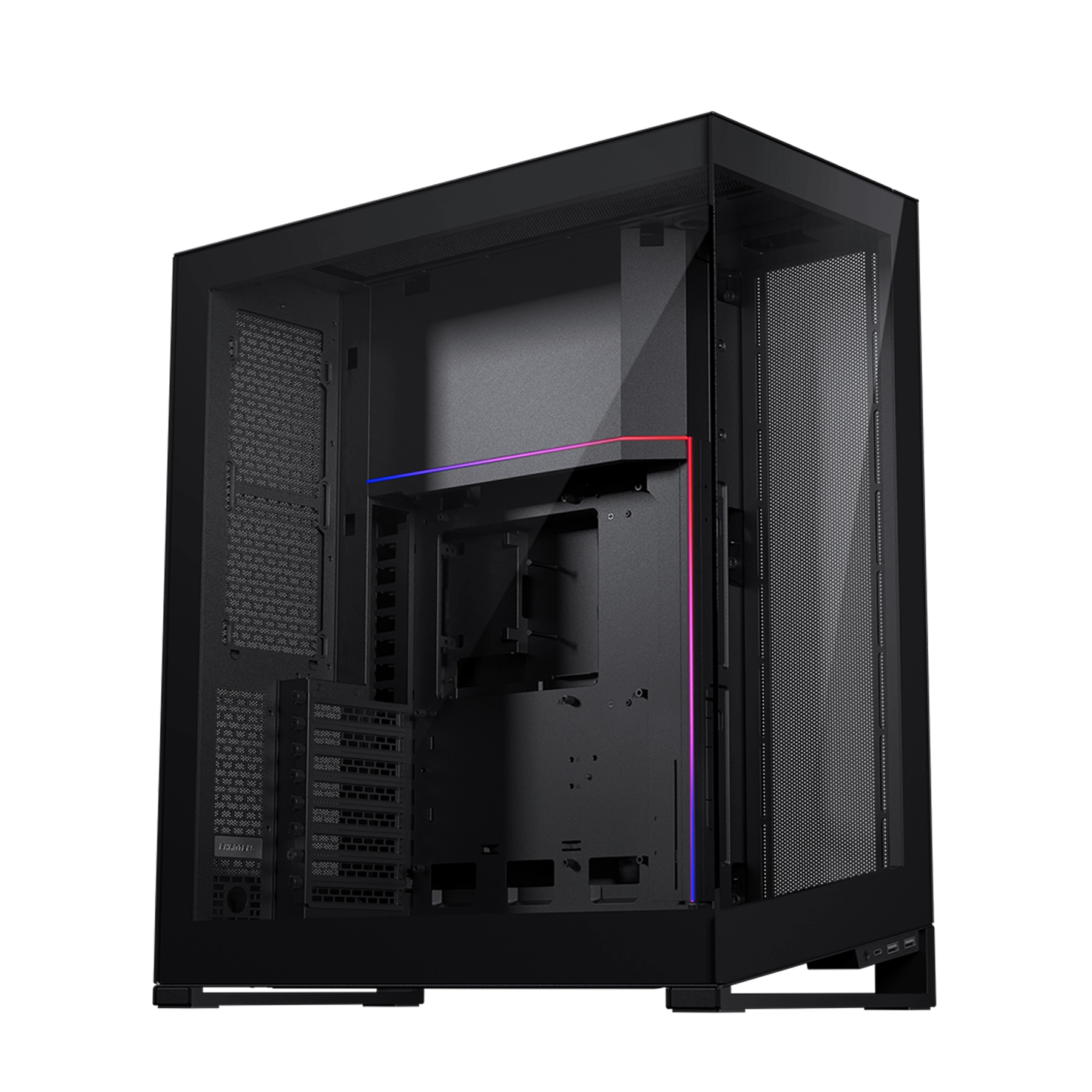

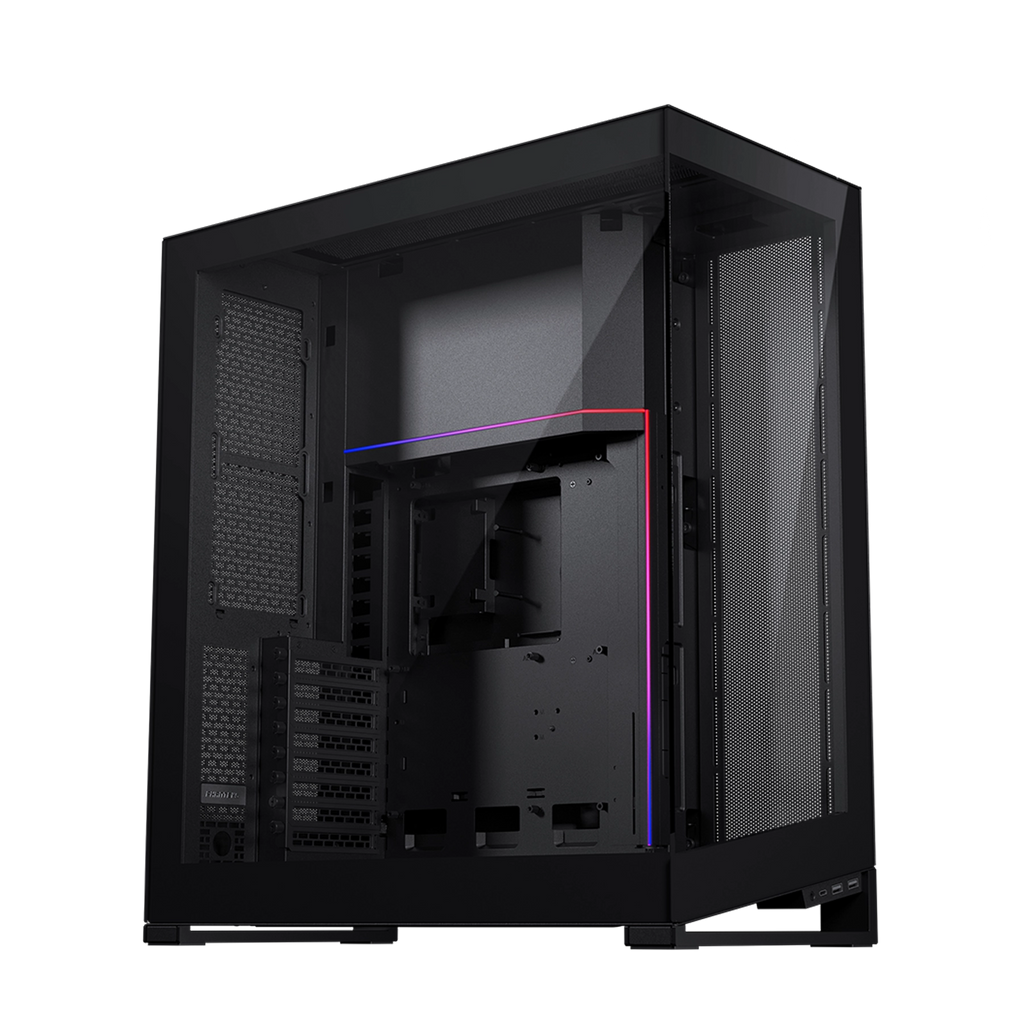

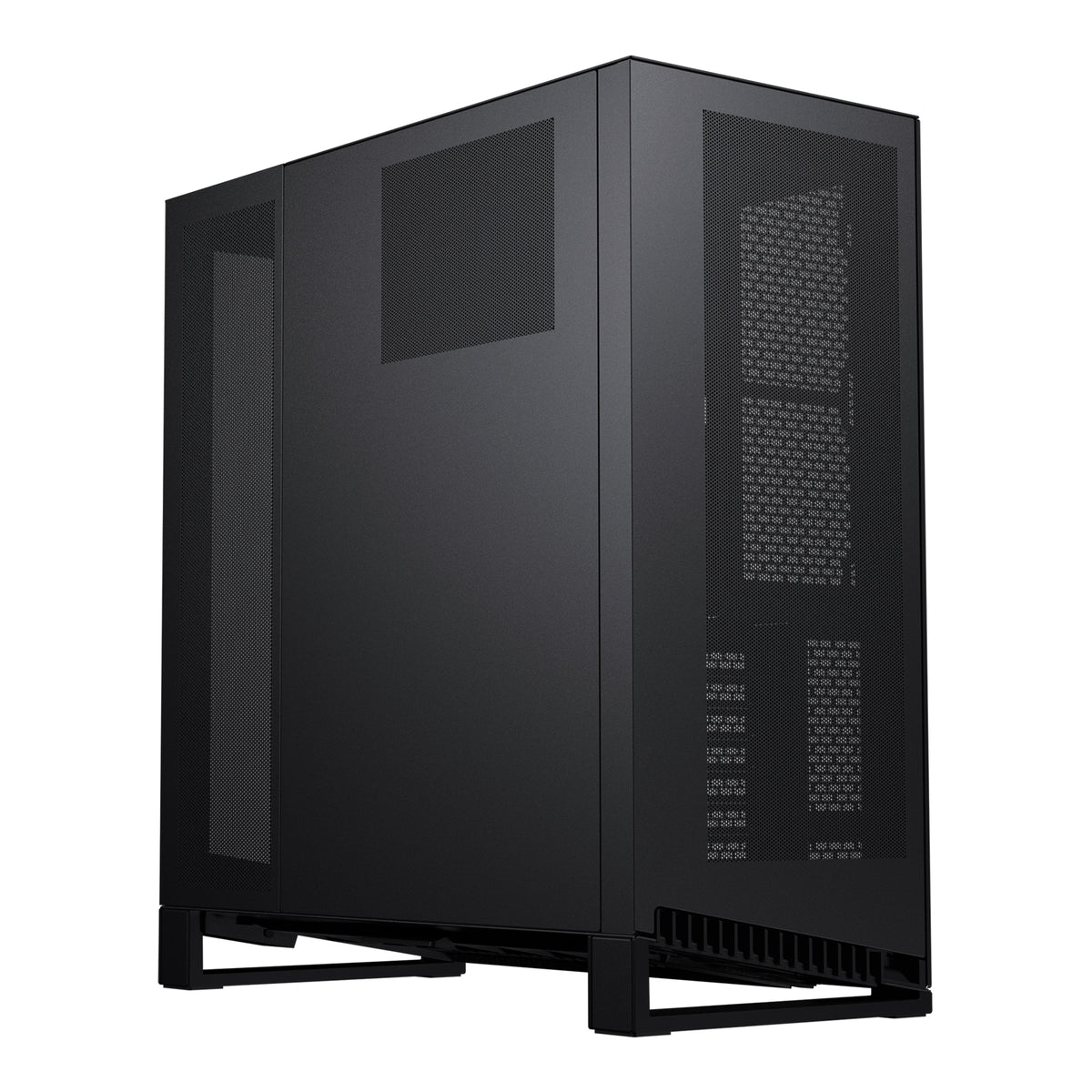

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.

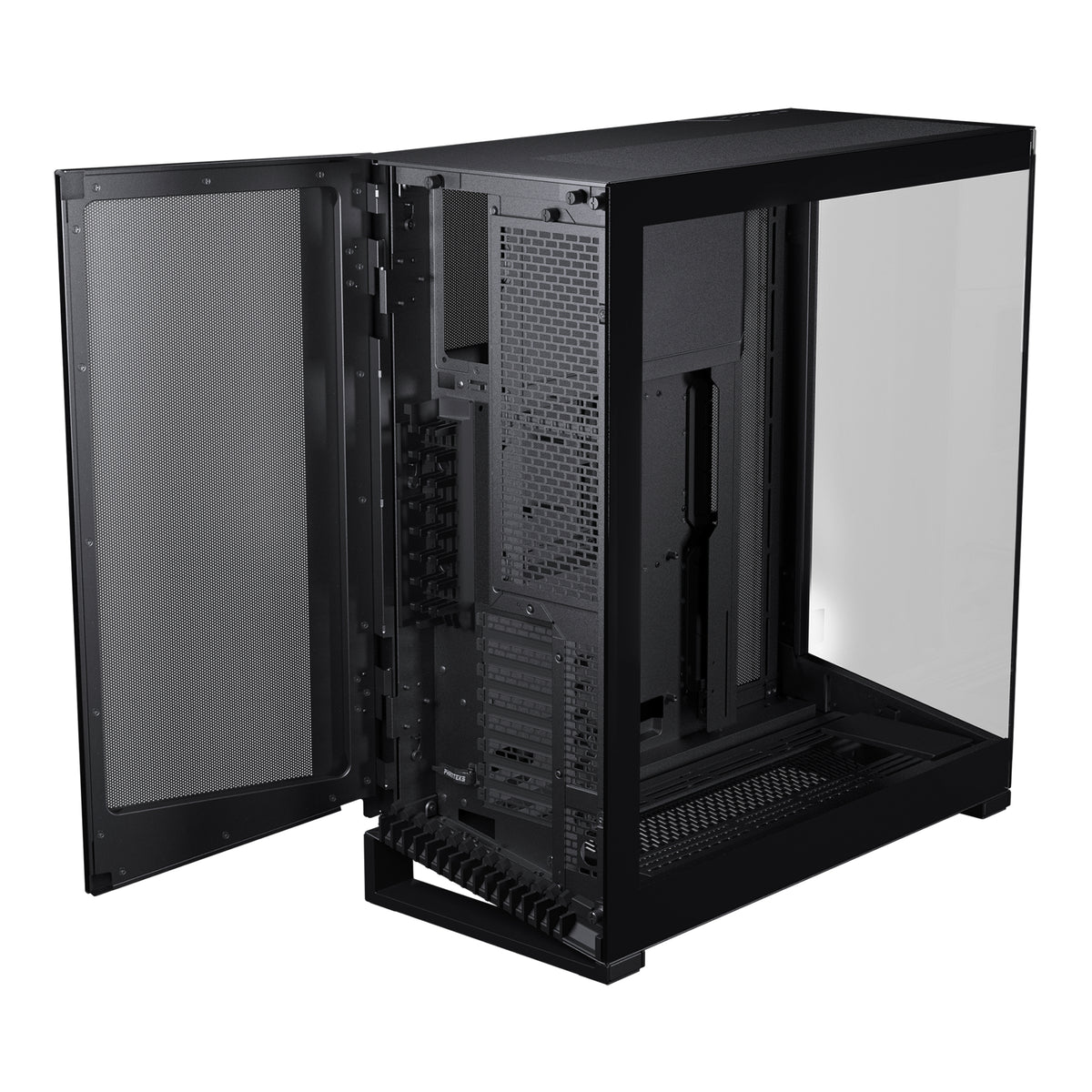

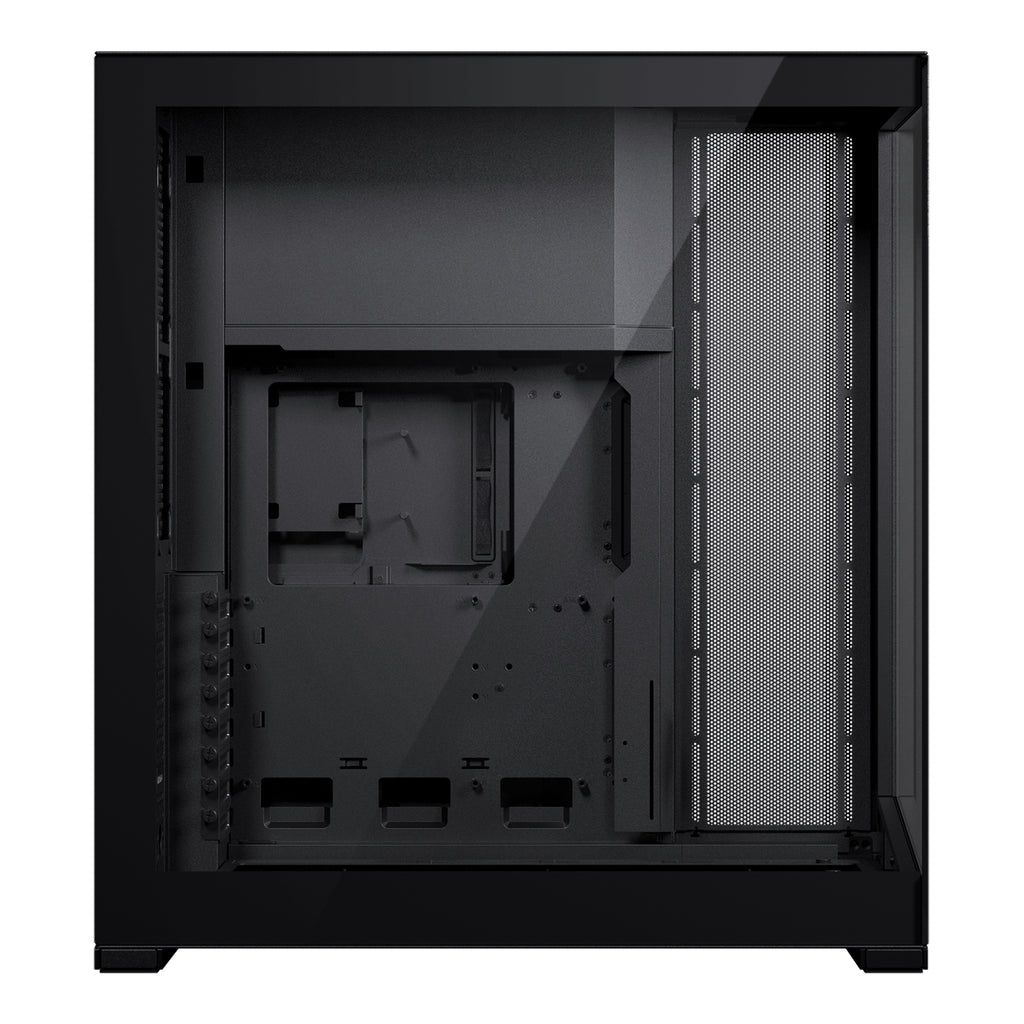

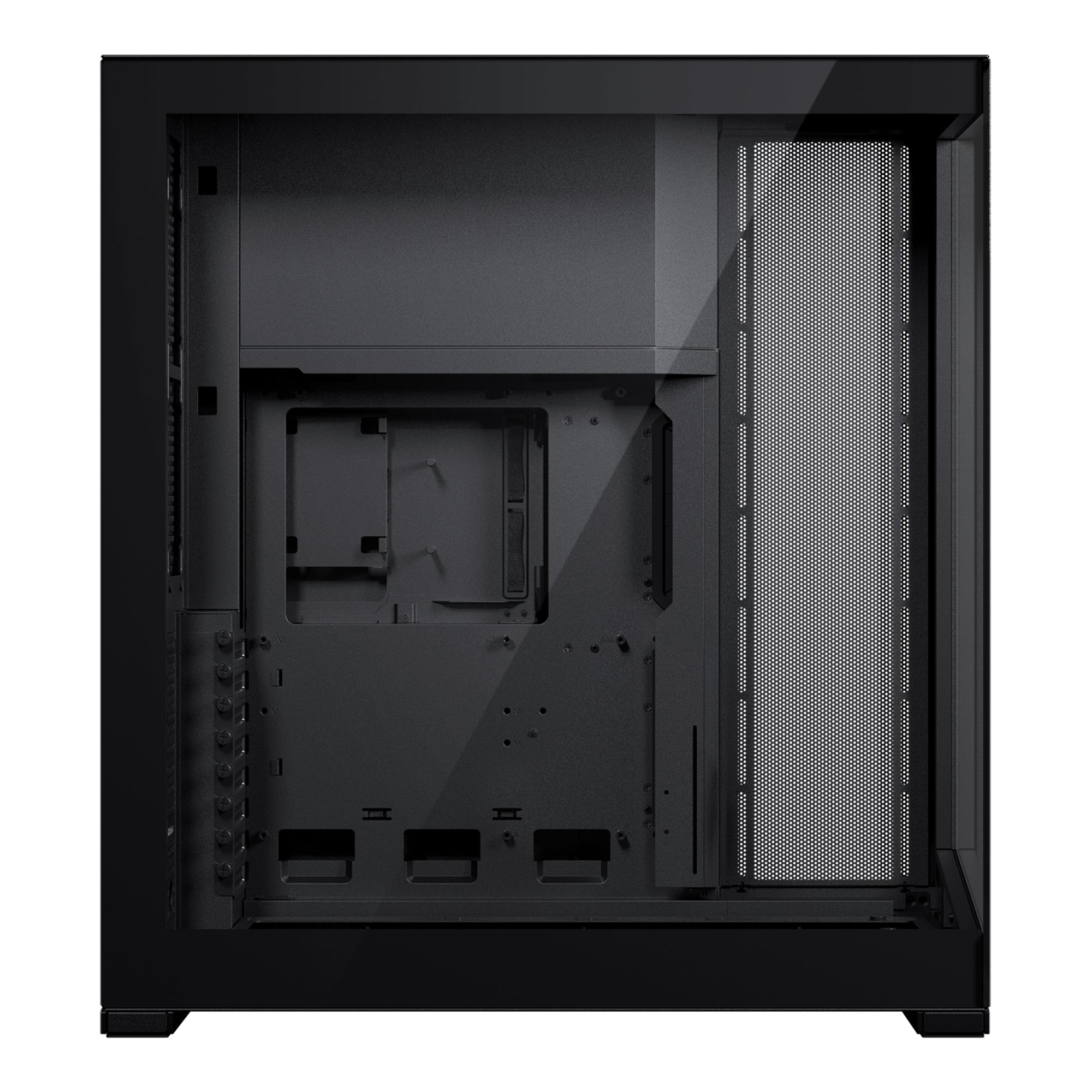

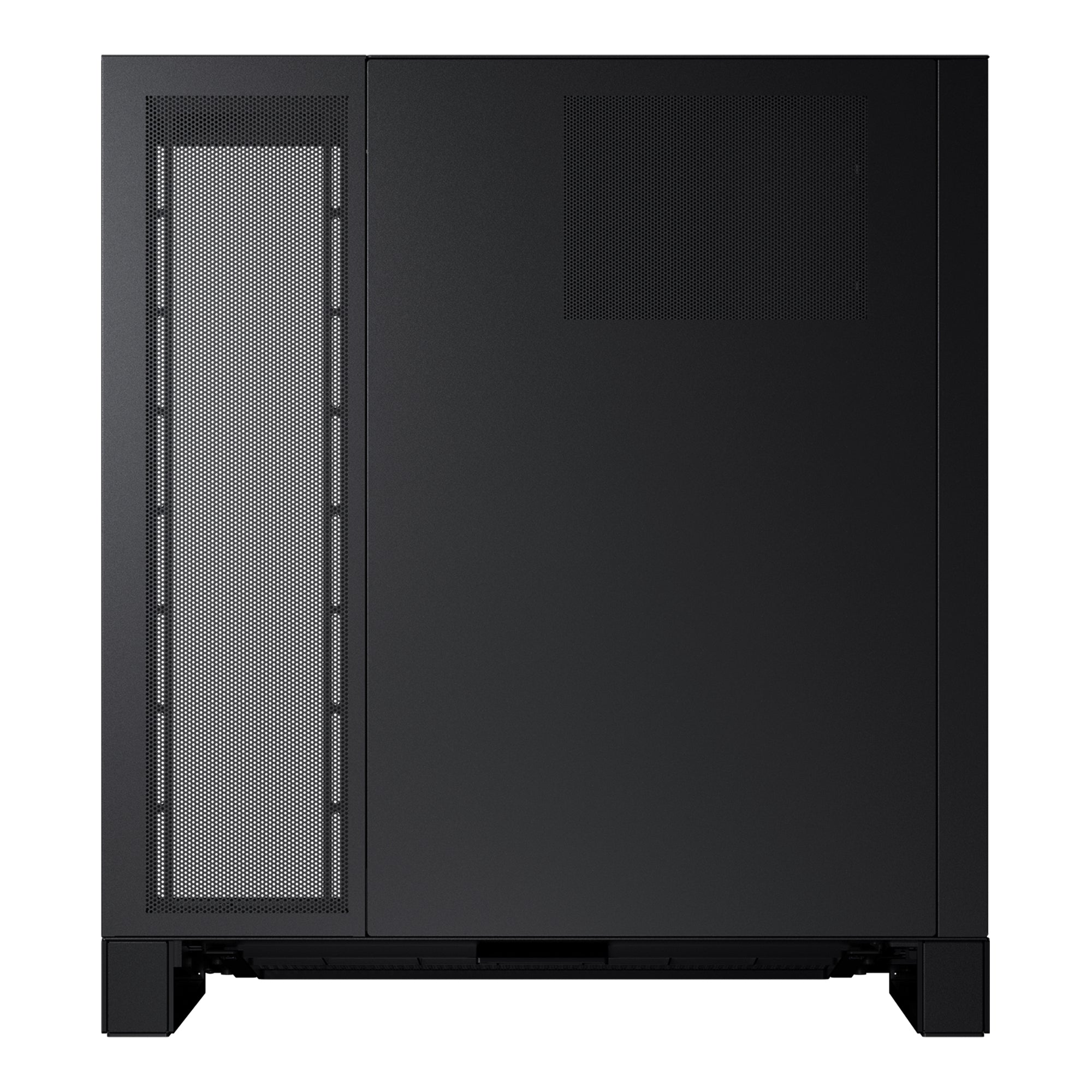

With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
|
Case Specifications |
||
|
Dimension |
253 x 532 x 586 mm / 10.0 x 20.9 x 23.1 in (WxDxH) |
|
|
Form Factor |
Full Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window |
|
|
Mainboard Support |
ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide with LED Cover) |
|
|
Rear Connect Motherboard |
No |
|
|

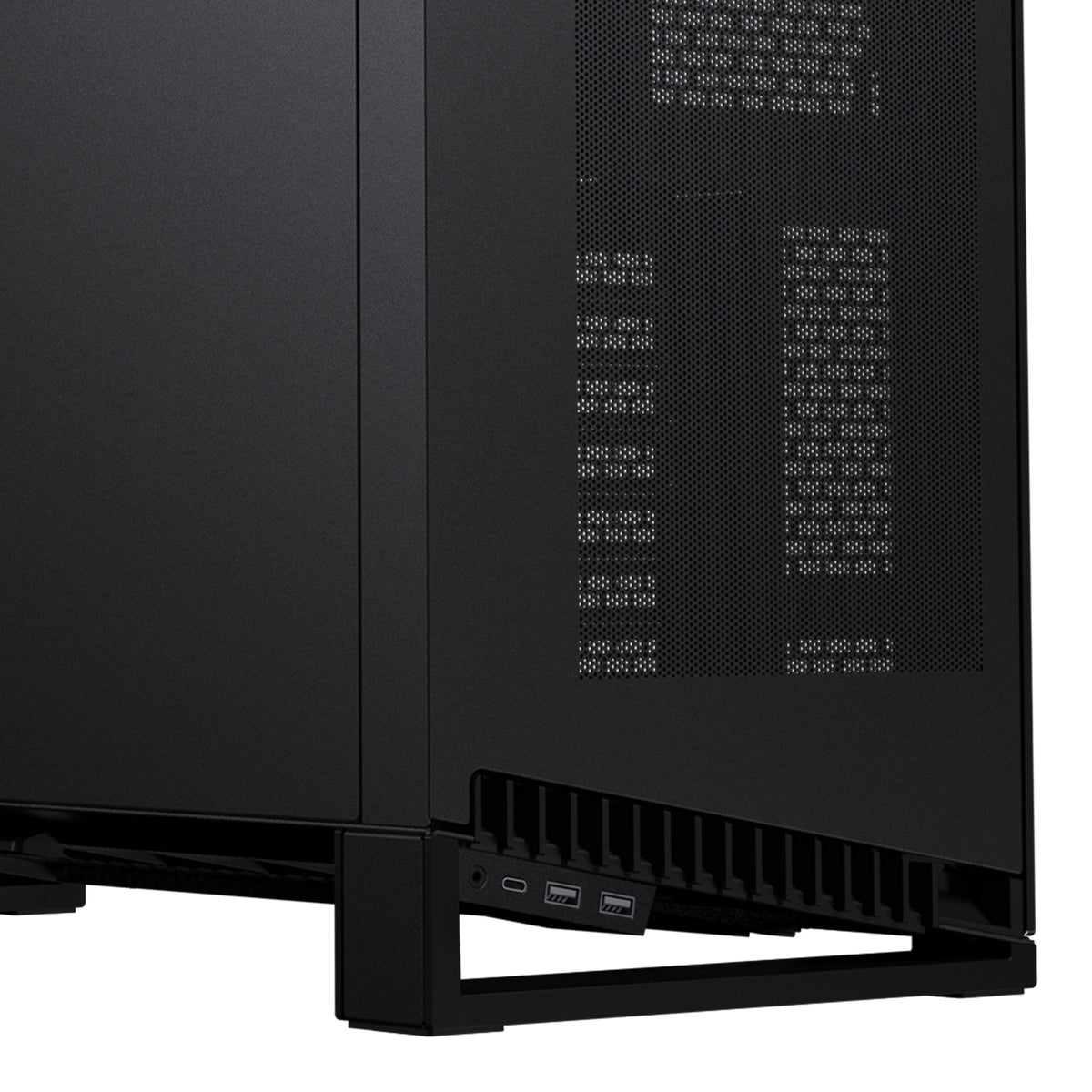

Front I/O |
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel |
|
|
Connectors |
Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
2x (1x if all SSD positions are used) |
|
|
Internal 2.5” |
6x (4x if both HDD positions are used) |
|
|
D-RGB Controller Output |
7A per Channel, 4A per port |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Side |
4x |
- |
|
Rear |
2x |
- |
|
Bottom |
3x |
3x |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Side |
Up to 360 |
- |
|
Rear |
Up to 240 |
- |
|
Bottom |
Up to 360 |
Up to 280 |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
450mm | 17.71in |
|
|
CPU Cooler Height |
185mm | 7.28in |
|
|
PSU Length |
255mm | 10.03in |
|
|
Top Radiator |
132 x 440mm | 5.19 x 17.32in |
|
|
Side Radiator |
132 x 440 x 65mm | 5.19 x 17.32 x 2.55in |
|
|
Rear Radiator |
132 x 320mm | 5.19 x 12.59in |
|
This is the best looking case, 4 x 120 mm vertical, custom loop friendly, easy to work. Stunning to watch
I've personally had several Phanteks Cases over the years, and even compared to competitors, especially considering the class and price tag on this case, it's not even close. The NV7 takes the cake. The little things they have thought about make it a breeze to look like a professional builder when putting this case together. All that, plus a design that really ties together any well spec’d system, is top-notch.
Amazing case. It’s a premium product
Absolutely one of the nicest cases on the market phanteks thought of everything and anything that you could want or need truly happy with this case
NV7 is such a beautiful functional masterpiece. The layout is amazing and thoughtful. I have the optional vertical graphics card mount which installed easily. Thank you Phanteks, you did a great job designing this case. It’s very heavy, and the glass panels slide into place unlike some brands that clip in place, less chance for breakage. Lots of space for my 2 AIO’s for CPU and Graphics card. I have an E-ATX mobo and it stays perfectly cool.
