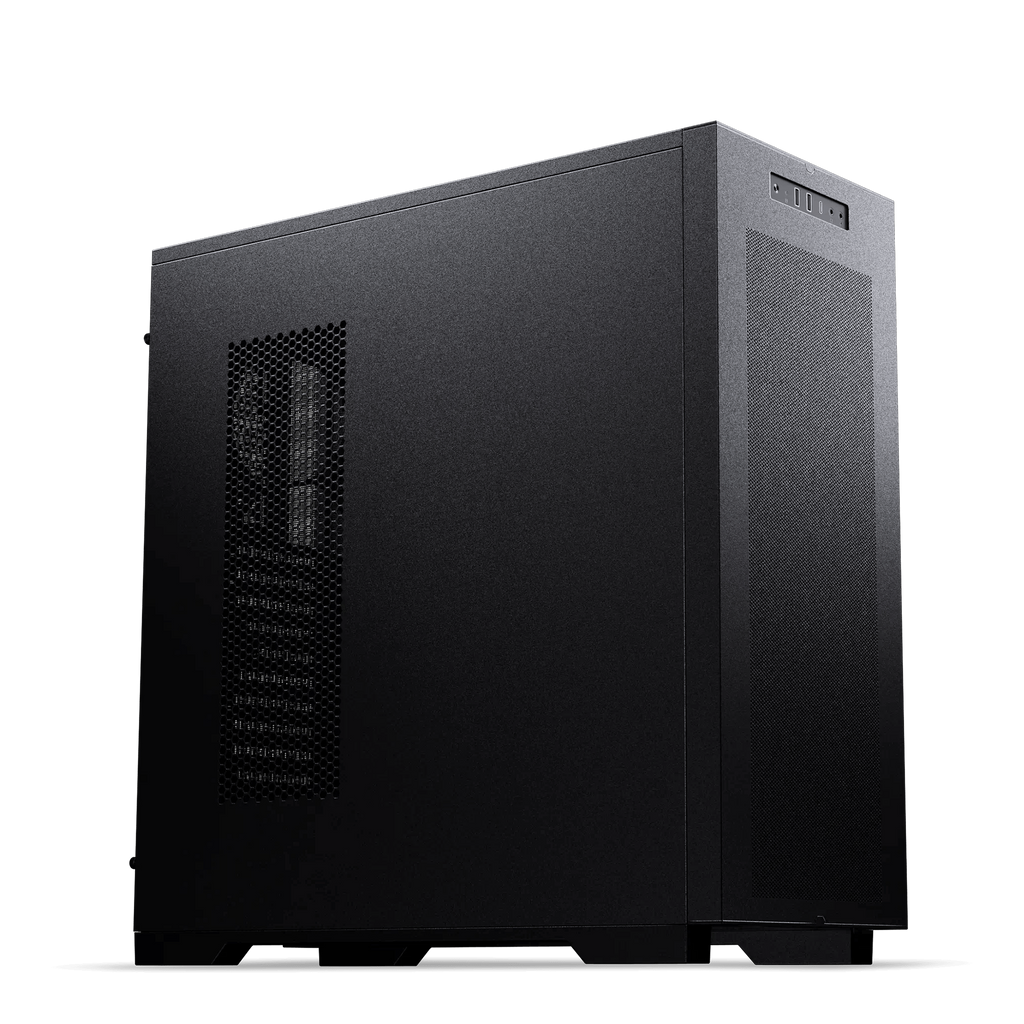

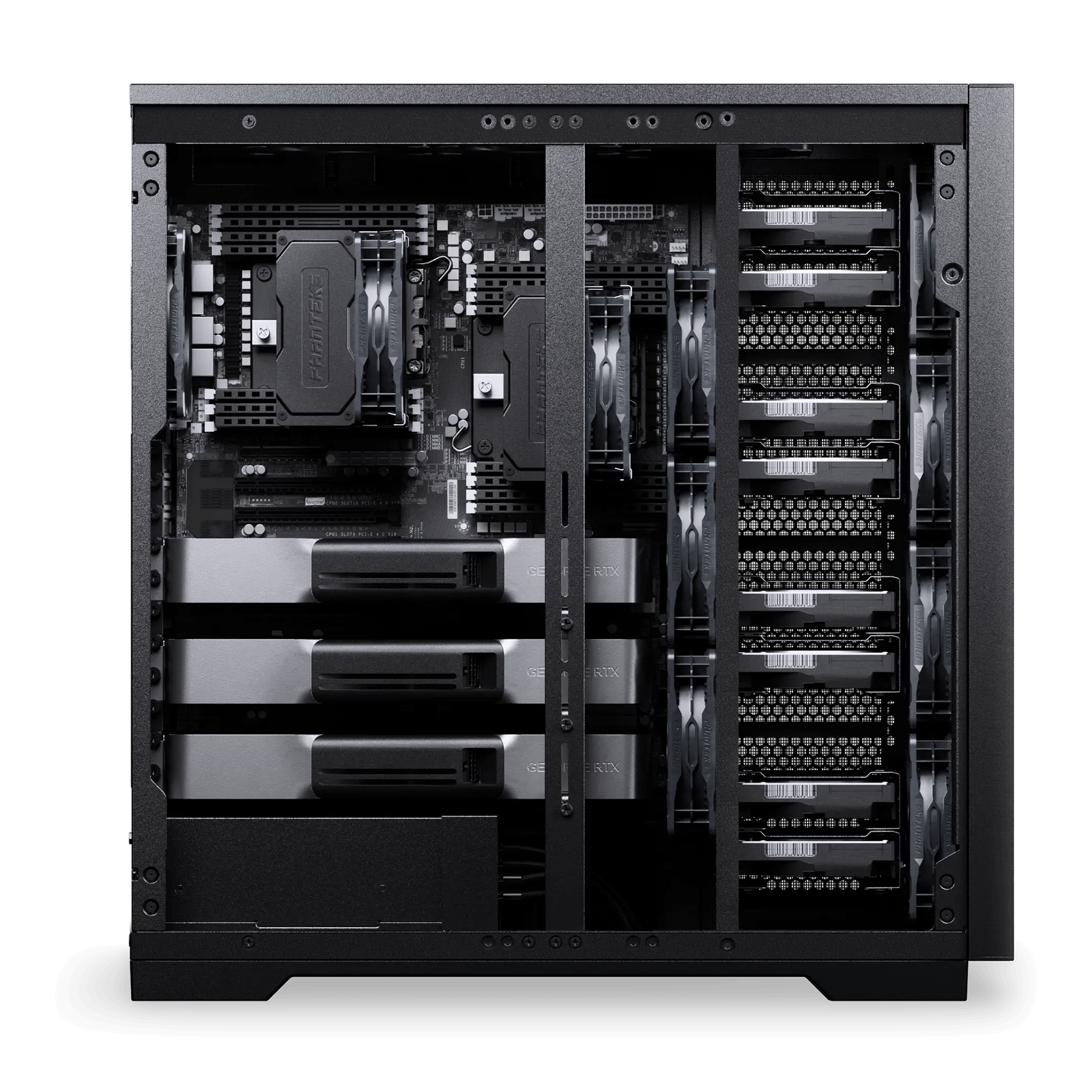

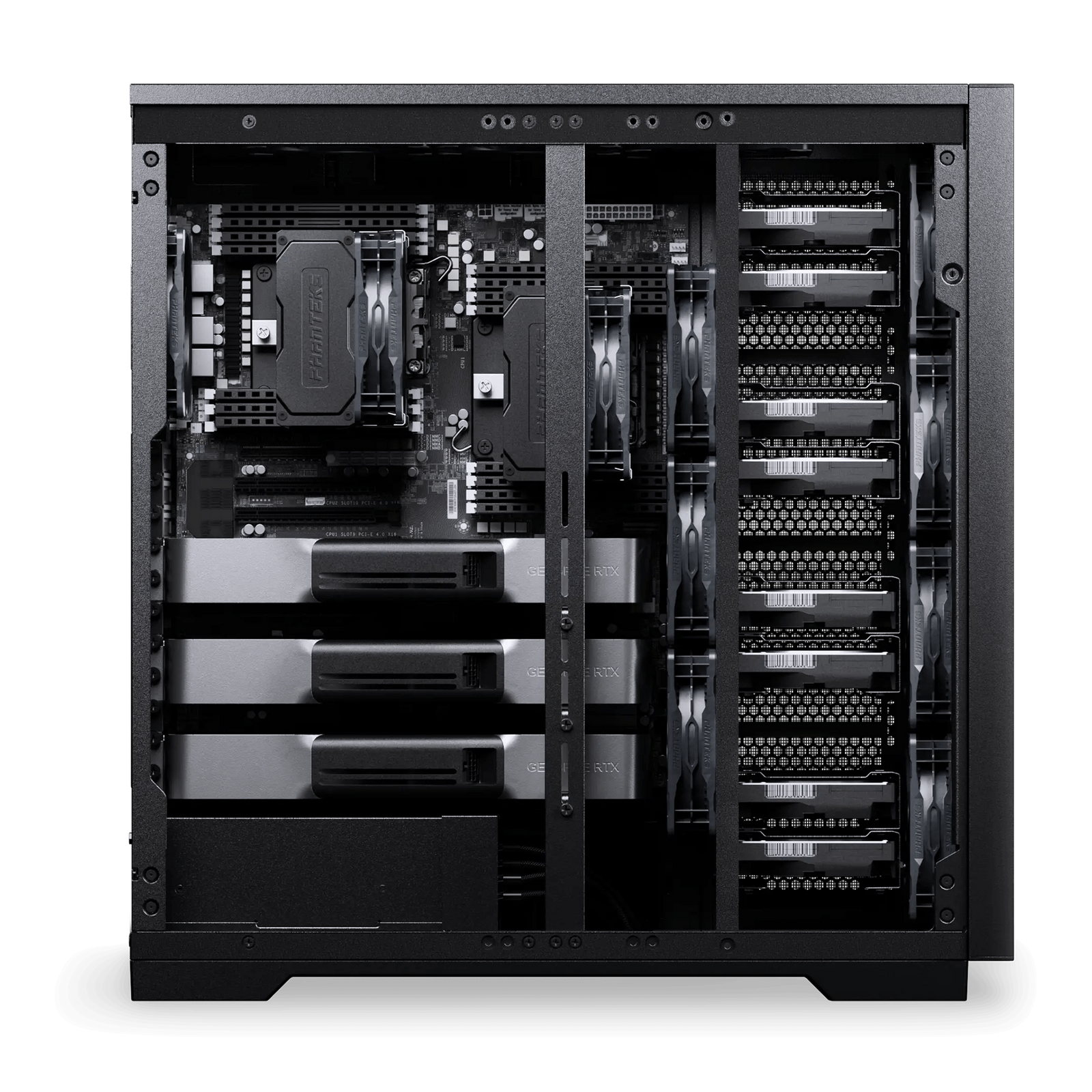

The Phanteks Enthoo Pro 2 Server V2 is engineered to bring true server-grade capabilities into a versatile full-tower enclosure. Designed for professionals, AI workloads, rendering farms, and home lab enthusiasts, the Pro 2 Server V2 features a fully meshed all-metal exterior that sets a high standard for thermal dissipation and unrestricted airflow. Its spacious interior effortlessly accommodates high-end enterprise hardware, including multi-GPU setups, massive storage arrays, and dual-socket motherboards.

Key Features

  • Server & Workstation Ready: Full support for large enterprise motherboards including SSI-EEB, XL-ATX, E-ATX, and standard consumer form factors.

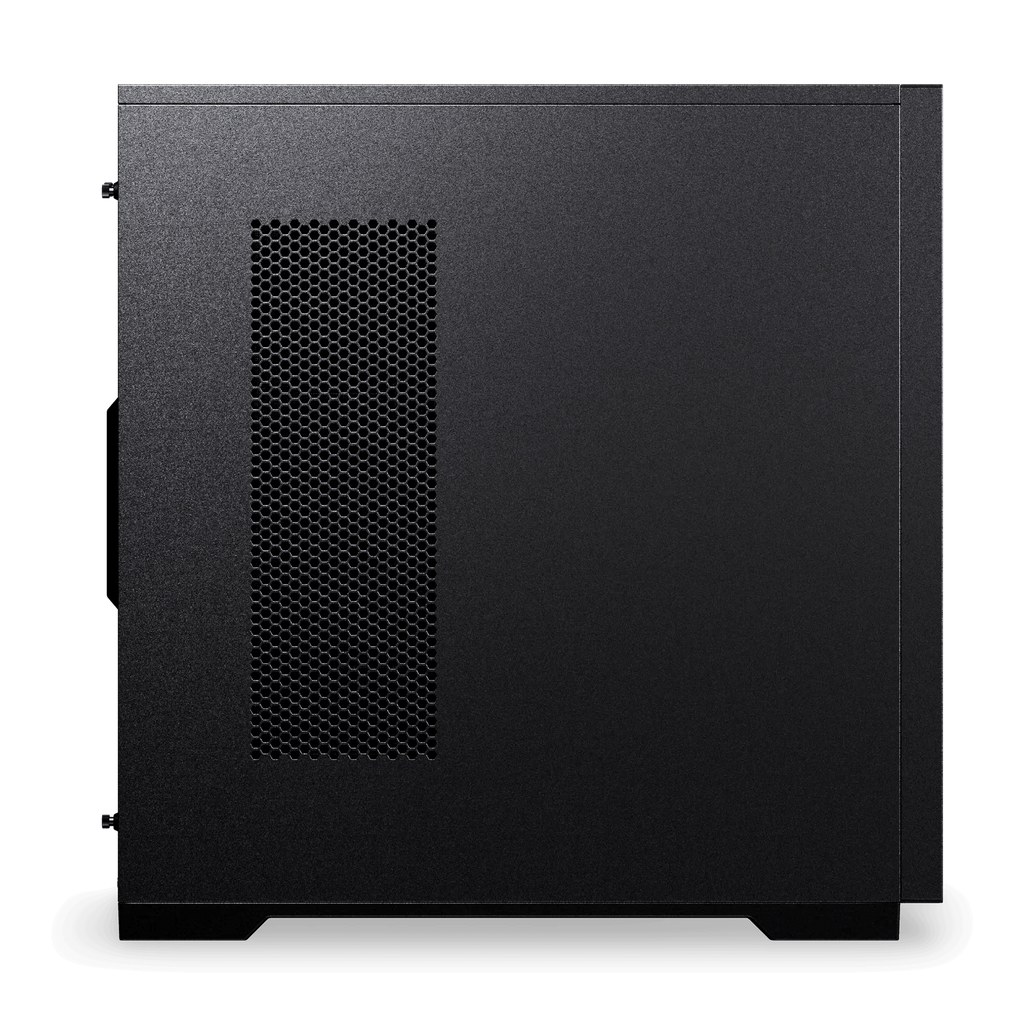

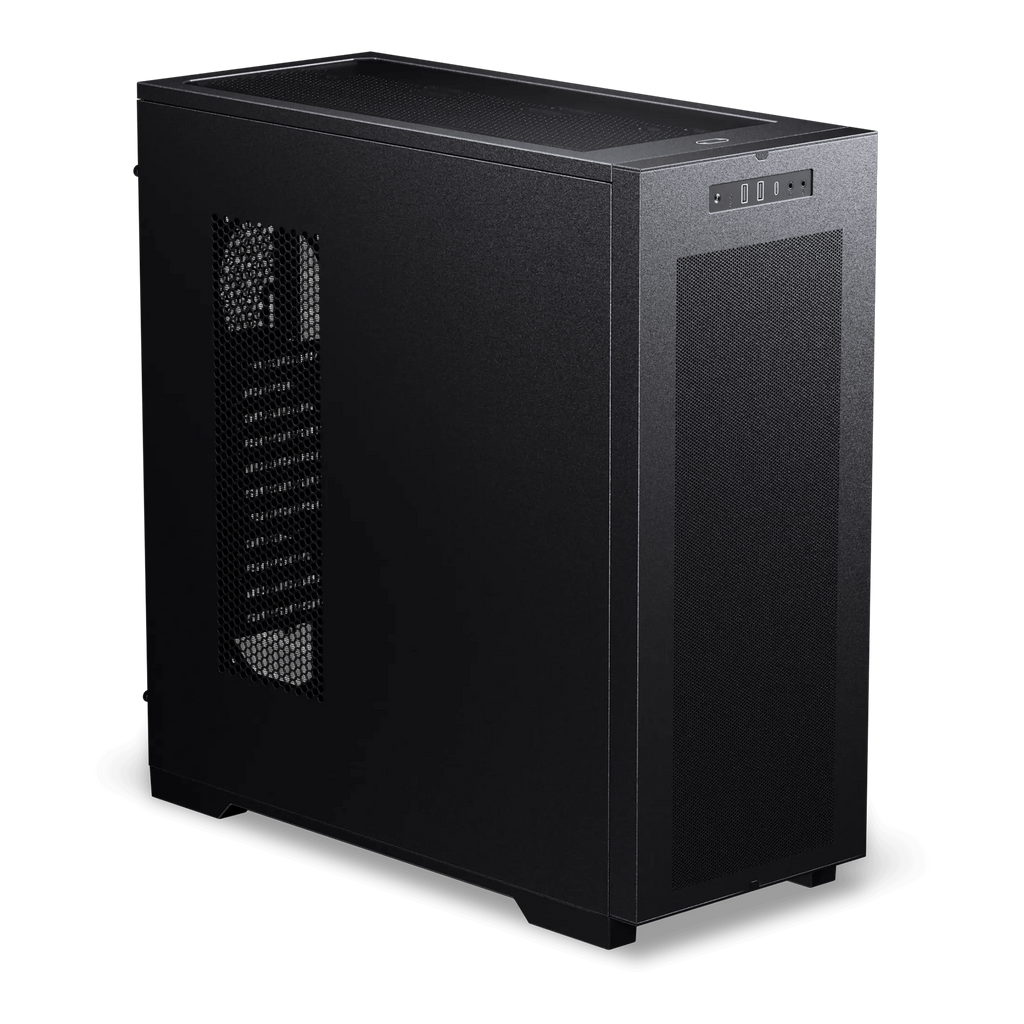

  • All-Metal Airflow Exterior: Outfitted with durable, fully meshed all-metal exterior panels to deliver direct, low-restriction intake and exhaust cooling.

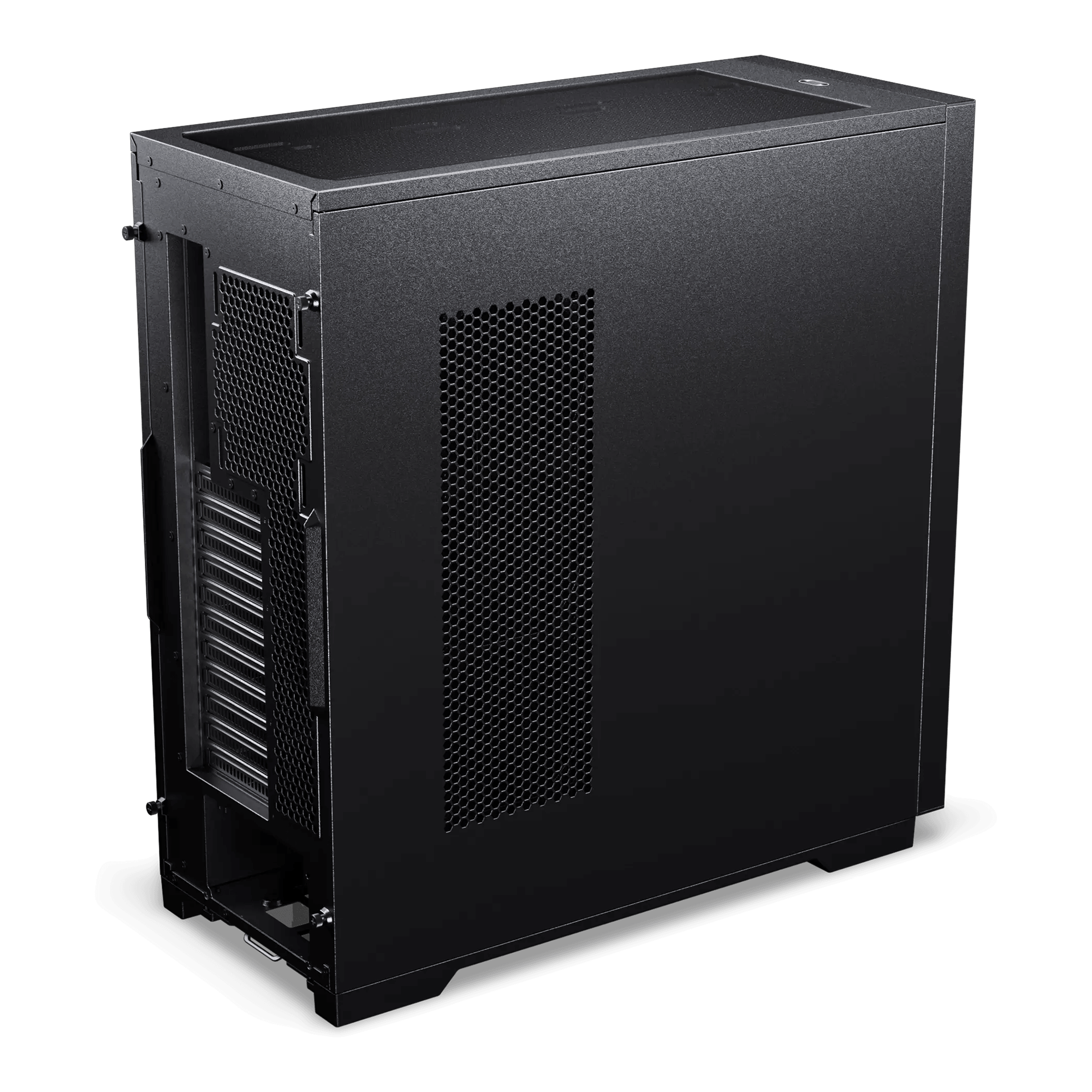

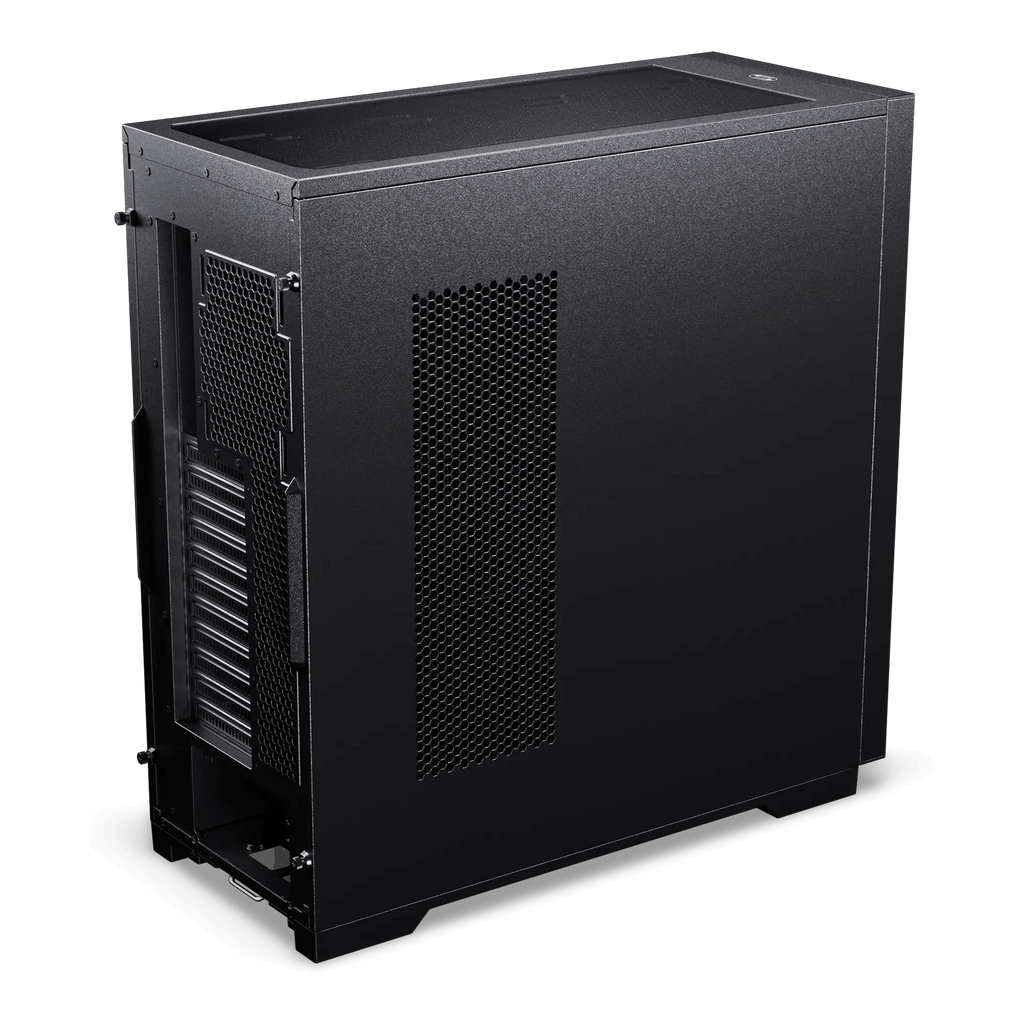

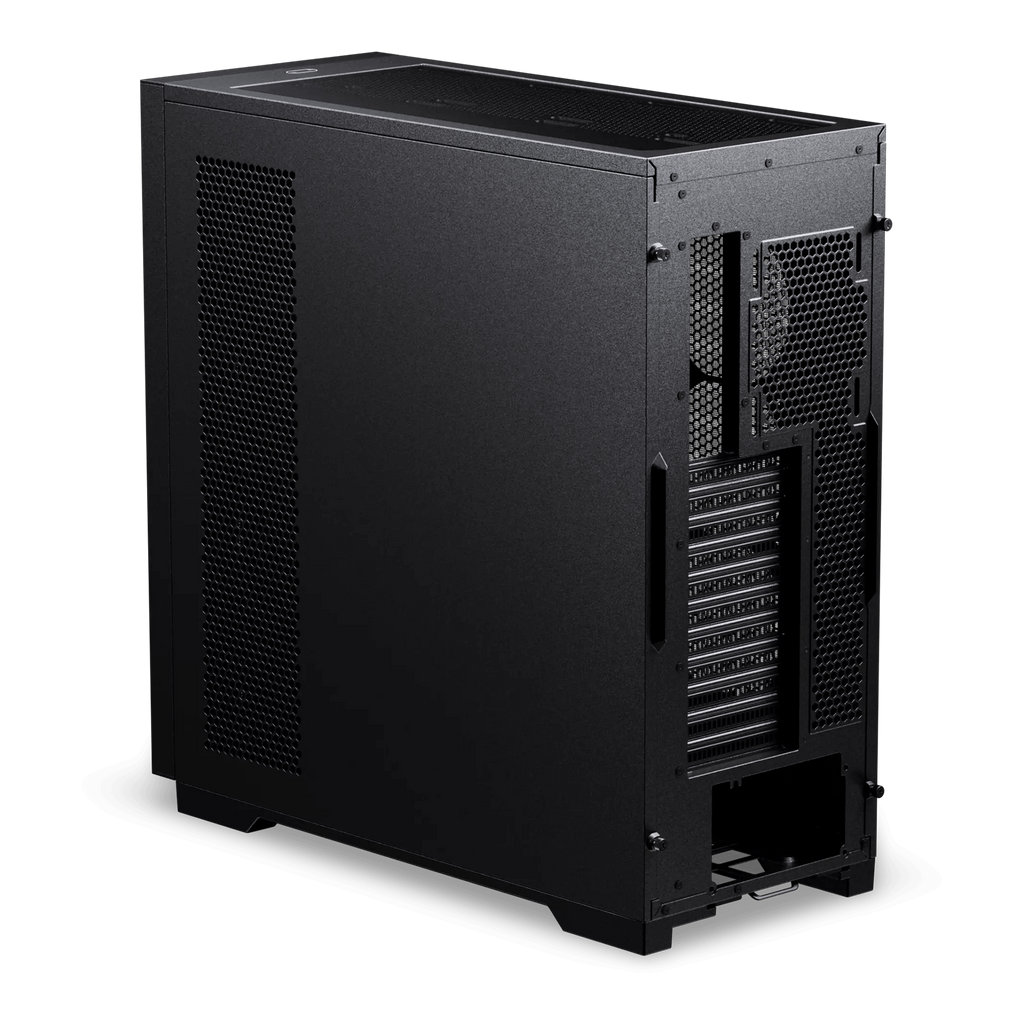

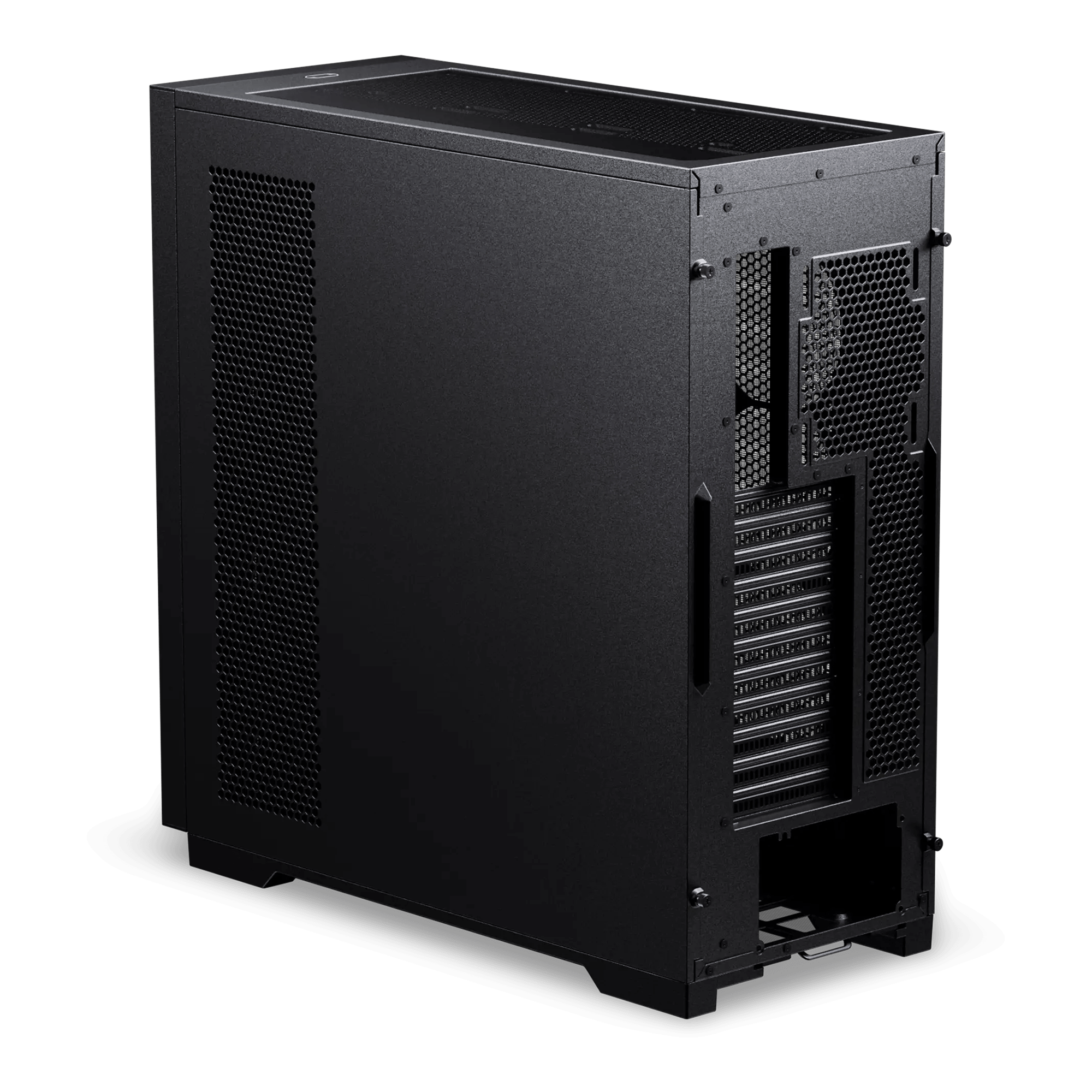

  • 11 Expansion Slots: Equipped with 11 PCI slots in the rear to house multi-GPU computational configurations, capture cards, or network interface add-ons.

  • Extreme Thermal Capacity: Extensive fan and radiator mounting points across the front, top, side, and rear accommodate elaborate air or custom liquid cooling loops.

  • High-Density Storage: Accommodates extensive array options for 3.5" HDDs and 2.5" SSDs, making it ideal for NAS setups and data-heavy storage servers.

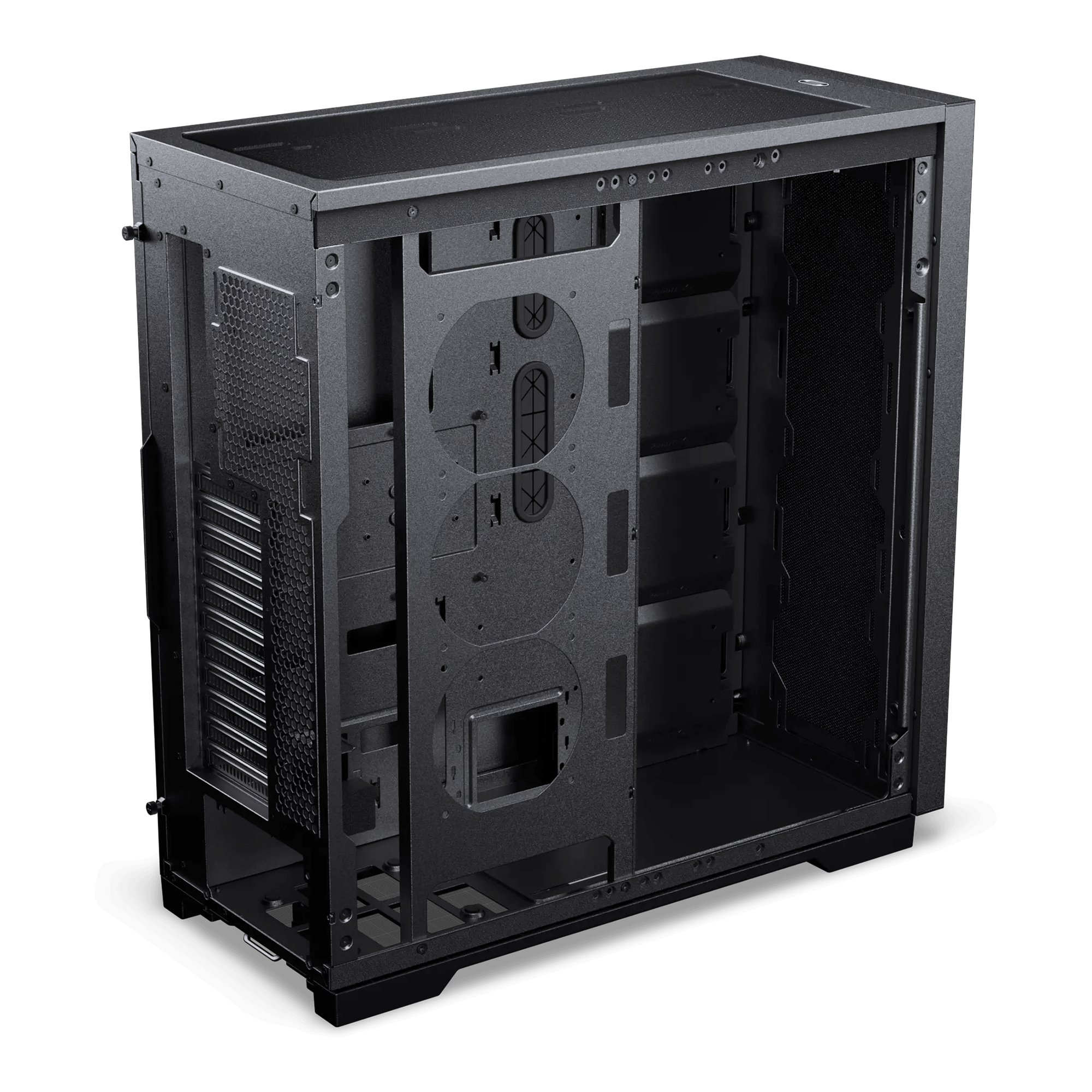

SERVER-GRADE HARDWARE SUPPORT

  • Compatible with high-performance server-grade platforms and enterprise hardware.
  • Hybrid support for consumer and professional components to optimize performance per cost.
  • Designed for scalable, cost-effective server deployments.

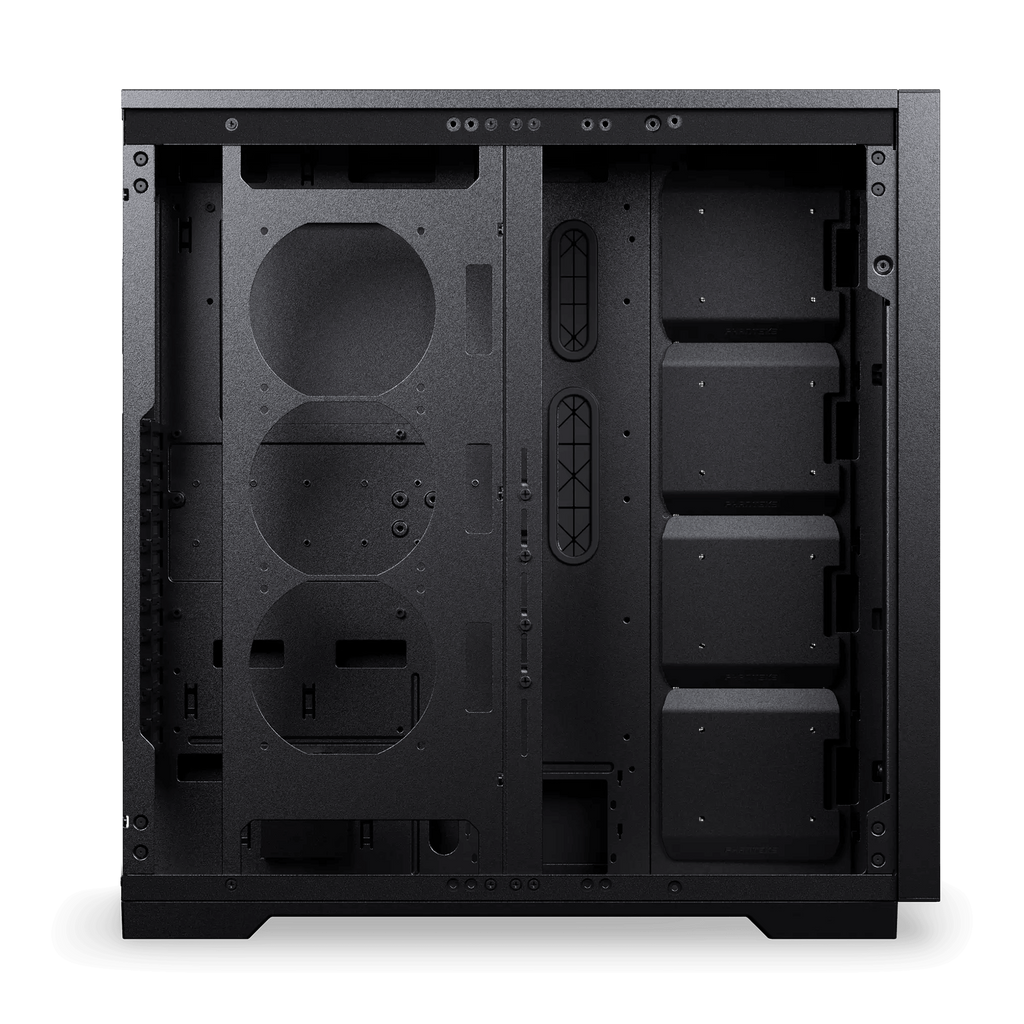

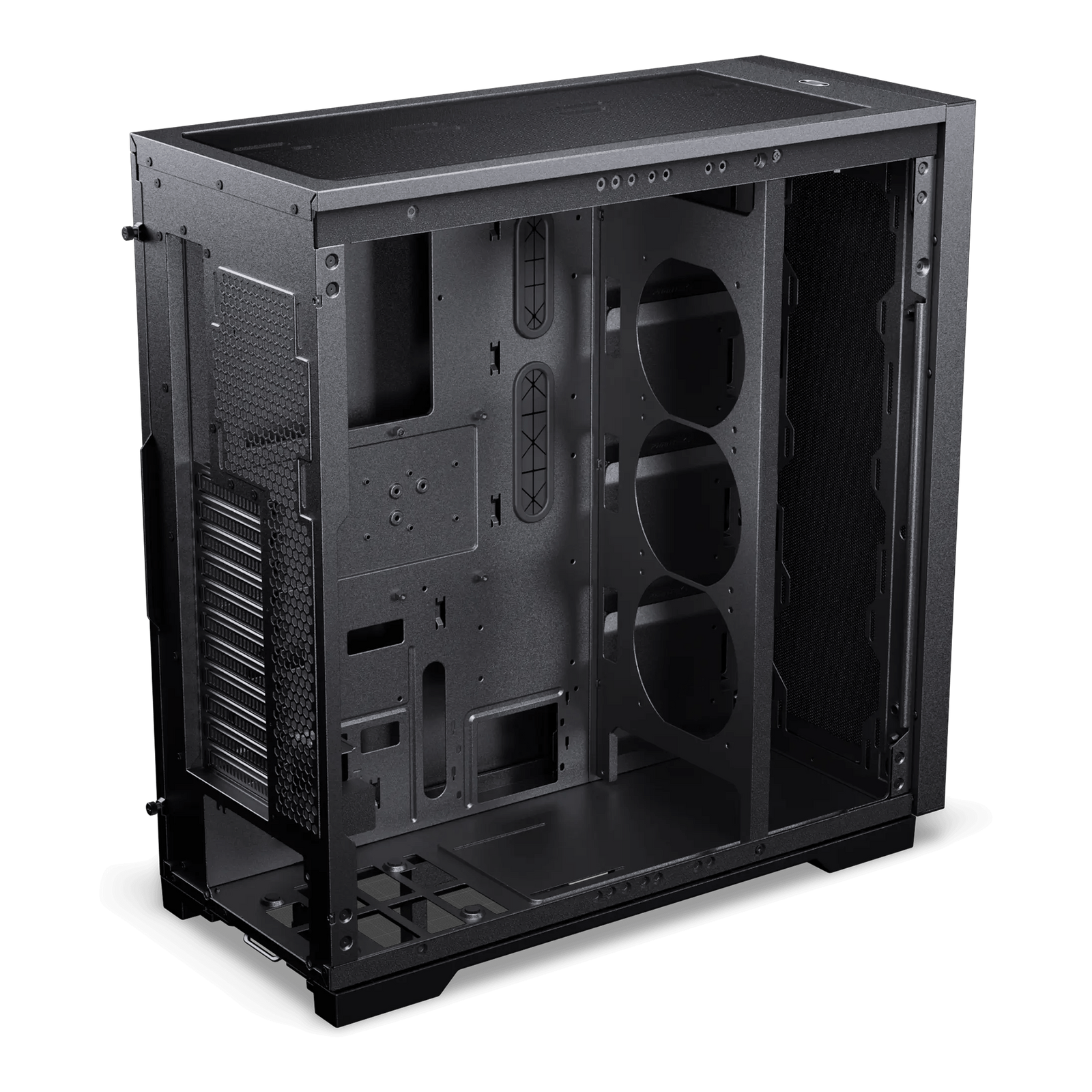

  • Highly adaptable chassis layout to support complex cooling and storage configurations.

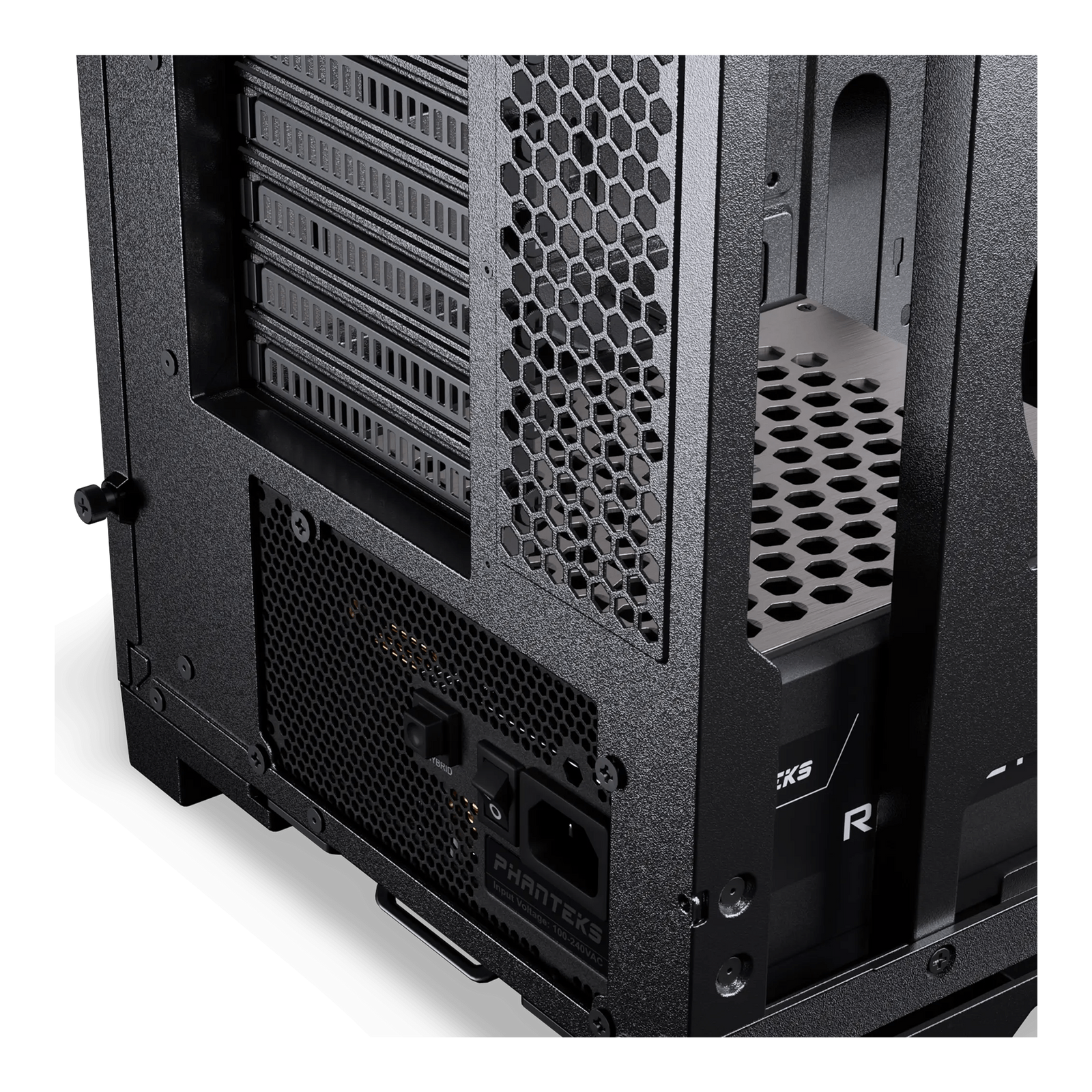

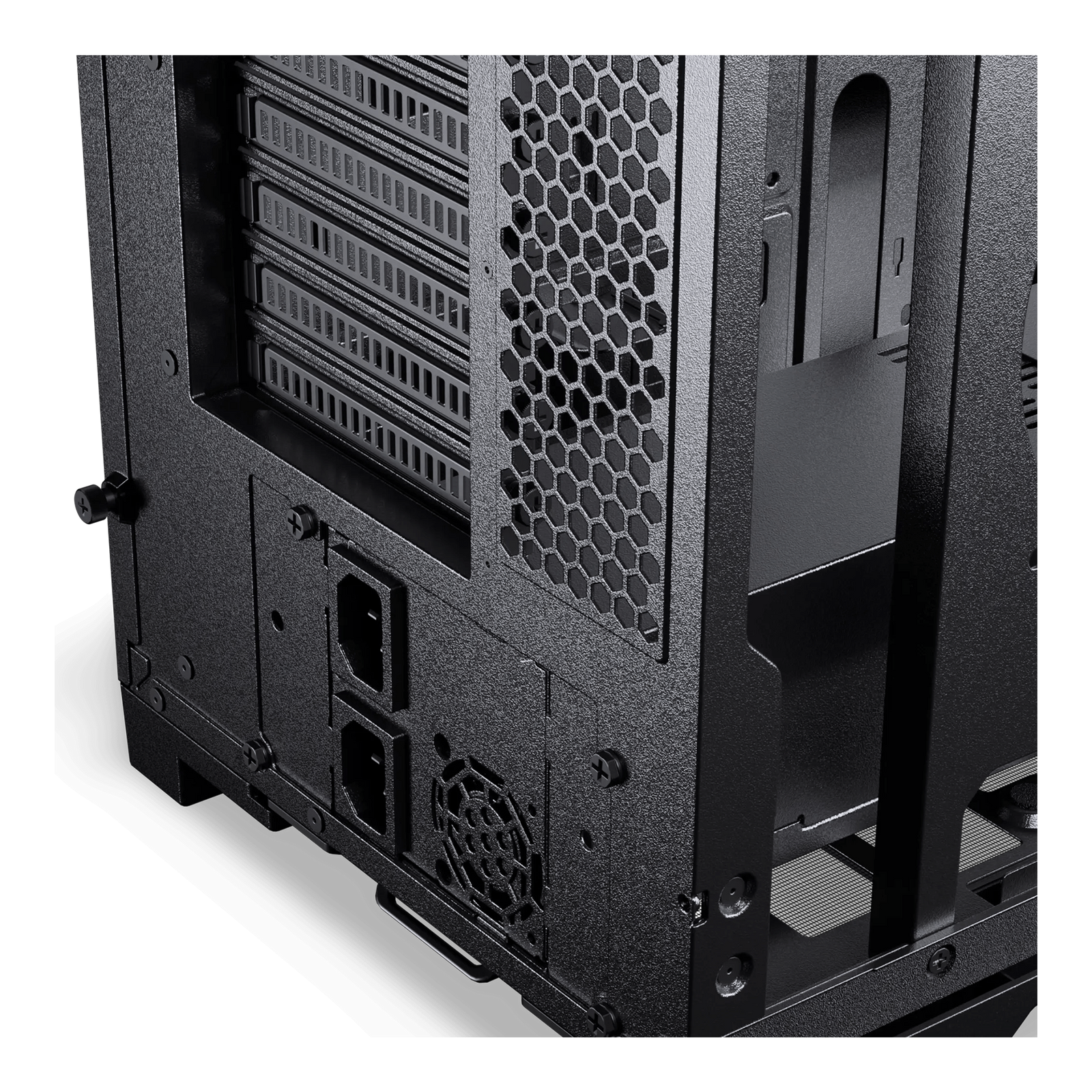

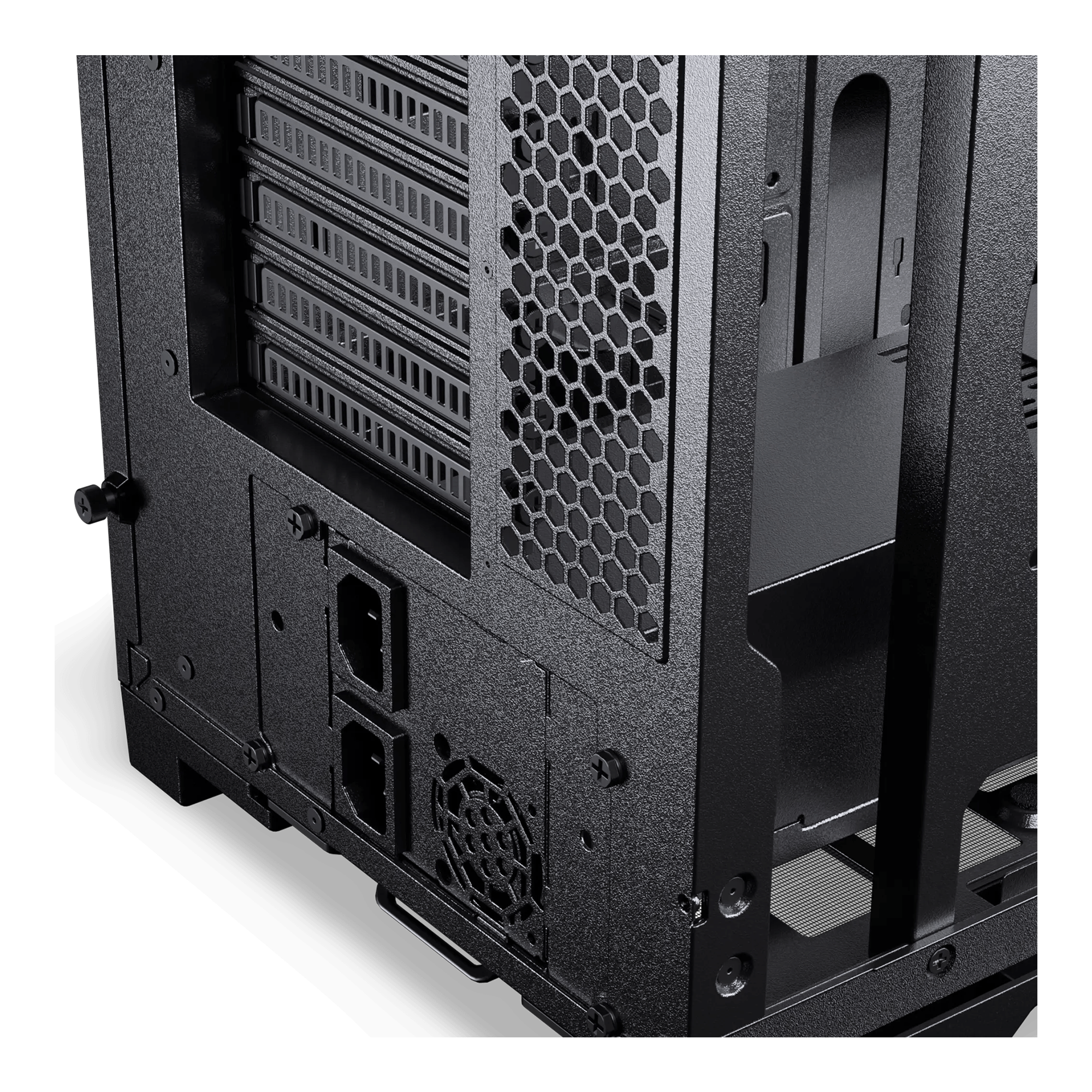

FLEXIBLE POWER SUPPLY SUPPORT

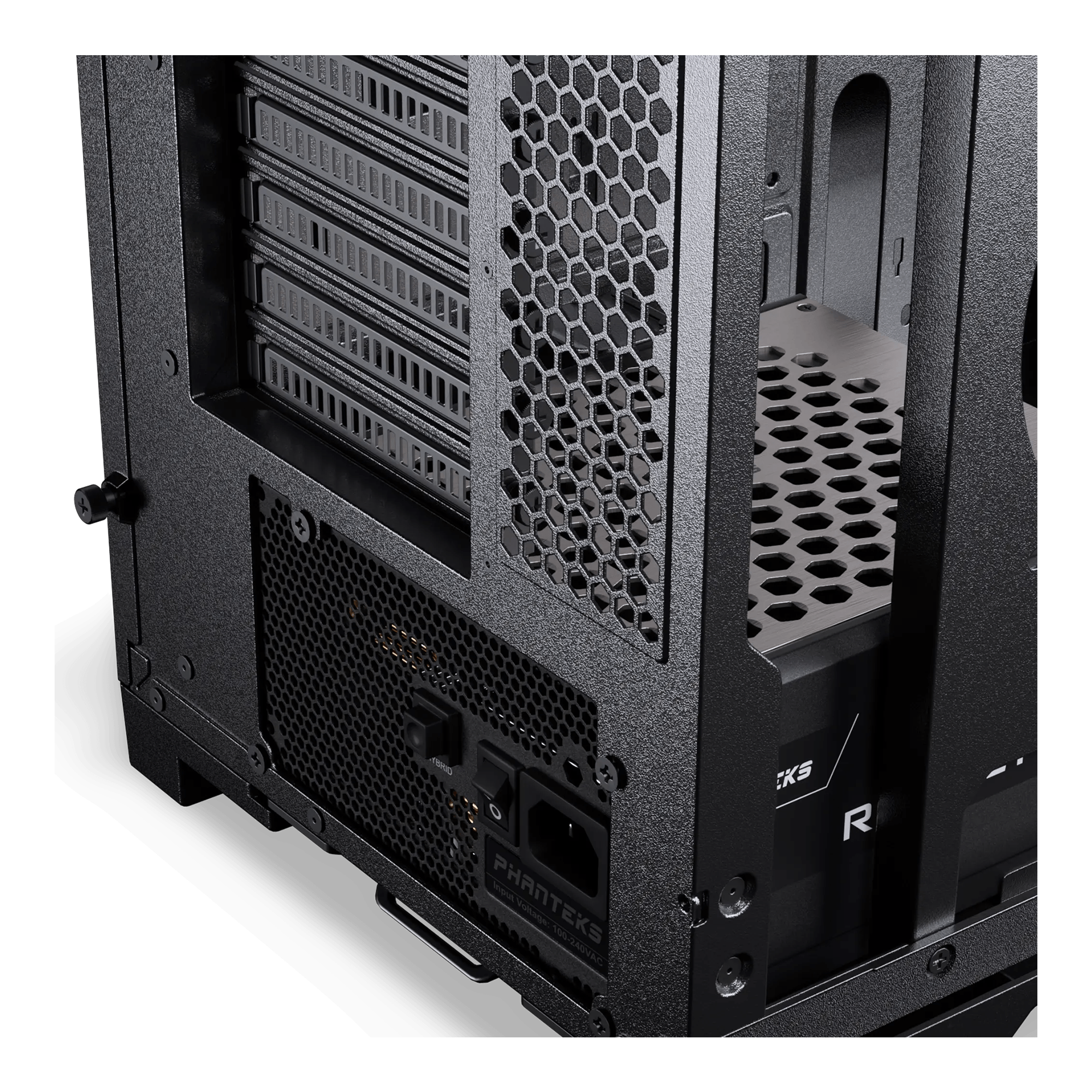

  • Supports both standard ATX and server-grade power supplies.
  • Dedicated mounting positions ensure a secure and clean installation.
  • Designed for high-power and professional system configurations.

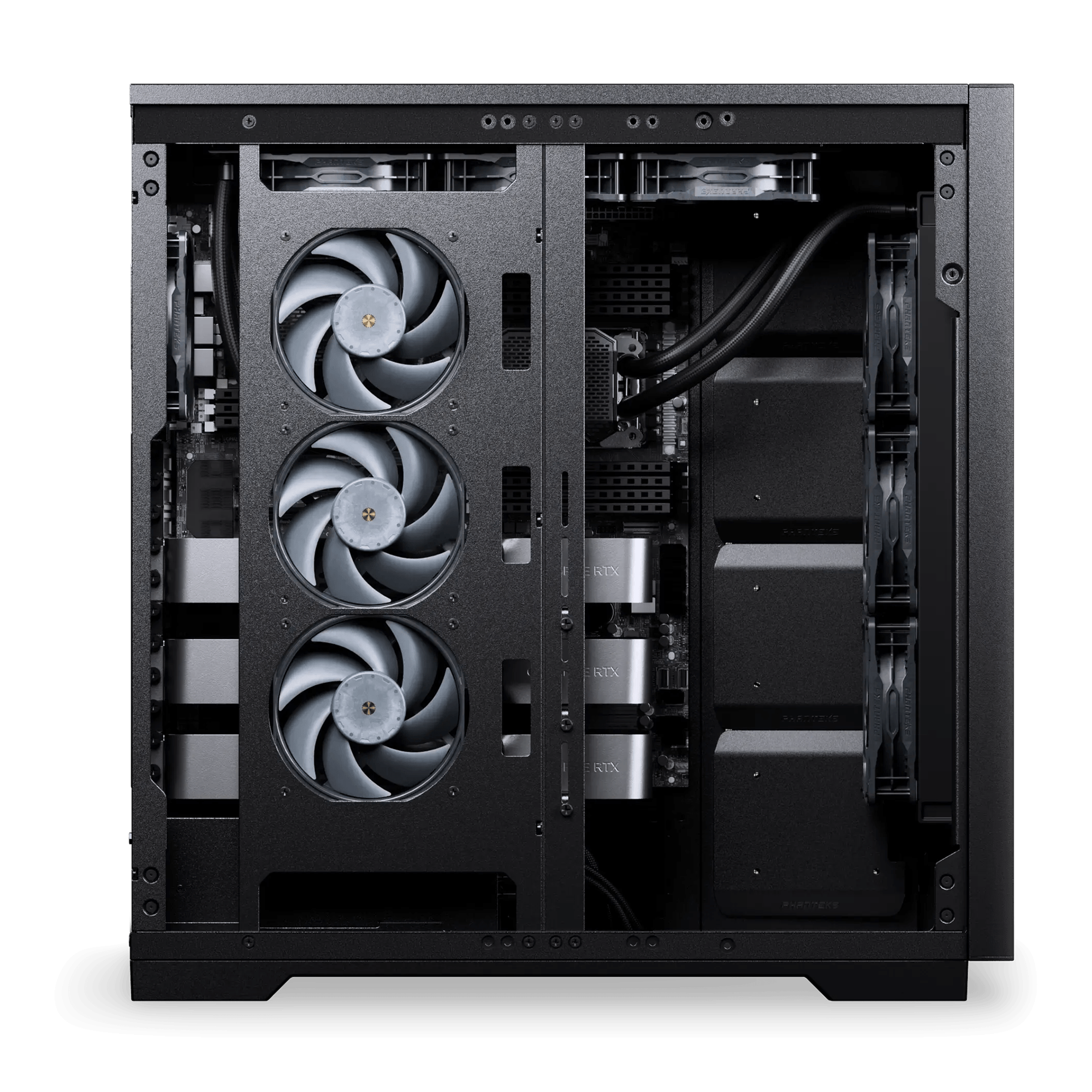

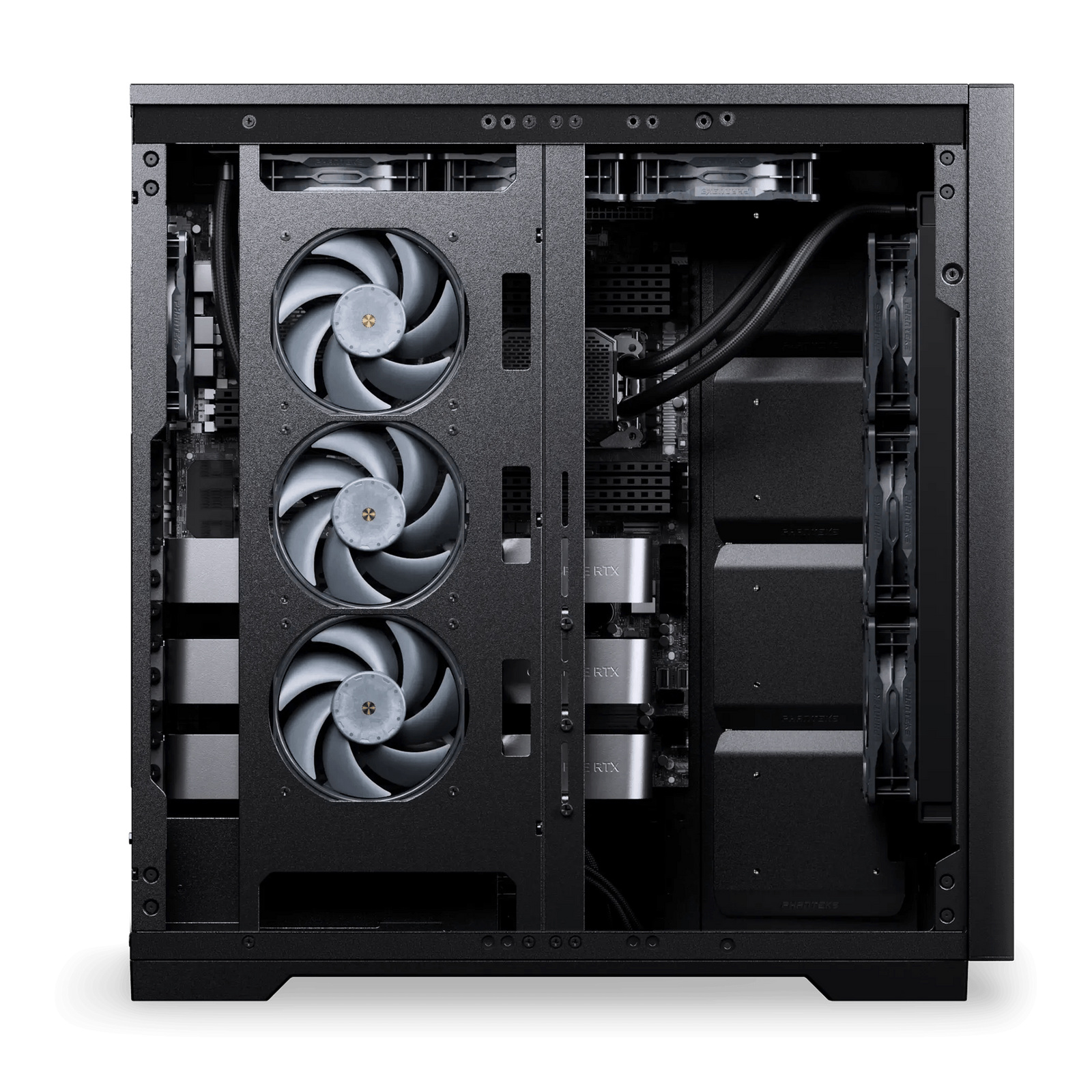

ADDITIONAL FAN BRACKET

  • To keep the components cool, an extra side fan bracket is added.
  • Left-side fan bracket for direct GPU and CPU cooling.
  • 3x 120 fans can be installed on this bracket.
  • Up to 15 fans can be installed in total.

STORAGE CAPACITY

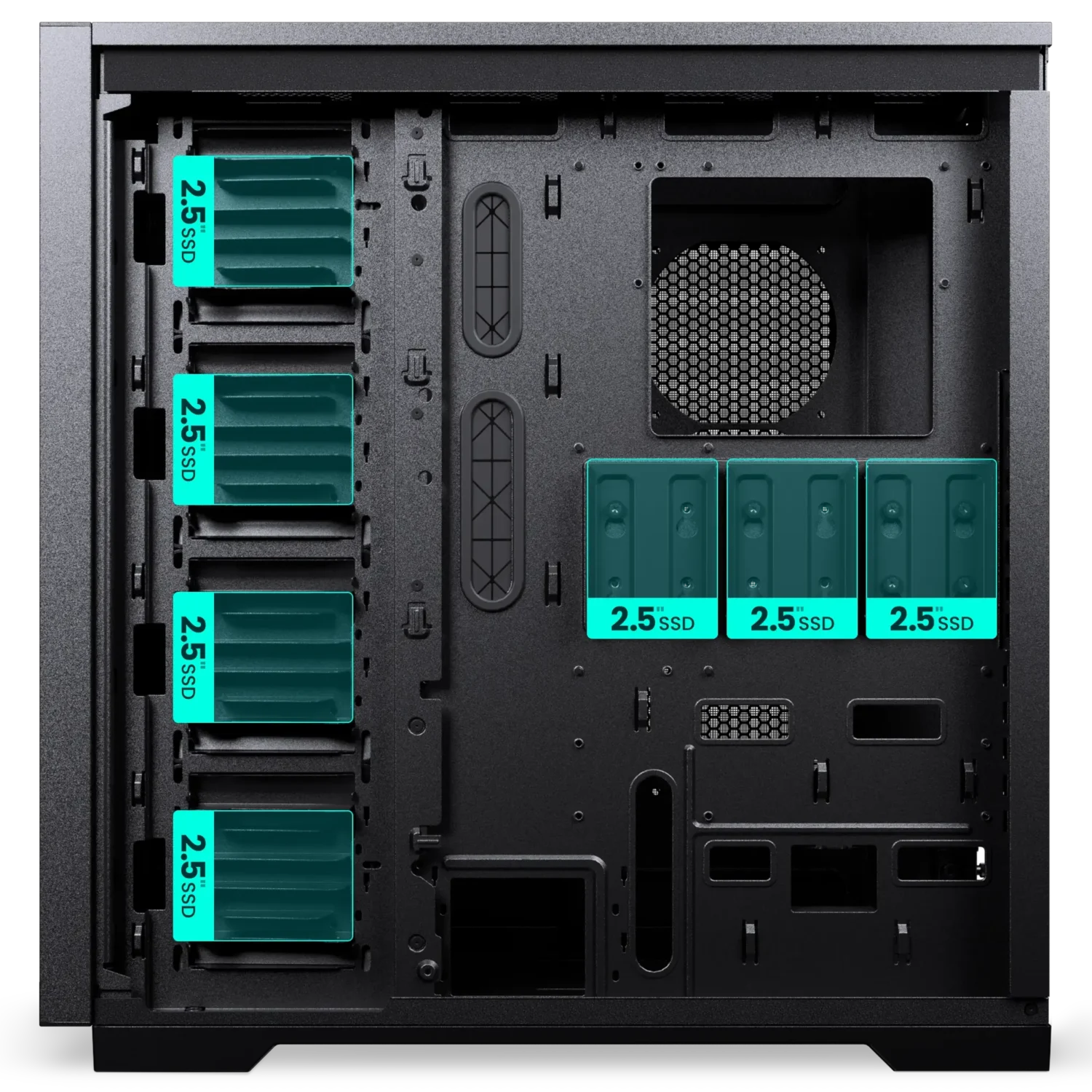

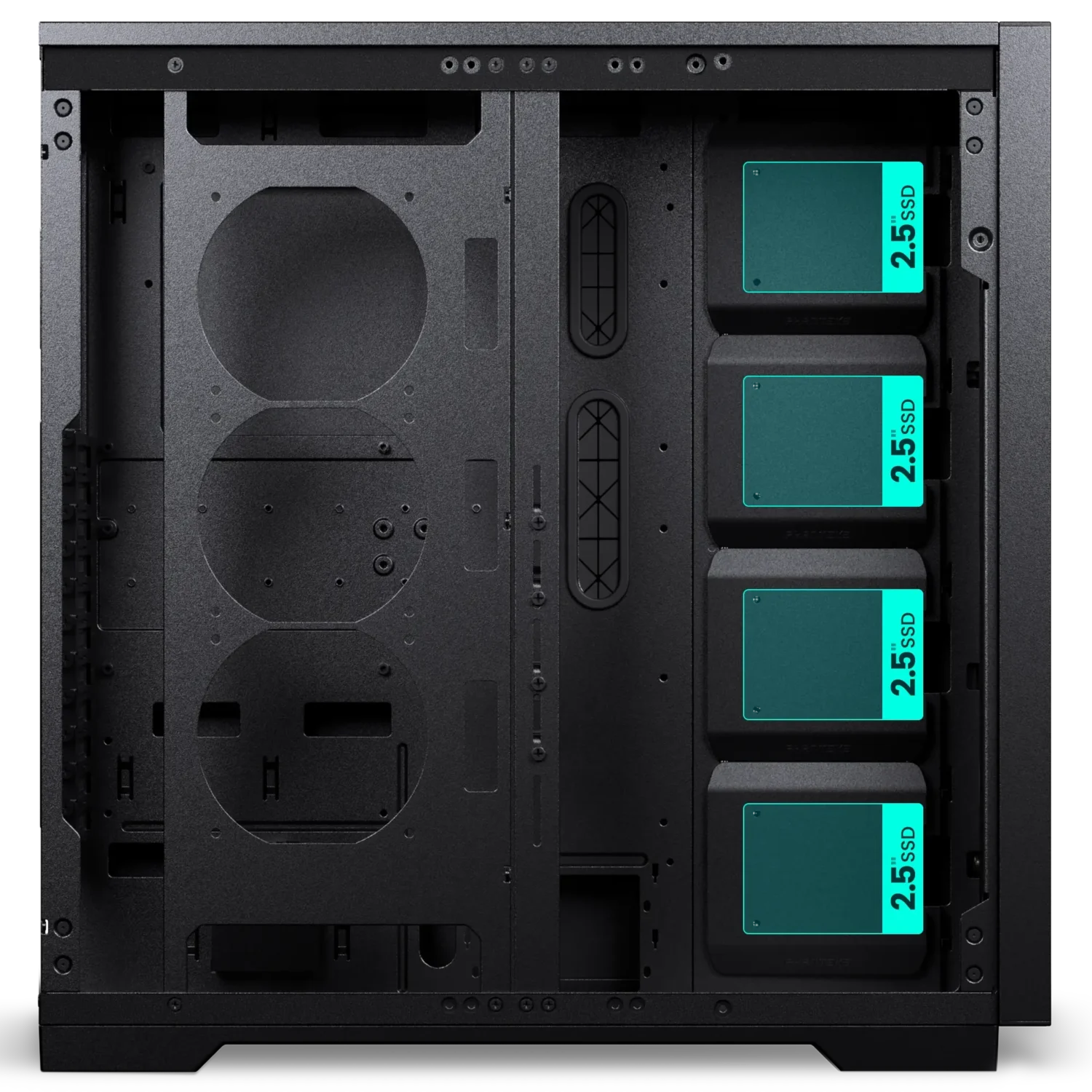

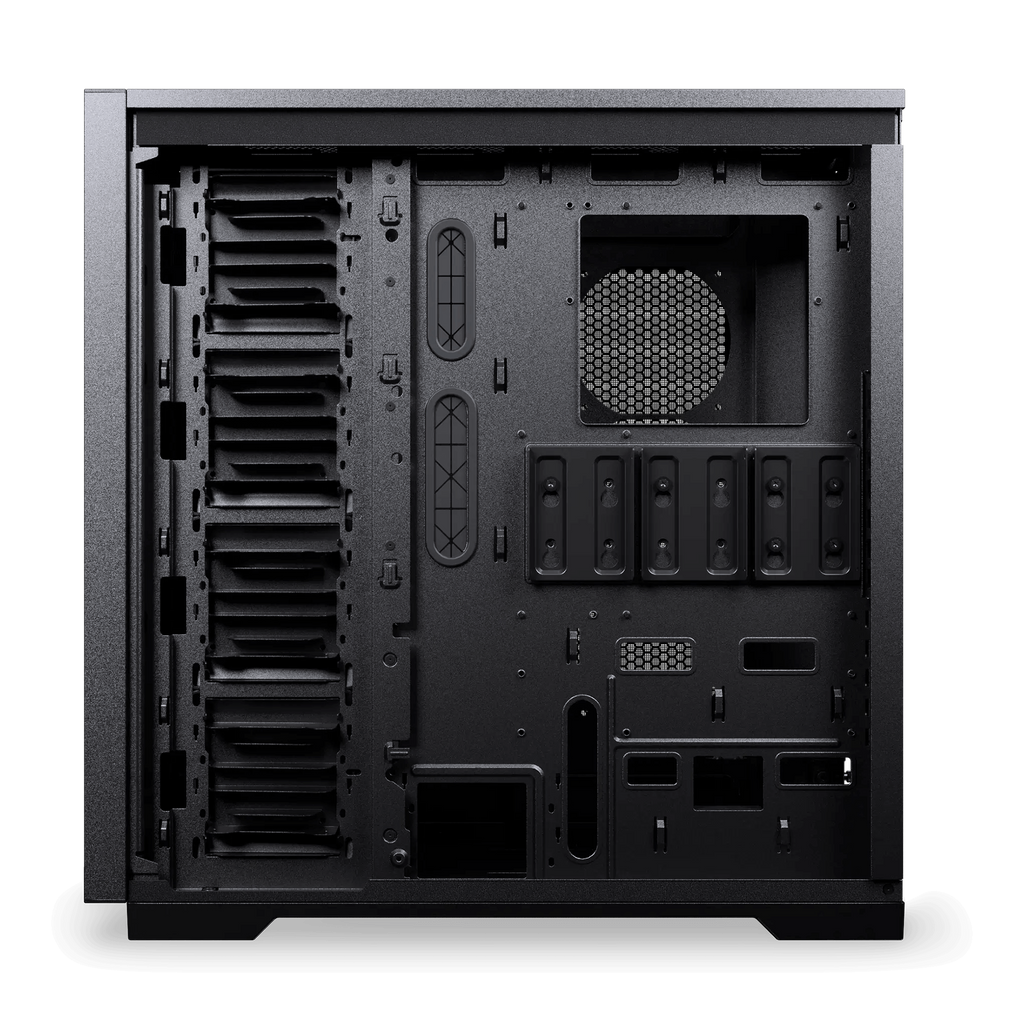

  • Side Storage Bracket - Supports 11x 2.5″ SSD drives.
  • 2x 4-pin PWM Fan Hubs Included

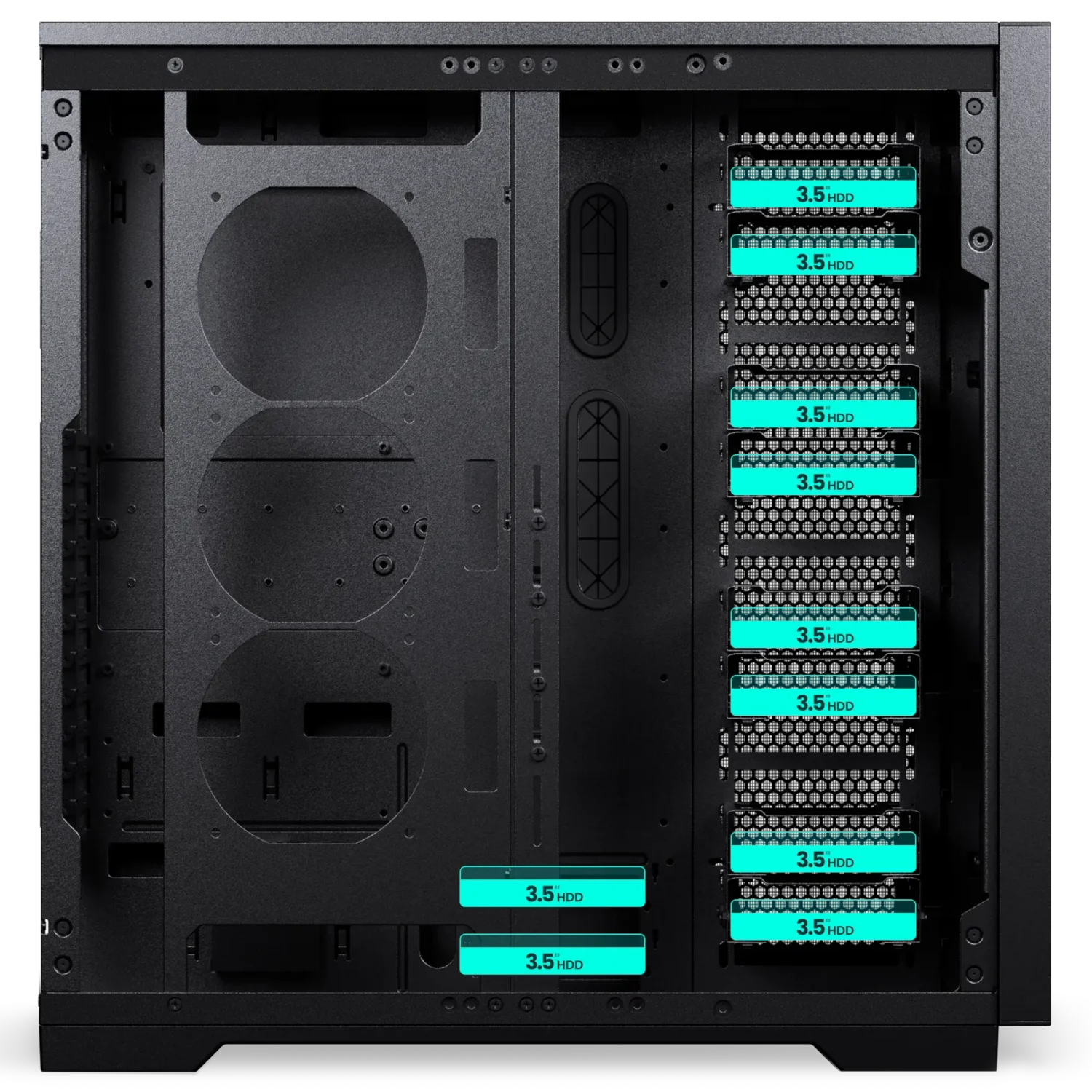

  • Bottom Storage Bracket - Supports 10x 3.5” HDD drives
  • 2x HDD brackets included

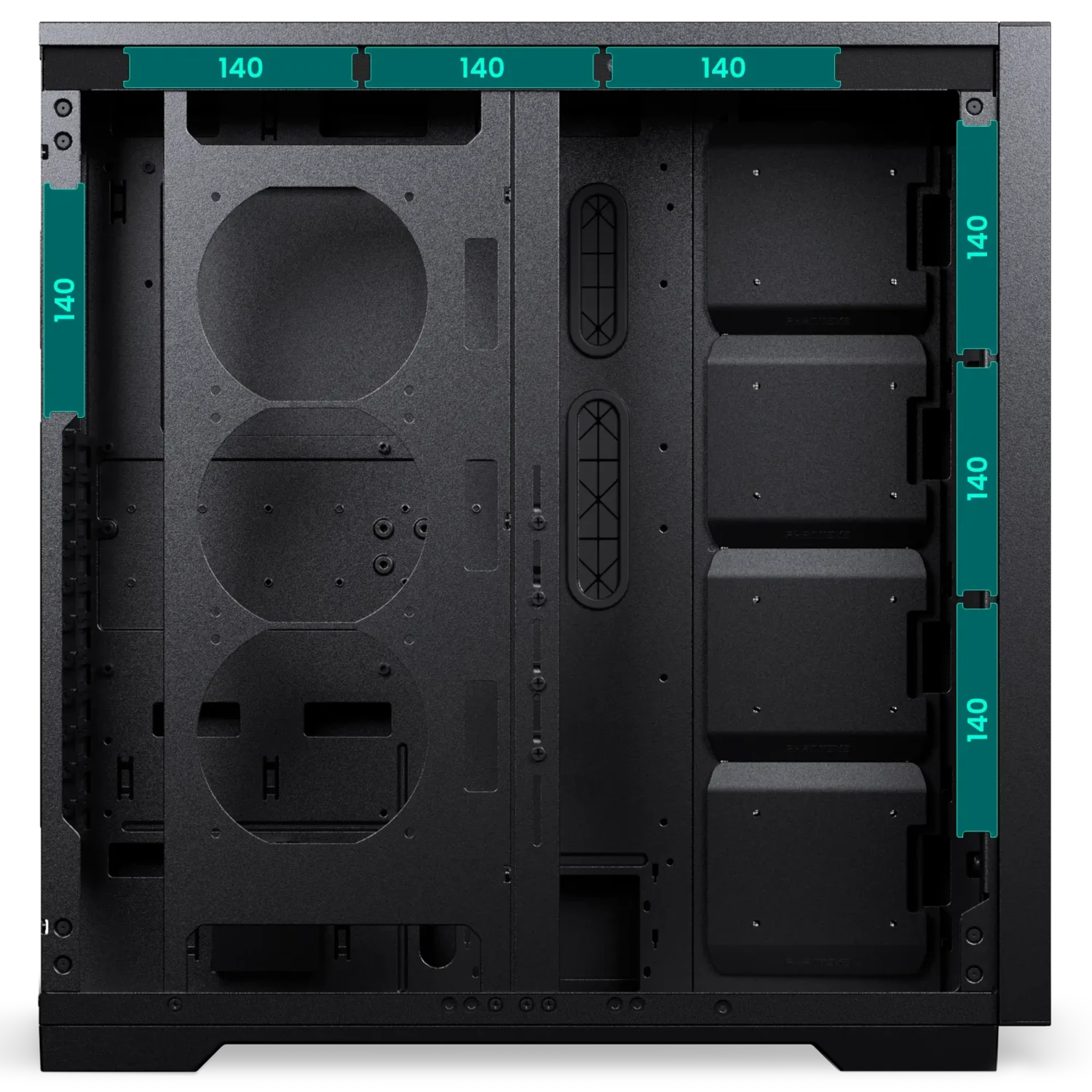

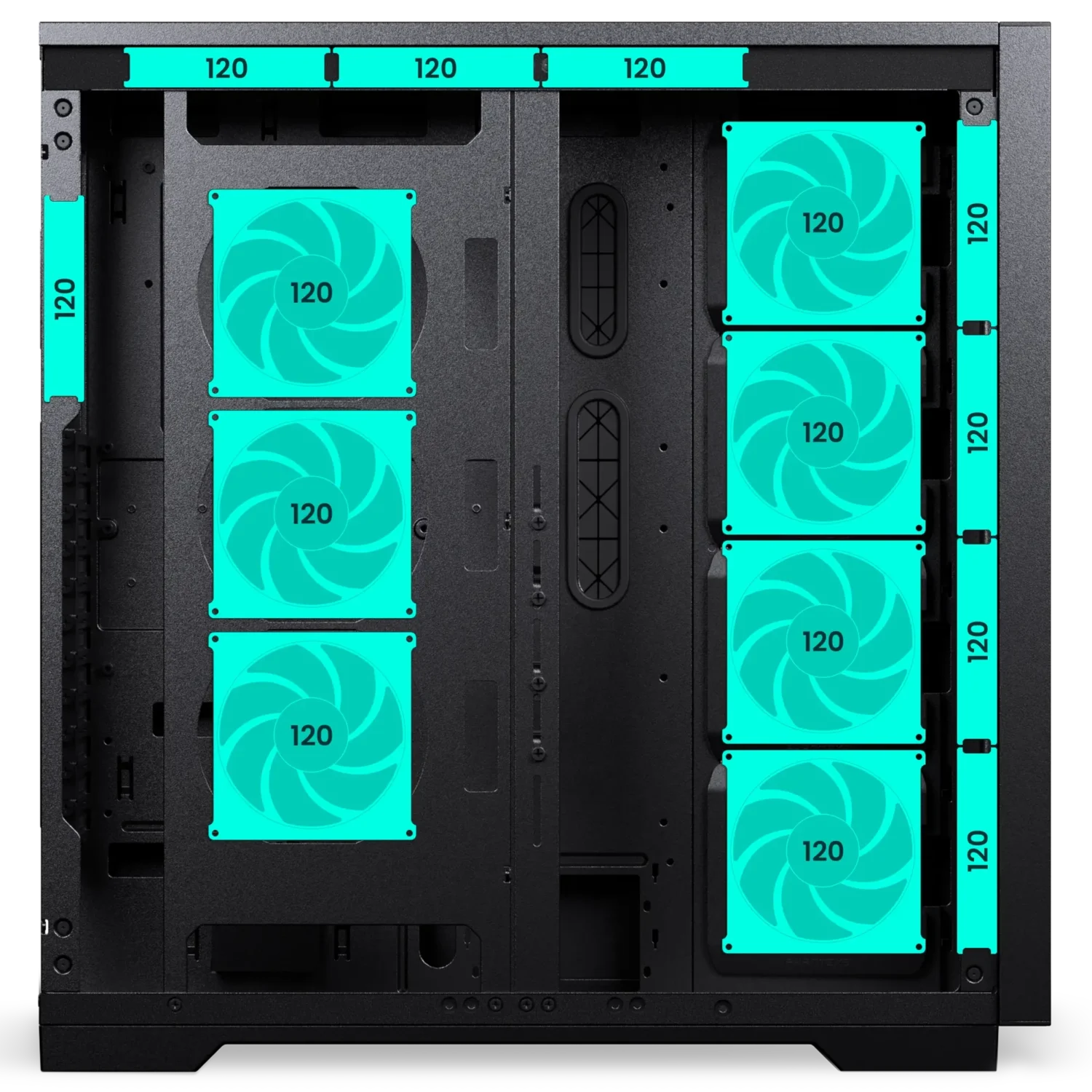

FAN POSITIONS

  • 120mm - Top: 3x | Front: 4x | Side: 4x | Rear: 1x | Side Bracket: 3x
  • 140mm - Top: 3x | Front: 3x | Rear: 1x

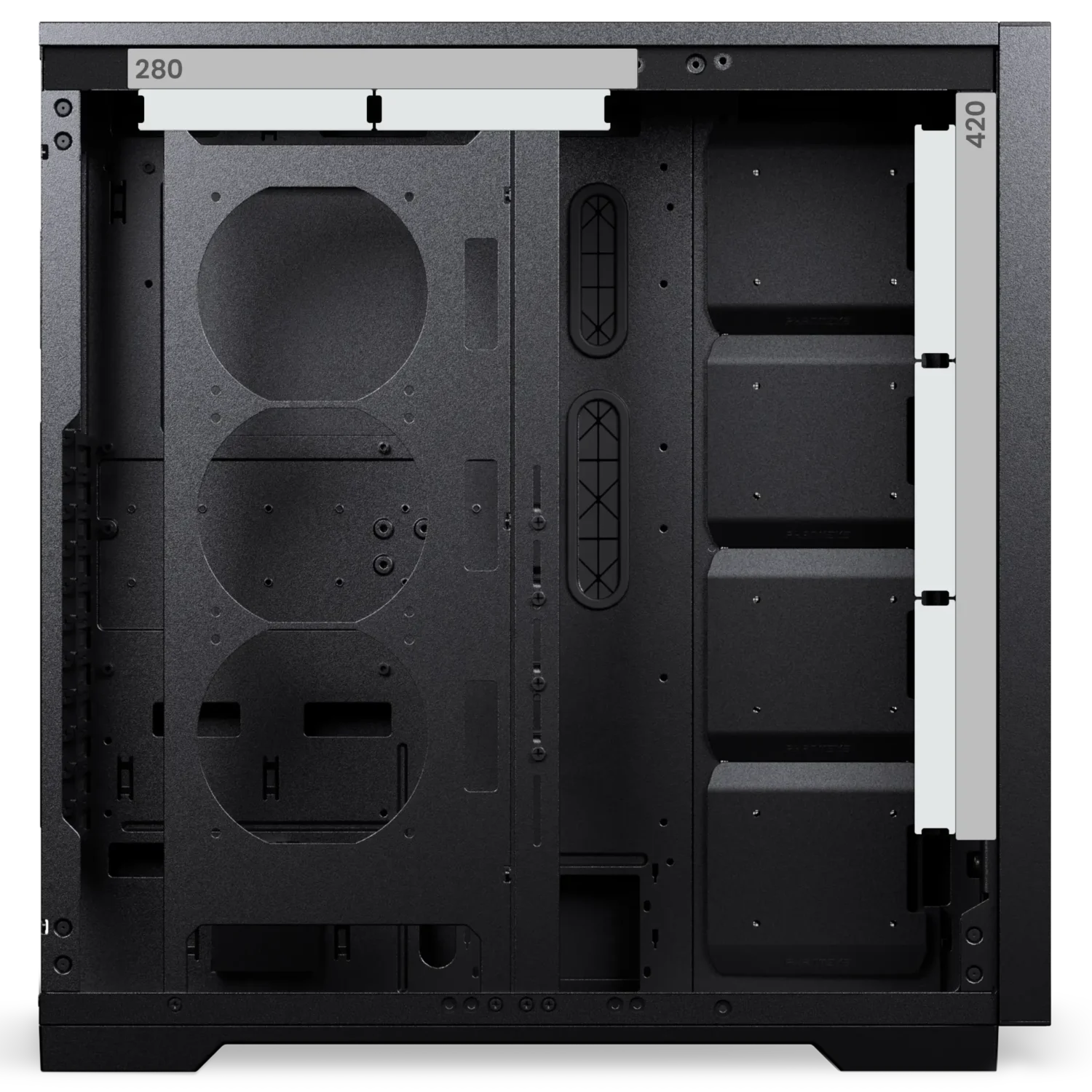

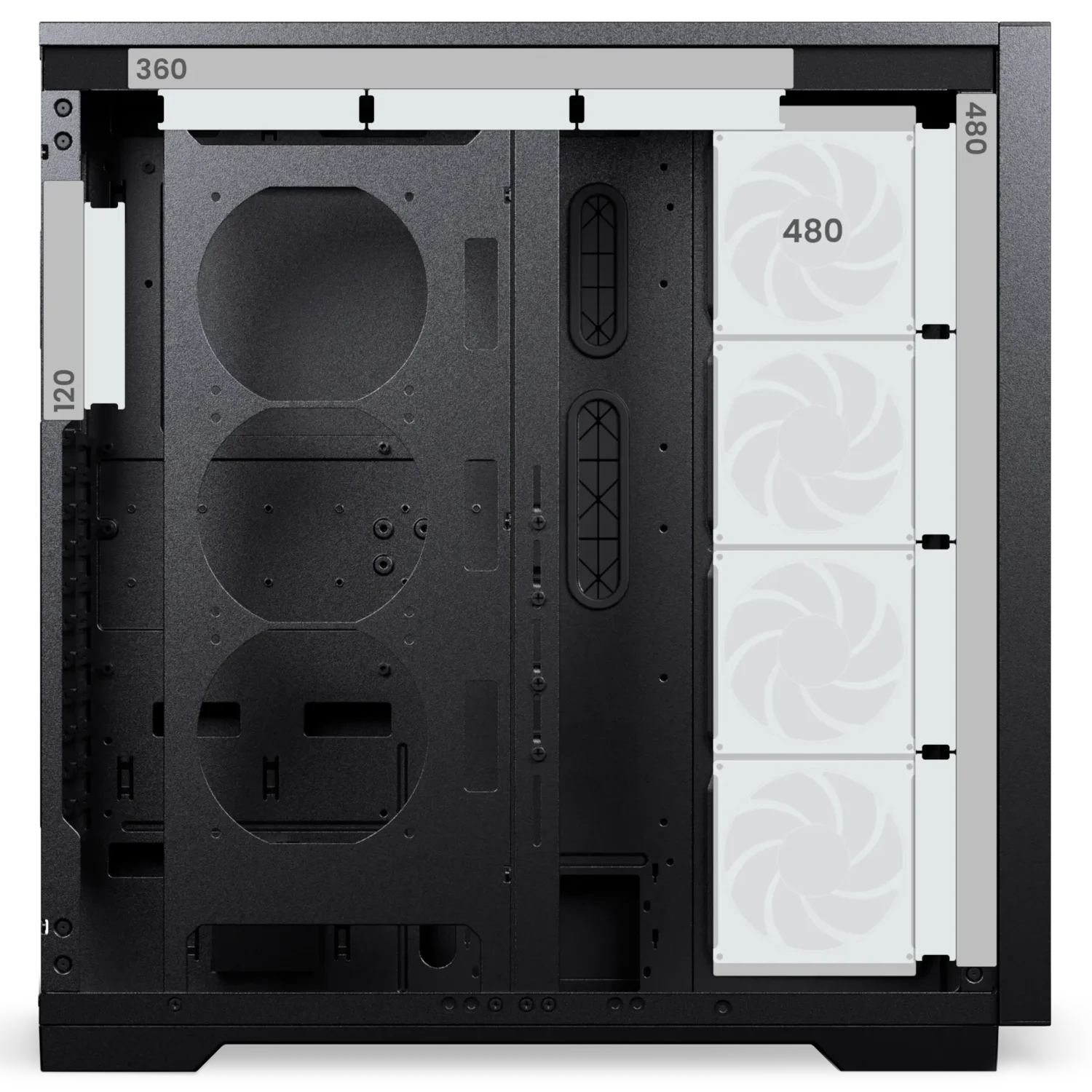

RADIATOR POSITIONS

  • Top: 360/280 (up to 55mm height) | Front: 480/420 | Rear: 120 | Side Bracket: 480

SPECIFICATIONS

MODEL
PH-ES620PC_BK03
COLOR
Black
UPC CODE
886523304173
CASE DIMENSIONS
570 x 240 x 550 mm | 22.44 x 9.44 x 21.65 in
FORM FACTOR
Full-Tower
MAINBOARD SUPPORT
SSI-EEB | XL-ATX | E-ATX | ATX | Micro-ATX | Mini-ITX
MATERIALS
Steel chassis | ABS plastic | Aluminum
EXPANSION SLOTS
11
VERTICAL GPU SUPPORT
Yes (Riser cable & bracket sold separately)
INTERNAL 2.5″ POSITIONS
11+ 2x 3.5″ HDD
INTERNAL 3.5″ POSITIONS
10+ 3x 2.5″ SSD

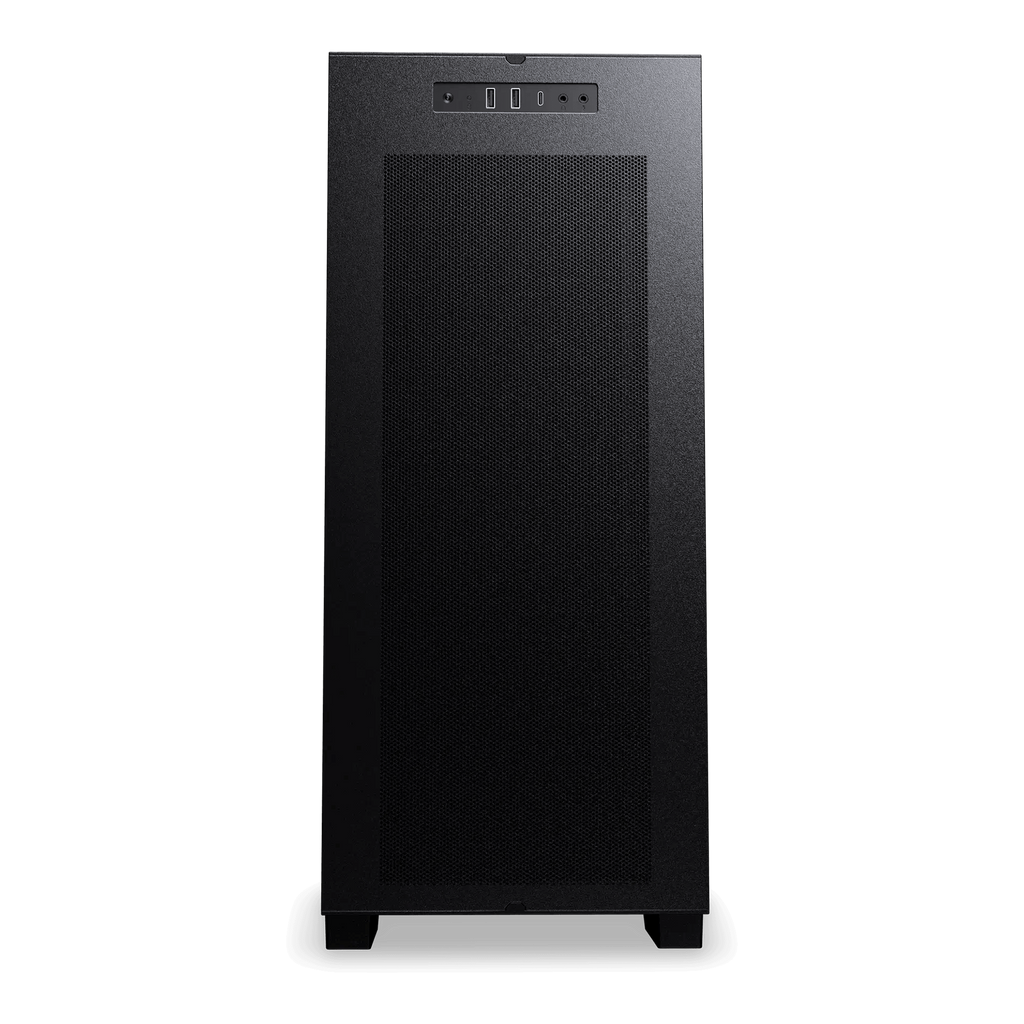

FRONT I/O
2x USB 3.0 | 1x USB-C 3.2 Gen2x2 | 1x Microphone/Headphone combo | Power button | Reset button
TOTAL FANS (120 | 140)
15 | 6
120mm
TOP: 3 | FRONT: 4 | SIDE: 4 | FAN BRACKET: 3 | REAR: 1
140mm
TOP: 3 | FRONT: 3
120mm
Top: Max 360 | Front: Max 480 | Side: Max 480 | Rear: Max 120
140mm
Front: Max 420
CPU COOLER
195 mm | 7.67 in (height)
TOP RADIATOR (LxWxH)
475 x 120 x 55 mm | 18.70 x 4.72 x 2.16 in
SIDE RADIATOR (LxWxH)
525 x 134 x 35 mm | 20.66 x 5.27 x 1.37 in On the right side of chassis
NET WEIGHT
11.32 kg | 24.95 lbs
GROSS WEIGHT
13.14 kg | 28.96 lbs
WARRANTY
5 Years Limited
SCOPE OF DELIVERY
1x Enthoo Pro 2 Server V2 chassis | 3x SSD bracket Pre-installed | 4x SSD cover Pre-installed
ACCESSORY BOX
4x Stackable HDD bracket | 4x GPU support bracket | 1x Left side fan bracket | 1x Server PSU bracket | 6x Zip ties | 1x Stand-off removal tool
SCREWS
38x Mainboard | SSD screws | 7x Power supply screws | 7x Fan screws | 10x Thumb screws | 16x HDD screws | 1x Mainboard stand-off
