$229.99

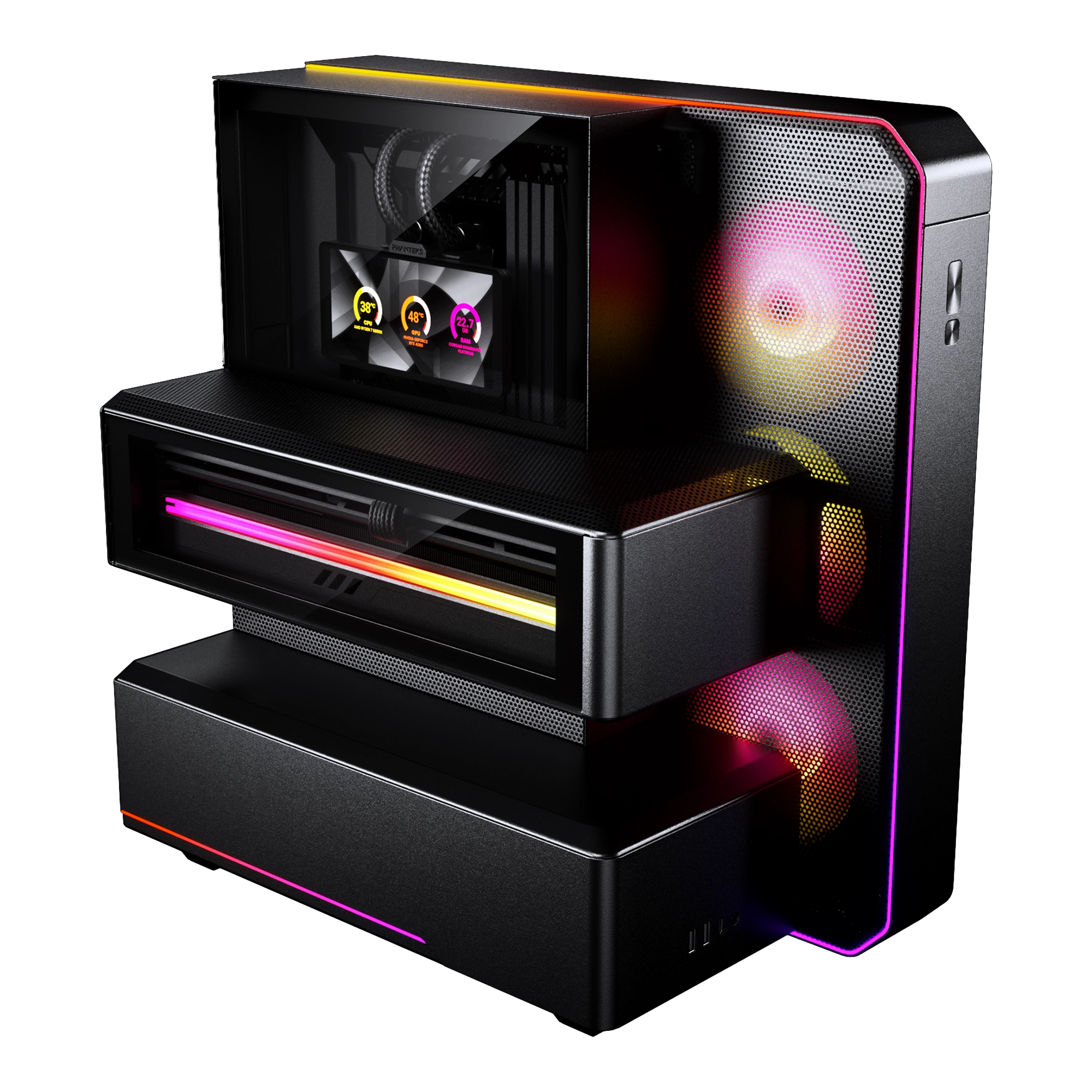

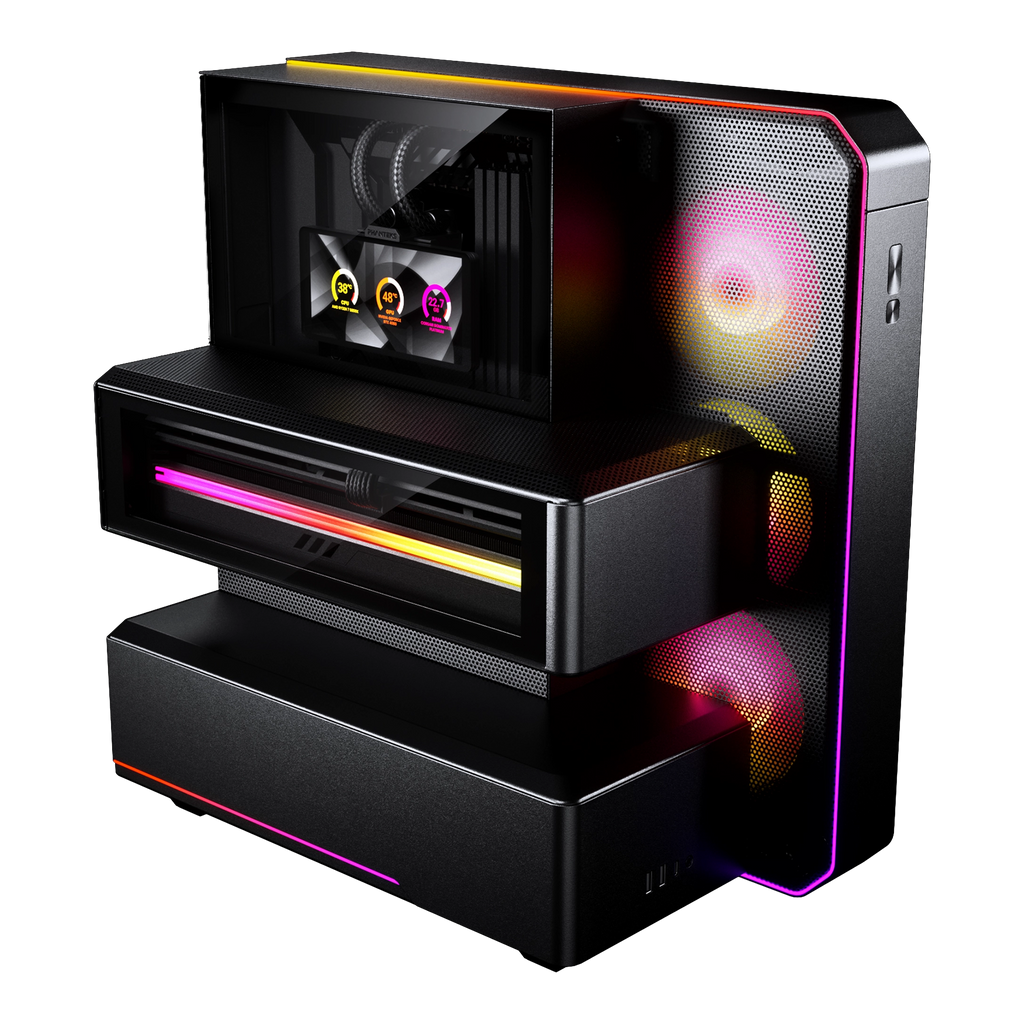

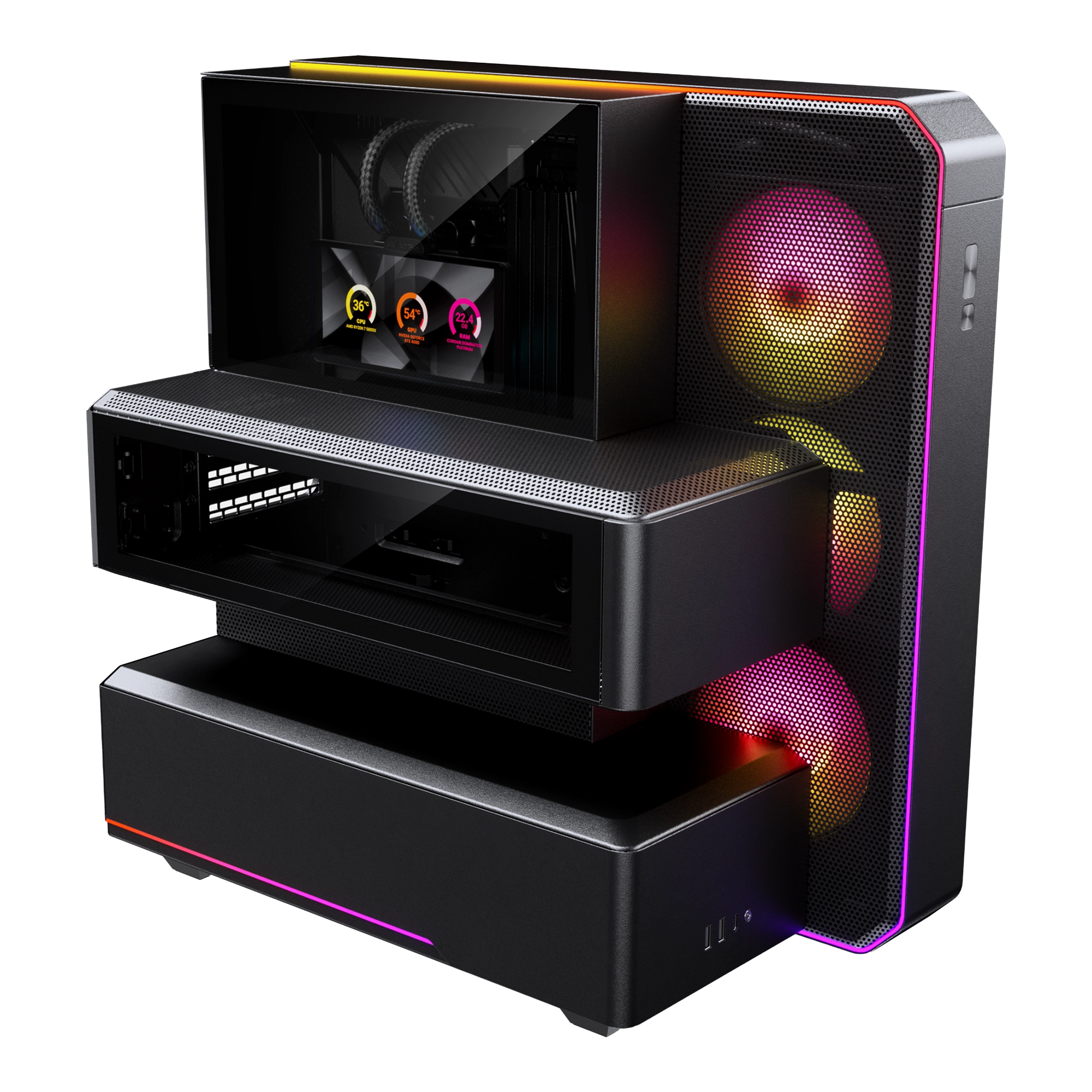

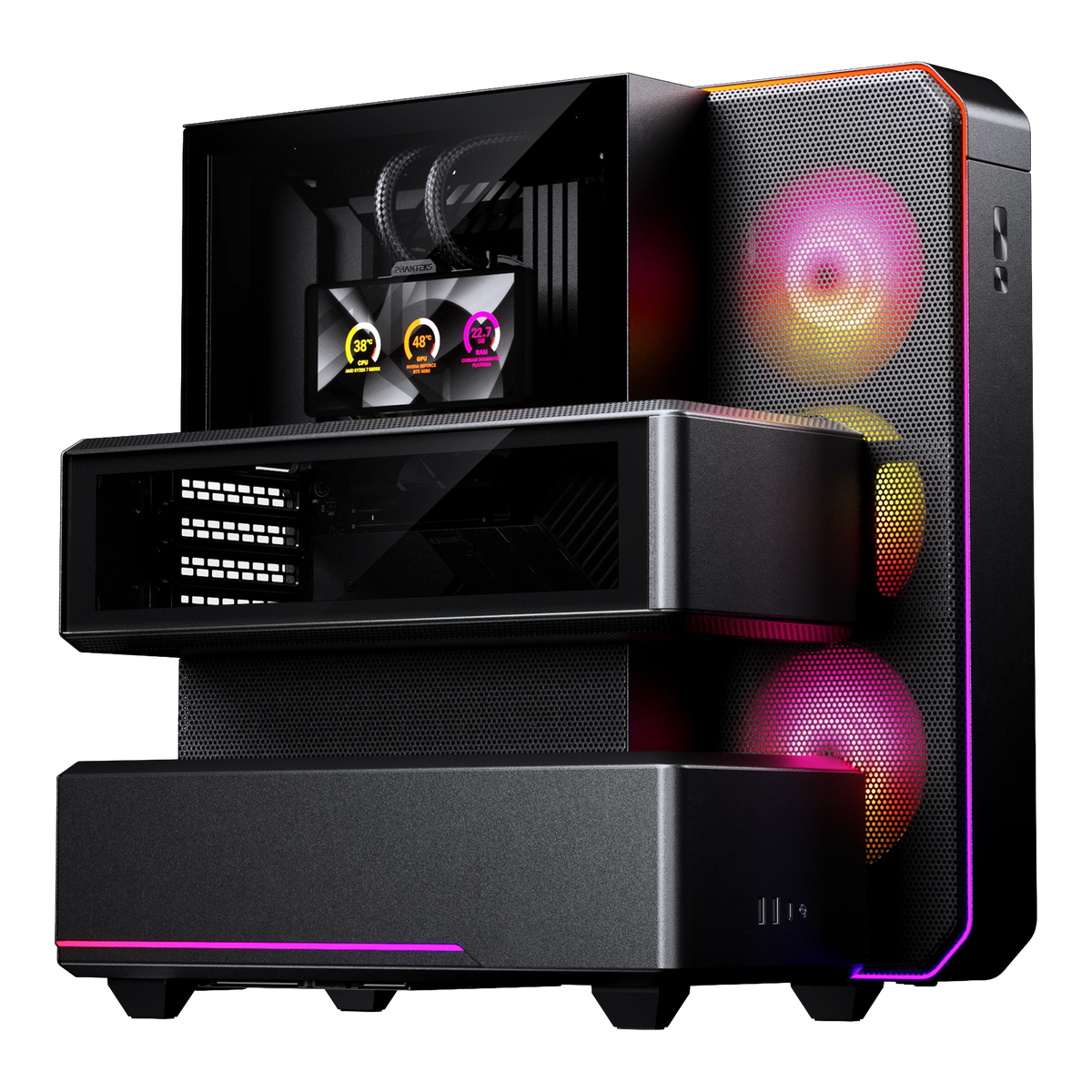

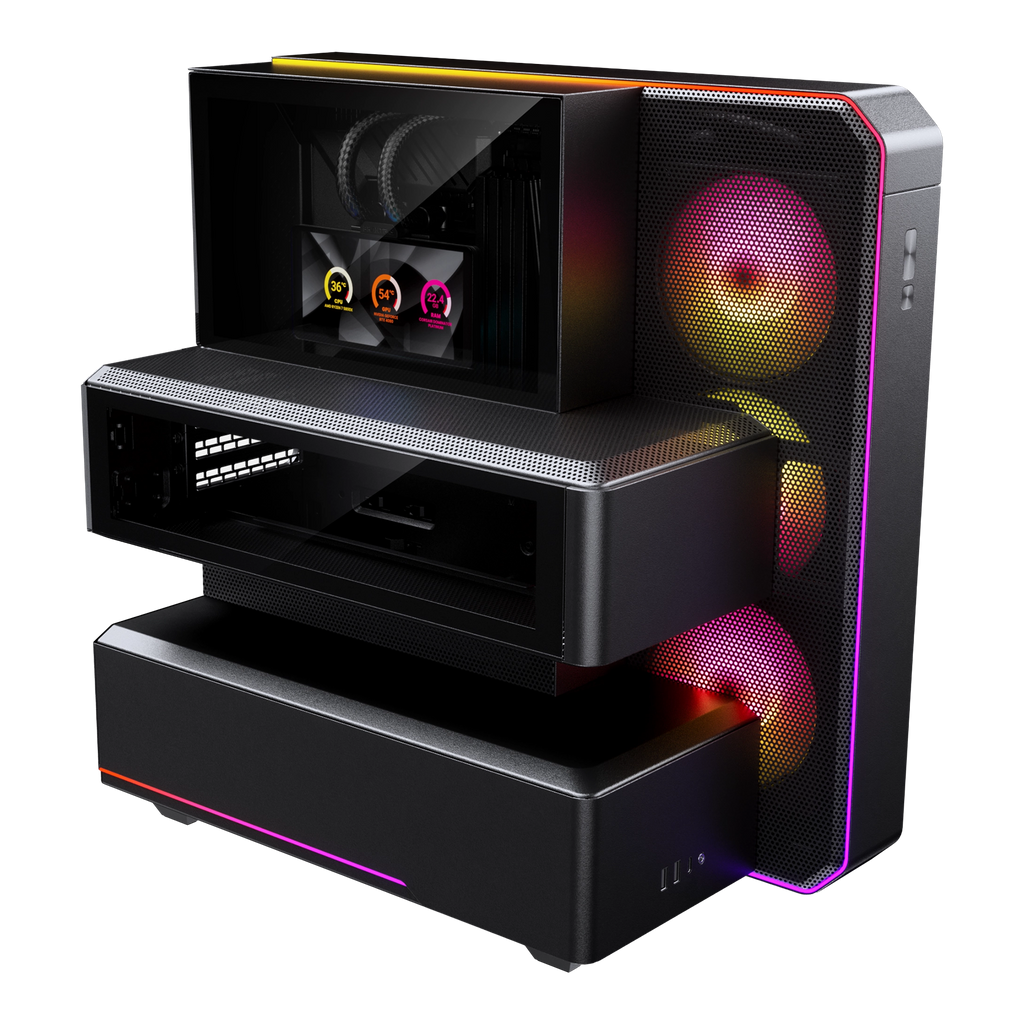

Redefine your desk setup with the Phanteks EX5 MAX, the flagship chassis engineered for custom showcase builds. Moving away from conventional boxy cases, the EX5 MAX pairs an innovative compartmentalized thermal layout with a pre-installed AIO liquid cooler and an integrated display right behind the tempered glass panel.

Built-In Intelligence & Liquid Cooling The centerpiece of the EX5 MAX is its pre-installed 6-inch display mounted inside the glass side panel. Powered by lightweight Nexlinq software, it renders real-time thermal telemetry, hardware stats, or personalized graphics without consuming valuable CPU overhead. To streamline your build, the EX5 MAX comes equipped with an integrated custom AIO liquid cooler optimized around a dedicated 360mm radiator compartment.

Strategic Thermal Architecture By separating hardware into dedicated thermal zones, the EX5 MAX delivers direct fresh air to critical components, maximizing cooling efficiency with fewer fans. A strategically placed fan behind the motherboard tray actively cools the VRM and RAM while pulling GPU exhaust away from the mainboard.

Highlights

  • Generous GPU Clearance: Easily fits high-performance graphics cards up to 358mm in length.

  • Integrated Anti-Sag Support: Built-in GPU bracket keeps heavy graphics cards level and secure during transport.

  • Next-Gen Connectivity: Features an ultra-fast front USB Type-C 20Gbps port alongside dual USB 3.0 ports.

  • Clean Cable Management: Ample interior depth and intuitive routing channels make clean setups effortless.

  • Synchronized ARGB Lighting: Wraparound lighting controls seamlessly through motherboard software or the Nexlinq app.
Estimated shipping:
October 12th, 2026

Compartmentalized Thermal Architecture

    • Isolated Airflow Pathways: Divides internal layout into dedicated zones for the CPU, GPU, PSU, and motherboard, delivering direct fresh air intake.
    • Optimized Chassis Ventilation: Direct intake channels rapidly exhaust warm air to maximize overall airflow efficiency.

FOCUSED AIRFLOW DESIGN

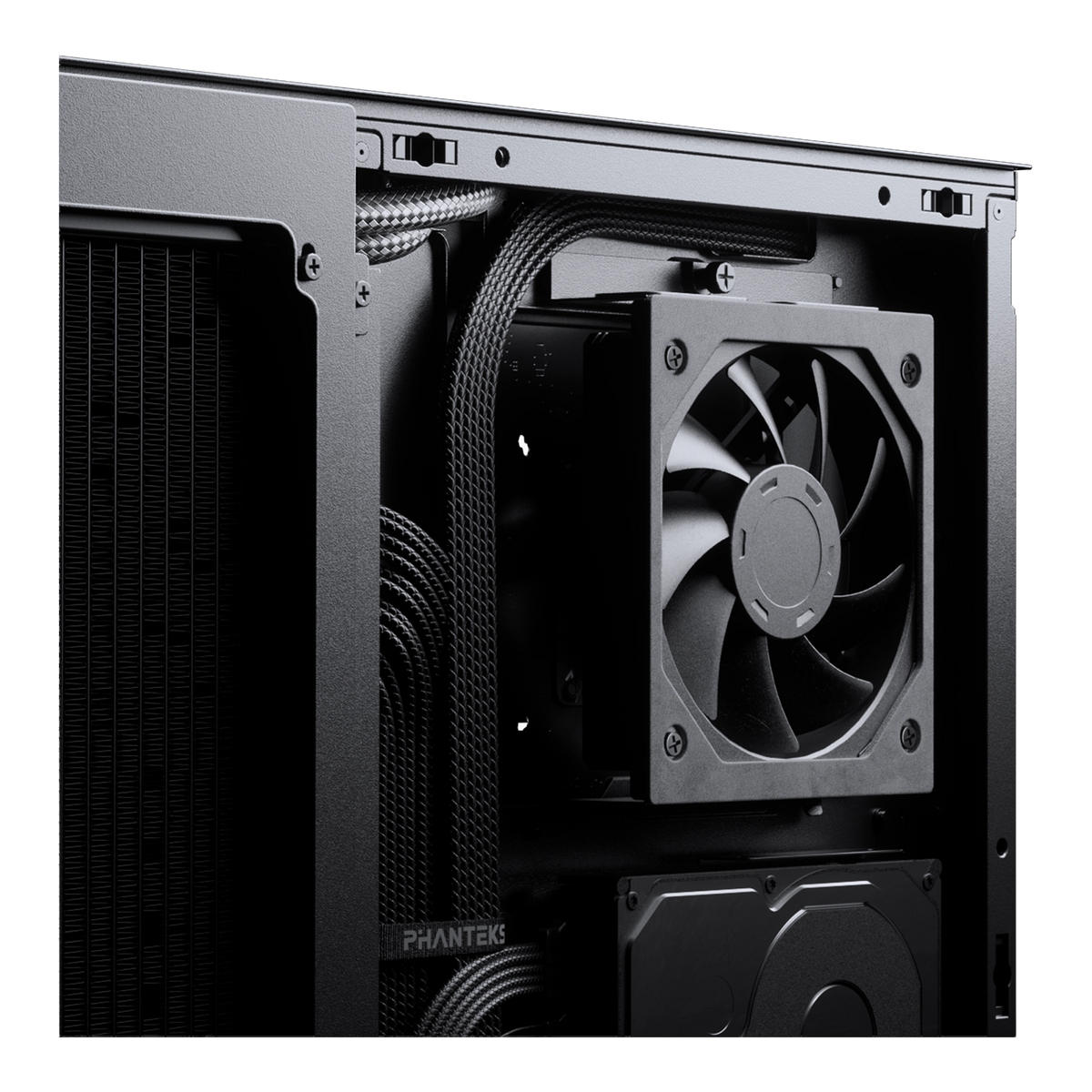

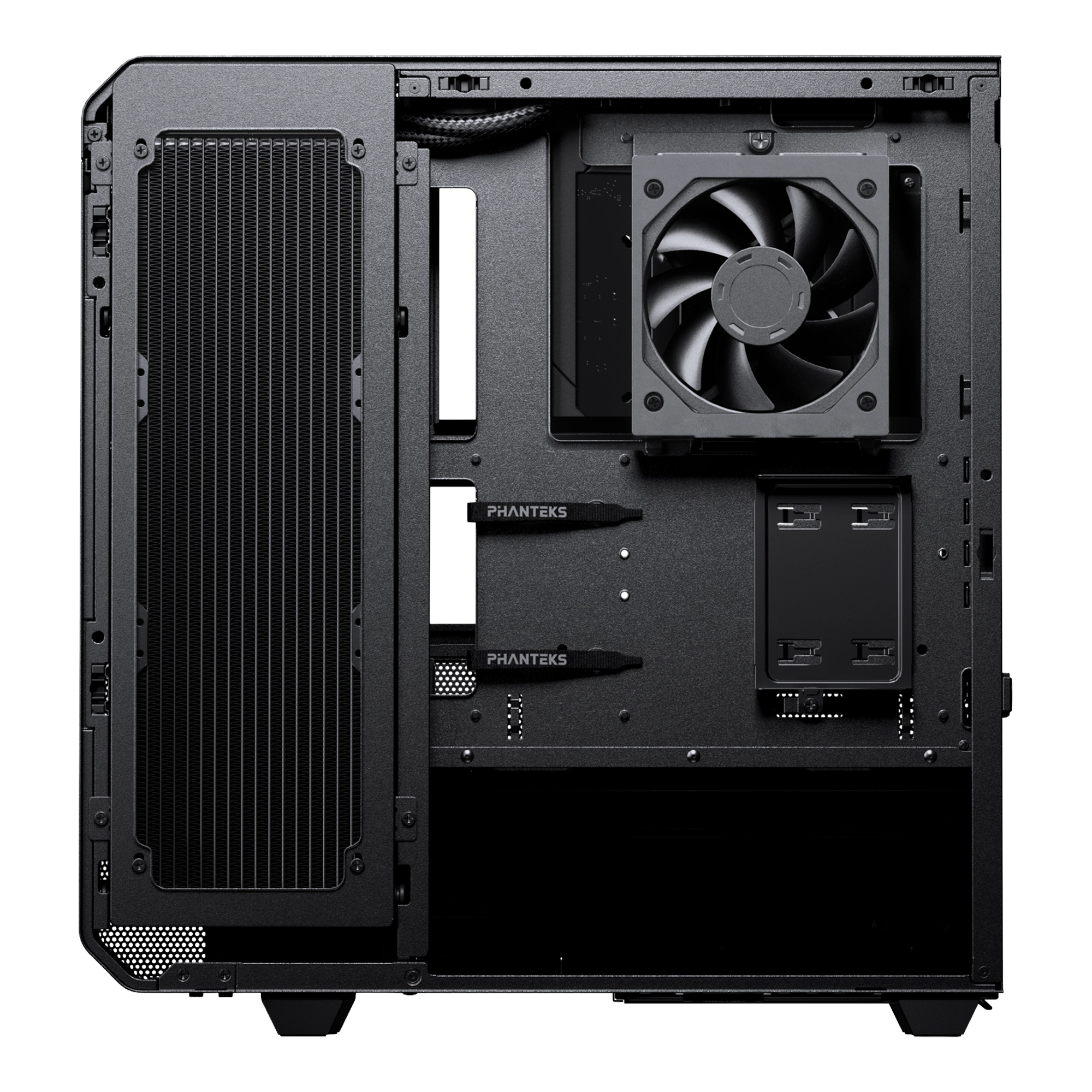

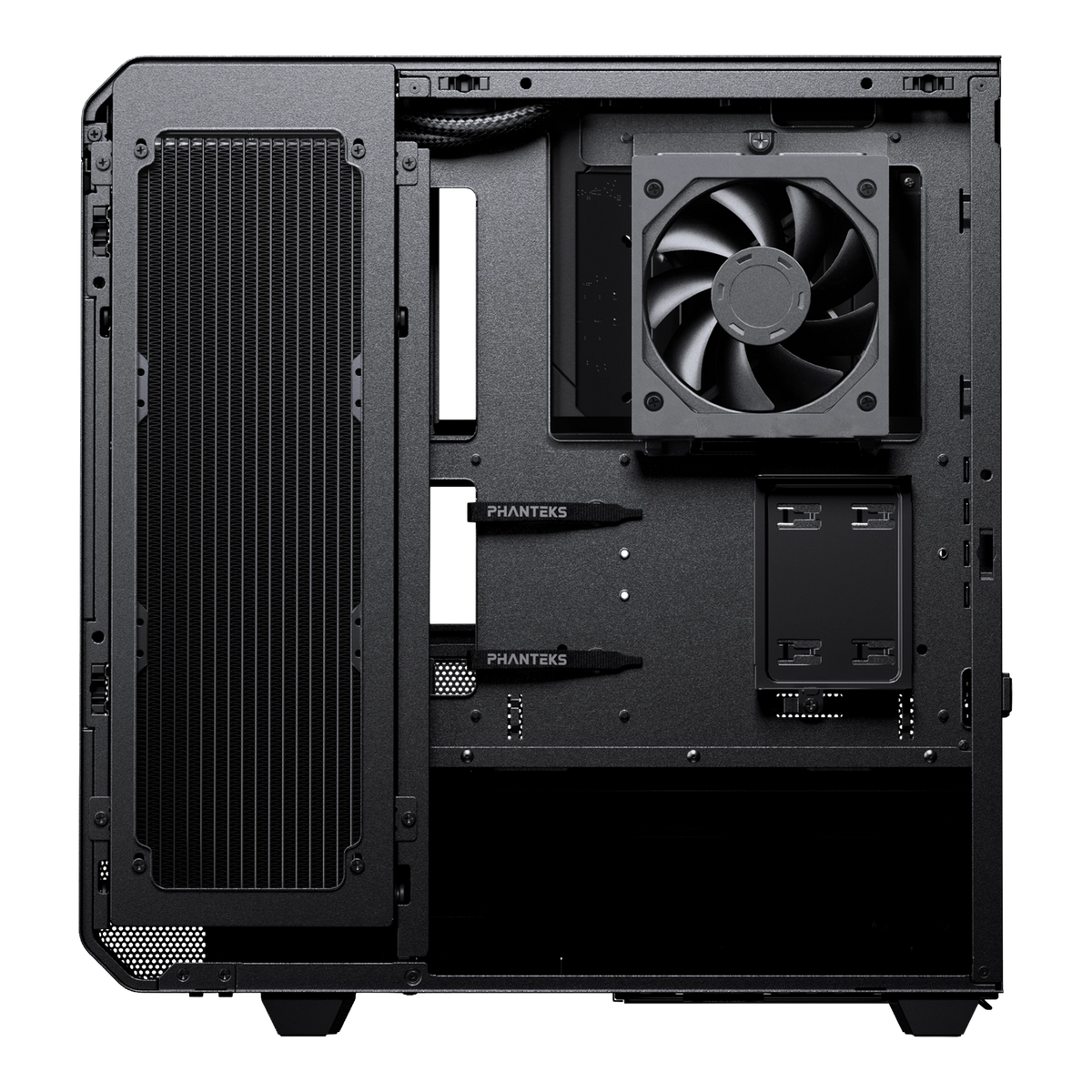

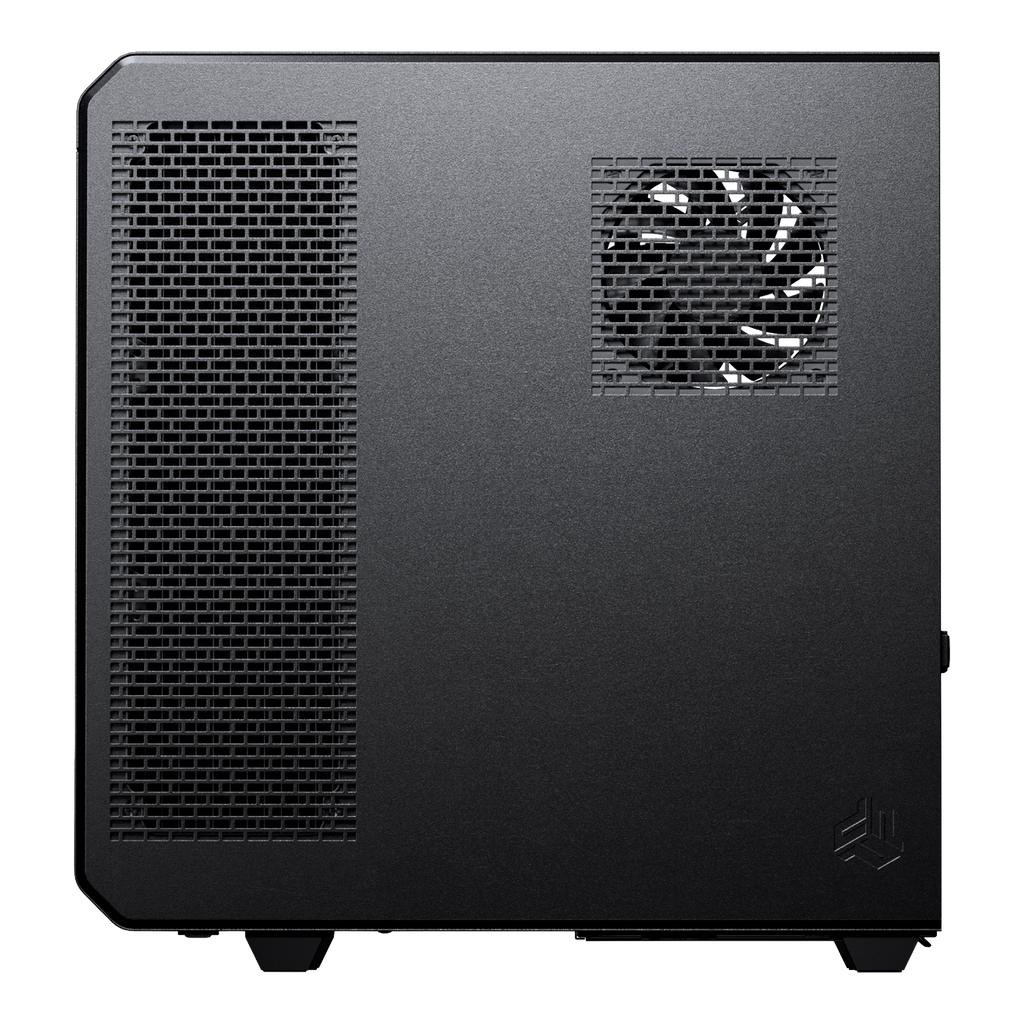

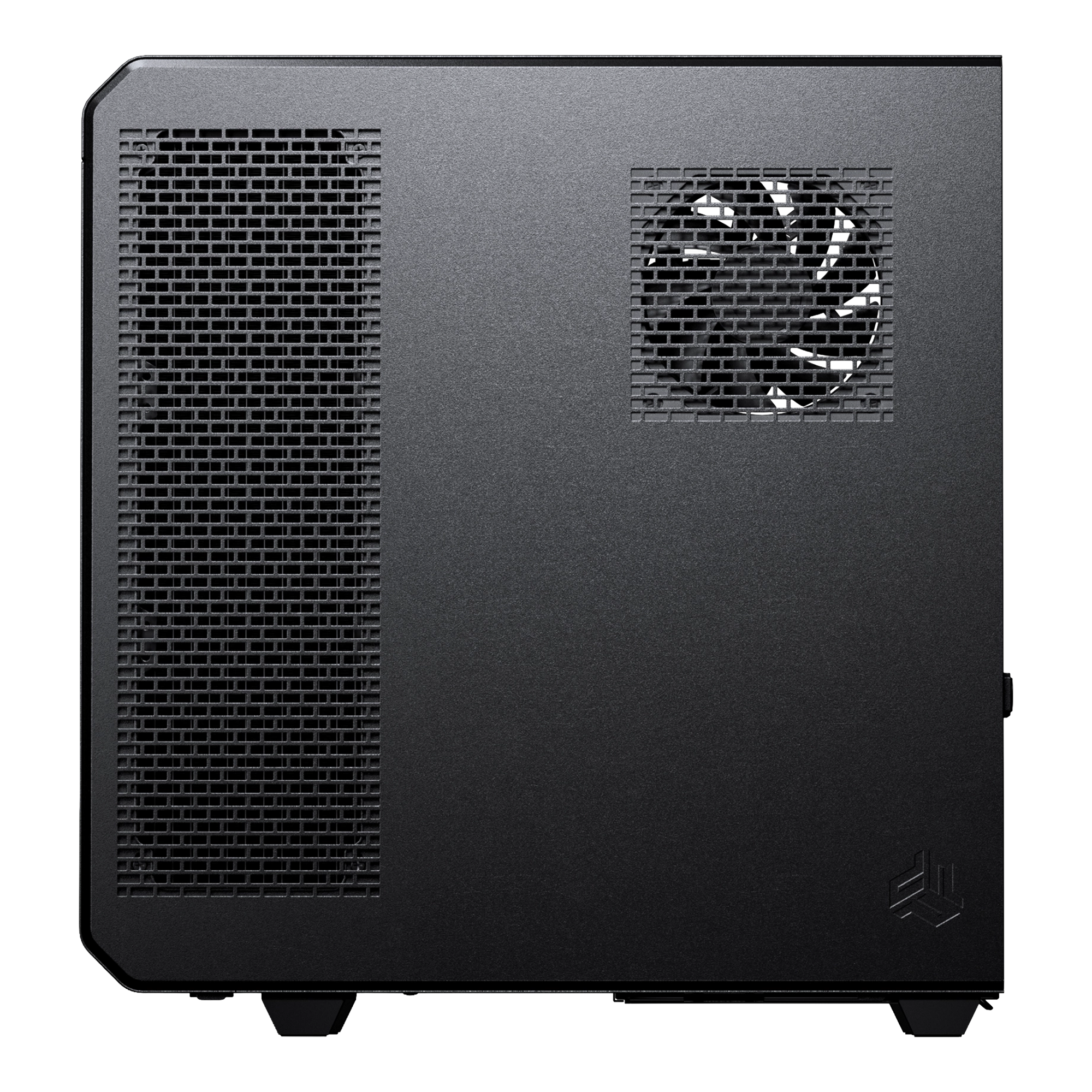

    • Dedicated Rear Mainboard Cooling: Pre-installed S25-120mm fan drives fresh intake air directly across the motherboard surface and surrounding hardware.
    • Targeted Component Ventilation: Directs immediate airflow across the CPU socket, VRMs, memory modules, and M.2 SSDs.
    • Coordinated Airflow Dynamics: Complements GPU intake channels to rapidly exhaust warm air from the chassis.

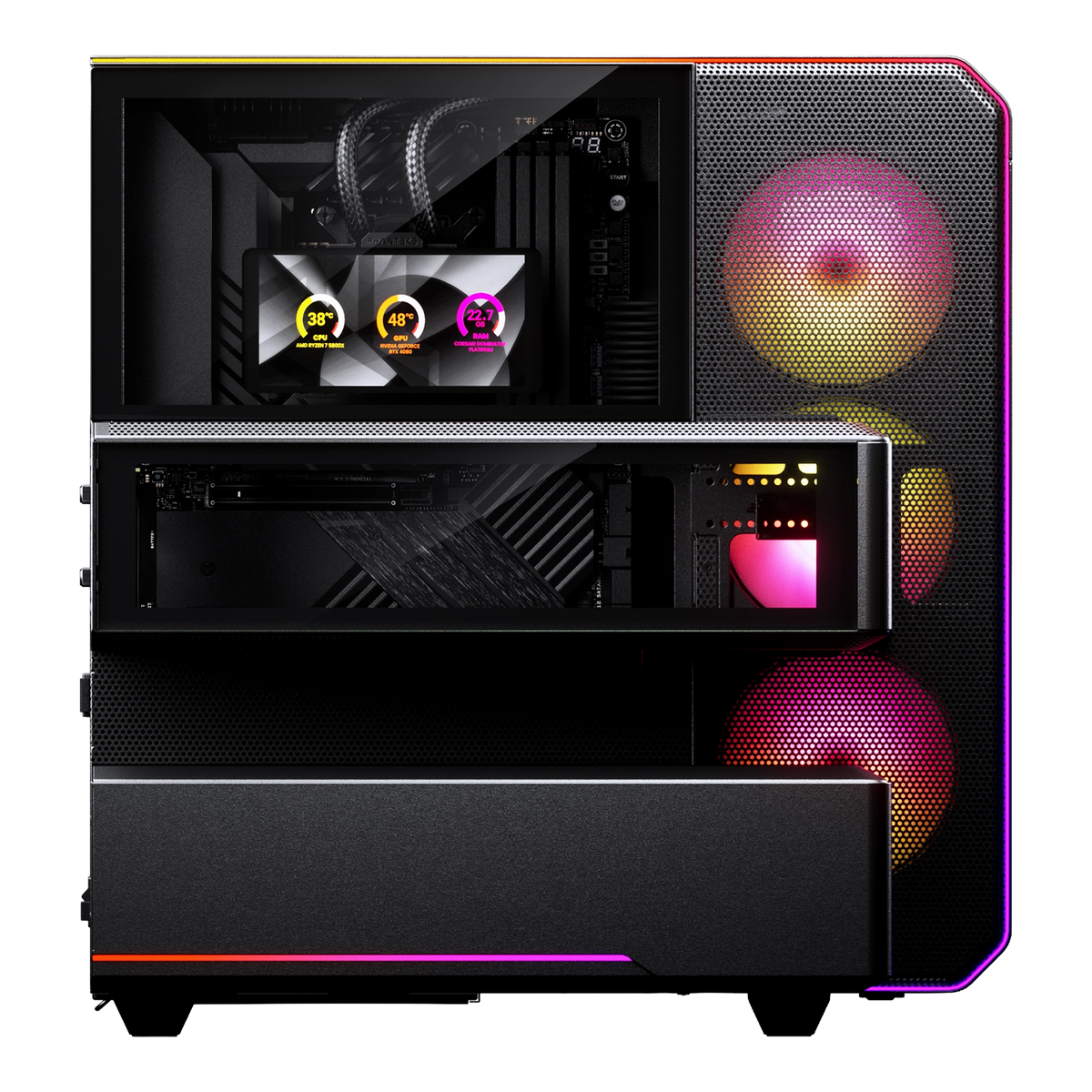

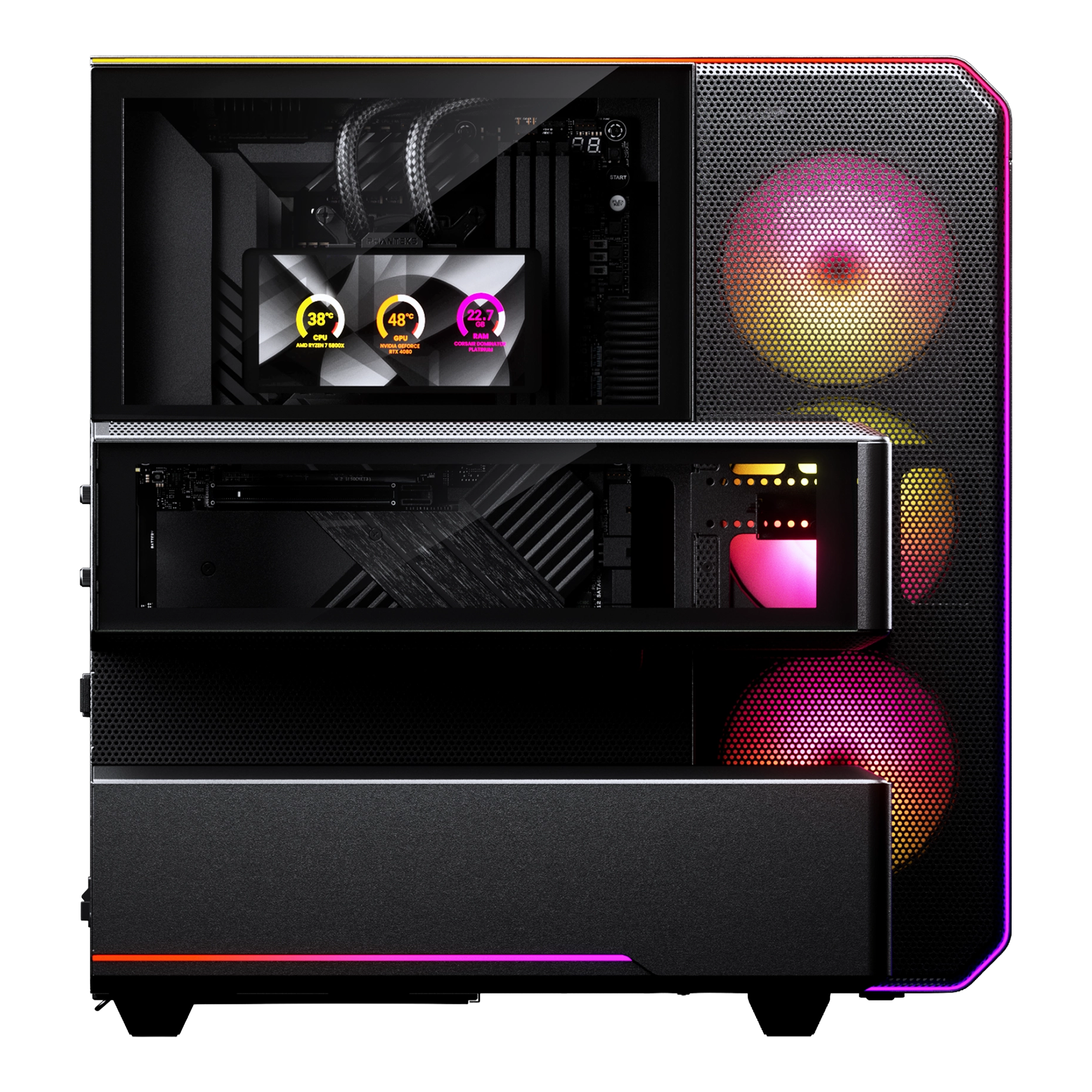

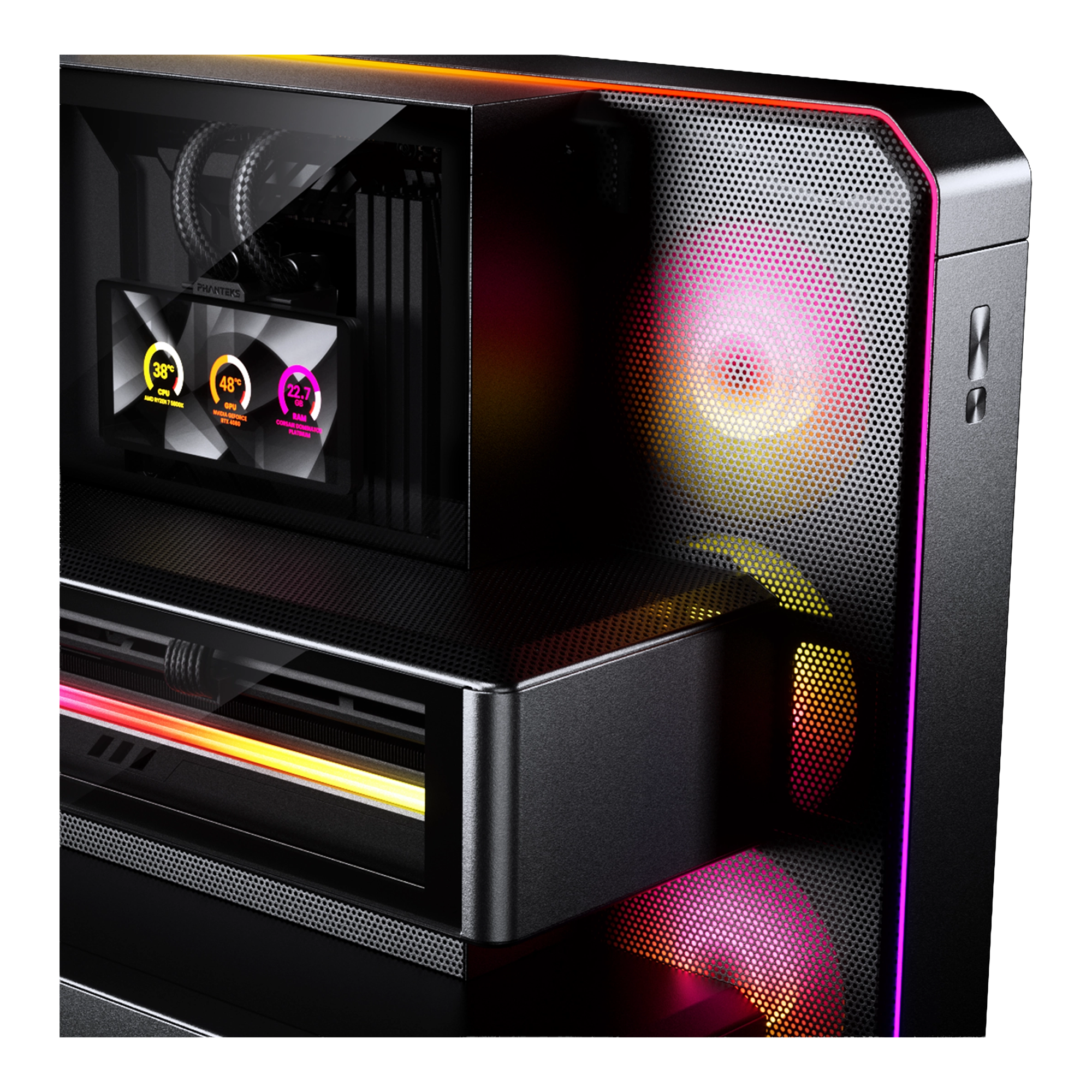

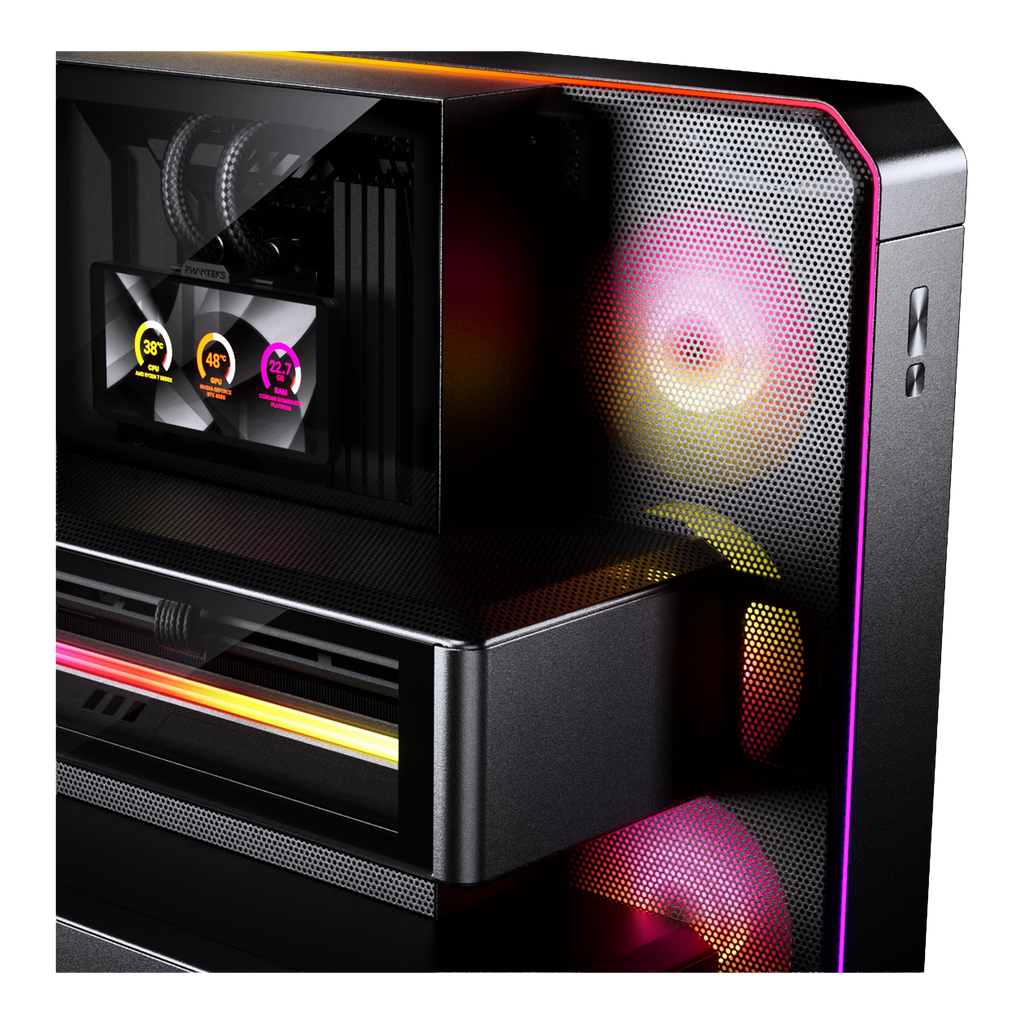

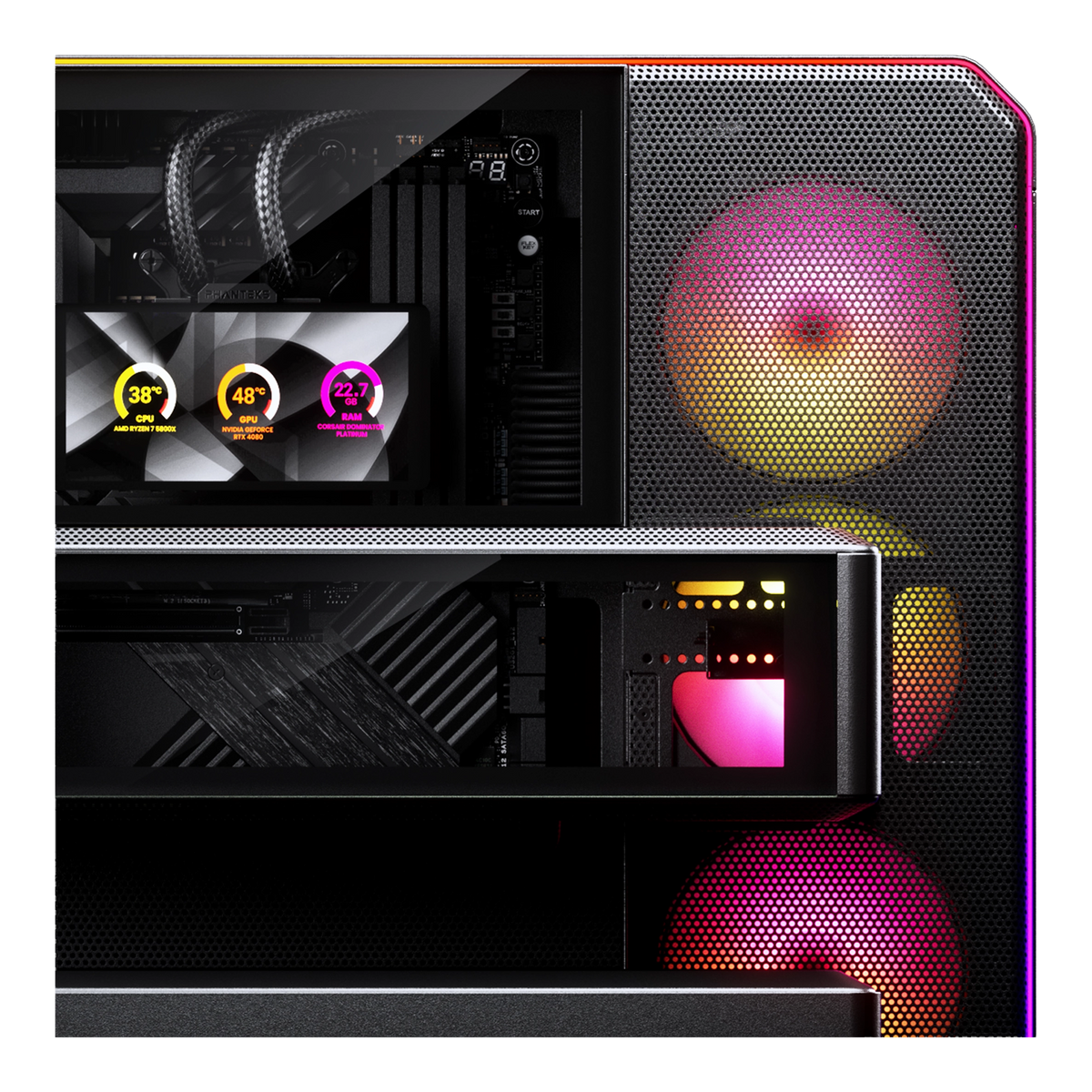

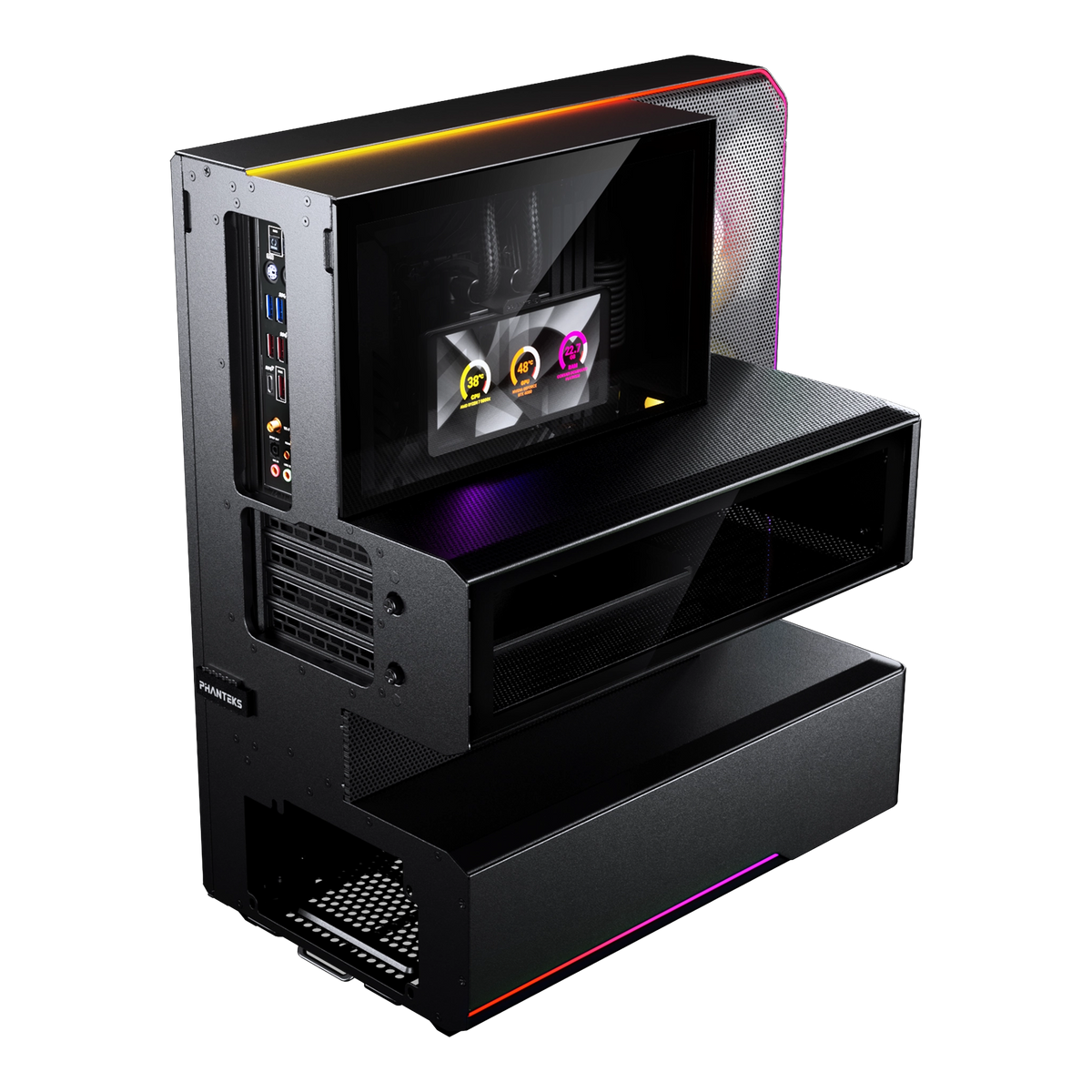

INTEGRATED 6" LCD DISPLAY 360 LIQUID COOLING

    • Pre-installed 360mm LCD 6" Display AIO: Powered by lightweight Nexlinq software, it renders real-time thermal telemetry, hardware stats, or personalized graphics without consuming valuable CPU overhead.
    • Tempered Glass Showcase Design: Combines a steel structure with tempered glass elements to isolate thermal chambers while keeping key hardware visible.
    • Unobstructed Component Visibility: Delivers a complete, uninterrupted view of the mainboard, VRM zone, and graphics card

GPU SLOT CLEARANCE

The EX5 lineup supports mainboards that start from PCIe slot 1. These are often entry-level ATX and mATX mainboards. In this configuration, the EX5 lineup supports GPUs up to 4.6 slots thick.

    • Slot 1 Layouts (Entry ATX / mATX): Accommodates heavy-duty graphics cards up to 4.6 slots thick on motherboards with a Slot 1 primary PCIe position.
    • Slot 2 Layouts (Standard ATX): Fits modern GPUs up to 3.6 slots thick across the vast majority of mainstream motherboard designs.
    • Slot 3 Layouts (Specialized / Niche): Supports GPUs up to 2.6 slots thick for mainboards with lower primary PCIe placement.

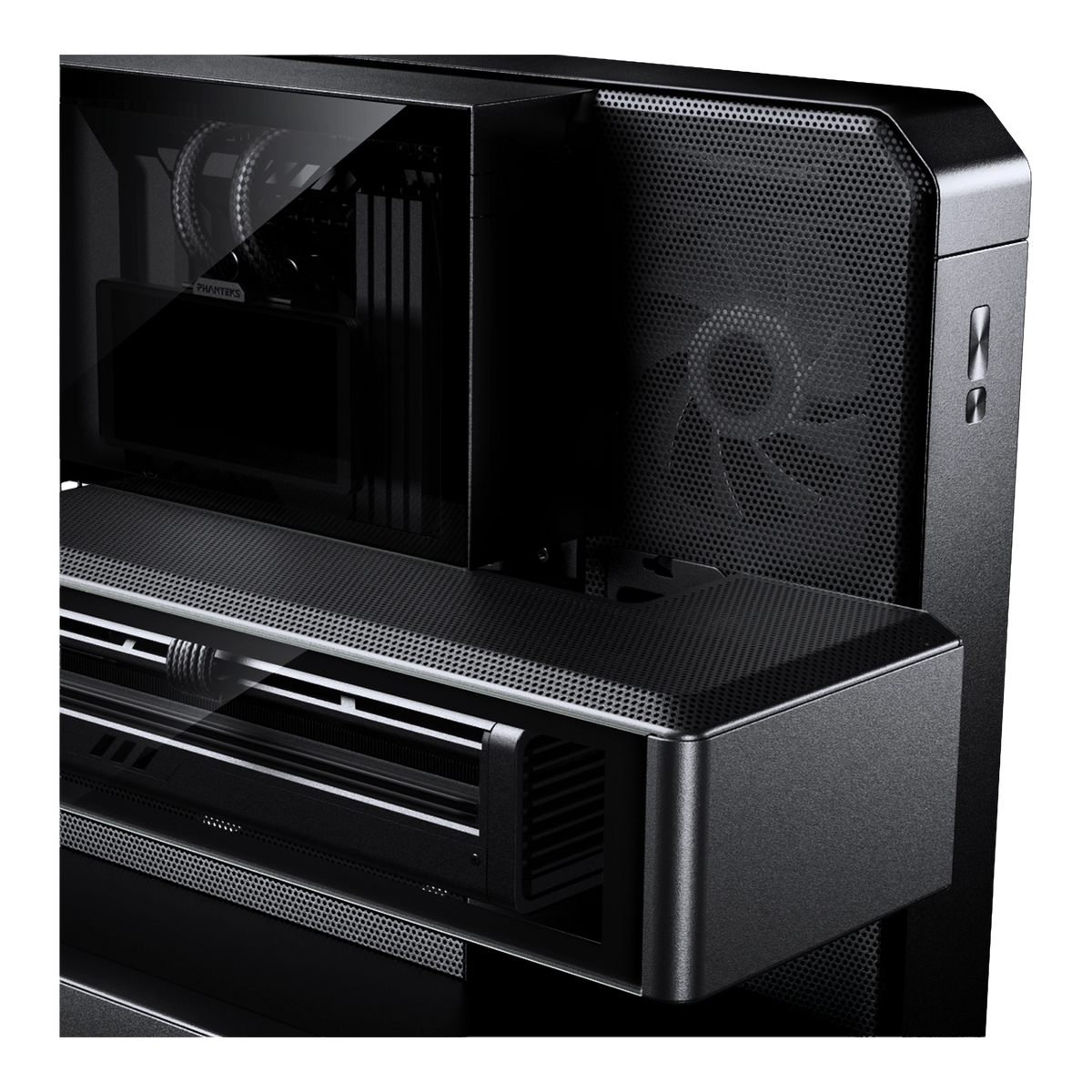

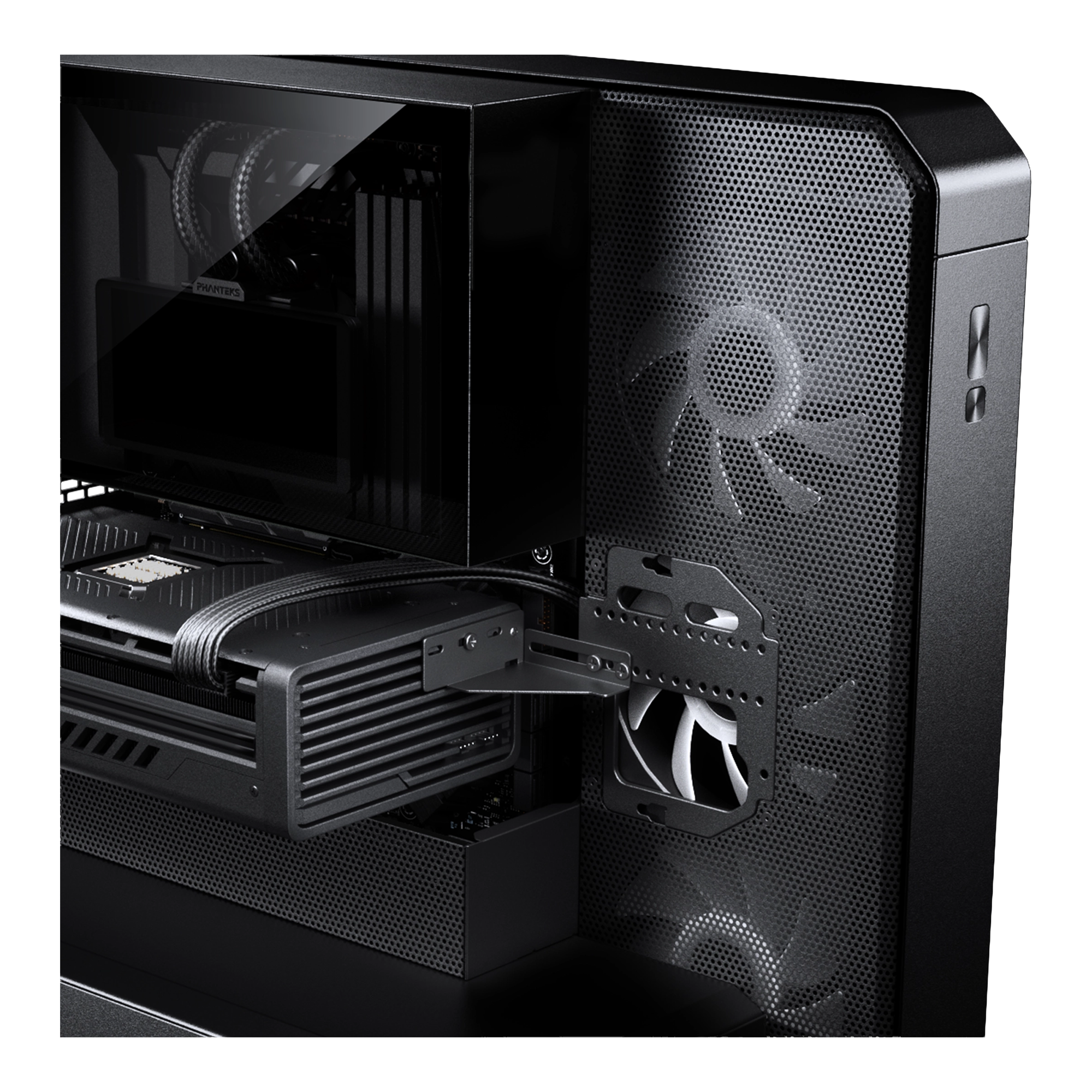

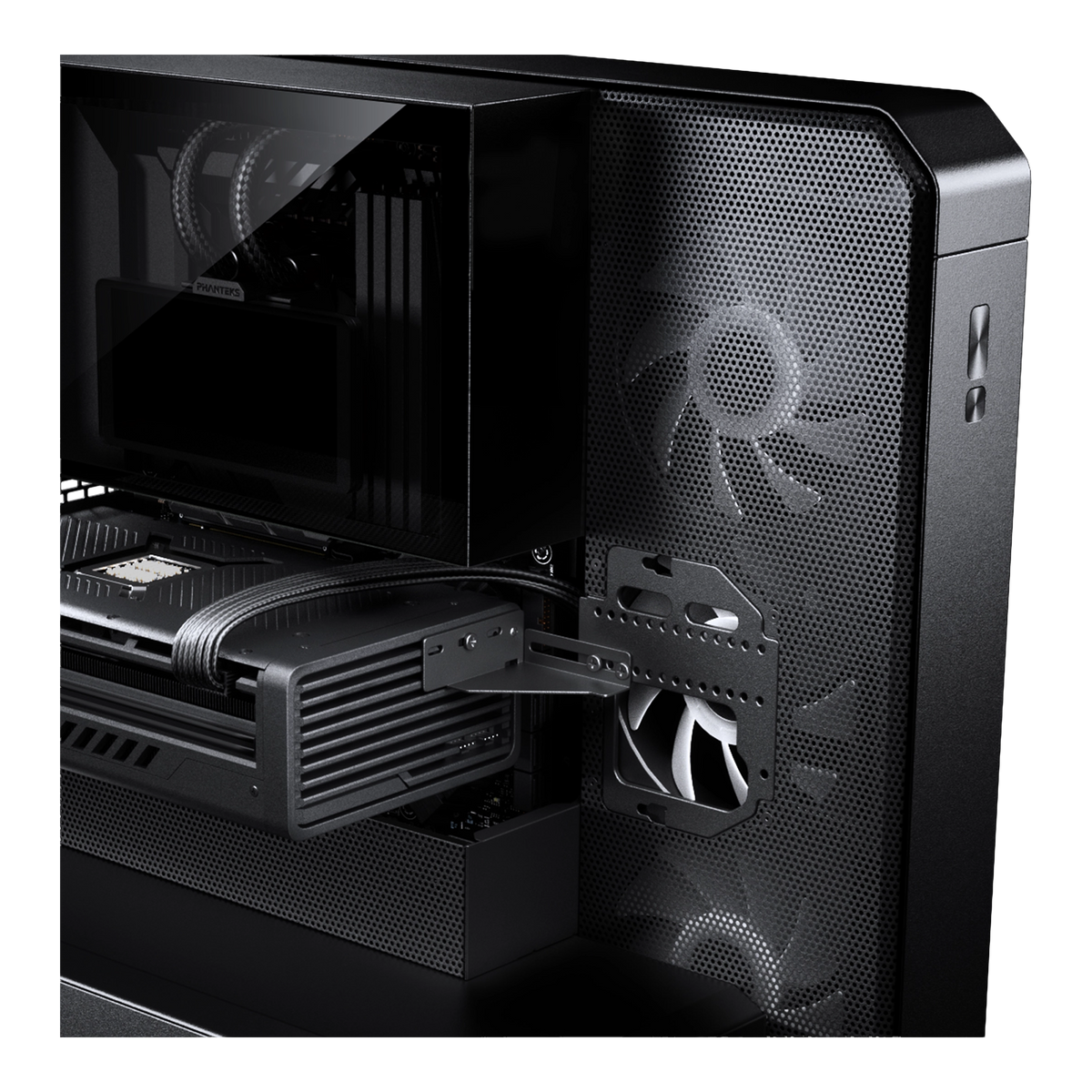

SERVER-GRADE GPU SUPPORT BRACKET & QUICK-ACCESS FRONT I/O

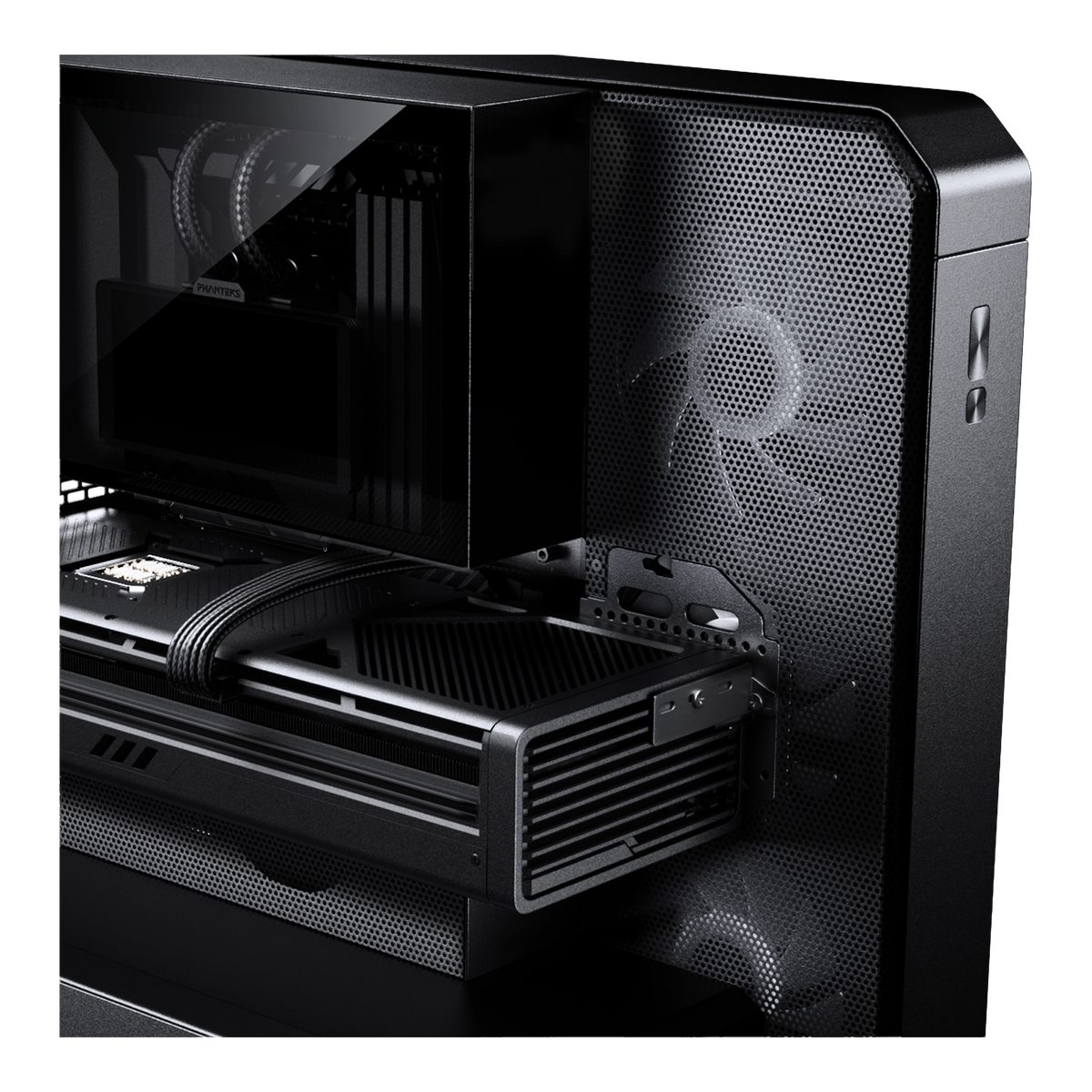

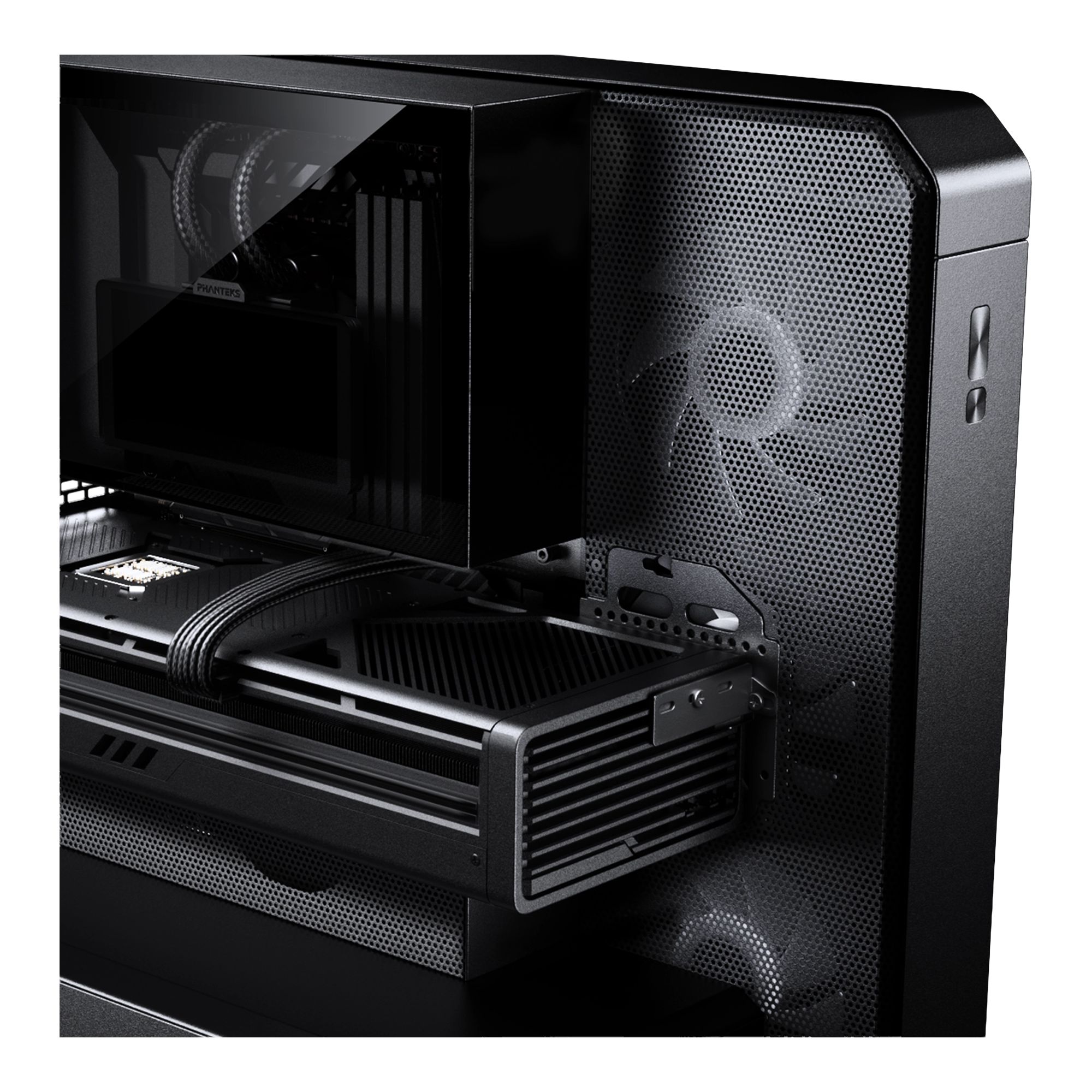

    • Industrial Anti-Sag Brackets: Server-grade structural support anchors heavy multi-slot graphics cards directly to the steel chassis frame, completely eliminating GPU sag and PCIe slot strain.
    • Reinforced Transport Security: Locks high-end GPUs across multiple rigid contact points to protect sensitive hardware during system relocation.

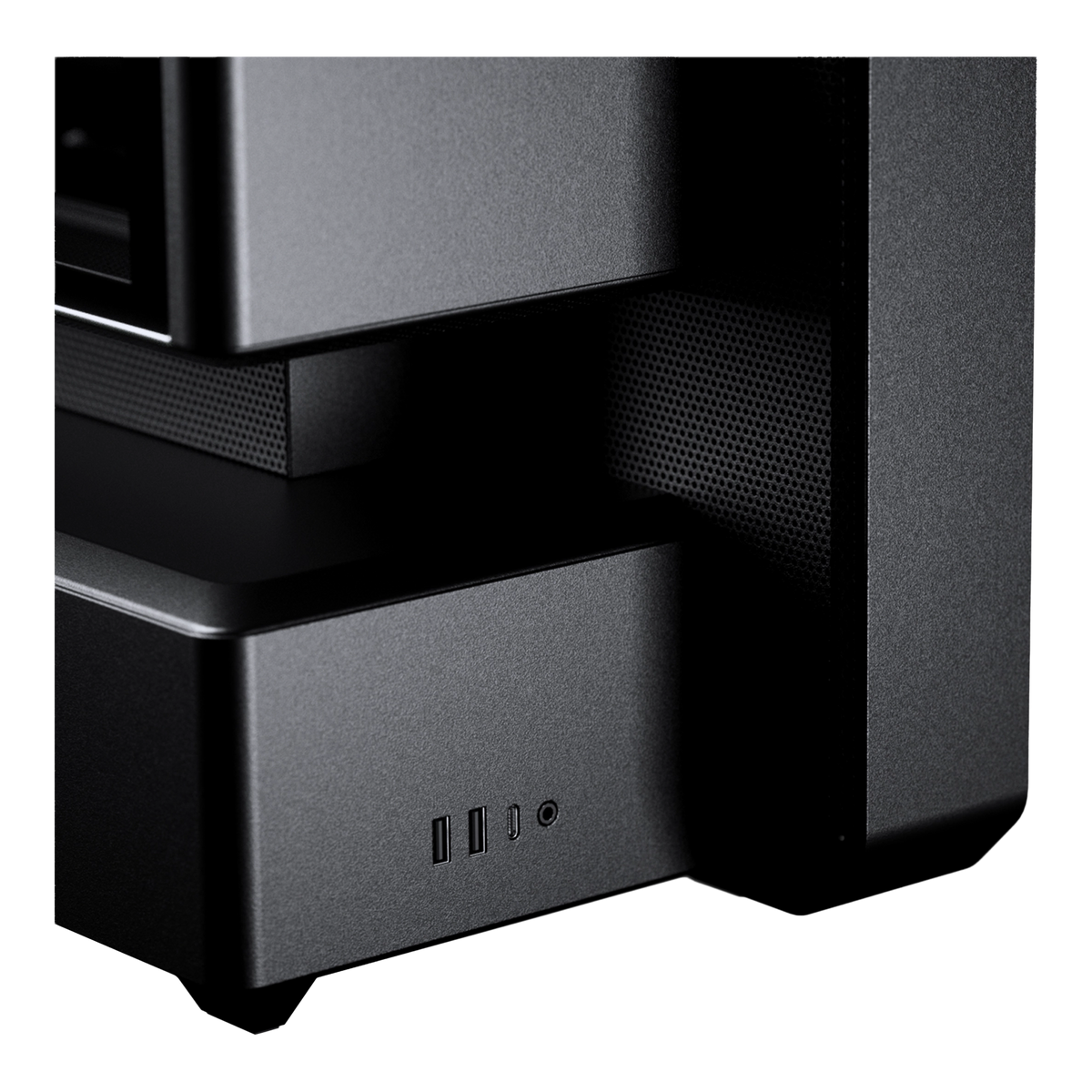

    • High-Speed Connectivity: Integrated front panel delivers high-bandwidth USB-C, dual USB 3.0, and combo audio ports for immediate device connection.

STORAGE CAPACITY

    • Side Storage Bracket - Supports 1x 3.5" HDD drive.

    • Bottom Storage Bracket - Supports 1x 2.5" SSD drive

COMPLETE THERMAL SETUP & CLEAN CABLE MANAGEMENT

The EX5 MAX eliminates extra build costs by including a custom 360mm 6" LCD AIO liquid cooler and pre-installed fans straight out of the box. Combined with generous interior depth, built-in tie-down points, and clean routing channels, you get a complete thermal setup and effortless cable management without buying additional hardware.

  •
