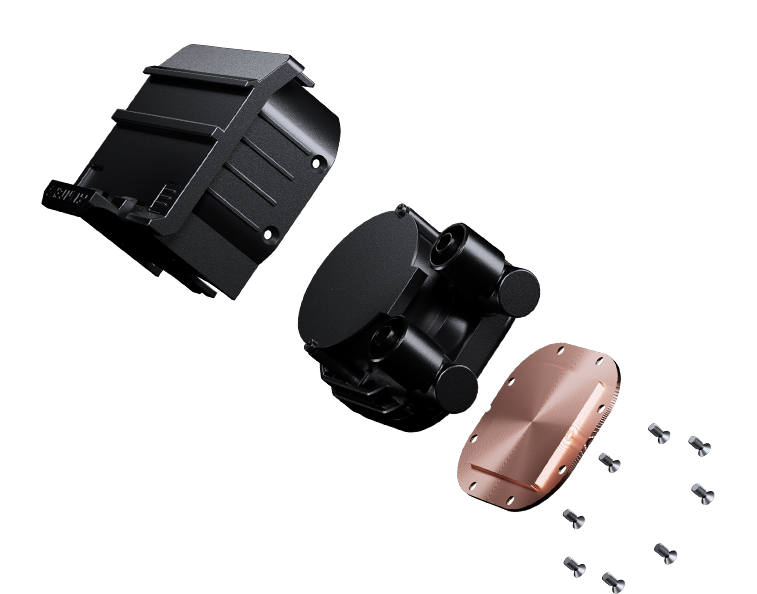

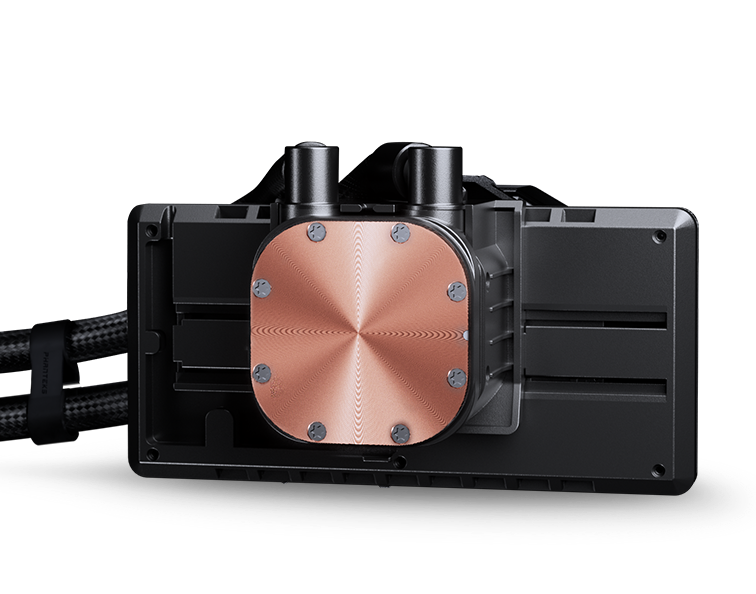

large copper base
- High performance cooling and efficient heat disspation
- Intel and AMD compatibility (LGA 1851/1700, 1200/115x, AM4/AM5)
- Efficient cooling for high-end CPUs
High-flow rate, low-noise pump
- 3100 RPM ±10%
- Rubber tubing with braided sleevings

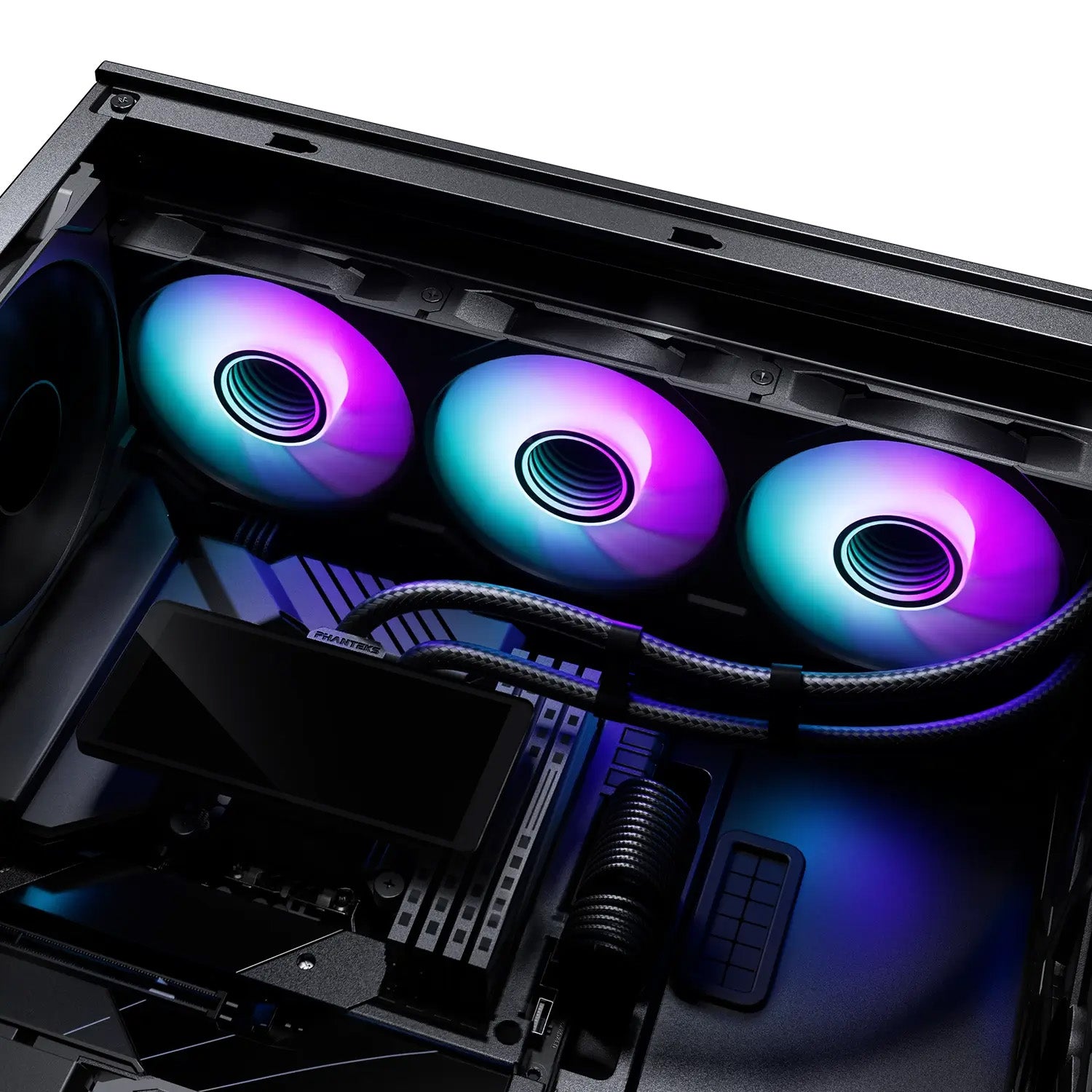

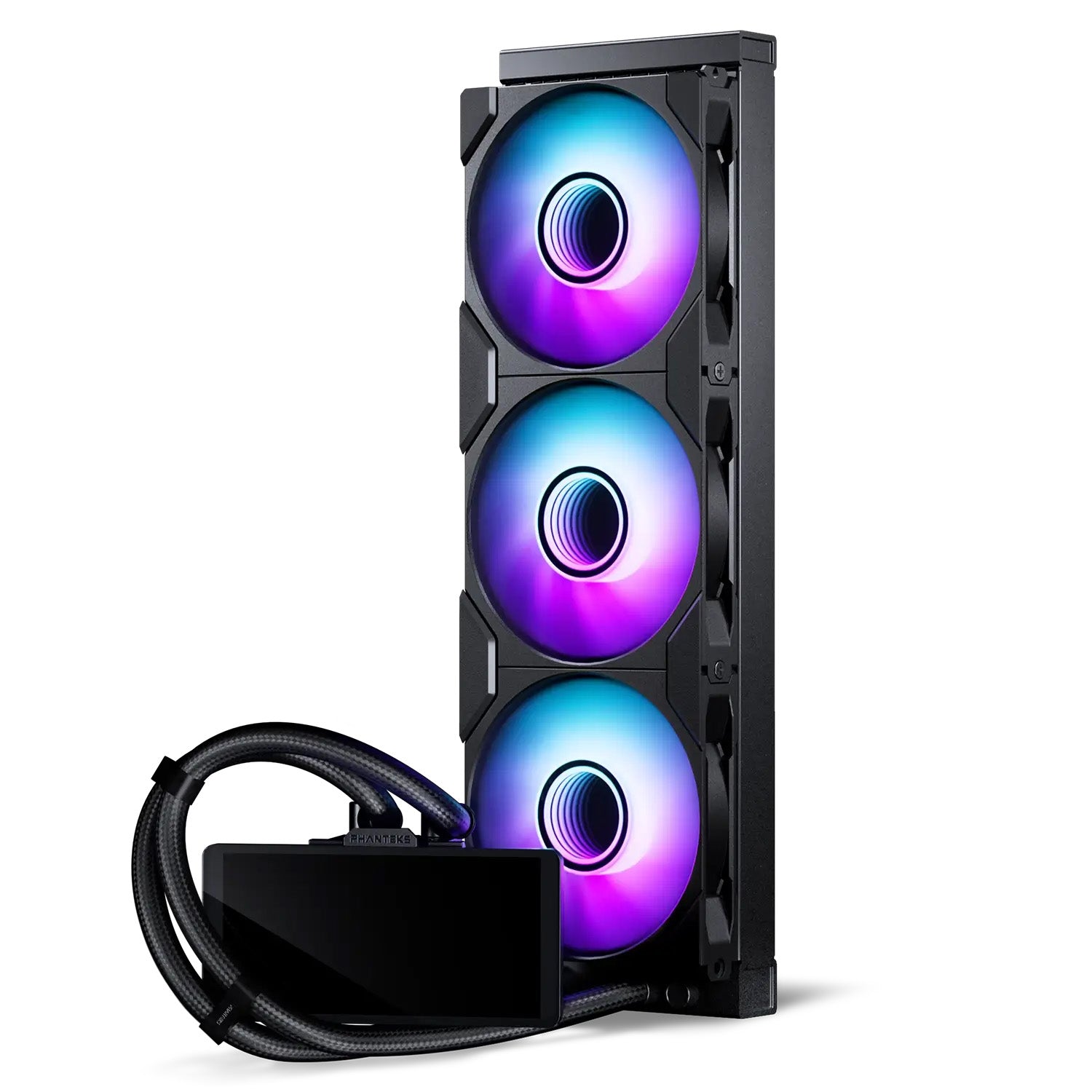

M25-g2 ARGB UNIFIED FAN FRAME DESIGN
- Equipped with M25 Gen2 D-RGB Infinite Mirror fans that can be interconnected into a single frame for easy cable management.
- The 2000 RPM high speed provides efficient heat dissipation.
- Single Linq6 connector that controls fan and lighting

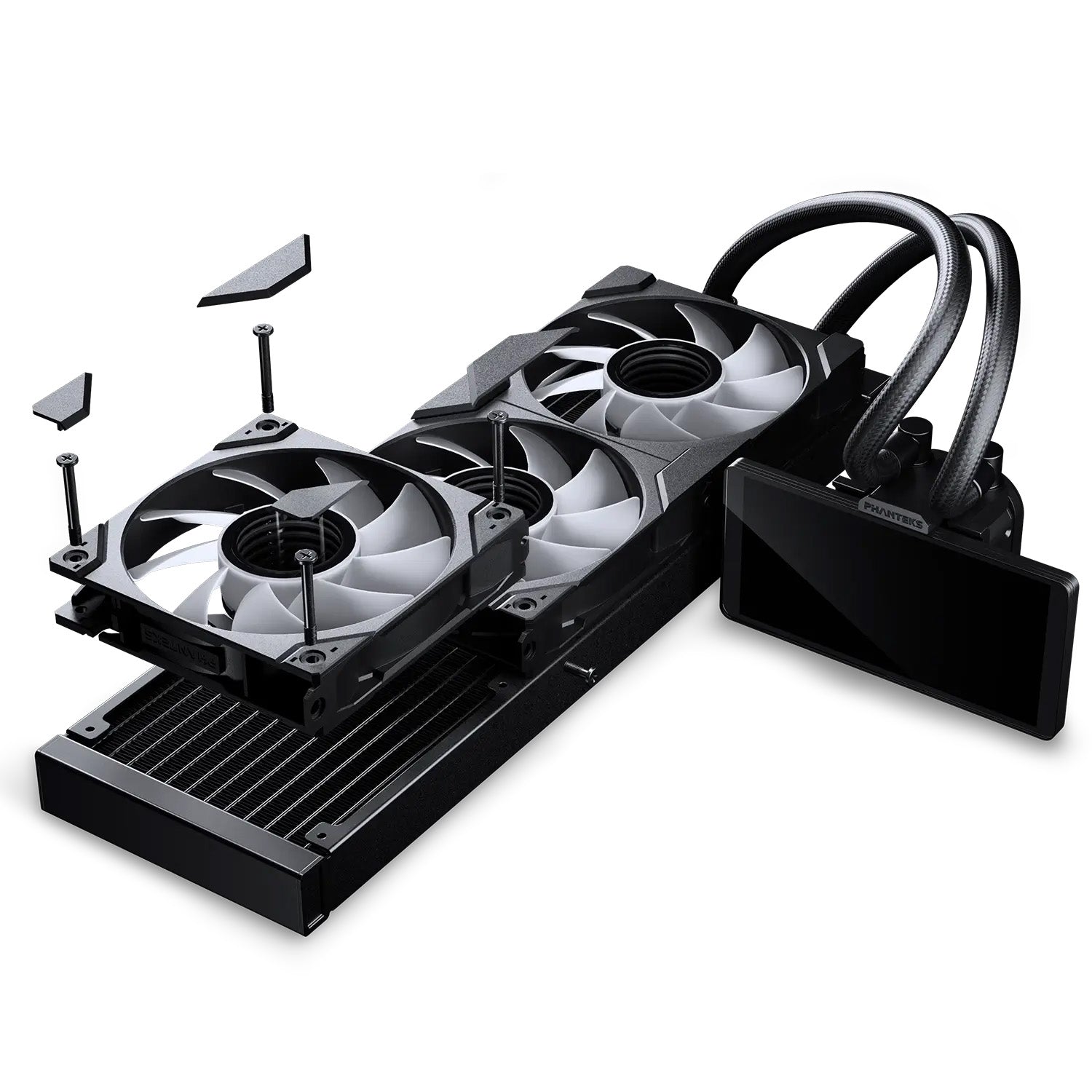

- The concealed wiring and screw caps make the overall design more streamlined and sleek.
Gallery
Product Specifications
General
MODEL NO.
PH-GO360M25G2LCD_DBK01
COLOR
Black
MATERIALS
Aluminum | ABS plastic | Copper | Glass
INTEL / AMD SOCKET COMPATIBILITY
LGA 115x | 1200 | 1700 | 1851 / AM4 | AM5
RADIATOR DIMENSIONS (LxWxH)
397 x 120 x 27mm | 15.62 x 4.72 x 1.06 in
PUMP DIMENSIONS (LxWxH)
68.0 x 74.5 x 51.1 mm | 2.67 x 2.92 x 2.01 in
PUMP DETAILS
MOTOR SPEED
3100 RPM ± 10% (100% Duty Cycle)
POWER
12V | 0.28A – 0.45A | 3.36W – 3.96W
PUMP DC CABLE
400 + 10 mm | 15.74 + 0.39 in
SOUND LEVEL
20.0 dBA
MATERIAL
Copper | ABS
TUBE DETAILS
LENGTH
400 mm | 15.74 in
DIAMETER
12.5 mm ⌀| 0.49 in ⌀
TUBE CLIPS
3x
MATERIAL
CIIR rubber| Braided sleeves

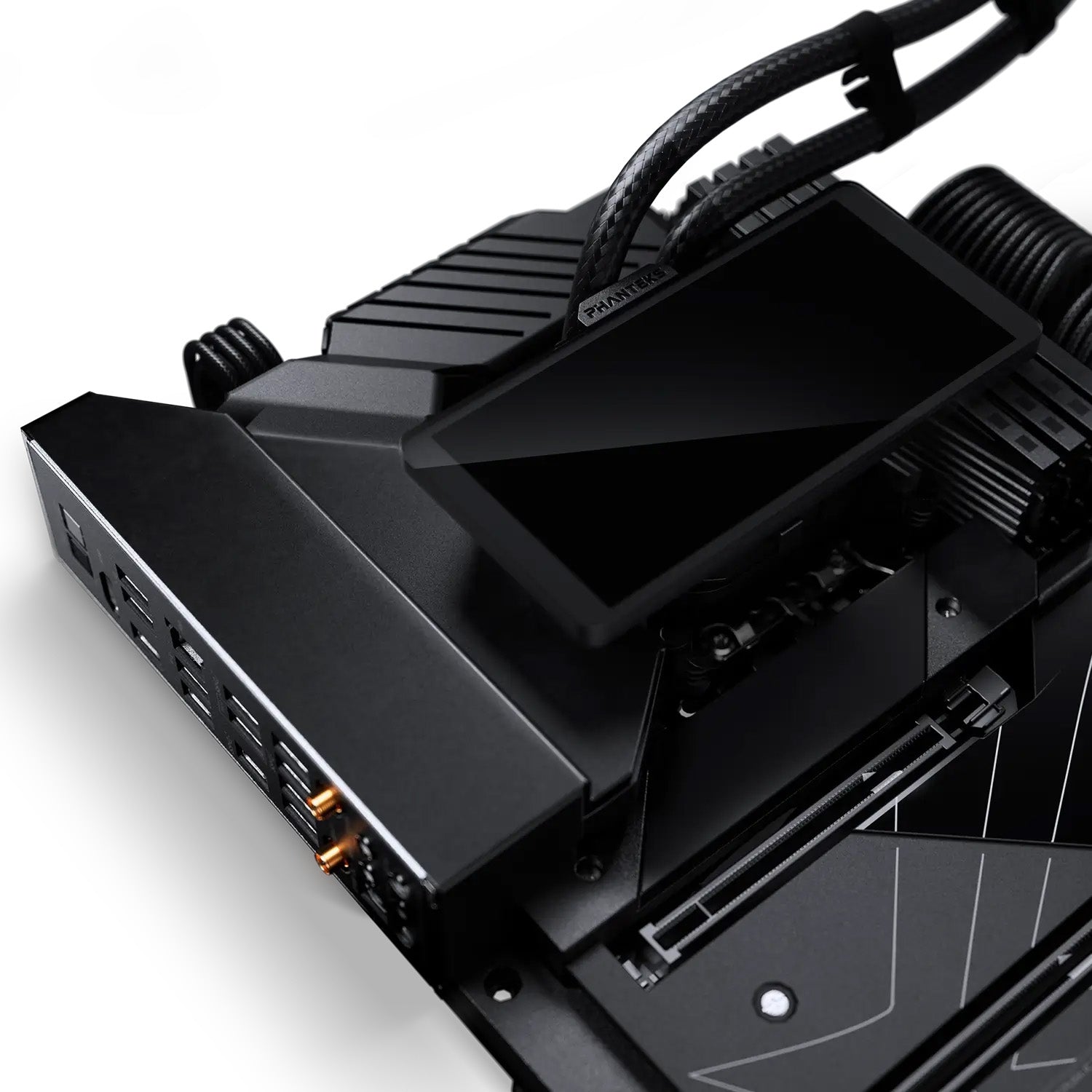

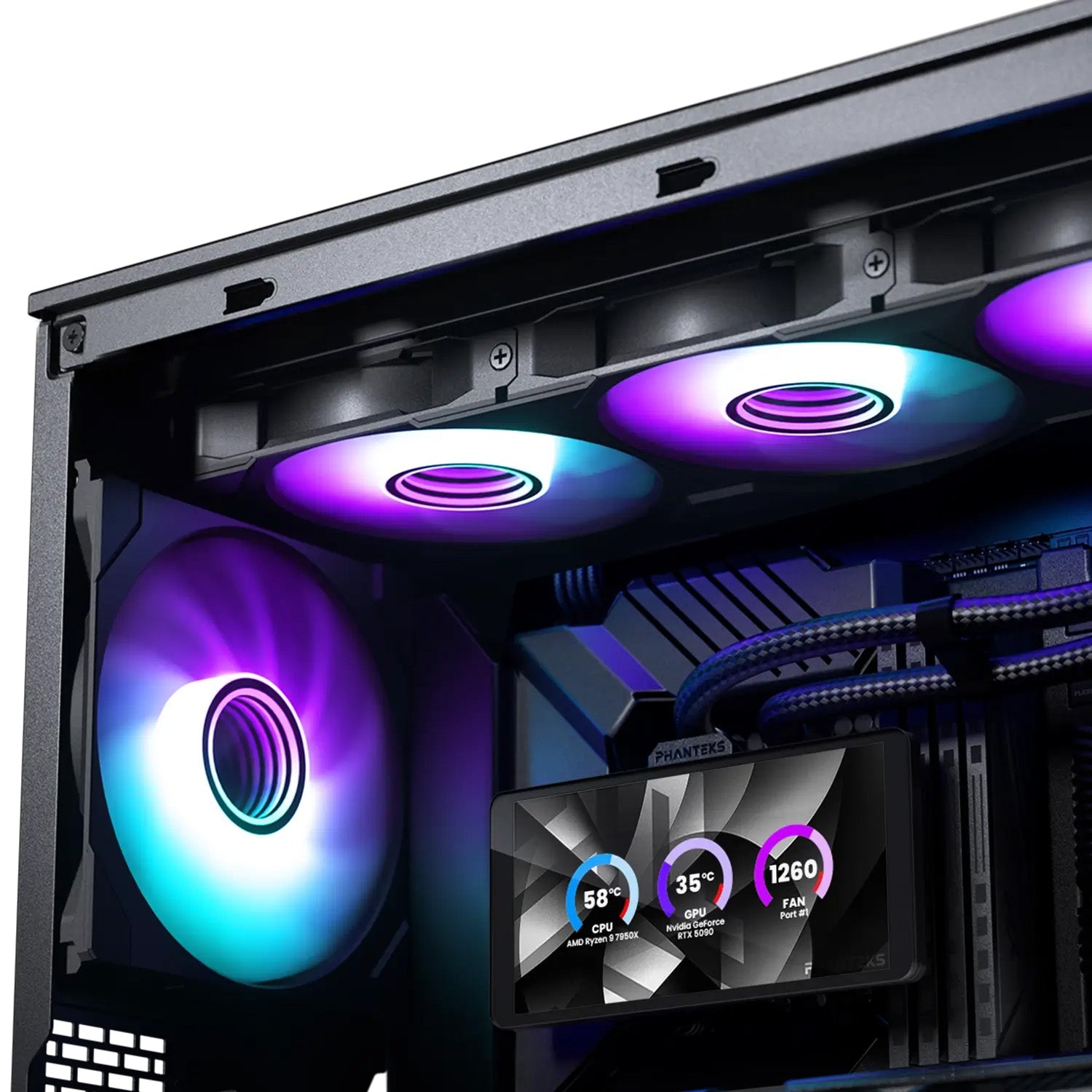

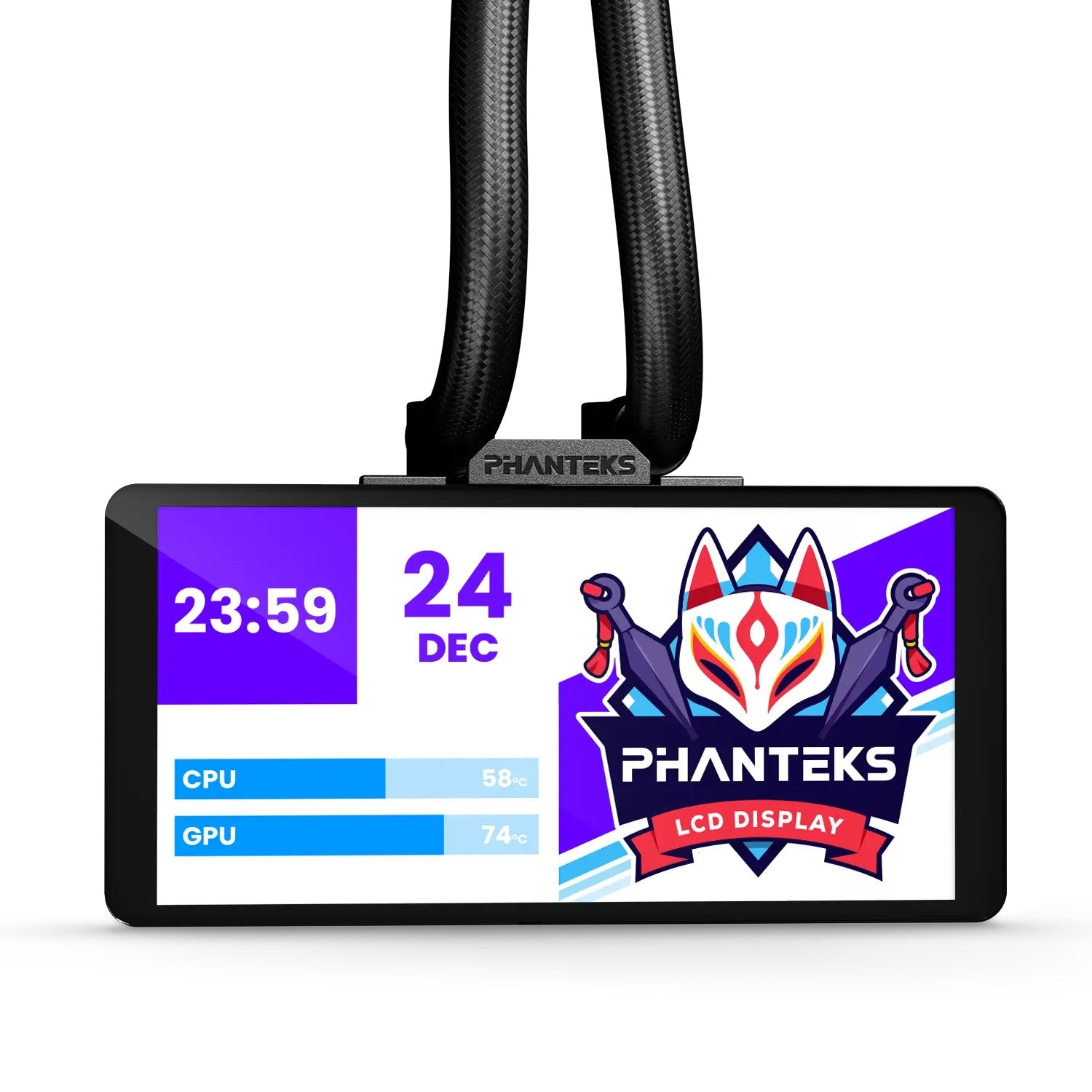

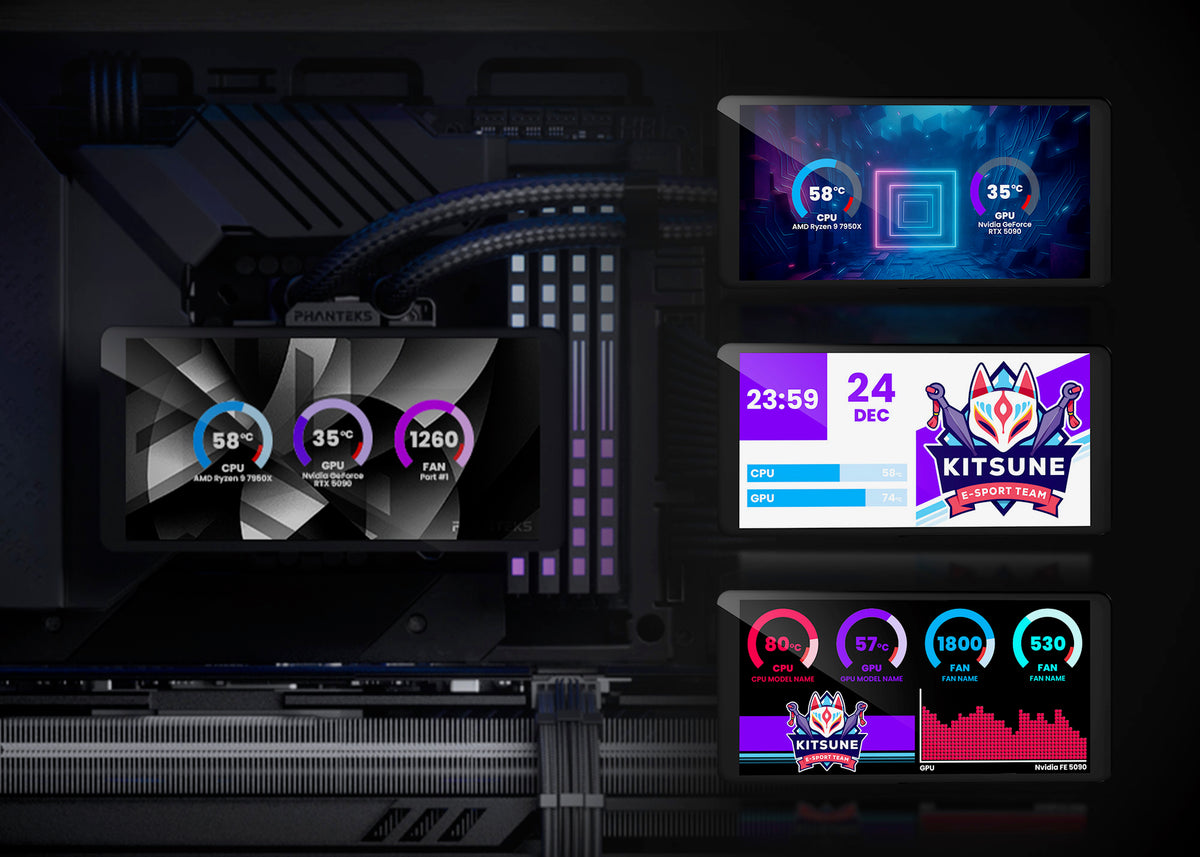

LCD SCREEN (LCD6-HD)
LCD TYPE
IPS panel
LCD DIMENSIONS
145.2 x 70.5 x 2.08 mm | 5.71 x 2.77 x 0.08 in
LCD RESOLUTION
1480 x 720
REFRESH RATE
60 Hz
LUMINANCE
250 Nit
LCD RAM CLEARANCE
51.00 mm
CONNECTOR
USB-C
MAX POWER DRAW
0.43A
FANS M25G2-120 (M25G2-120)
FAN MODEL
M25G2-120 D-RGB
DIMENSIONS (LxWxH)
120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in
SPEED
350 – 2000 ± 10% RPM
AIR FLOW
72.72 CFM
FAN STATIC PRESSURE
2.51 mm H₂O
SOUND LEVEL
35.13 dBA
MTFB
40,000 Hours
CONNECTOR
Linq6
CABLE LENGTH
500 mm | 19.68 in Daisy-chain
EXTRA
NET WEIGHT
1.64 kg | 3.61 lbs
GROSS WEIGHT
2.65 kg | 5.84 lbs
WARRANTY
5 Years limited
SCOPE OF DELIVERY
1x Glacier One 360M25-LCD Pre-applied thermal paste | 3x M25G2 fans Pre-installed | 4x Screw corner covers Pre-installed | 4x Screw bridge covers Pre-installed
ACCESSORY BOX
3x Tube clip | 1x USB-C to USB 2.0 internal header (600 mm) | 1x Linq6 extension cable (500 mm) | 1x Linq6 Mainboard adapter cable (500 mm)
SCREWS
12x 36 mm 6-32 UNC Radiator screws | 12x 6 mm 6-32 UNC Radiator screws
MOUNTING HARDWARE
1x LGA 115X/1200/1700/1851 Bracket | 1x LGA 115X/1200/1700/1851 Plastic backplate | 4x LGA 1700/1851 Stand-off screws | 4x LGA 115X/1200 Stand-off screws | 4x Thumb nuts | 2x AM4/AM5 Adapter brackets
