Description:
With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x fan locations and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the lastest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the midplate that provides direct cooling.
-

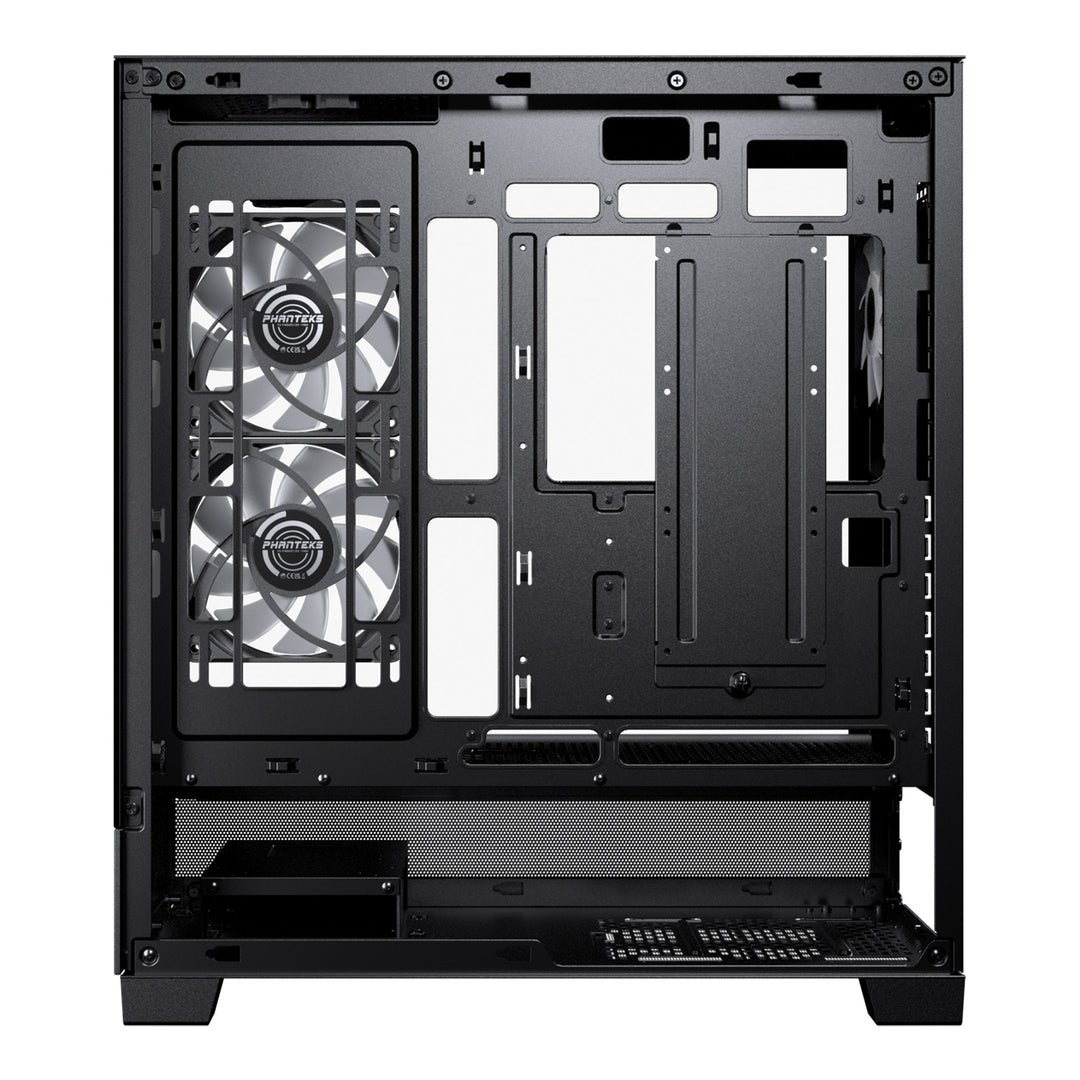

Support for the latest rear-side connector mainboards
-

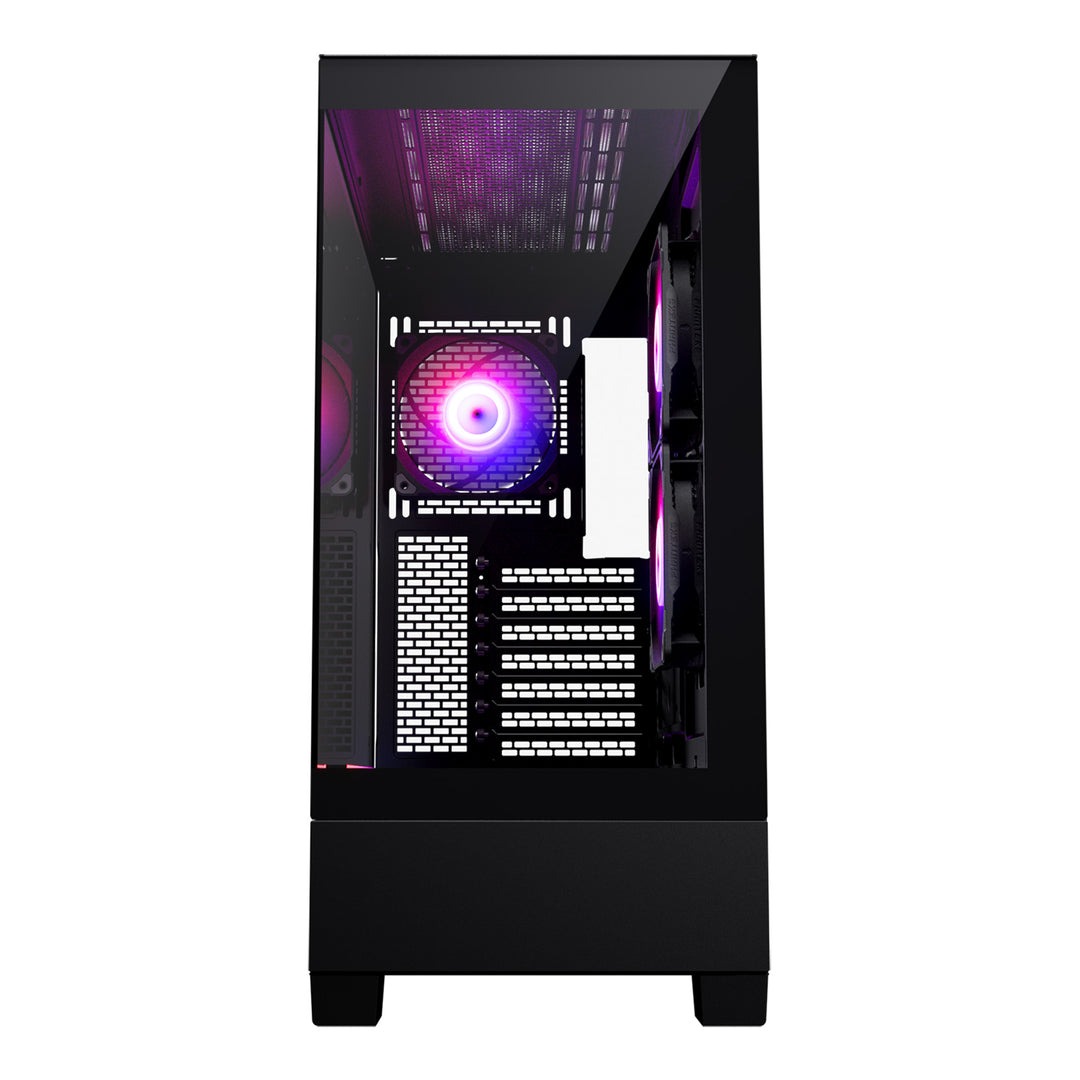

Front and Side Tempered Glass Windows
-
3x M25-120mm DRGB fans included
-
Supports up to 9x 120mm fan positions
-
Dedicated 360 radiator support in the top without restrictions
-
Support for the largest graphics cards without compromise
|
Case Specifications |
|
|
|
|
||
|
Dimension |
440 x 230 x 500 mm / 17.32x9.05x19.68 in (DxWxH) |
|
|
Form Factor |
Mid-tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window, ABS plastic |
|
|
Motherboard Support |
ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide) |
|
|

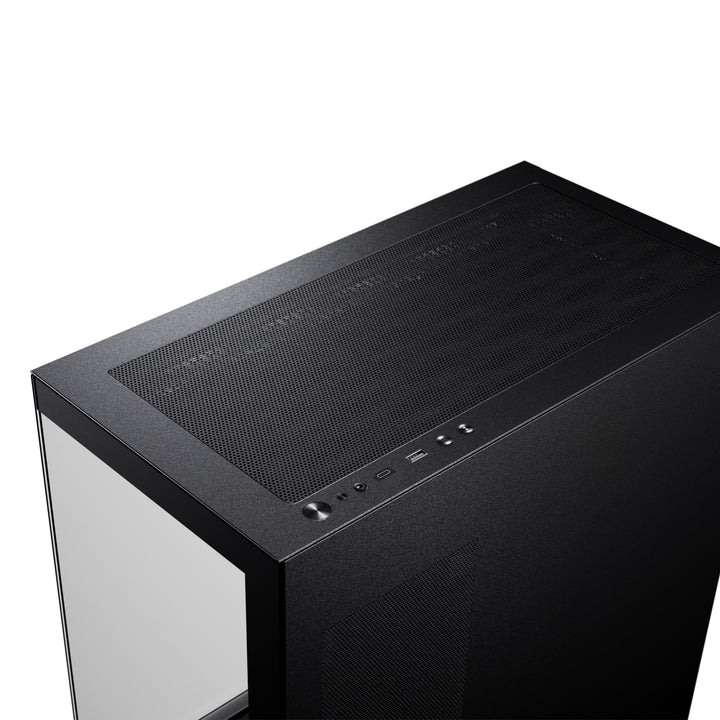

Front I/O |
1x USB 3.0, 1x USB-C 3.2 GEN2, Microphone/Headphone Combo, Power Button, Reset Button, DRGB color button, DRGB Mode Button |
|
|
Connectors |
Front IO, HD-audio, USB 3.0, Power switch, USB 3.2 Gen2 Type-E, D-RGB expansion, D-RGB Motherboard |
|
|
Window |
Yes, Front and Side Tempered Glass |
|
|
|
||
|
Expansion & Drive Bays |
||
|
|
||
|
Expansion slots |
7 |
|
|
Vertical GPU support |
Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01 |
|
|
Internal 3.5” |
2x (1x if 2x SSD installed) |
|
|
Internal 2.5" |
2x (0x if 2x HDD installed) |
|
|
D-RGB Controller output |
NA |
|
|
|
||
|
Cooling |
120mm fan |
140mm fan |
|
|
||
|
Right Side |
2x |
- |
|
Top |
3x |
2x |
|
Rear |
1x |
1x |
|
Midplate |
3x |
- |
|
|
||
|
Liquid Cooling |
120mm radiator |
140mm radiator |
|
|
||
|
Side |
Up to 240 (only with Vertical GPU) |
- |
|
Top |
Up to 360 |
- |
|
Rear |
Up to 120 |
- |
|
Midplate |
- |
- |
|
|
||
|
Clearance |
|
|
|
|
||
|
Graphic card length |
415mm |
|
|
Graphic card width |
184mm |
|
|
CPU cooler height |
184mm |
|
|
PSU length |
270mm |
|
|
Top 360 Radiator |
415 x 138 x 60 mm |
|
|
Side 240 Radiator |
305 x 120 x 62 mm (only with Vertical GPU) |
|
|
Rear 120 Radiator |
140 x 170mm |
|
|
|
|
|
|
|
||
|
Packaging & Shipping |
PH-XT523V1_xx |
|
|
|
||
|
Package Dimension (LxWxH) |
550x300x530mm / 21.7x11.8x20.9in |
|
|
Net Weight |
7.65 kg / 16.86lbs |
|
|
Gross Weight |
9.55 kg / 21.05lbs |
|
|
40HQ (without pallet) |
810 |
|
|
40FT (without pallet) |
648 |
|
|
20FT (without pallet) |
328 |
|
|
|
||
|
Warranty |
|
|
|
Length |
5 Years Limited |
|
|
|
|
|
|
Scope of delivery |
|
|
|
XT View Chassis |
|
|
|
Storage Bracket |
1x |
|
|
M25-120_DBK Fan |
3x |
|
|
DRGB Controller |
1x |
|
|
Triple SSD Bracket |
1x |
|
|
Side DRGB LED strip |
1x |
|
|
|
|
|
|
Accessory Box |
|
|
|
Zip ties |
30x |
|
|
MB/SSD Screw |
30x |
|
|
Thumb Screw |
4x |
|
|
HDD Screw |
8x |
|
|
Standoff Tool |
1x |
|
|
MB stand-off |
1x |
|
|
PSU Screw |
4x |
|
|
30mm Fan Screw |
12x (UNC6-32) |
|
|
|
|
|
|
|
|
|
