The Evolv X2 redefines the desktop computer with its see-through glass design, aluminum interior and powerful vertical cooling solution. The entire chassis floats on top of its base taking in plenty of air from all around and guiding the air along the GPU, CPU and exhaust hot air through the top.
The interior of the Evolv X2 has been carefully designed to blend with the hardware components for a fully integrated look with all cooling components sitting flush into the top and base. Premium aluminum internal panels and the built-in lighting accentuate your system with style.
Unique see-through tempered glass chassis design
Vertical cooling system with a floating chassis for bottom air intake
Premium aluminum interior with integrated D-RGB Lighting
Support for ATX rear-connect mainboards
All fans and radiators are fully integrated in top and bottom for clean look
Triple 120mm fan positions in the bottom for air intake
Triple 120mm fan positions in the top with dedicated 360 radiator clearance for exhaust
Rear 120mm fan position for a total of 7x 120mm fan positions
|
Case Specifications |
||
|
Dimension |
454 x 228 x 588mm / 17.87 x 8.97 x 23.15in (DxWxH) |
|
|
Form Factor |
Mid-Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window, ABS Plastic |
|
|
Mainboard Support |
ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide) |
|
|
Rear Connect Motherboard |
ATX |
|
|
Front I/O |
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, Reset Button |
|
|
Connectors |
Front I/O, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
2x (1x if 5x SSD installed) |
|
|
Internal 2.5” |
5x (3x if 2x HDD installed) |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Rear |
1x |
- |
|
Bottom |
3x |
- |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Rear |
- |
- |
|
Bottom |
- |
- |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
380mm | 14.96in |
|
|
CPU Cooler Height |
170mm | 6.69in |
|
|
PSU Length |
250mm | 9.84in |
|
|
Top Radiator |
415 x 130 x 32mm | 16.34 x 5.12 x 1.25in |
|

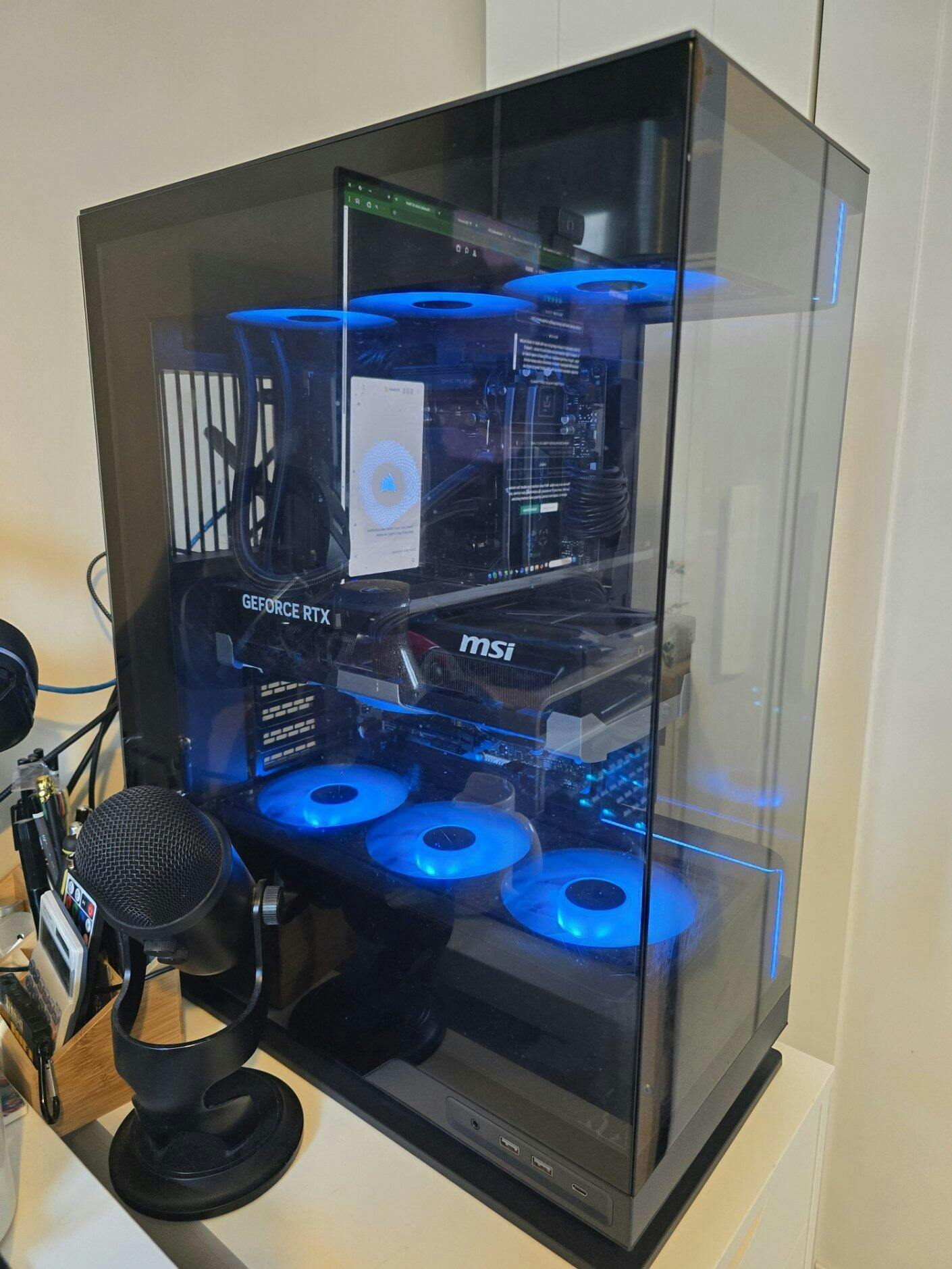

This case is sexy. My only very minor complaint is I wish the door behind the motherboard tray had slightly more room to fit cables that are in the pre-defined cable routing location a couple millimeters of extra room would have saved me some headache getting the door to stay latched.
As the title states, its a pretty damn nice case, airflow is great, cable management is easy and appealing, and its a very open case. Only complaint would be make sure you like the look of a tall tower case, I personally like the box type cases but overall it looks so good that I cant even complain.
Phanteks Evolv X2 Black
A nice case but if you're going to run the best tech inside it, expect high temperatures and lots of noise. I have 6 fans, liquid cooling/radiator on CPU and to keep down to around 86 degrees I need to remove a side panel, which actualy reduces noise as the fans don't have to work as hard (but not ideal for dust, accidental damage and aesthetics etc). I am very pleased with the look and feel and the build was easy with plenty of cable management options. It has the wow factor and is fine for everyday work and light gaming but start to run any graphics demanding game (Cyberpunk, Arc Raiders, Borderlands 4) and it becomes rather warm and rather noisy.
The top bracket is unnecessary and inconvenient especially when using an AIO the room for cable management is non existent. There are no pre installed fans for your above average price point the only good thing about the case is the design but honestly not really worth it
