Description

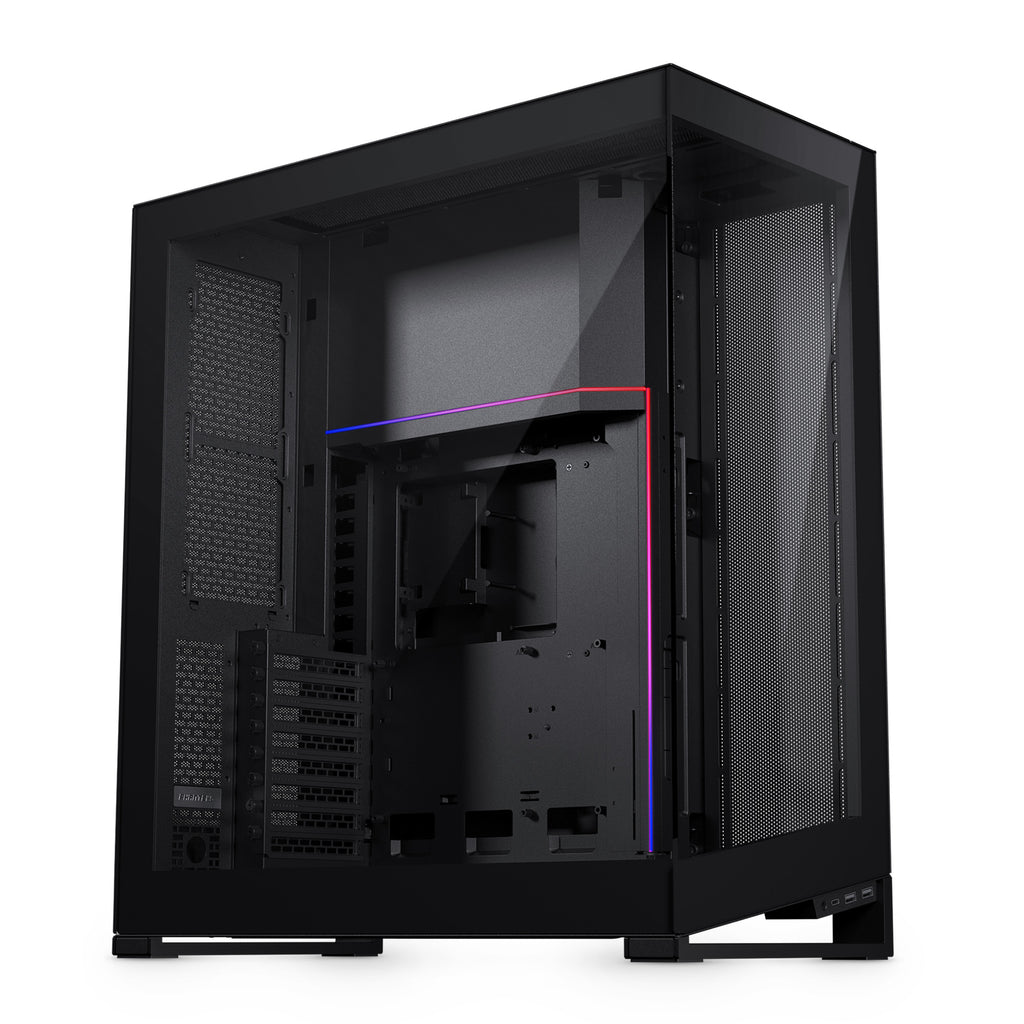

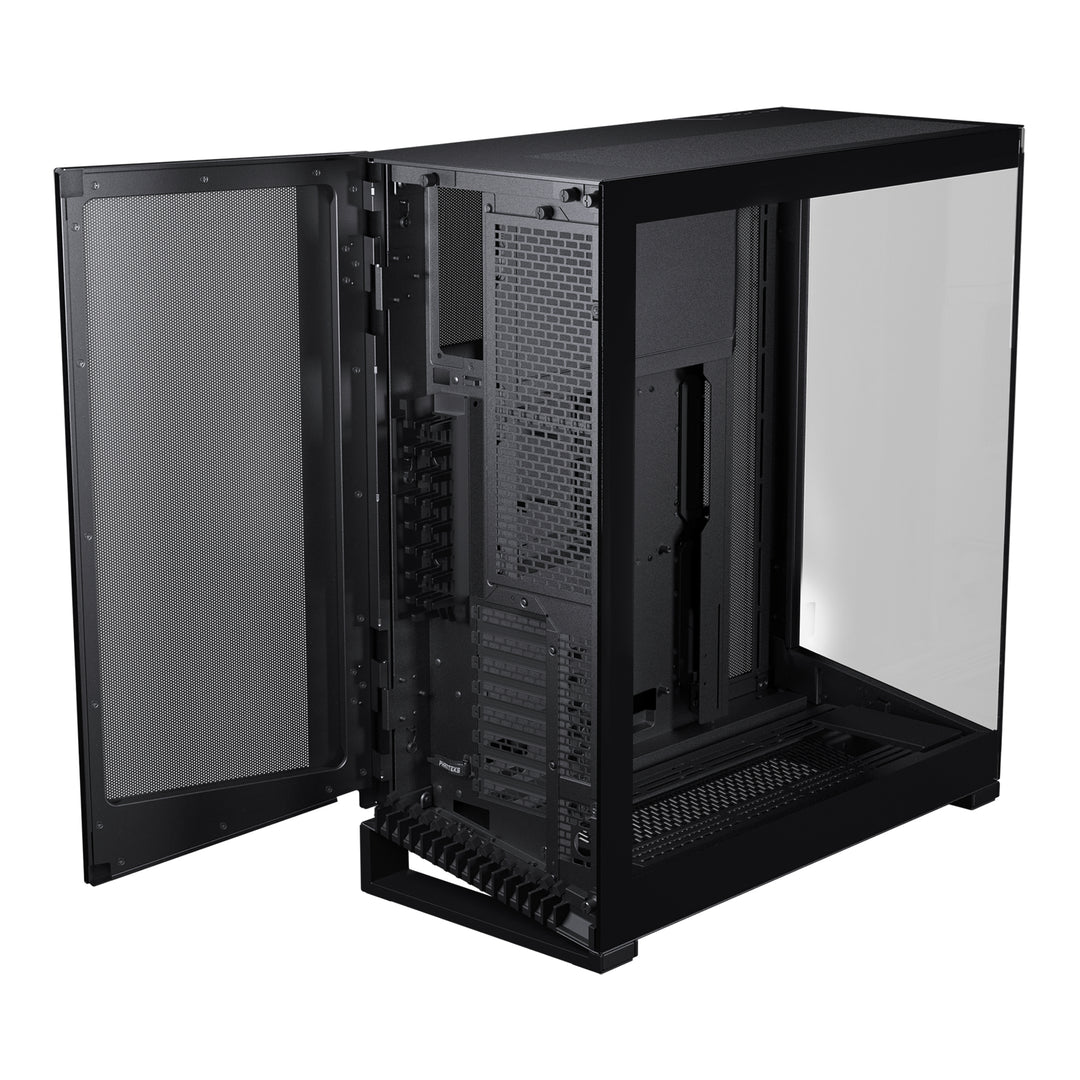

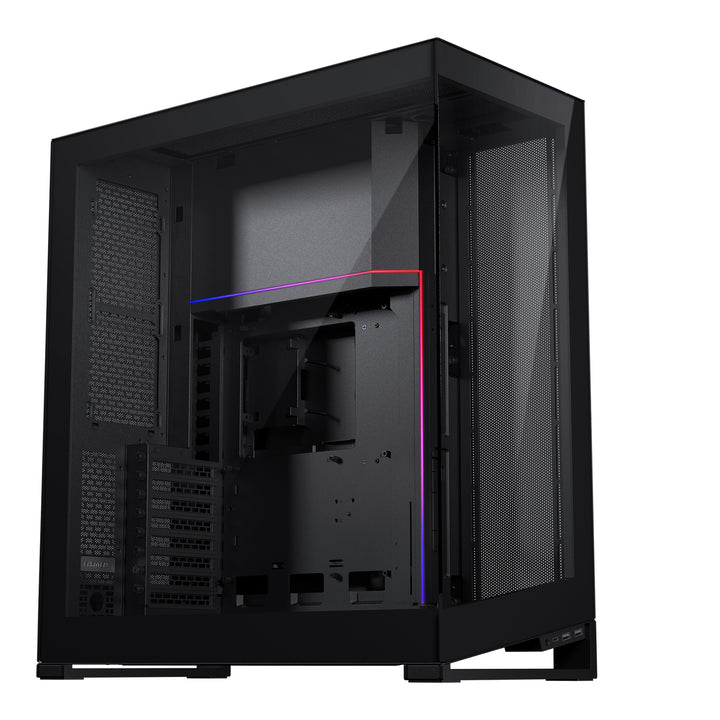

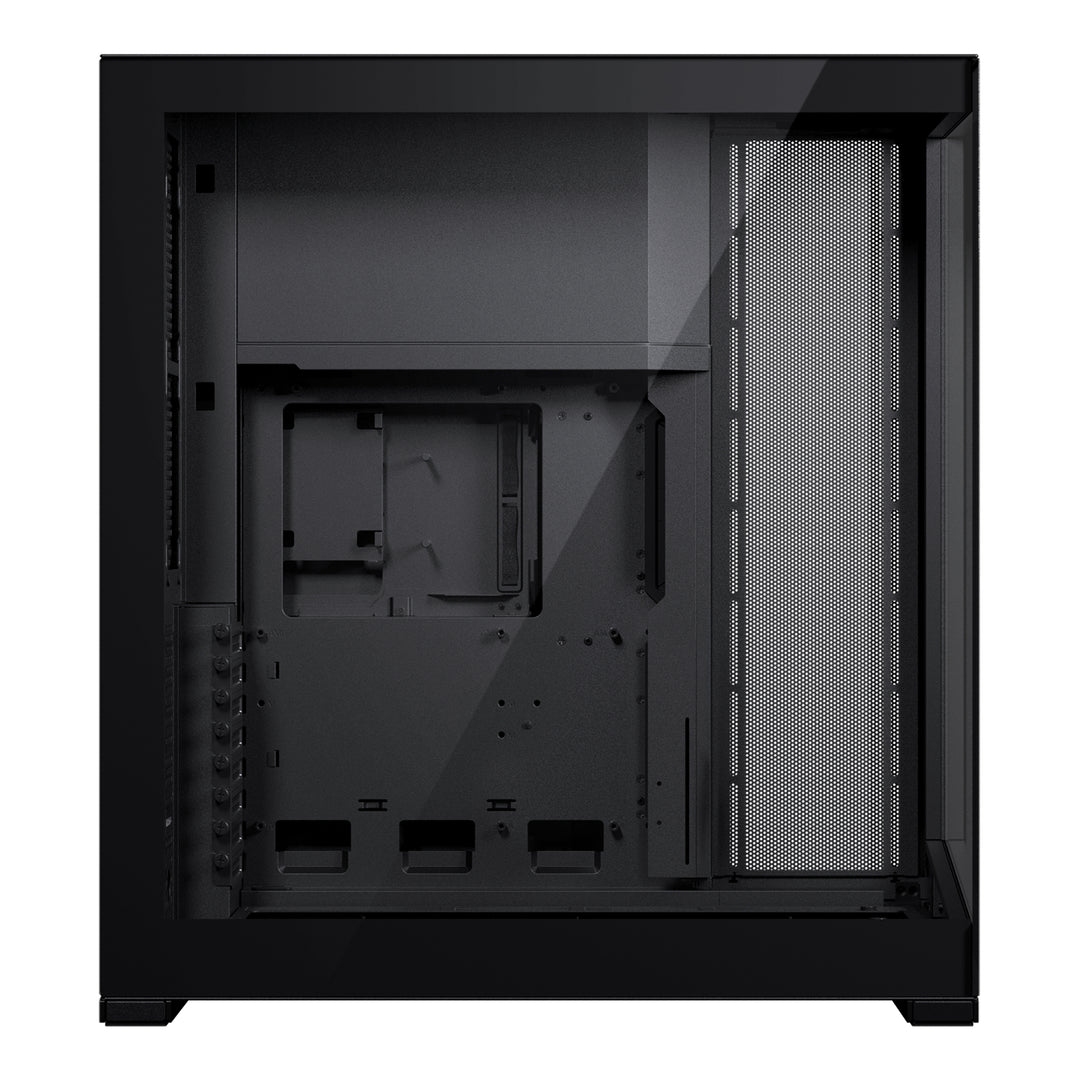

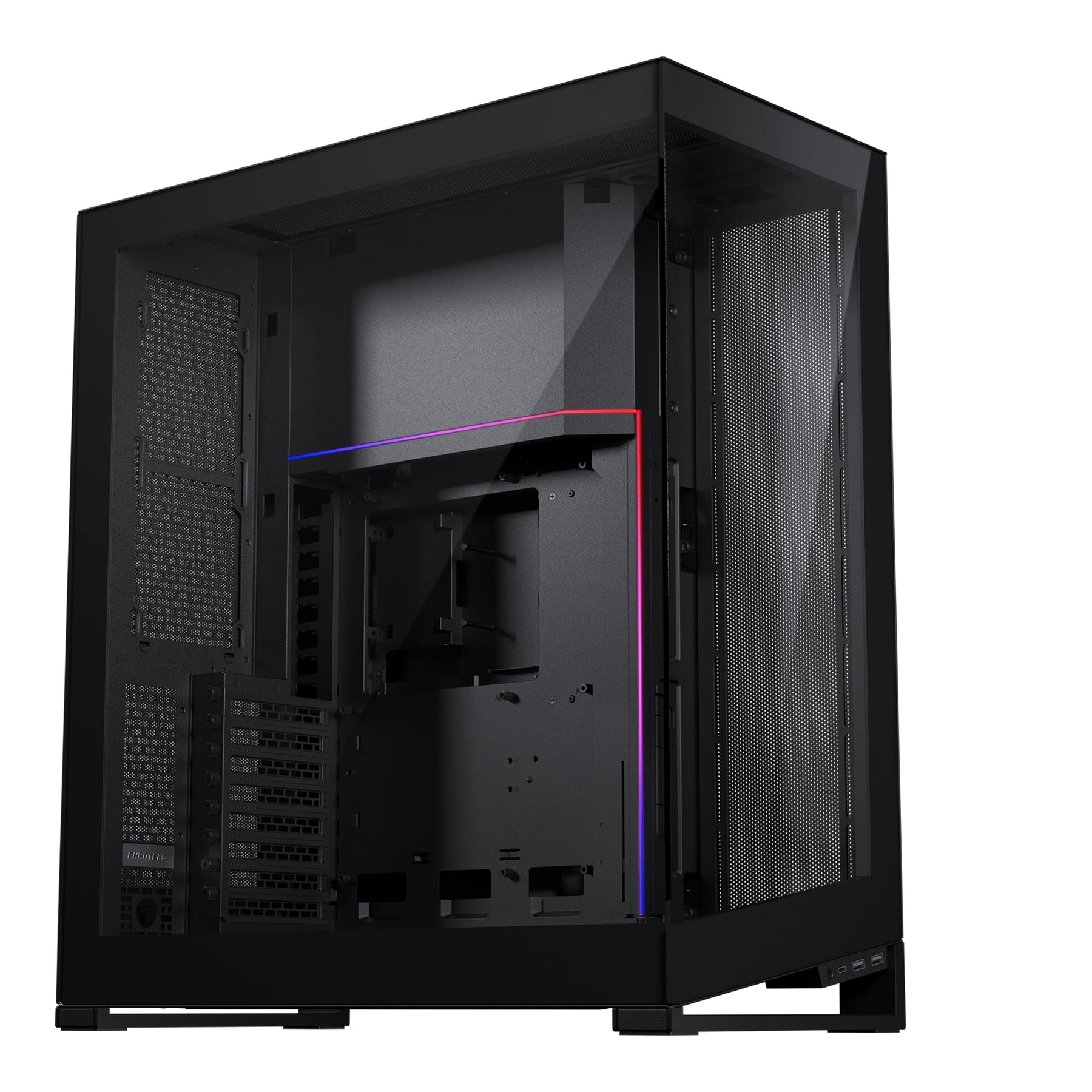

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.

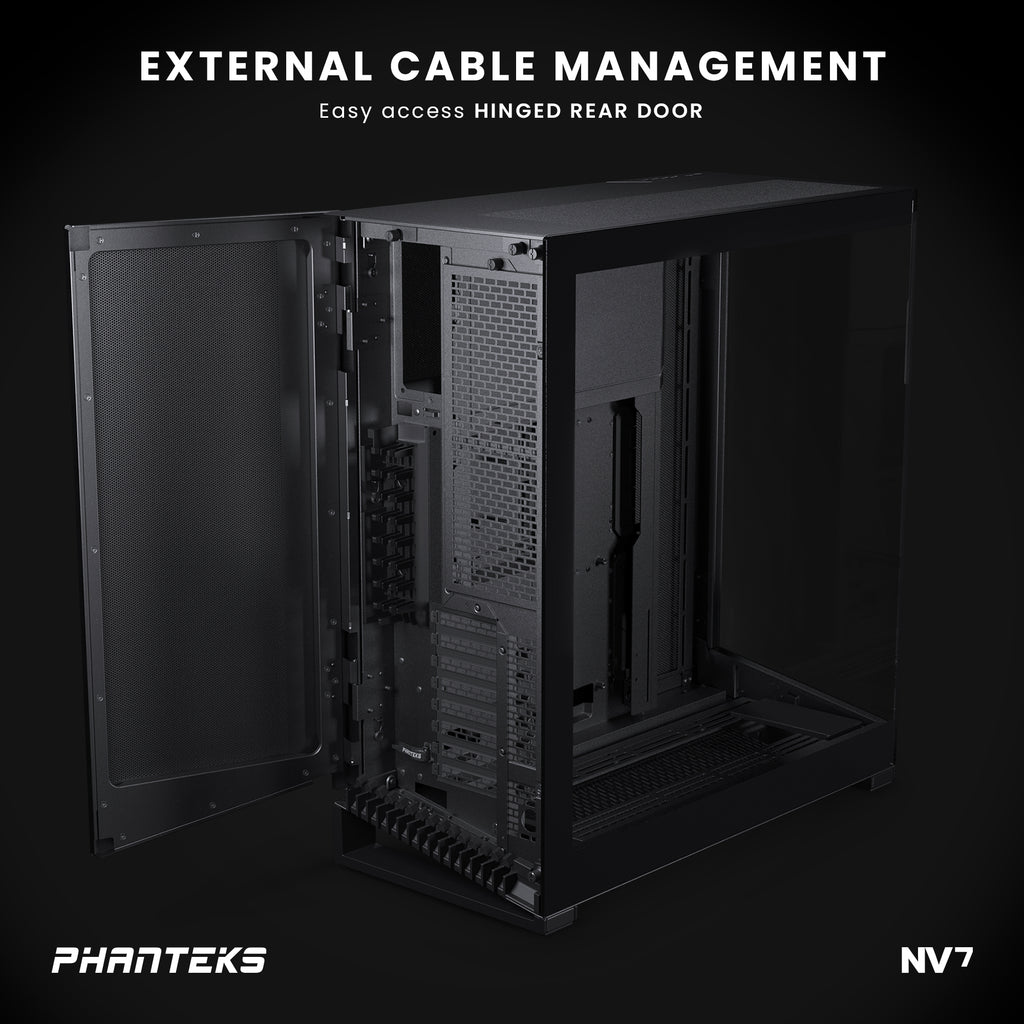

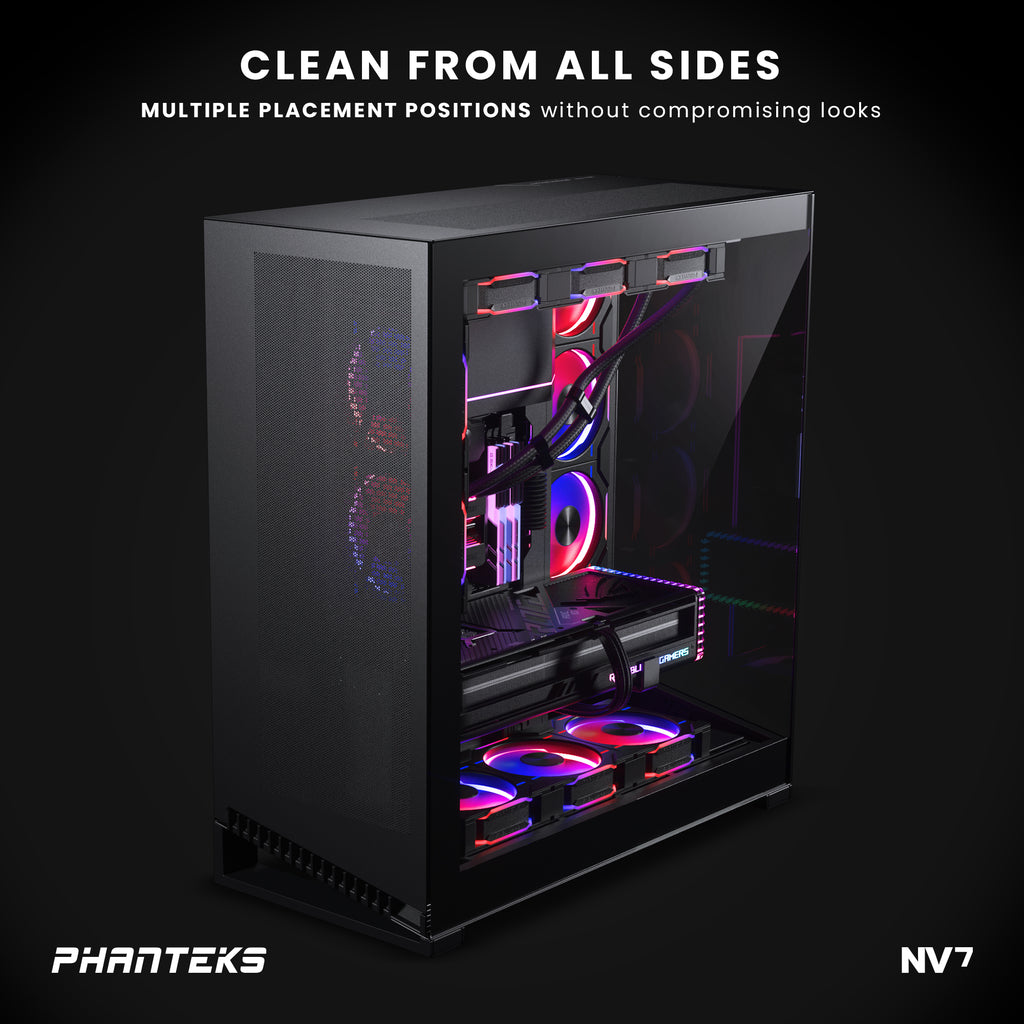

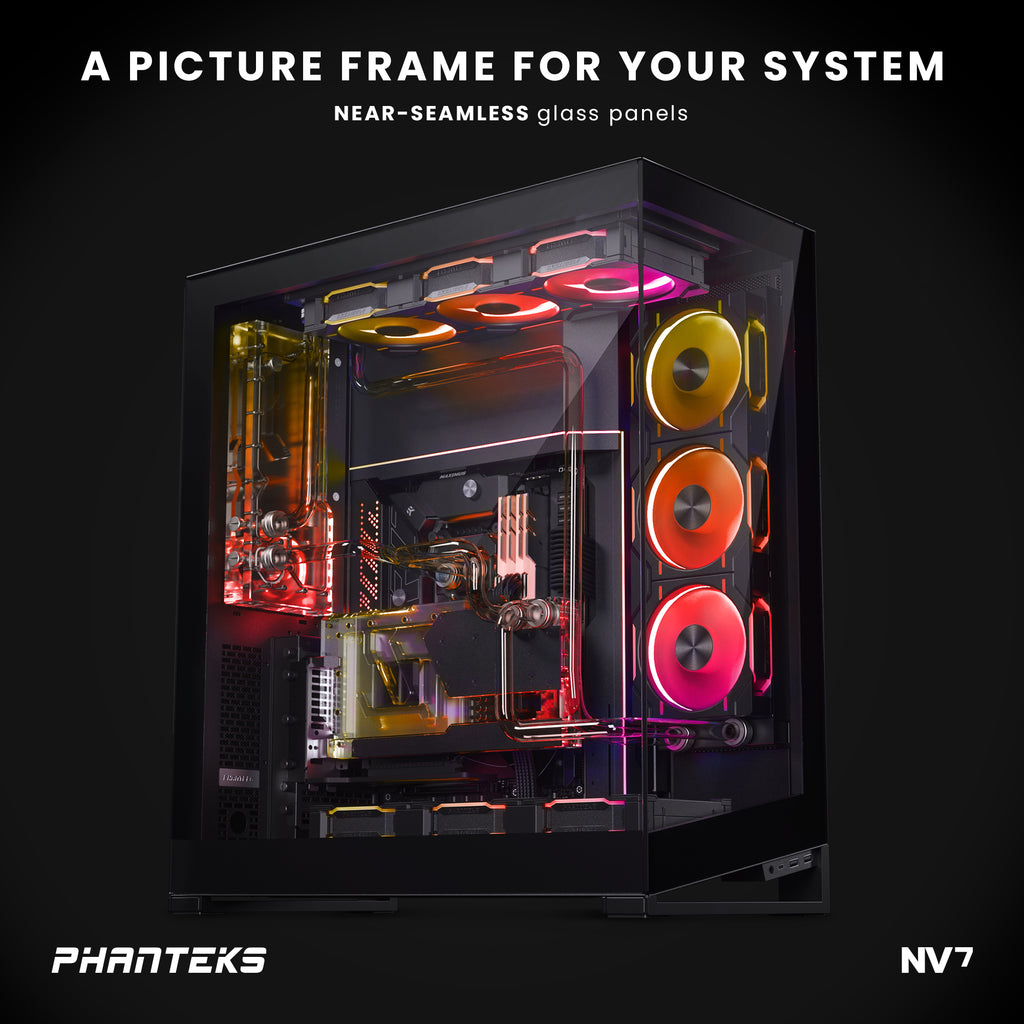

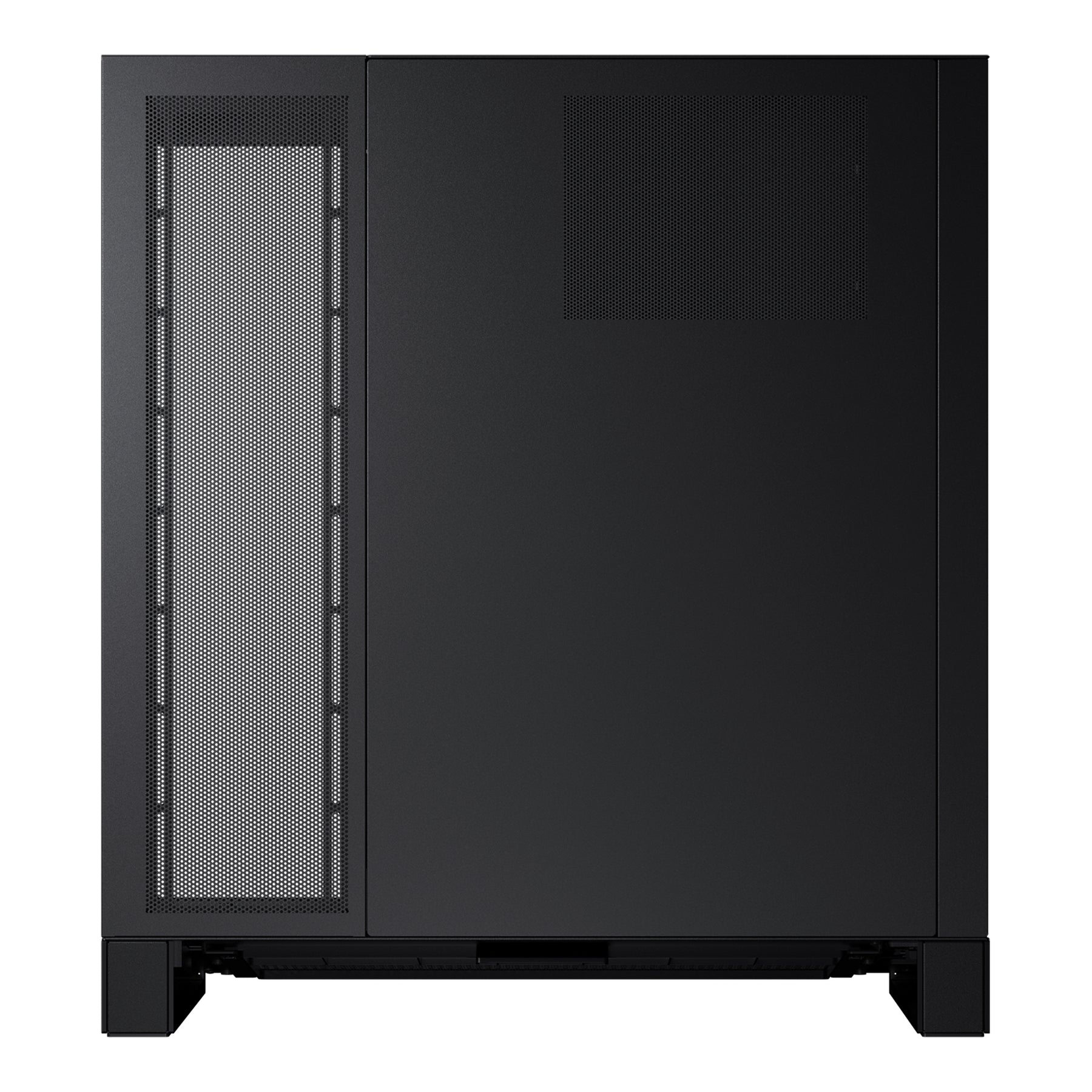

With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
| CASE SPECIFICATIONS |
- Dimensions: 253 x 532 x 586 mm / 10.0 x 20.9 x 23.1 in (WxDxH)
- Form Factor: Full Tower
- Materials: Steel Chassis, Tempered Glass
- Motherboard support: ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide with LED Cover)
-

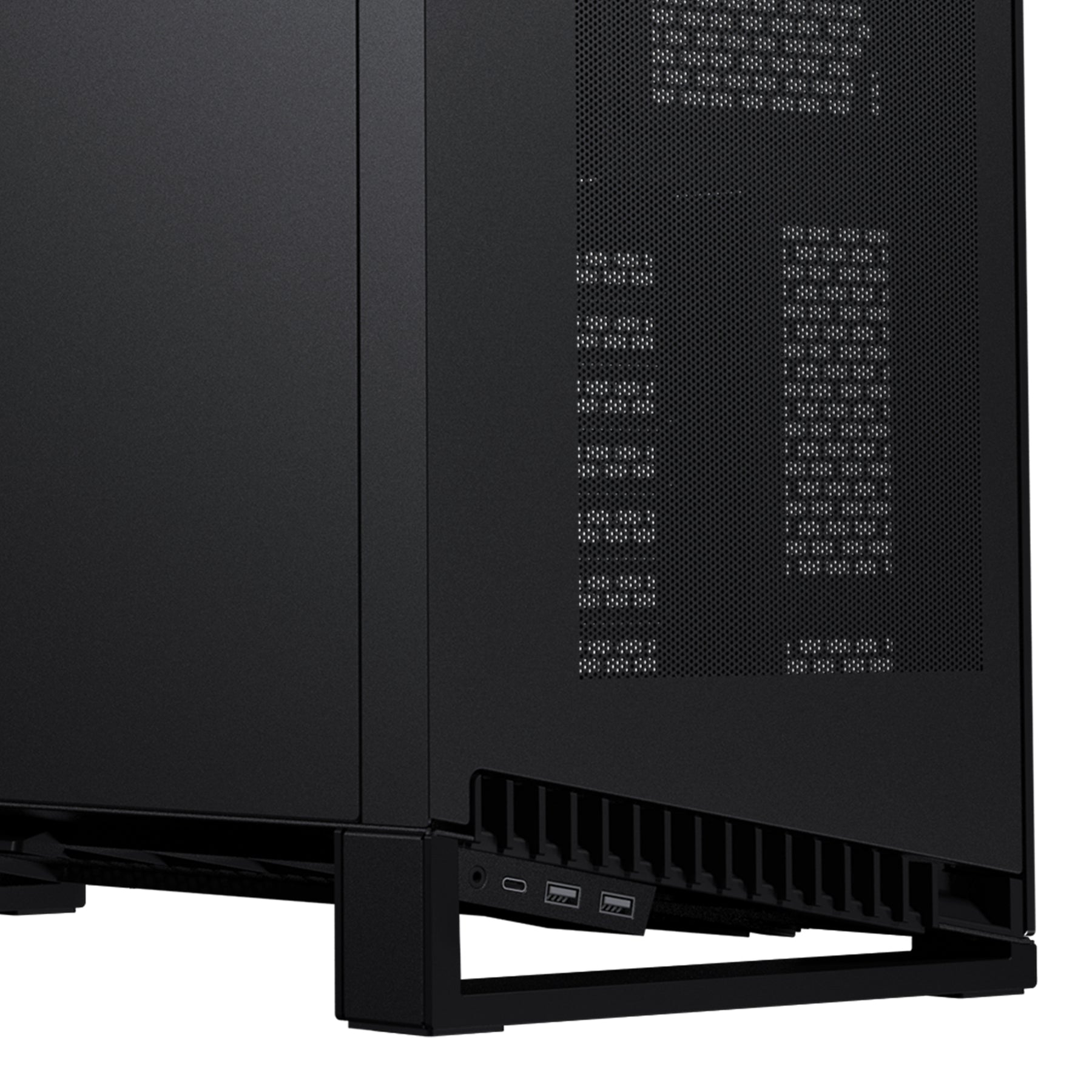

Front I/O: 2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel
- Connectors: Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E, Power LED
- Window: Yes, Front and Side Tempered Glass
| Expansion & Drive Bays |
-
Expansion Slots: 8
- Vertical GPU Support: Yes, with optional bracket PH-VGPUKT4.0_03 or riser cable
- Internal 3.5": 2 (1x if all SSD positions are used)
-
Internal 2.5": 6 (4x if both HDD positions are used)

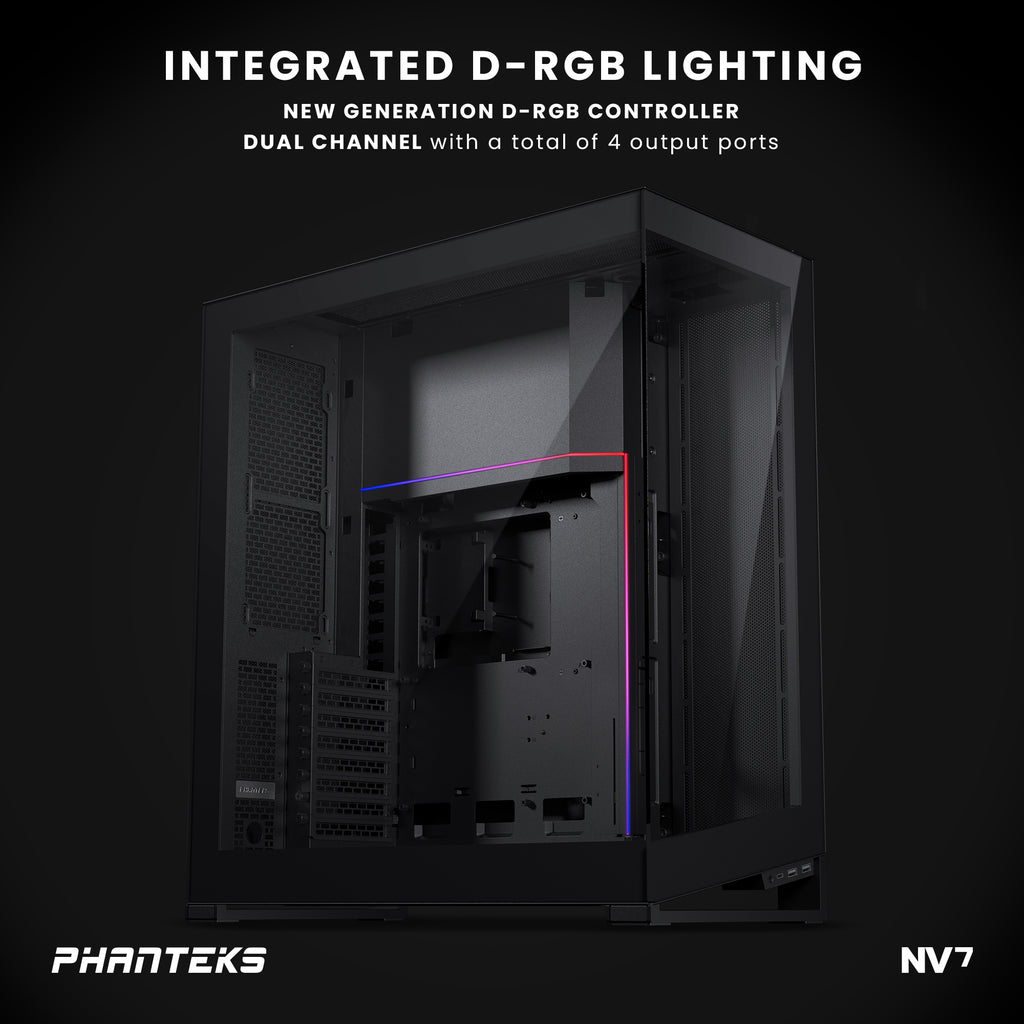

- D-RGB Controller Output: 7A per Channel, 4A per port
|

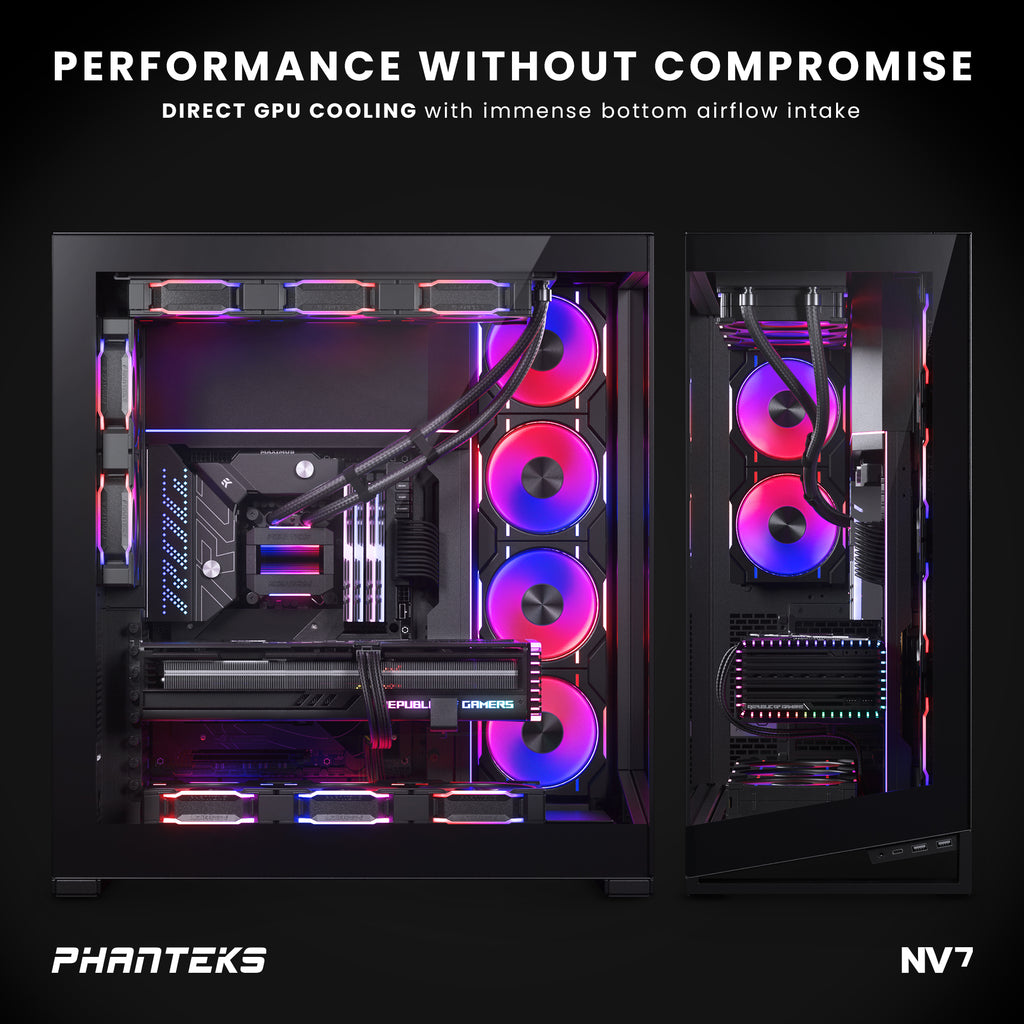

Cooling |
120mm fan |
140mm fan |
|
|
||
|
Side |
4x |
- |
|
Top |
3x |
- |
|
Rear |
2x |
- |
|
Bottom |
3x |
3x |
|
Liquid Cooling |
120mm radiator |
140mm radiator |
|
|
||
|
Side |
Up to 360 |
- |
|
Top |
Up to 360 |
- |
|
Rear |
Up to 240 |
- |
|
Bottom |
Up to 360 |
Up to 280 |
| Clearance |
-
Graphics Card Length: 450mm
- CPU Cooler Height: 185mm
- PSU Length: 255mm
- Side 360 Radiator: 132x440x65mm
- Top 360 Radiator: 132x440mm
- Rear 240 Radiator: 132x320mm
Return Policy
Customer Reviews

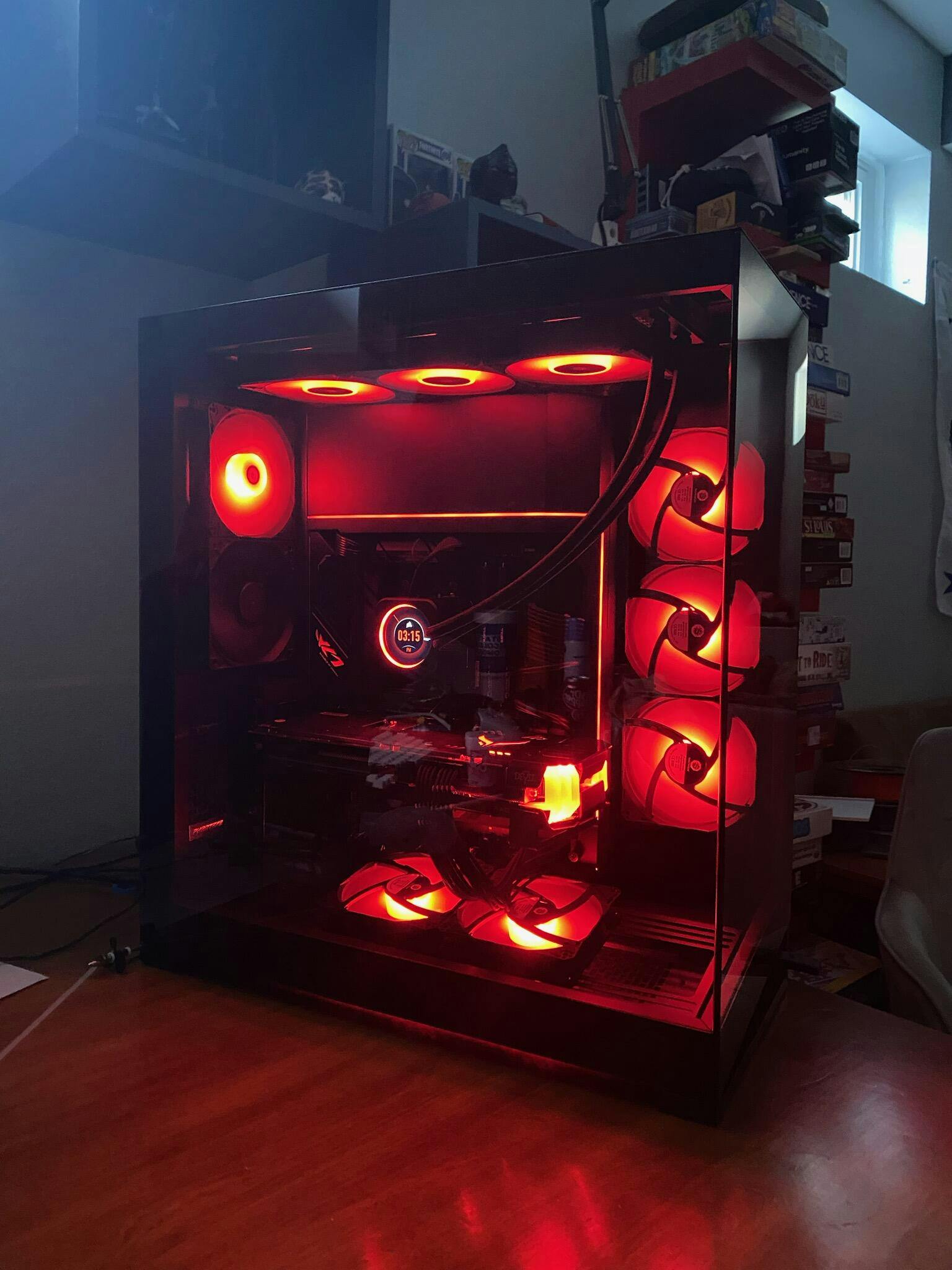

For years, I've had to deal with cases that either didn't have the features or the style I wanted. That was until I seen the NV7. Once I seen it, I checked everyday and bought it the first chance I got.

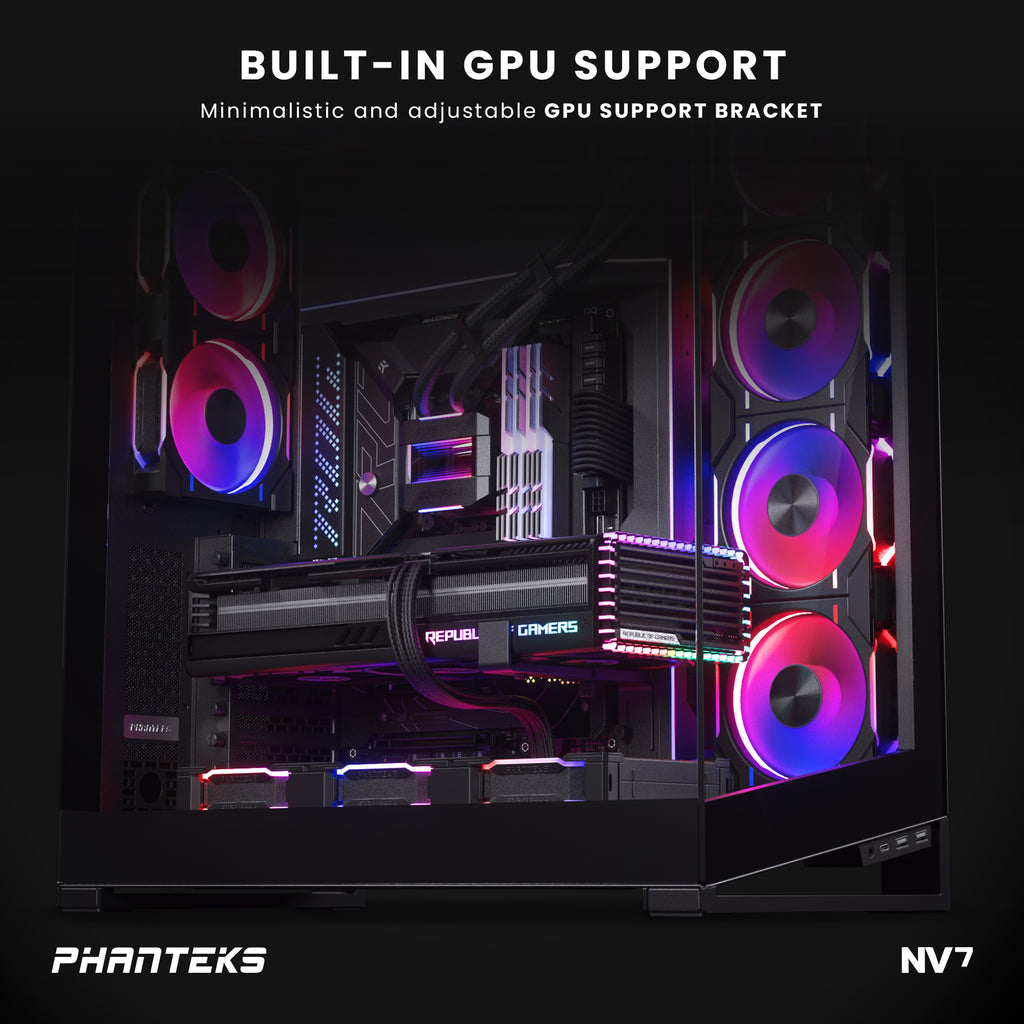

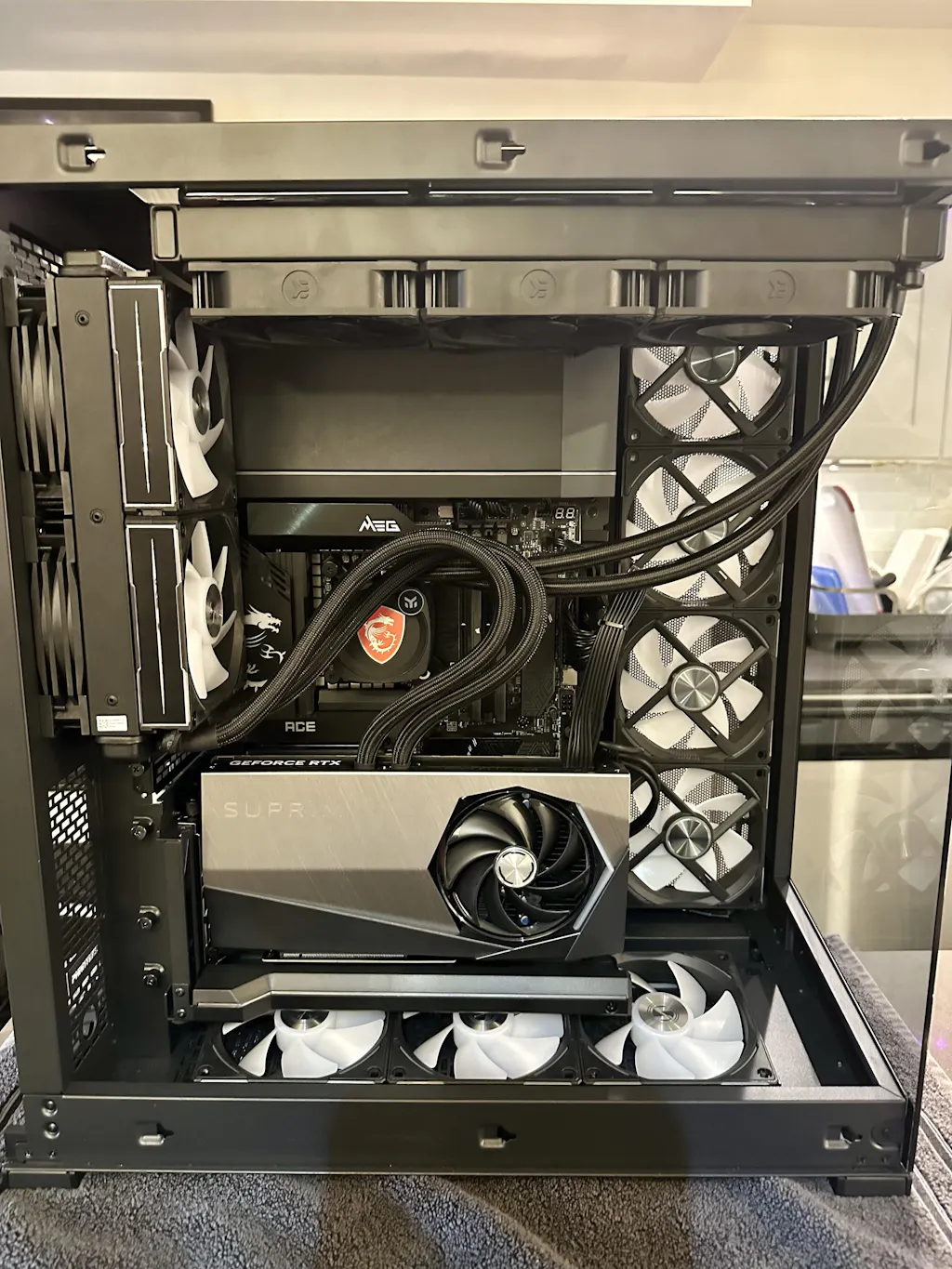

Everything about this case is amazing. Very simple to break down to the bare bones. You can tell a lot of thought went into display and cable management. The only negative was with the GPU support bracket. We have noticed that it will pull down on the motherboard cover that it is attached to. It has pull that cover out and disconnected the leds. Currently working on 3d printed insert to support the load. That is only only minor detail while setting up the case.

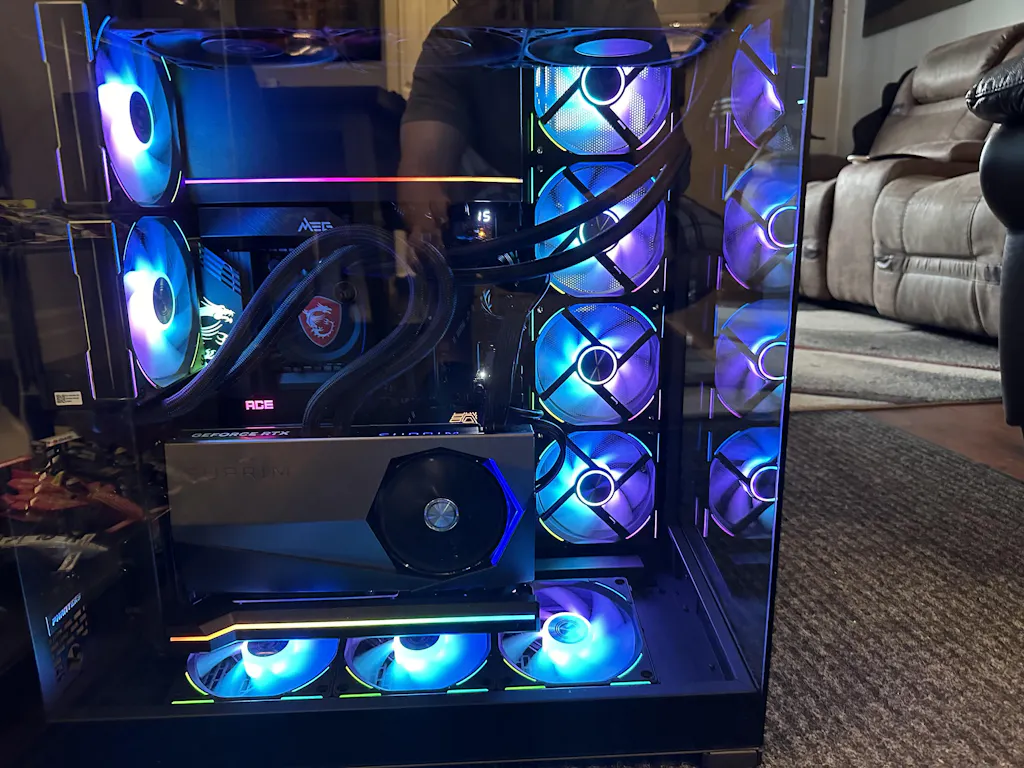

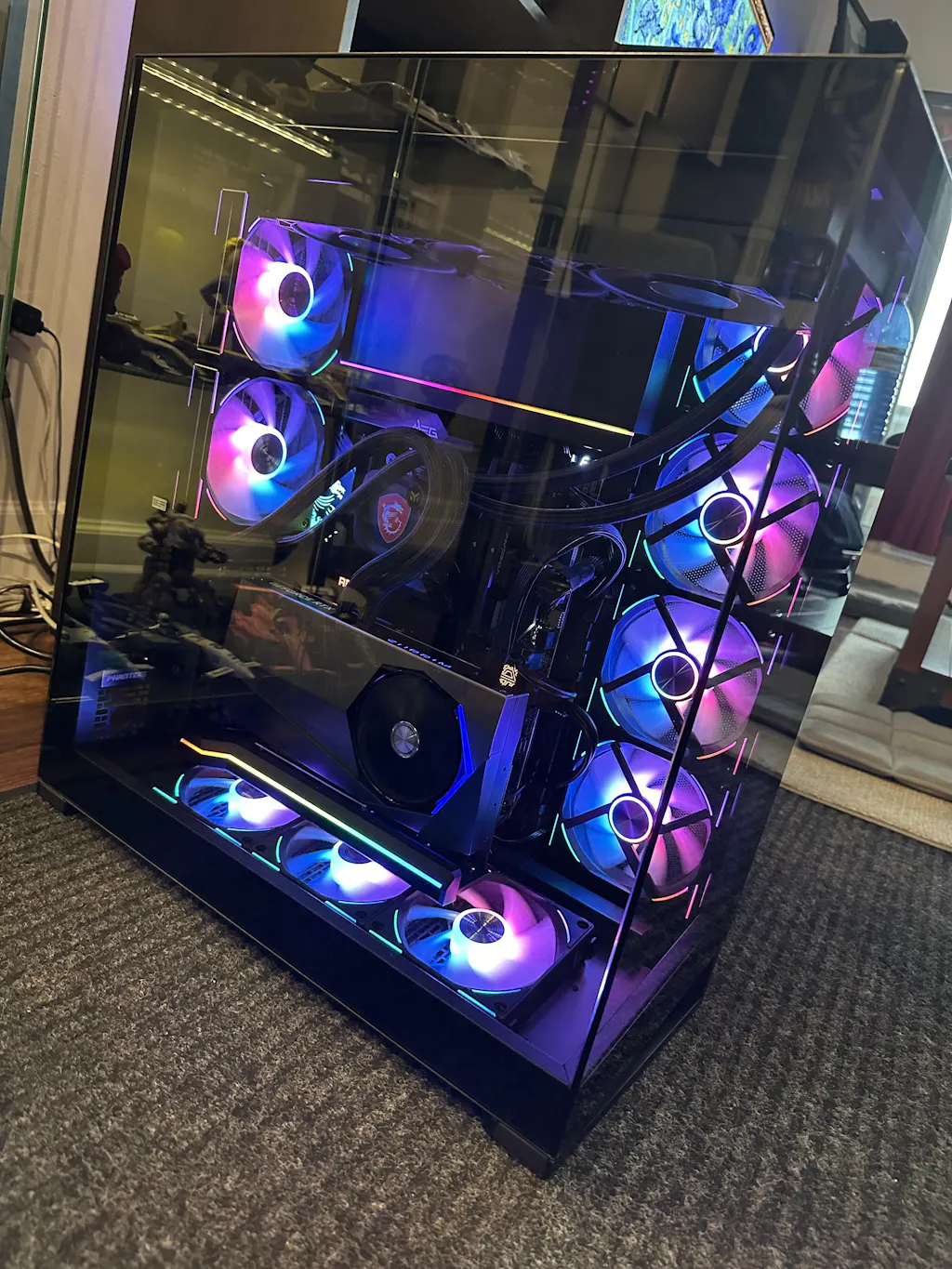

coming from my 570X Crystal from Corsair which is ok for the 3080Ti but the 4080 is too big for it, I had to look for another case. Enter NV7 and wow!!! Such an easy case to build especially with all the fans and fewer cables to mess with unlike the LL120 the D30's are def. the way to go. Thanks Phanteks for an amazing case =)

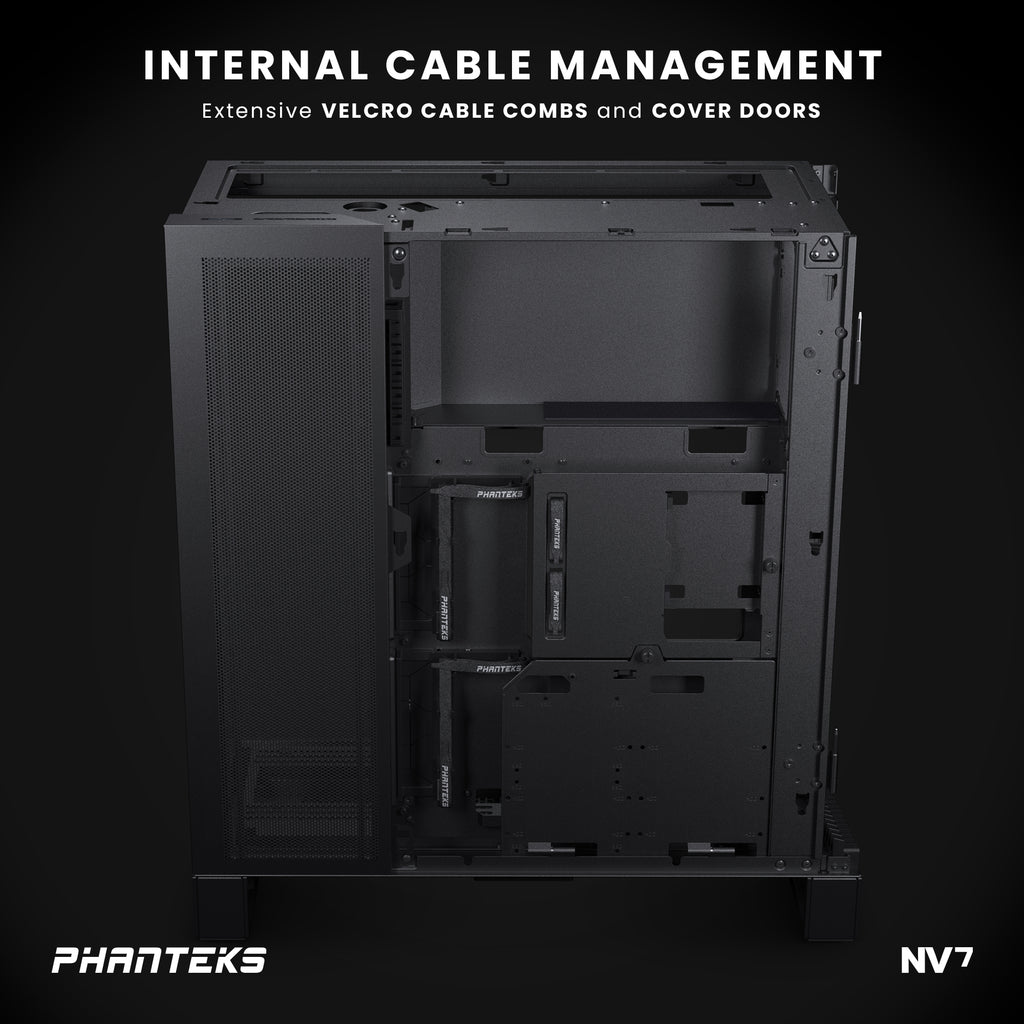

This case is well built and very easy to build in. Cable management is a breeze and looks good. Overall design is phenomenal and when the build is complete the case provides probably the cleanest looking build of any case out there! I would highly recommend this case! With the NV7, the D30 Reversible Fans is a must to make your build pop! The only thing I would love to do is change my current AIO to Phanteks Glacier One 360 MPH, but after the cost of the NV7 and 7 D30 Fans this will have to wait. So with that said, cost isn’t bad but if you are on a budget or not wanting a case as big as the NV7, then check out the NV5 and if you want bigger the NV9-both coming soon! Again you will not be disappointed with the NV7!
