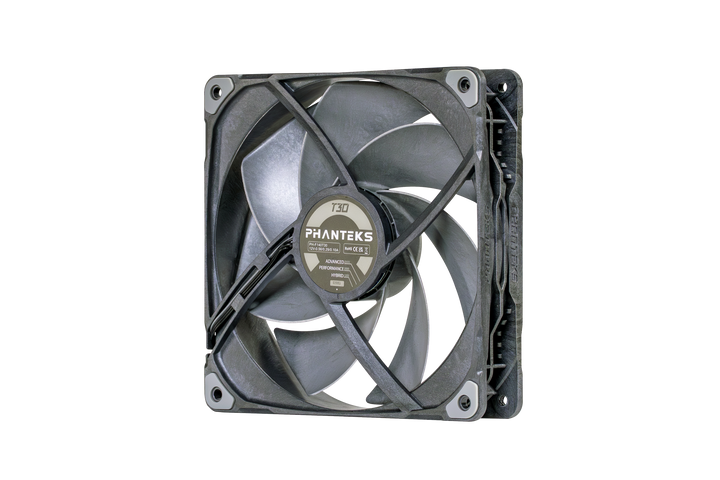

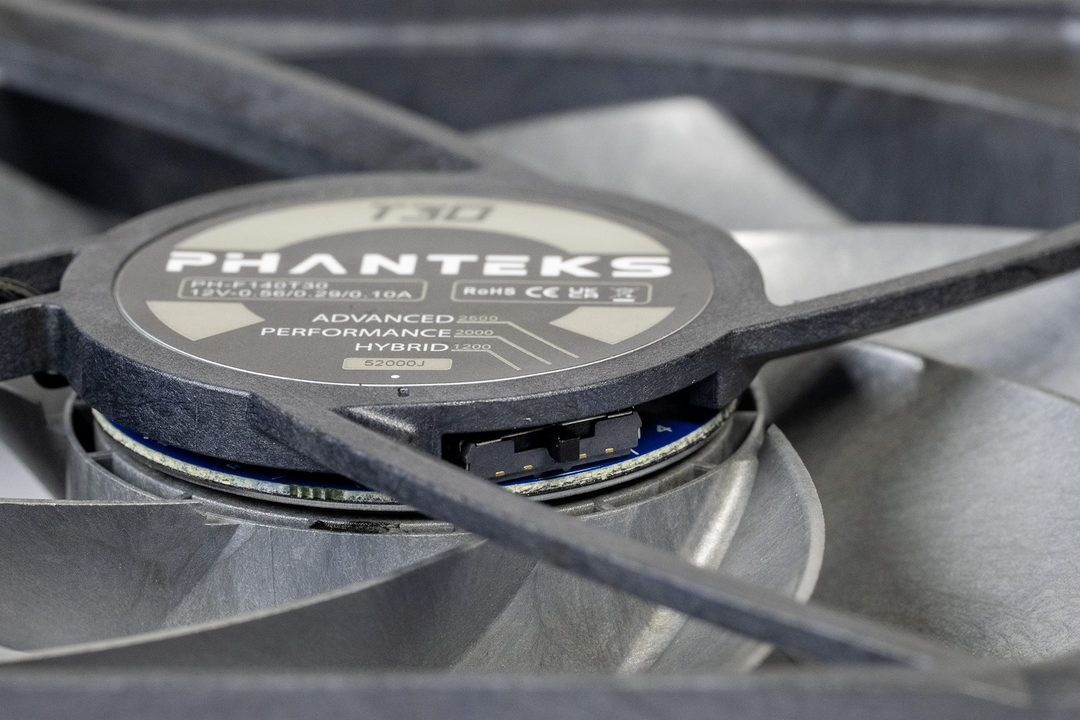

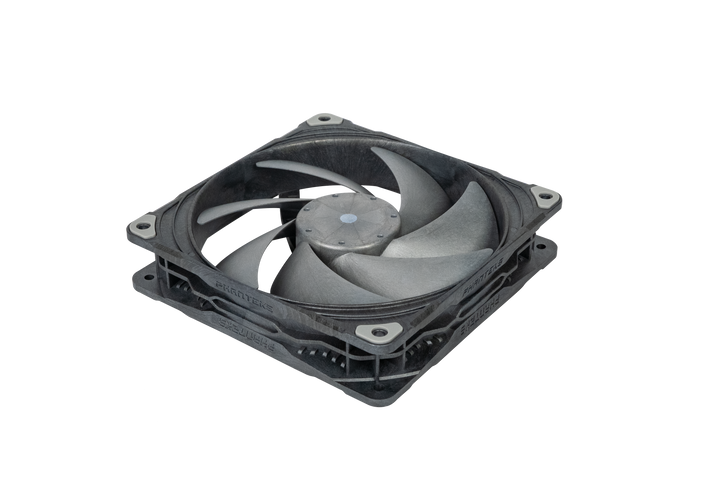

The Phanteks T30-140 fan brings unparalleled performance to PC cooling for any scenario. With its built-in fan profiles and wide RPM range, the T30-140 can be tuned for silent, balanced, or extreme performance operation via a simple switch. With many years of development, extensive testing and experience in chassis and air/water cooler design, the T30 combines the best aerodynamic design and quality components.

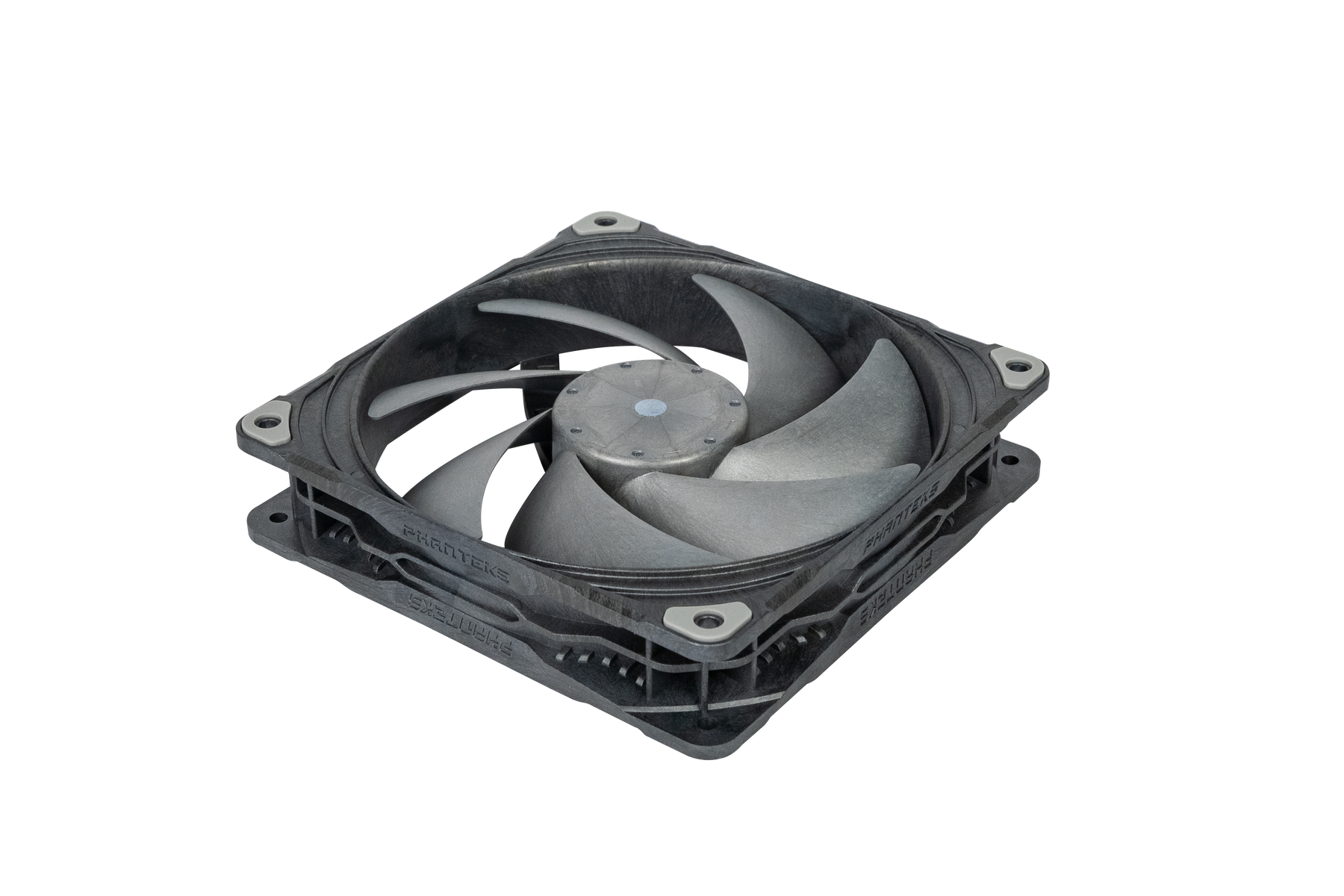

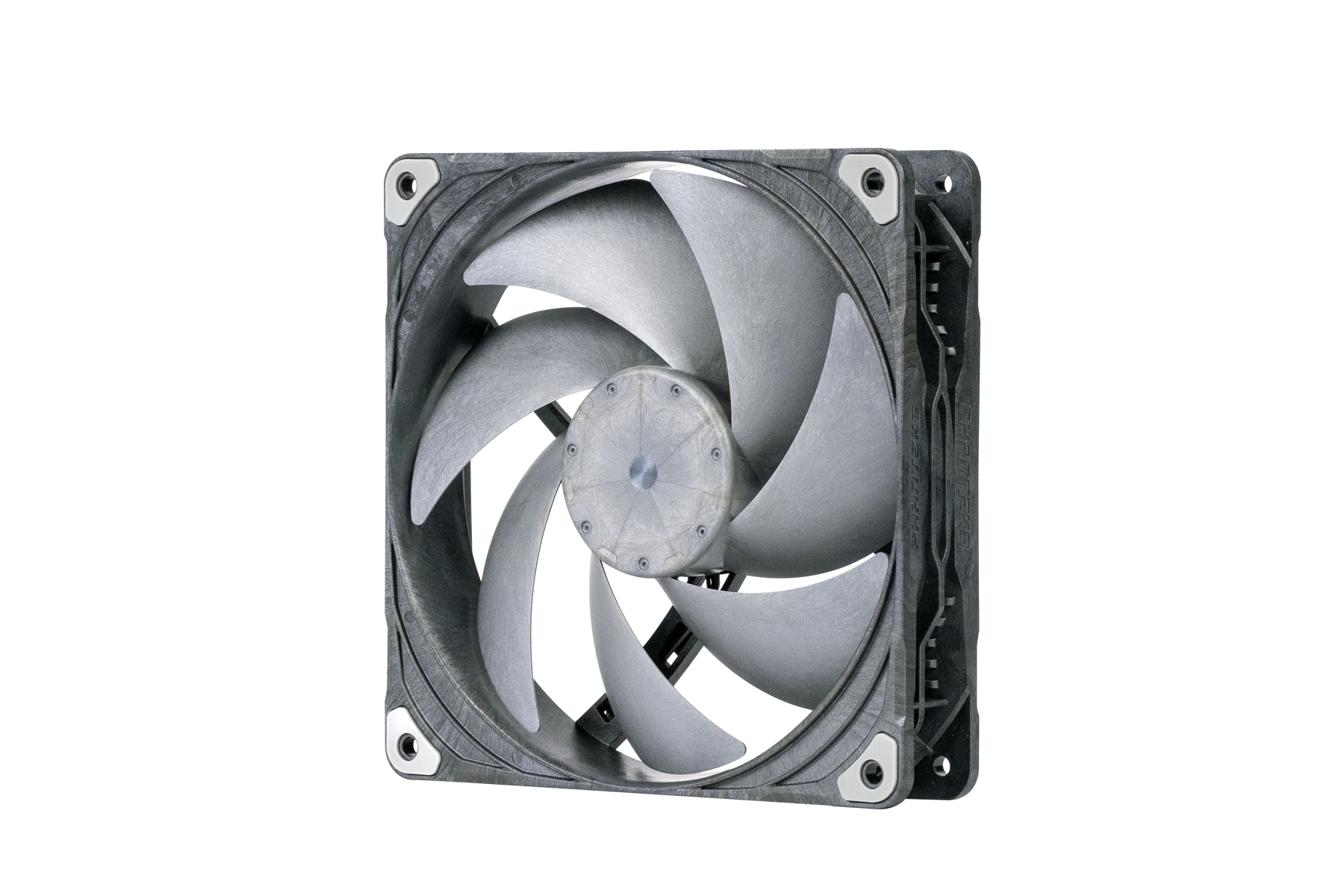

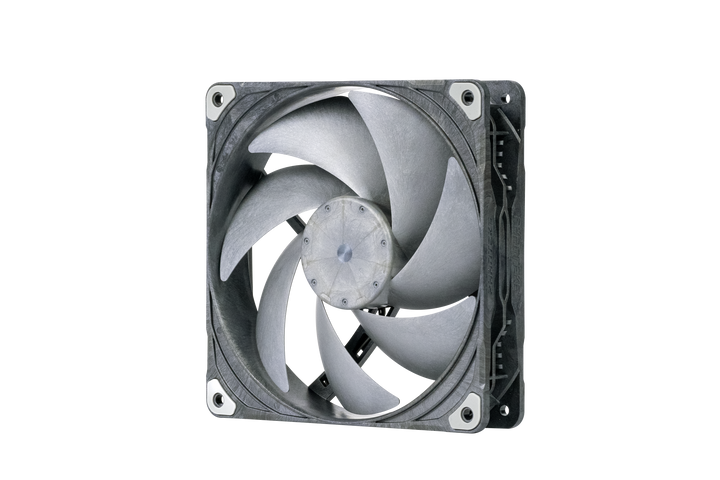

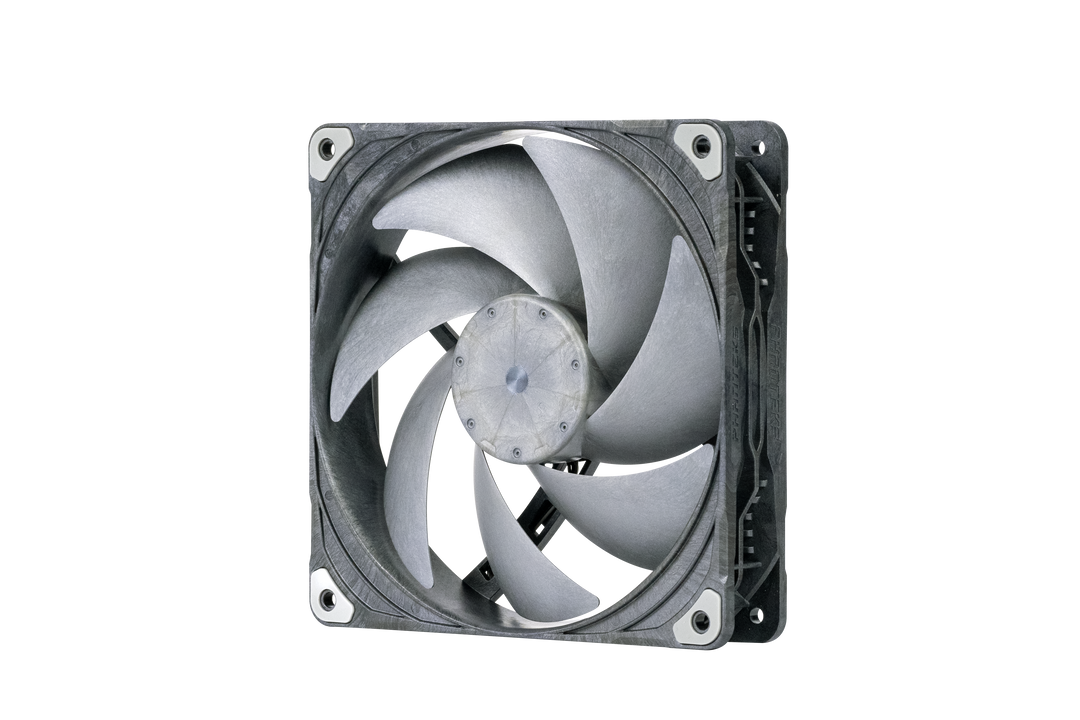

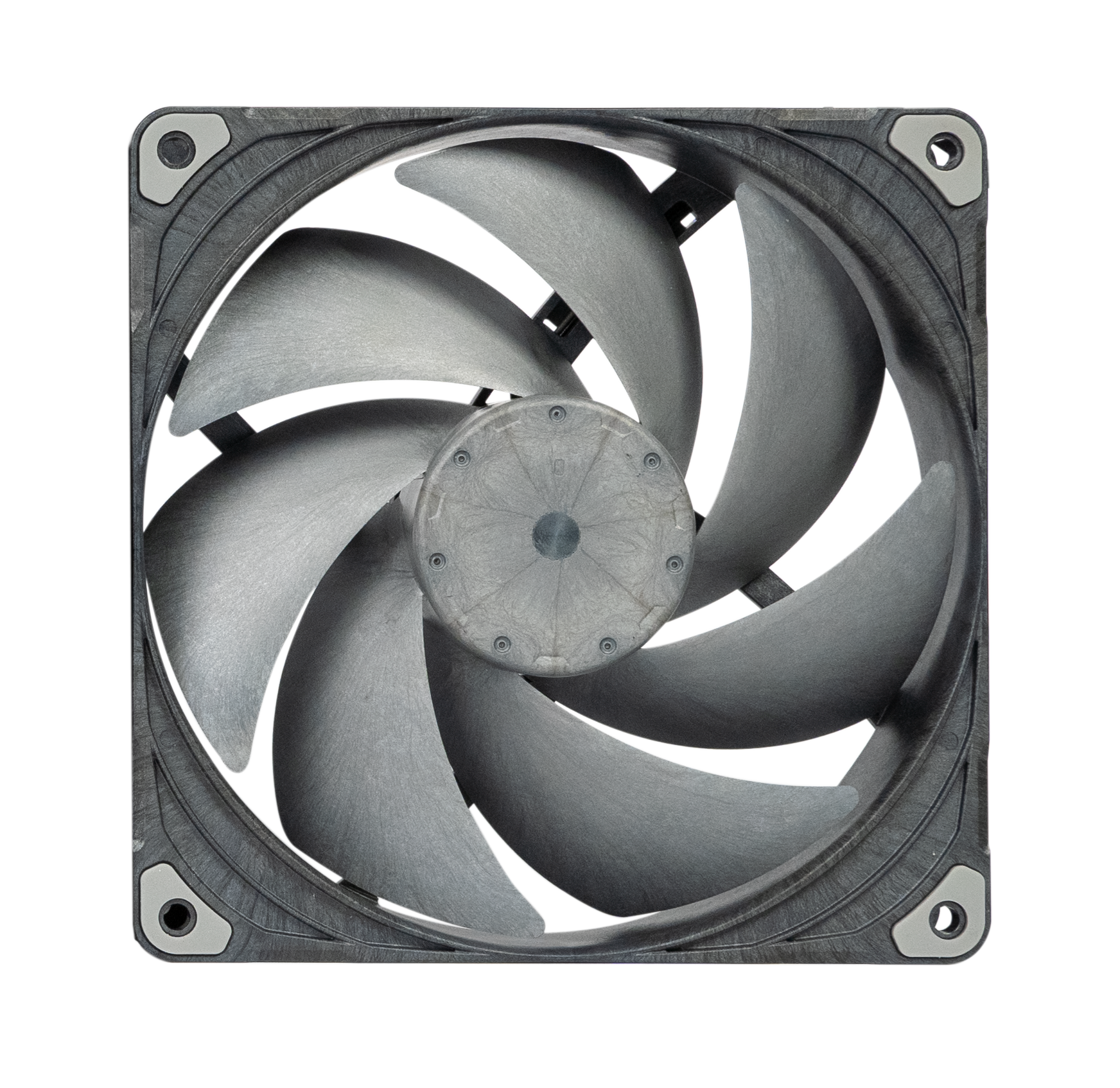

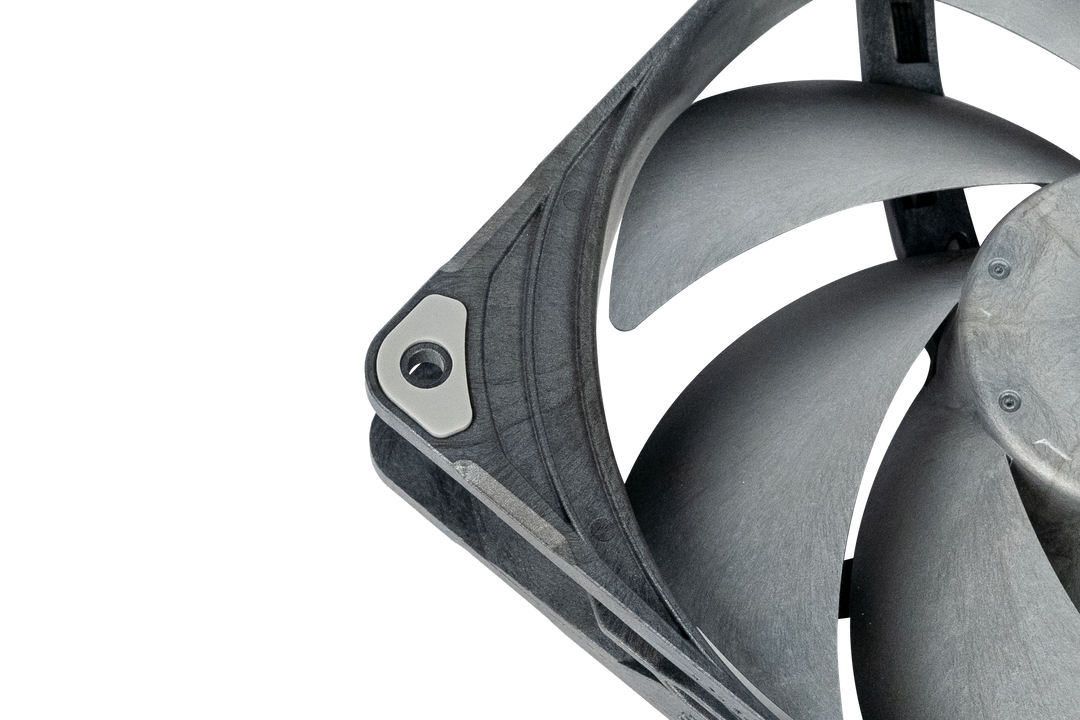

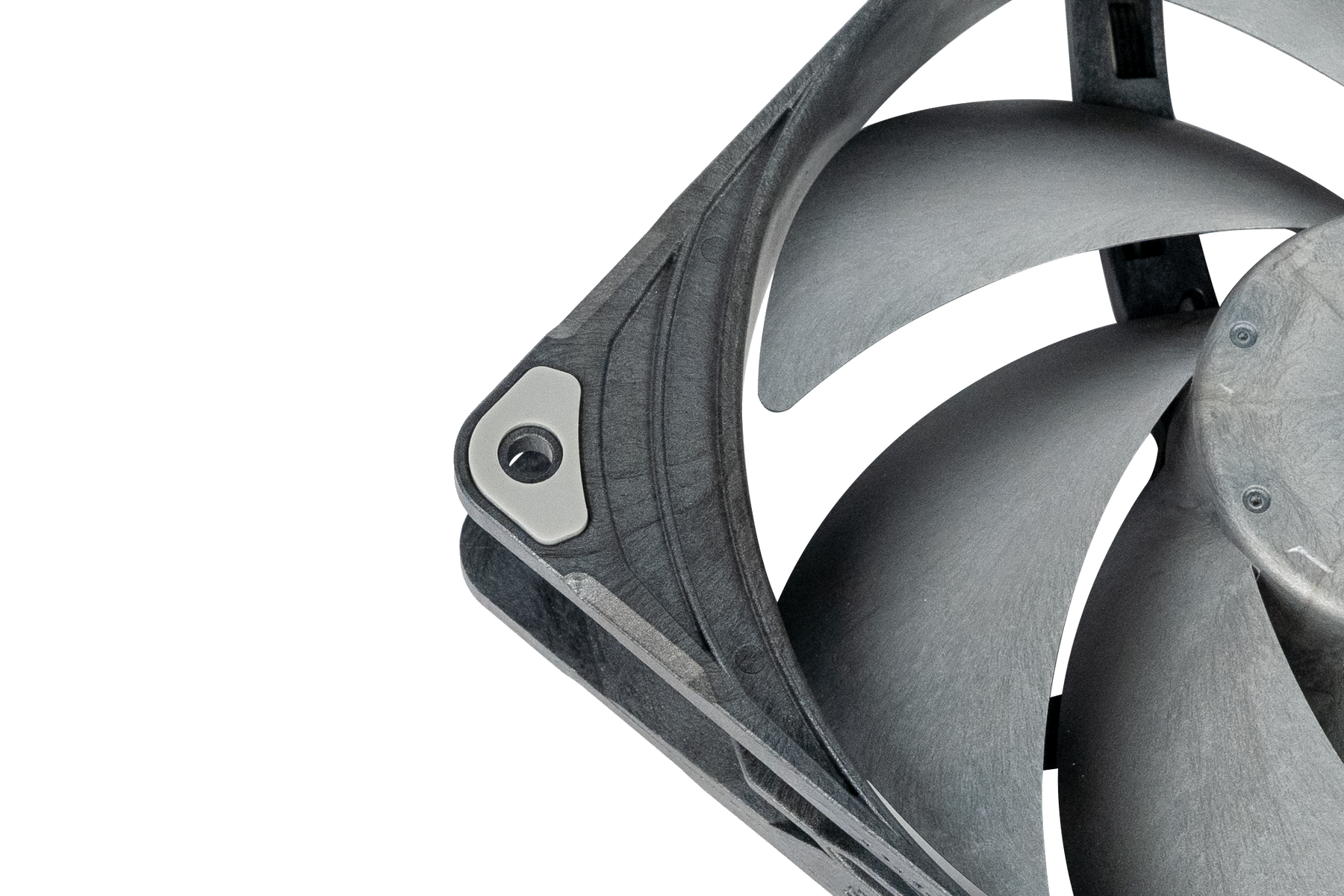

Both the fan blades and fan frame are made from the absolute best glass fiber reinforced LCP (Liquid Crystal Polymer) material. This makes the blades and frame extremely rigid and durable. The T30 is designed with exceptional aerodynamic features, which requires high precision manufacturing. LCP enables this thanks to its great material properties. The tip of the fan blade has a continuous and small clearance (0.8mm) to reduce turbulence and deliver unparalleled noise-normalized performance.

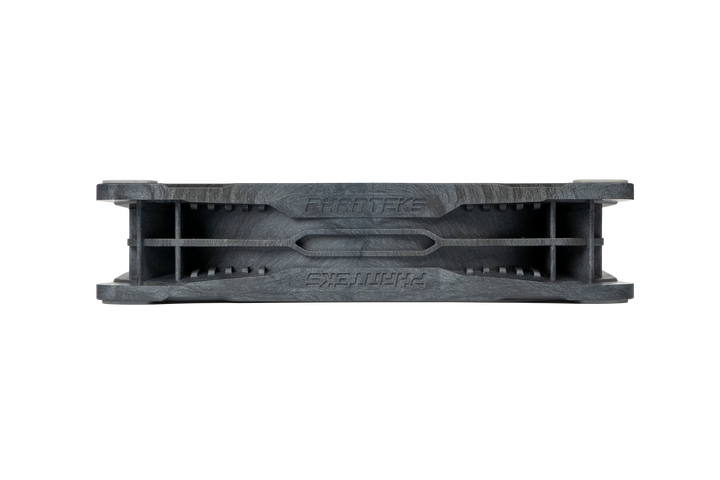

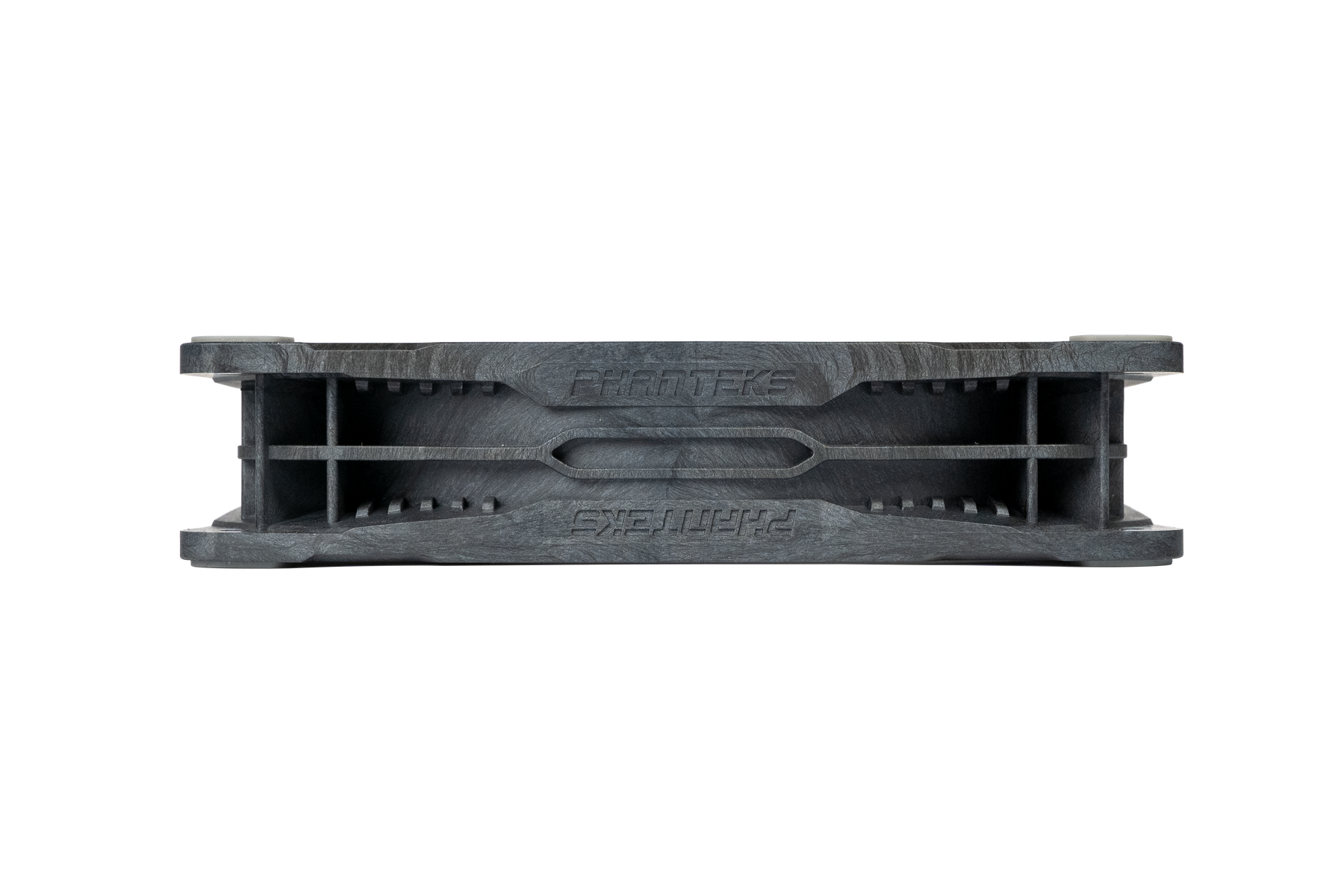

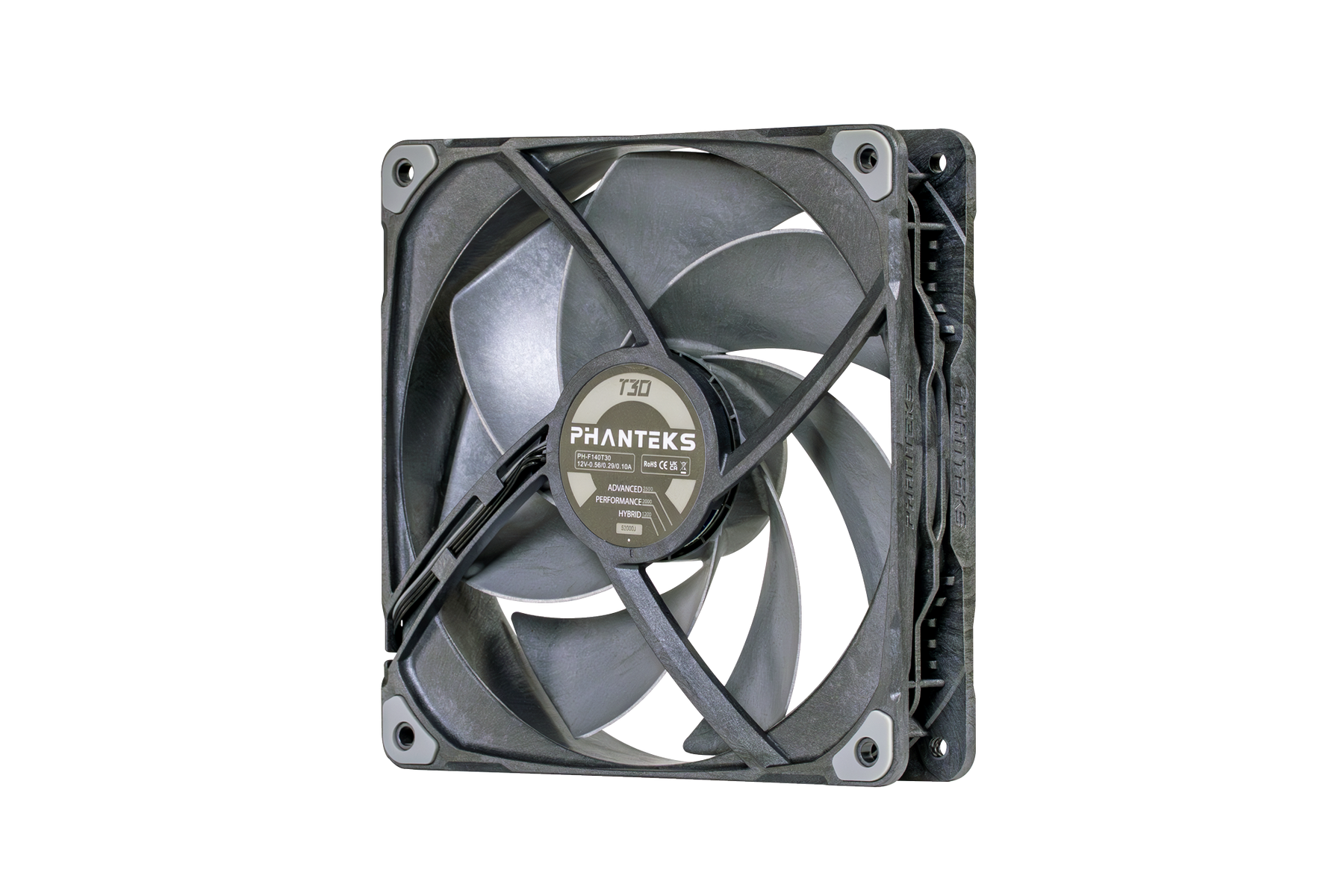

The Phanteks T30-140 features a unique 30mm fan frame that results in a 25% larger fan blade going from the standard 16mm thickness to 20mm. Combined with the LCP material, 3-phase motor, magnetic levitated DUAL VAPO bearing and three PWM fan profiles, the T30-140 fan brings the best in silence, the best airflow performance and the best in high pressure for the PC market.
|
Fan Profile Specifications
|
Advanced Mode
|
Performance Mode
|
Hybrid Mode
|
|
Max Speed (RPM)
|
2500 ±150
|
2000 ±100
|
1200 ±75
|
|
Max Airflow (CFM)
|
139.6
|
109.9
|
63.2
|
|
Max Static Pressure (inch-H2O)
|
0.21
|
0.14
|
0.05
|
|
Max Sound Level (dBA)
|
44.3
|
38.1
|
23.2
|
|
Max Current (A)
|
0.56
|
0.29
|
0.10
|
|
Max Power (W)
|
4.46
|
2.56
|
0.81
|
