Description:

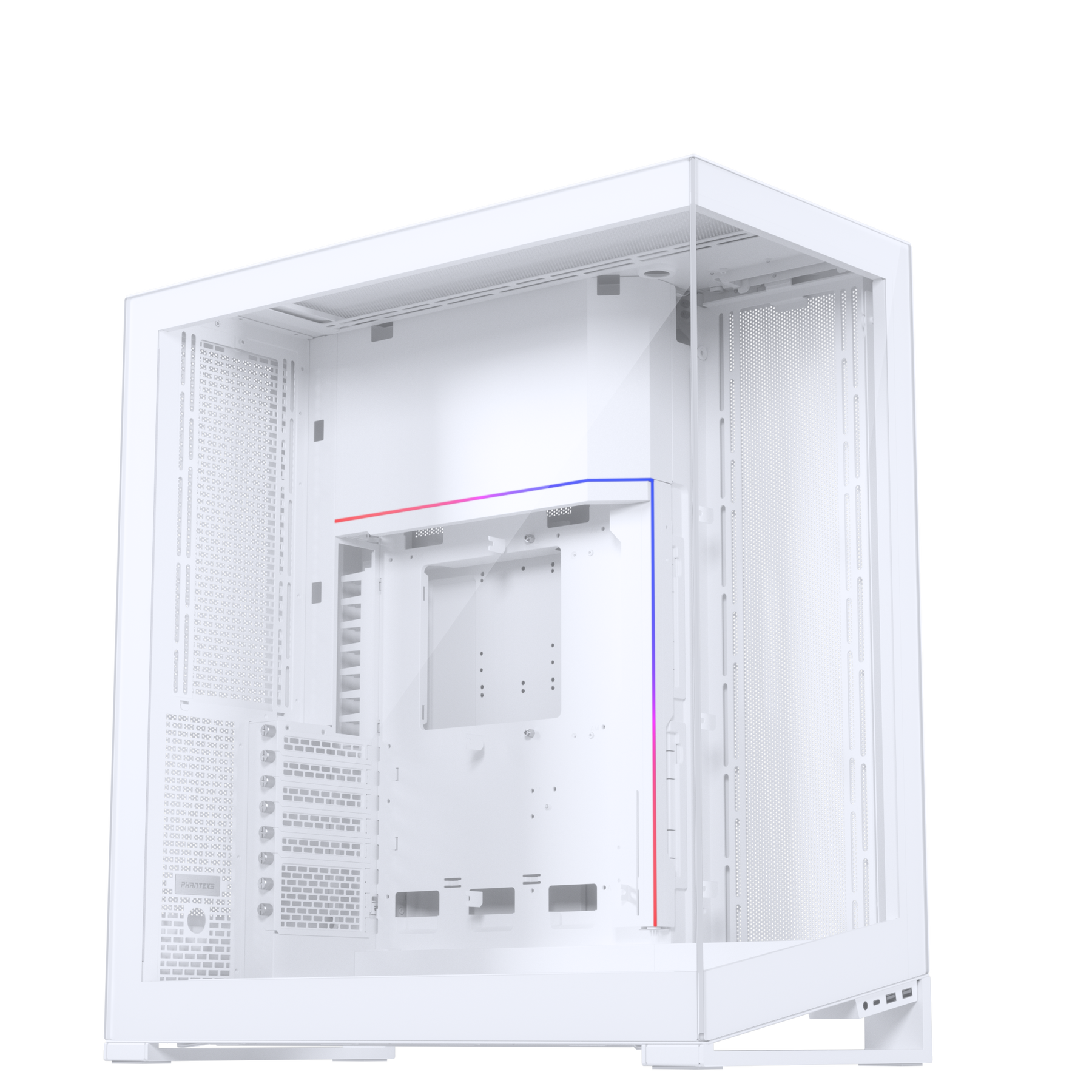

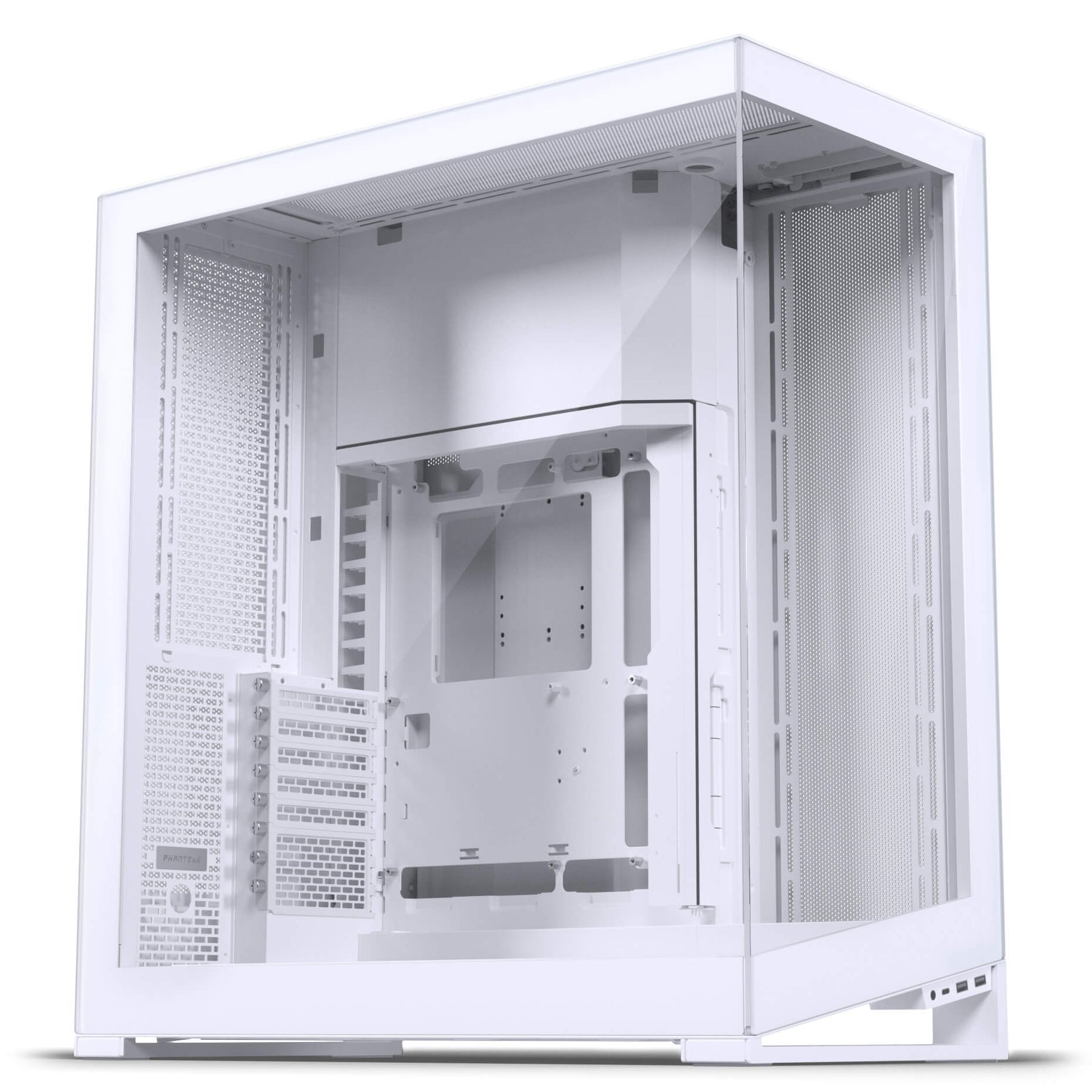

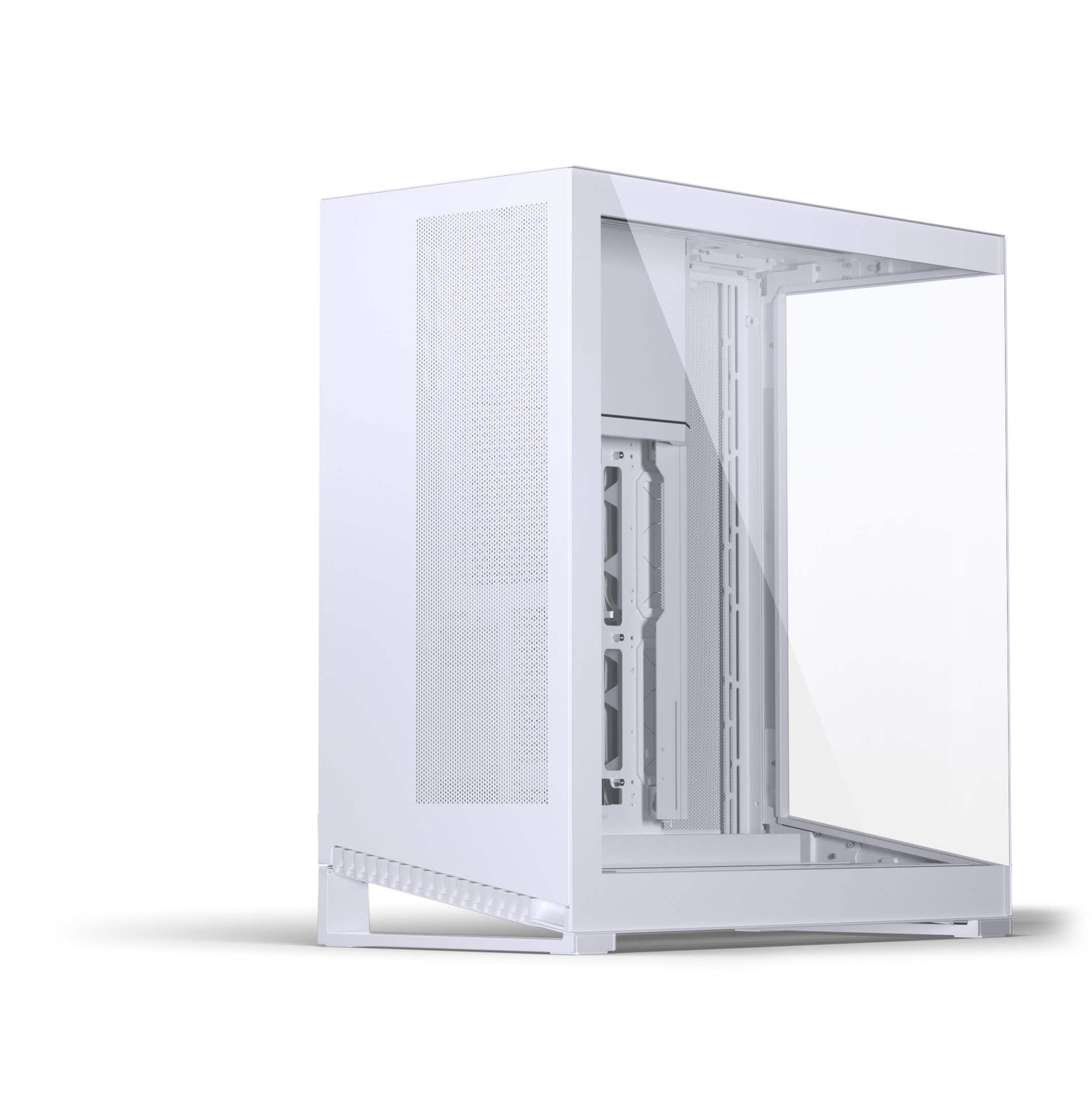

The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for Eleven 140mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the motherboard at its center. Combined with a strong and defining outer frame it captures and accentuates the hardware components.

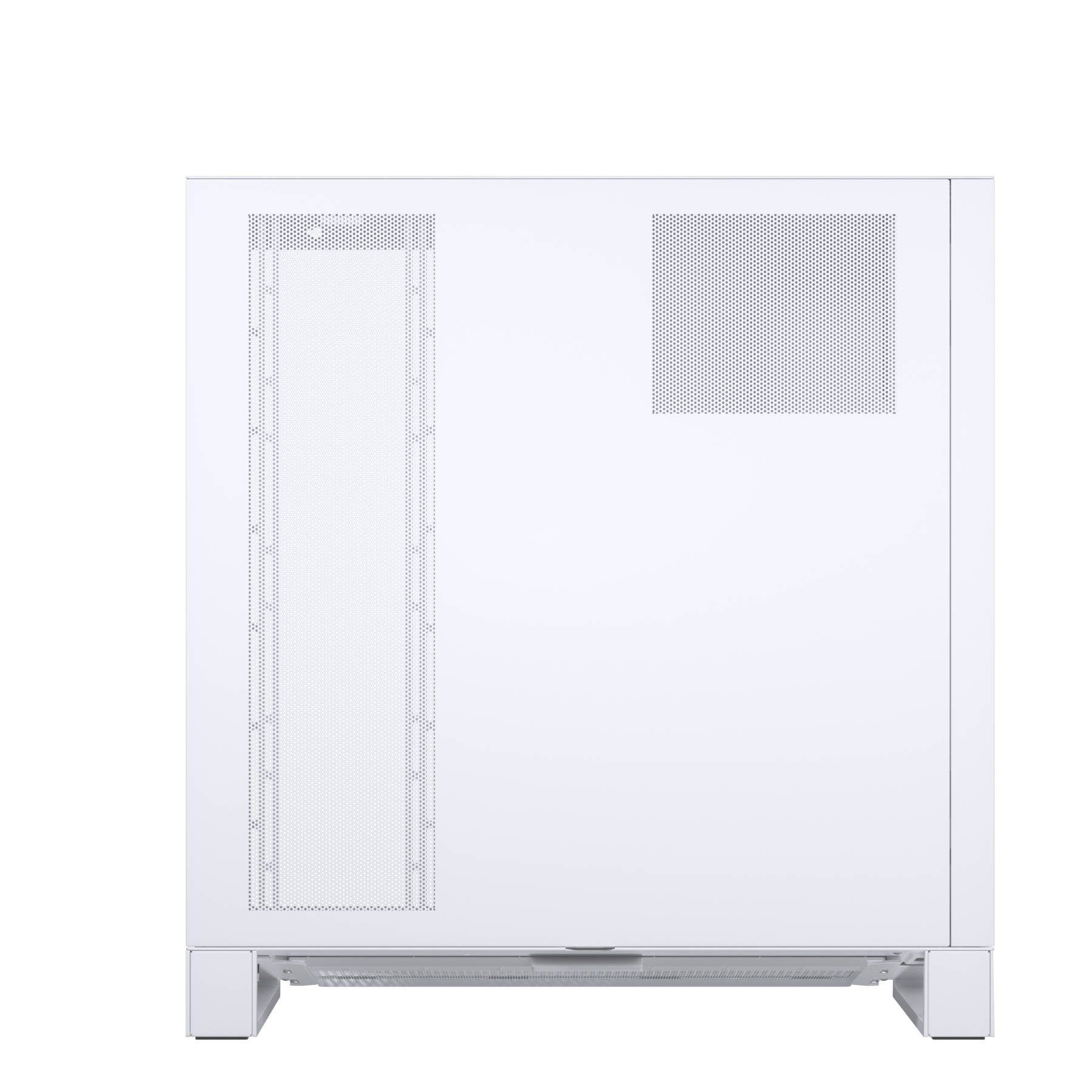

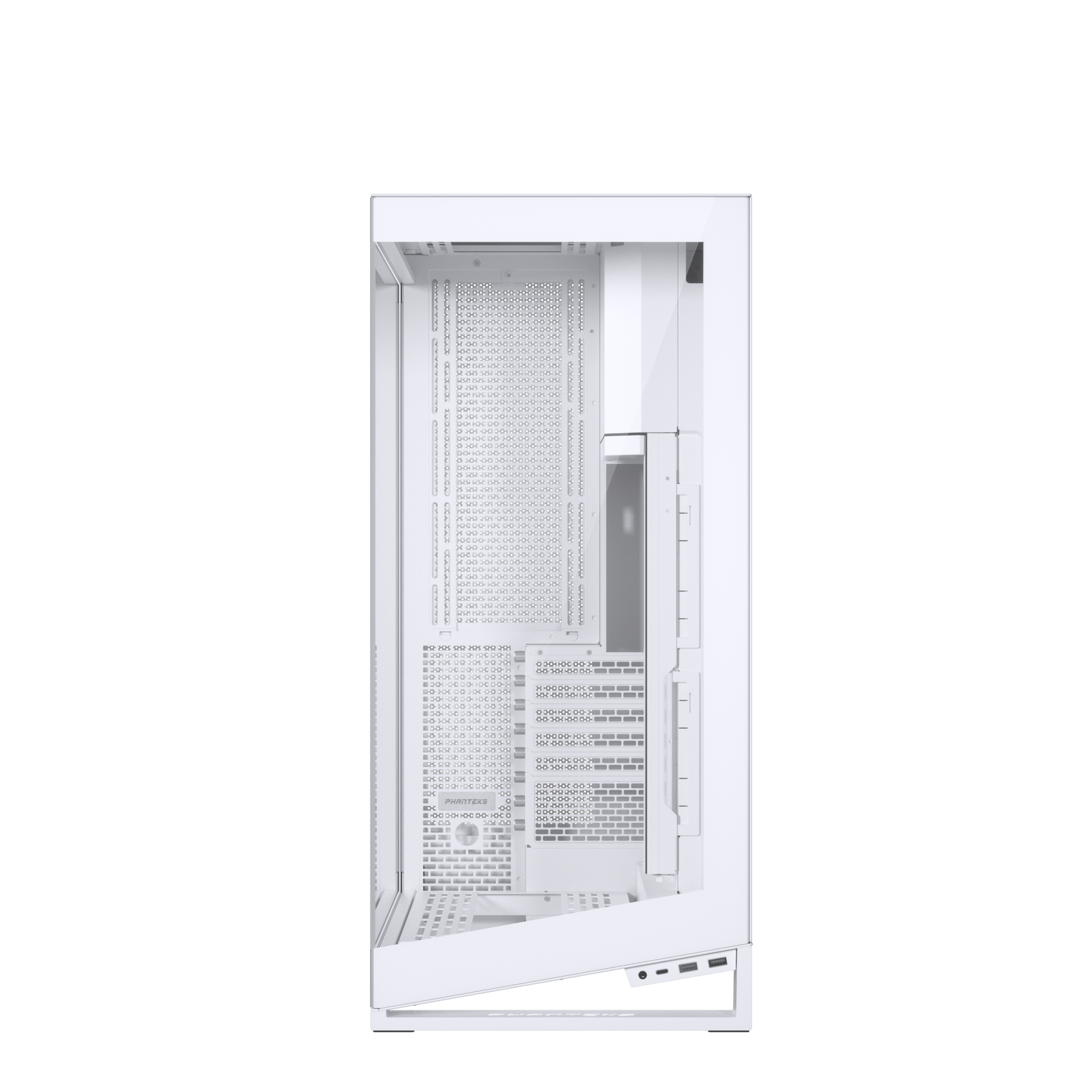

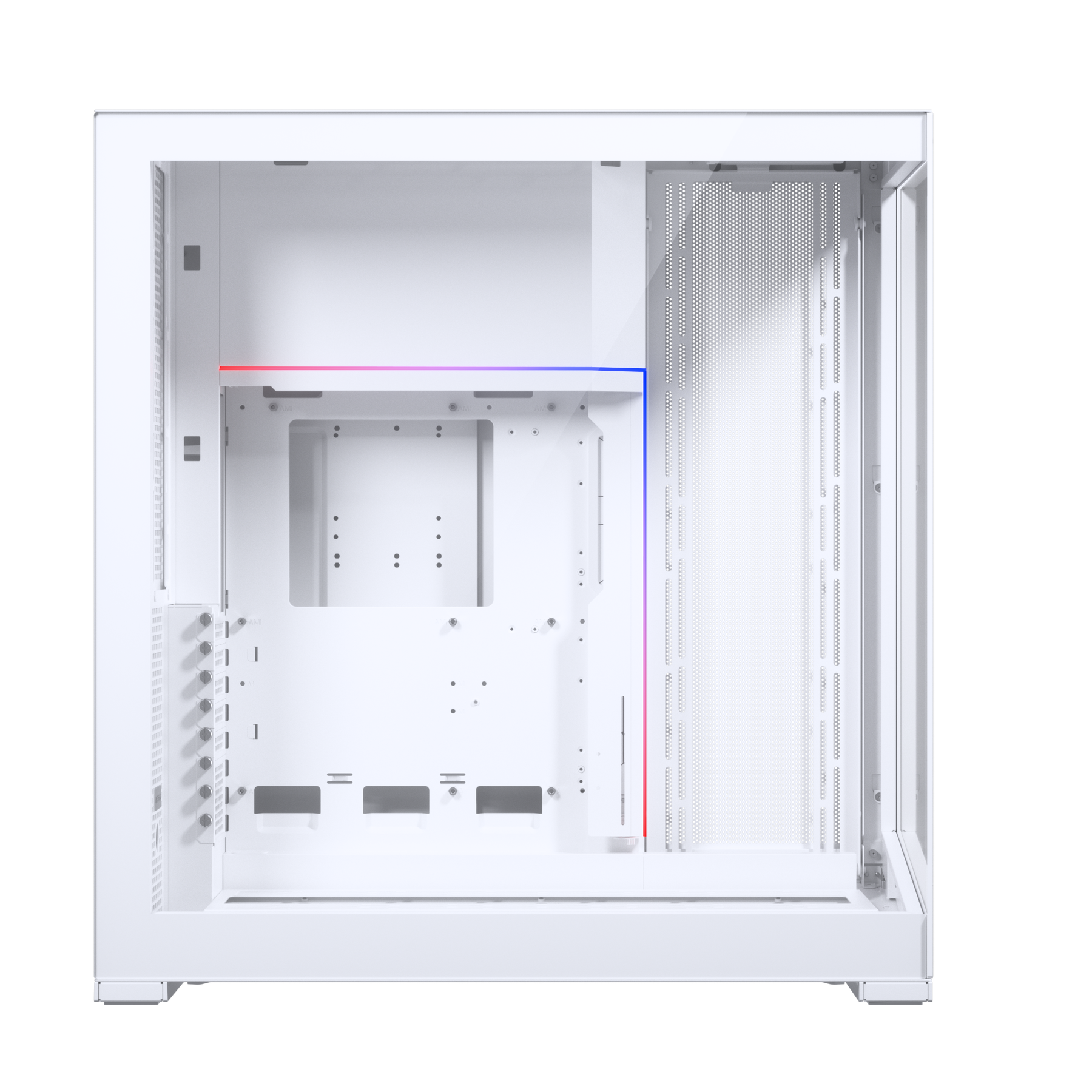

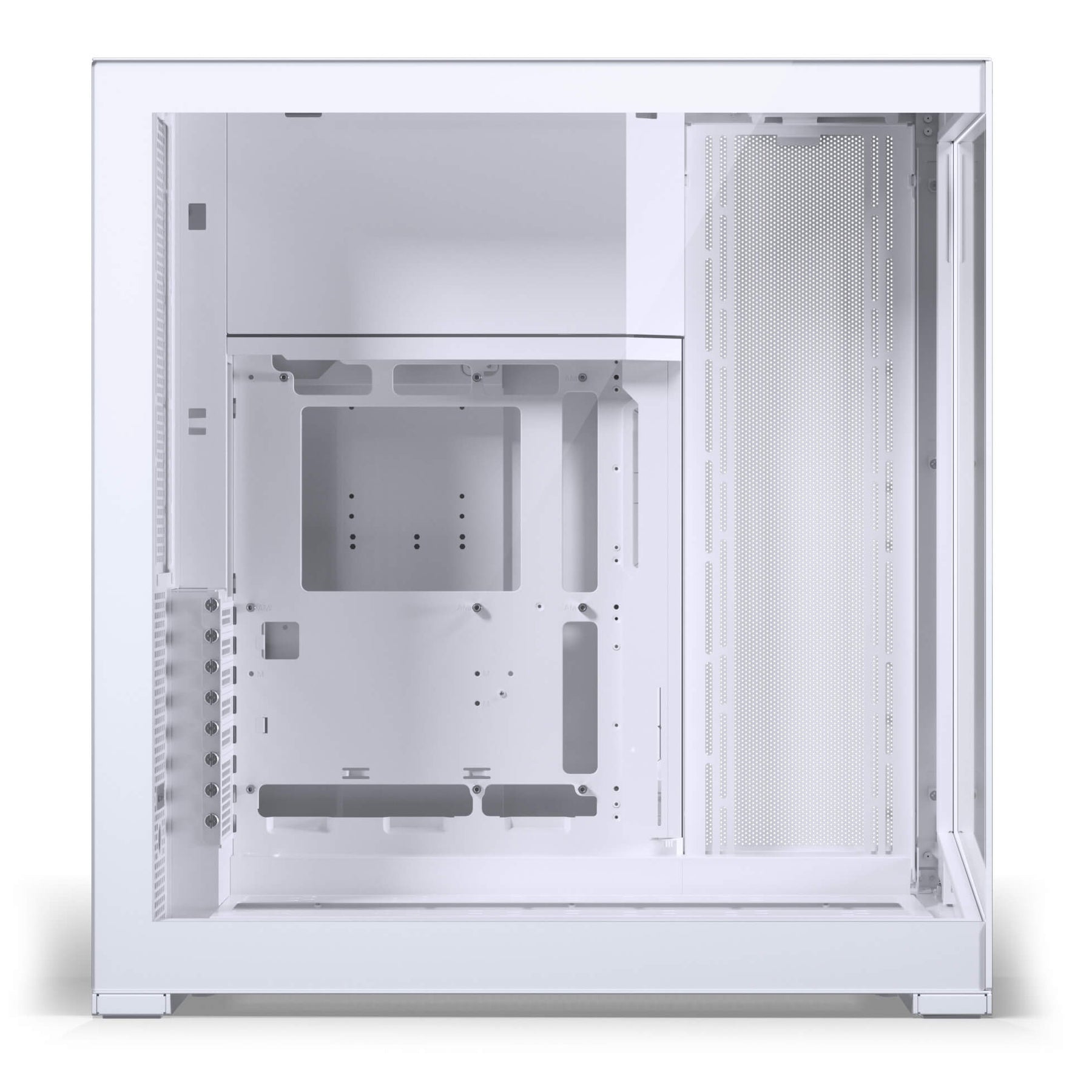

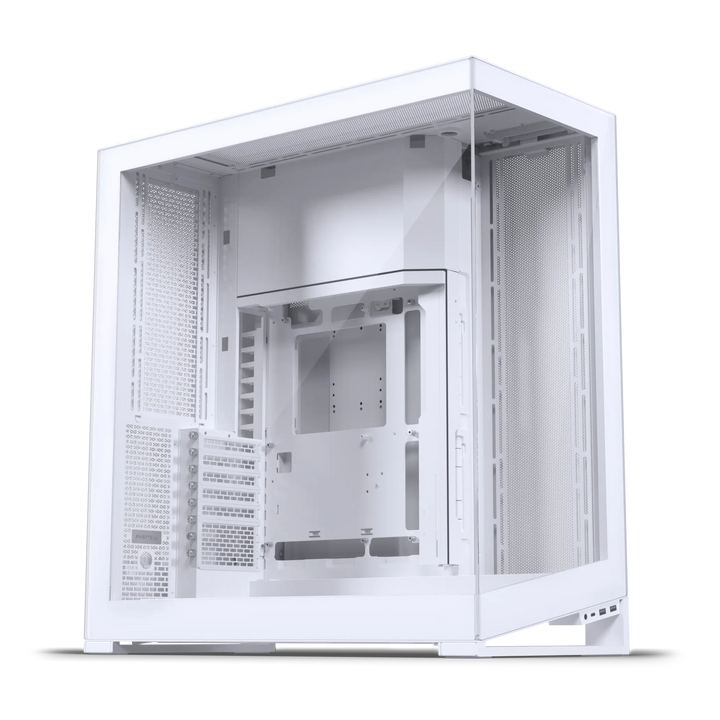

With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
|
Case Specifications |
||
|
Dimension |
575 x 280 x 615mm | 22.63 x 11.02 x 24.21 (DxWxH) |
|
|
Form Factor |
Full Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window |
|
|
Mainboard Support |
ATX, Micro-ATX, Mini-ITX, SSI-CEB, E-ATX (up to 280mm wide) |
|
|
Rear Connect Motherboard |
ATX |
|
|
Front I/O |
2x USB 3.0, USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel |
|
|
Connectors |
Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-Audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
Max 3* (3x included) (*Max 24mm HDD height when SSDs installed) |
|
|
Internal 2.5” |
Max 6 (6x included) (*2x if 3x HDD positions are used) |
|
|
D-RGB Controller Output |
7A per Channel, 4A per port (Total 14 Watt) |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
4x |
3x |
|
Side |
3x |
3x |
|
Rear |
2x |
2x |
|
Bottom |
3x |
3x |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
Up to 420 |
|
Side |
Up to 480 |
Up to 420 |
|
Rear |
Up to 240 |
Up to 280 |
|
Bottom |
Up to 360 |
Up to 420 |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
490mm | 19.29in |
|
|
CPU Cooler Height |
205mm | 8.07in |
|
|
PSU Length |
210mm | 8.26in |
|
|
Top 360 Radiator |
515 x 154mm | 20.27 x 6.06in |
|
|
Side 480 Radiator |
525 x 154mm | 20.66 x 6.06in |
|
|
Rear 240 Radiator |
325 x 154mm | 12.79 x 6.06in |
|
