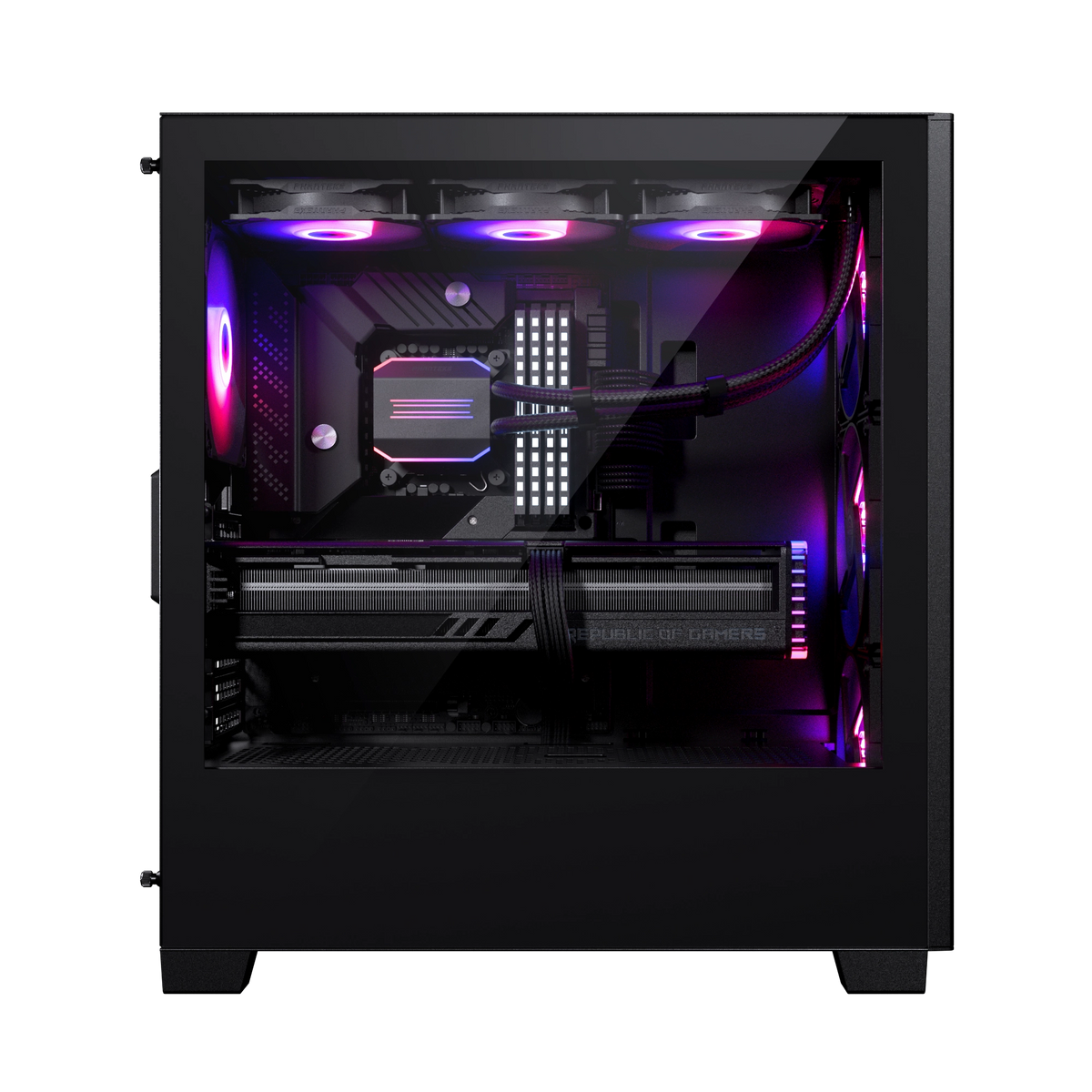

With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that and it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10 fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling. 

  • Support for the latest rear-side connector mainboards
  • Ultra-fine Performance mesh with top mesh dust filter
  • Includes 4x M25-140 DRGB Fans included.
  • Support for up to 10x 120mm or 6x 140mm and 3x 120mm fan positions
  • Dedicated 360 radiator support in the top without restrictions
  • Support for the largest graphics cards without compromise
$79.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

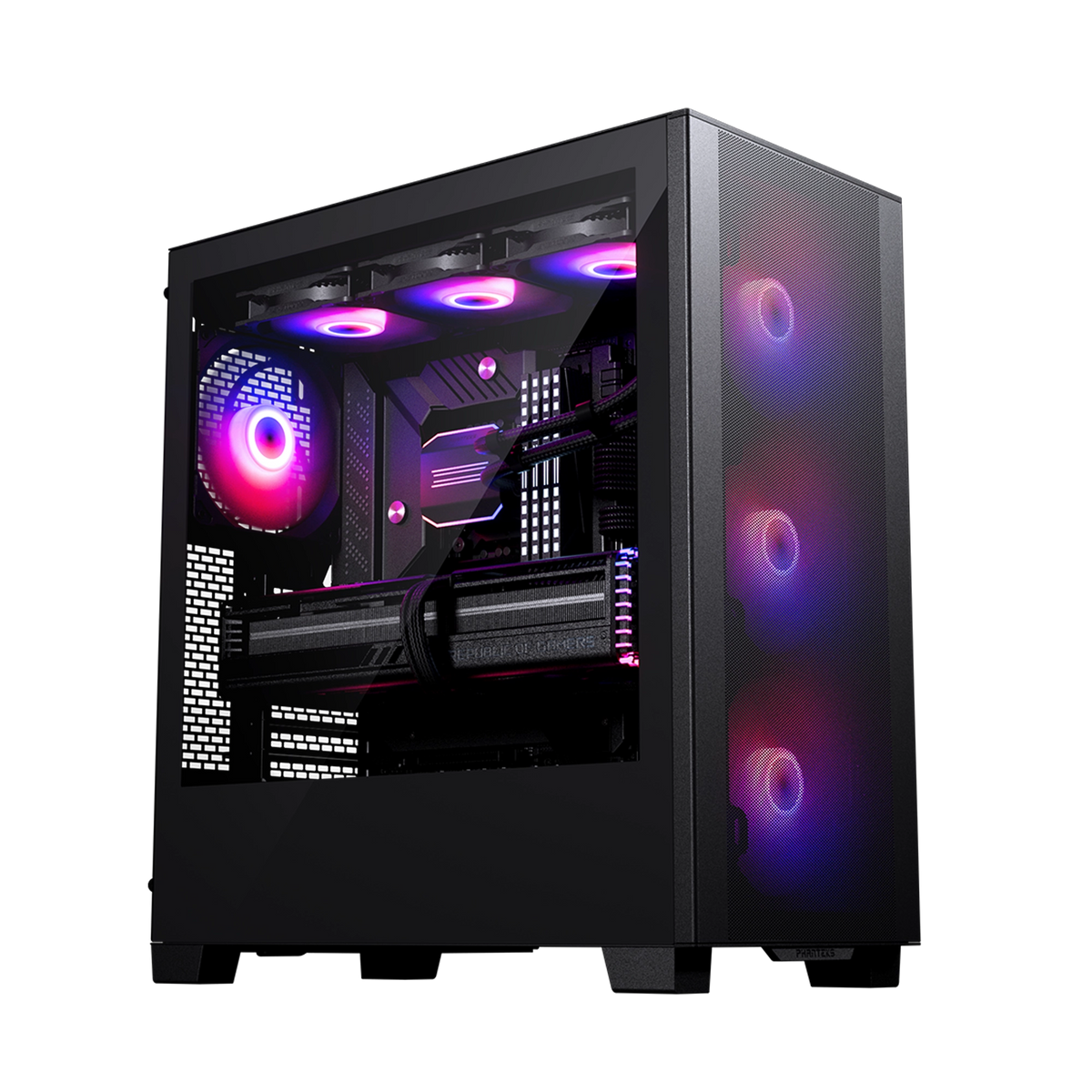

Maximum Airflow. Zero Compromise.

  • Includes four premium M25-140 DRGB fans for massive intake and exhaust.

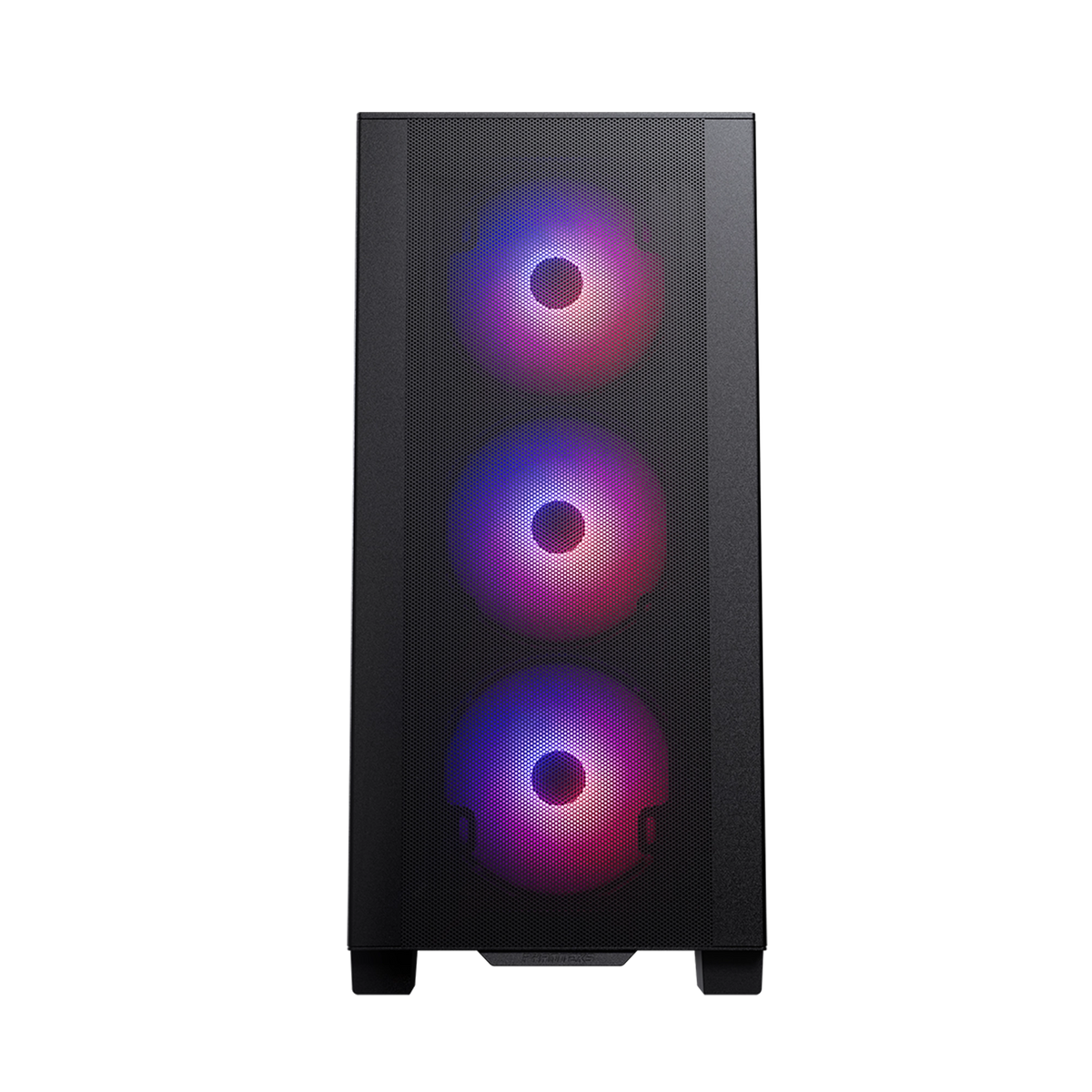

  • Features an ultra-fine performance mesh front panel with a top dust filter.

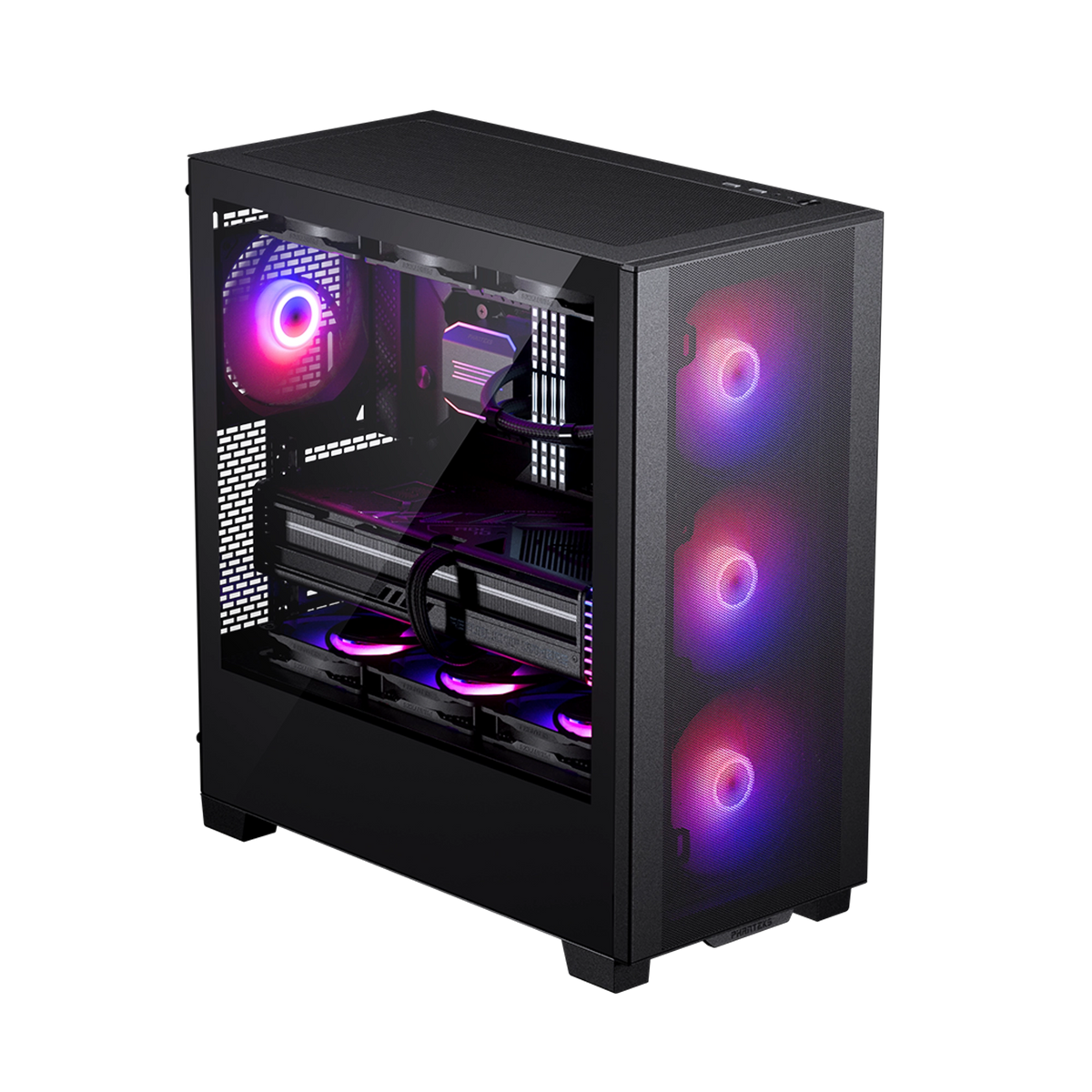

  • Three dedicated 120mm mid-plate fan locations blast cool air directly into your GPU.

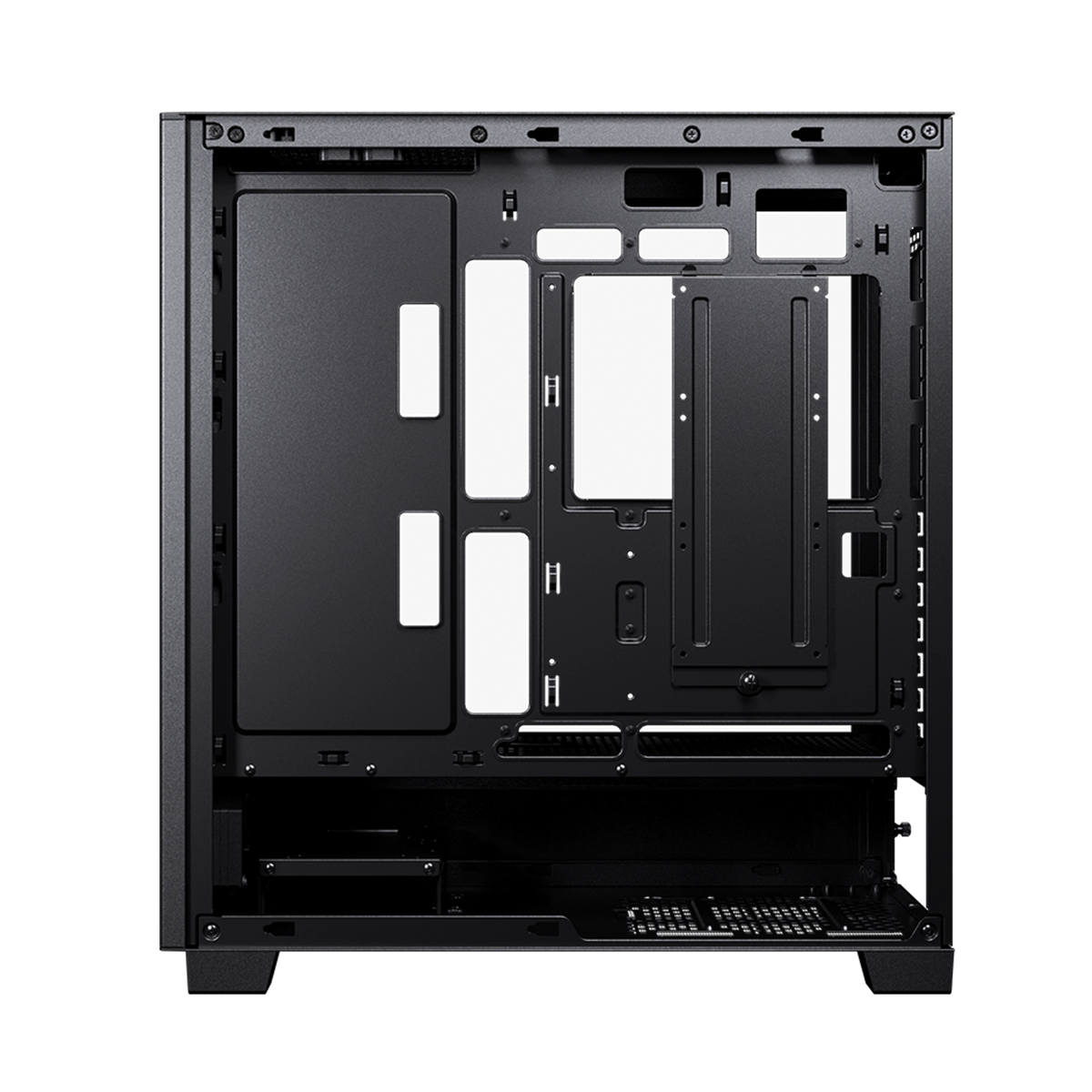

UNLOCK THE ULTIMATE ZERO-CABLE BUILD

  • Fully compatible with the newest ATX motherboards featuring hidden rear connectors.
  • Spacious interior and massive 270mm PSU clearance make managing cables a breeze.
  • Support for MSI Project Zero, ASUS BTF, Gigabyte Project Stealth mainboards.

Next-Gen Hardware Demands Pro Ultra Cooling

  • Boasts 415mm of length to easily house the largest flagship graphics cards on the market.
  • Unrestricted top clearance specifically designed for thick 360mm radiators.
  • Supports up to E-ATX motherboards and 10x fan mounting positions.

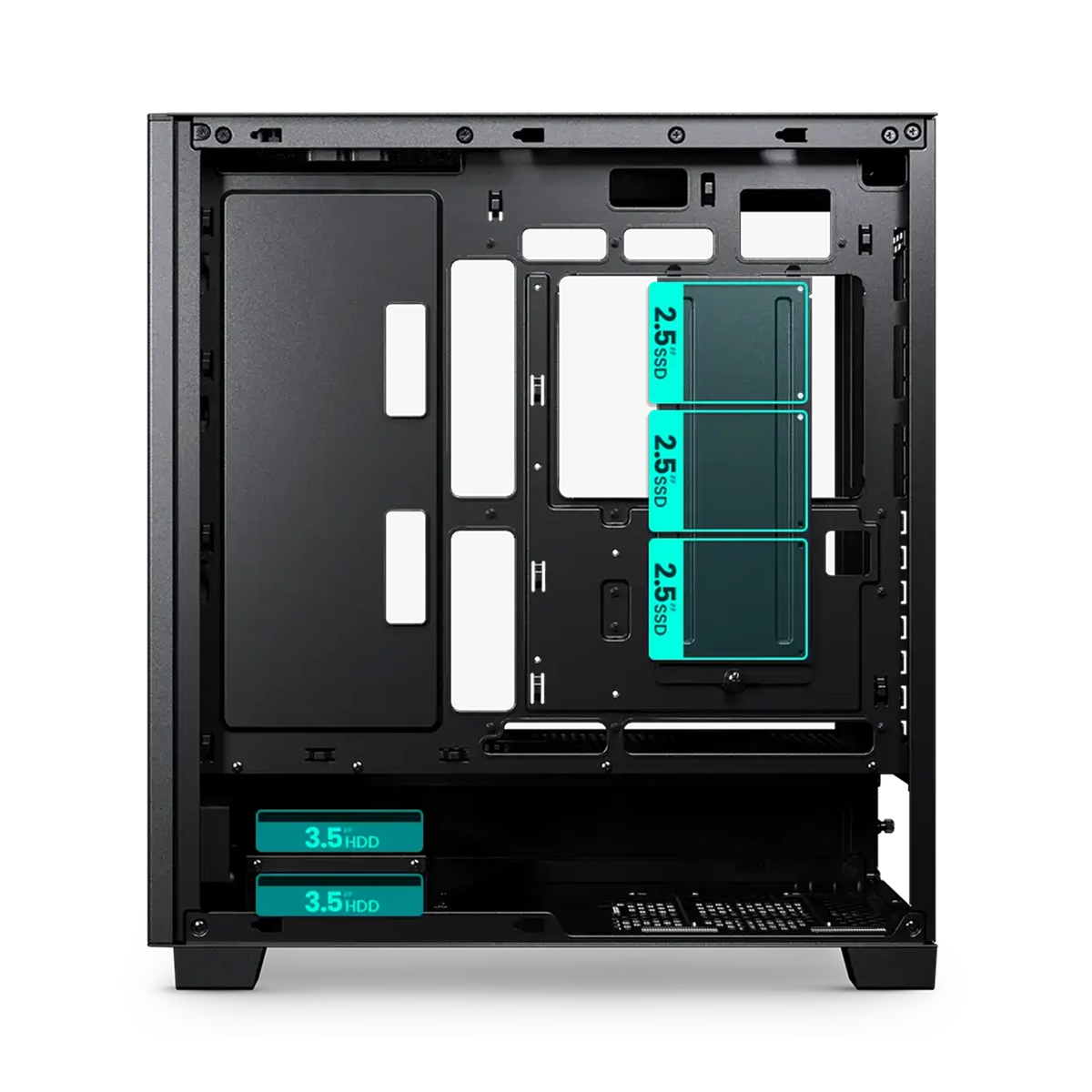

phanteks xt pro ultra black, storage, 2.5ssd, 3.5hdd, capacity

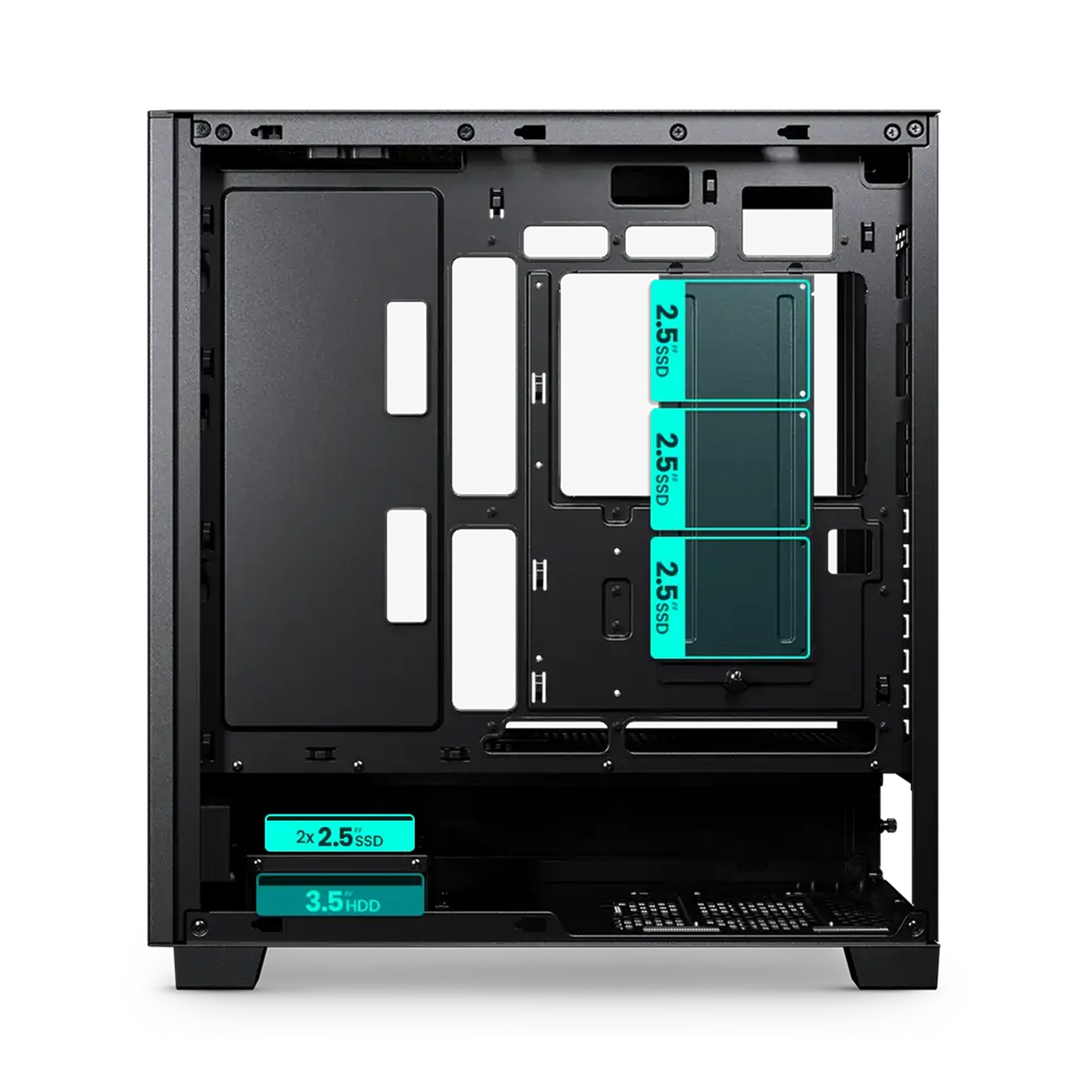

Supported Storage Configurations

  • Configuration 1 (Max SSDs): Up to five 2.5" SSDs + one 3.5" HDD
  • Configuration 2 (Max HDDs): Up to three 2.5" SSDs + two 3.5" HDDs

Fans and Radiator Configurations

  • Fans: Front: 3x 120mm | 3x 140mm, Top: 3x 120mm | 2x 140mm, Mid-plate: 3x 120mm (Dedicated GPU cooling), Rear: 1x 120mm | 1x 140mm

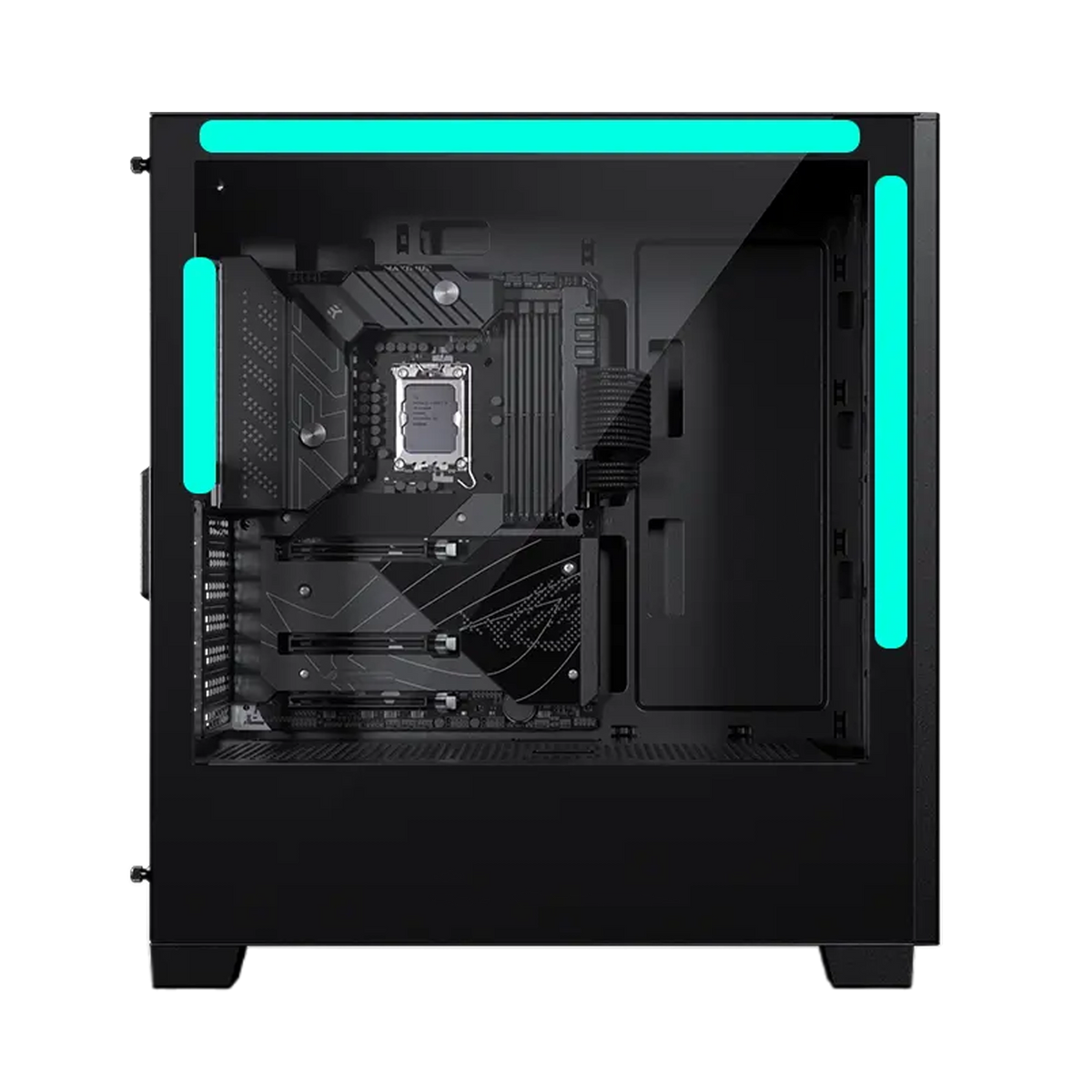

  • Radiators: Top Mount (Recommended): Up to 360mm, Front Mount: Up to 240mm, Rear Mount: 120mm

Product Specifications

General Specifications

Model
PH-XT523P1_DBK01
Color
Black
UPC CODE
886523303138
CASE DIMENSIONS
450 x 230 x 500 mm | 17.7×9.05×19.68 in
FORM FACTOR
Mid-Tower
MAINBOARD SUPPORT
E-ATX* | ATX | Micro-ATX | Mini-ITX (*Up To 280mm Wide)
REAR ATX MAINBOARD SUPPORT
MSI Project Zero | ASUS BTF | Gigabyte Project Stealth
MATERIALS
Steel chassis | Tempered glass | ABS plastic
SIDE WINDOW
Yes
FRONT I/O
1x USB-C 3.2 Gen2 | 1x USB 3.0 | Microphone/Headphone combo | Power Button | Reset Button

Technical Details

PCI SLOTS
7
VERTICAL GPU SUPPORT
SUPPORT 3-slots (Riser Cable Sold Separately)
INTERNAL 2.5″ BAY
5
INTERNAL 3.5″ BAY
2
TOTAL FANS
10x (120mm) | 6x (140mm)
Fan Configurations
Front: 3x 120mm | 3x 140mm, Top: 3x 120mm | 2x 140mm, Mid-plate: 3x 120mm (Dedicated GPU cooling), Rear: 1x 120mm | 1x 140mm
Radiator Configurations
Top Mount (Recommended): Up to 360mm, Front Mount: Up to 240mm, Rear Mount: 120mm

CLEARANCE

CPU COOLER (Height)
184 mm | 7.24 in
GPU (Length) / (Width)
415 mm | 16.33 in / 184 mm | 7.24 in
POWER SUPPLY (Length)
270 mm | 10.62 in
TOP RADIATOR (LengthxWidthxHeight)
415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in
FRONT RADIATOR (LengthxWidth)
170 x 132 mm | 6.69 x 5.19 in

Additional Info

NET WEIGHT
7.55 kg | 16.64 lbs
GROSS WEIGHT
9.45 kg | 20.83 lbs
WARRANTY
5 Years (Limited)
SCOPE OF DELIVERY
1x XT Pro Ultra chassis | 4x M25-140 D-RGB fans
ACCESSORY
30x Zip ties
SCREWS
30x Mainboard/SSD screws | 4x Power supply screws | 8x HDD screws | 4x Thumb screws | 12x 30mm Fan Screw | 1x Motherboard stand-off | 1x Stand-off removal tool
