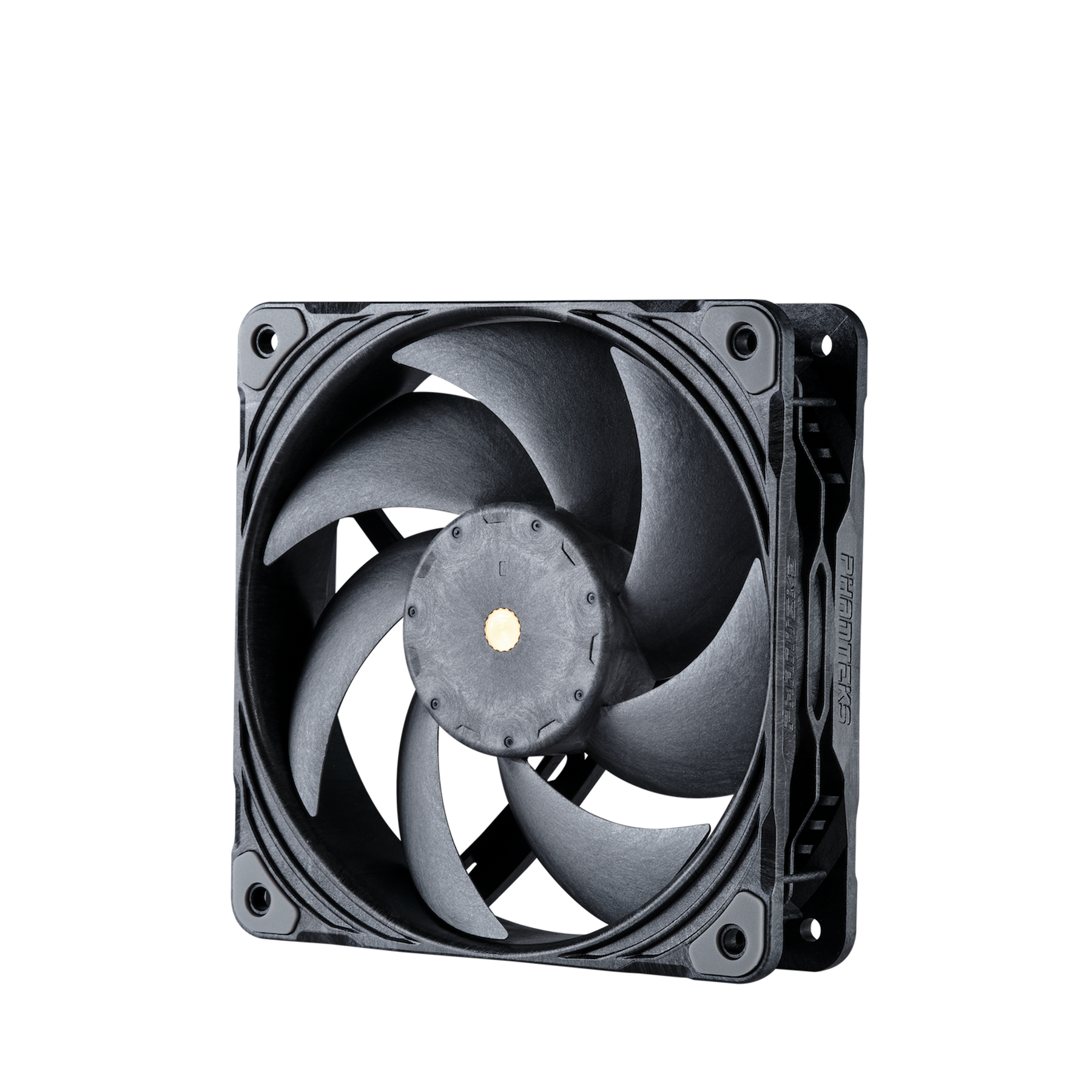

The Phanteks T30-120 fan has undergone years of development and extensive testing in close collaboration with SUNON, a leading fan manufacturer. Combined with Phanteks expertise in chassis and air/water cooler design, we created the ultimate PC cooling fan. The T30-120 features the best aerodynamic blade design, 30mm thick frame, and is made from quality industrial-grade components to achieve a perfect balance between high cooling performance, low noise operation, and excellent sound quality.
Both the fan blades and fan frame are made from the absolute best glass fiber reinforced LCP (Liquid Crystal Polymer) material. This makes the blades and frame extremely rigid and durable. The T30 is designed with exceptional aerodynamic features, which requires high precision manufacturing. LCP enables this thanks to its great material properties. The tip of the fan blade has a continuous and small clearance (0.5mm) to reduce turbulence and deliver unparalleled noise-normalized performance.
The Phanteks T30-120 features a unique 30mm fan frame that results in a 25% larger fan blade. Combined with the LCP material, 3-phase motor, magnetic levitated DUAL VAPO bearing and three PWM fan profiles, the T30-120 fan brings the best in silence, the best airflow performance and the best in high pressure for the PC market.
Fan Profile Specifications
Advanced Mode
Performance Mode
Hybrid Mode
Max Speed (RPM)
3000 ±150
2000 ±100
1200 ±75
Max Airflow (CFM)
101.0
67.0
39.1
Max Static Pressure (inch-H2O)
0.28
0.13
0.05
Max Sound Level (dBA)
39.7
27.3
11.1
Max Current (A)
0.41
0.16
0.07
Max Power (W)
4.32
1.58
0.55
Tags: 120mm fan, Ultimate fan, Best fan, Radiator fan, Computer fan, Case fan, silent, quiet, 30mm fan
We chose the T30-120 for our standalone desktop fan based on its reputation and esthetics. Since this is a non-standard application of this unit we ran into a few issues, none of which are major. 1. Just as the Sunon fans have, arrows on the housing indicating direction of rotation and air flow would have been nice. 2. The thickness of the secondary shrouded 3-pin connector to too big to cramp in the housing when not being used. 3. For alternative applications such as ours you should put the model number of PCB connector on your web site and datasheet.
Although we haven't turned it on yet we're really pleased so far. Thx.
J
John S.
Best Fans on the Market.
Hands down the greatest commercial cooling fans on the market. Especially the static pressure they create. If you don' mind the noise when running full tilt then there's nothing better available.
E
Echo
The best fans ever
I’ve had lots of high-end fans from the most popular brands, but the Phanteks T30s are by far the best I’ve used. You can run them at low speed (around 1000 RPM) for near-silent operation while still getting plenty of cooling performance. I can't wait to receive the 140mm version that I ordered to see if it is even better.
S
SignalLost
Phanteks T30 120mm

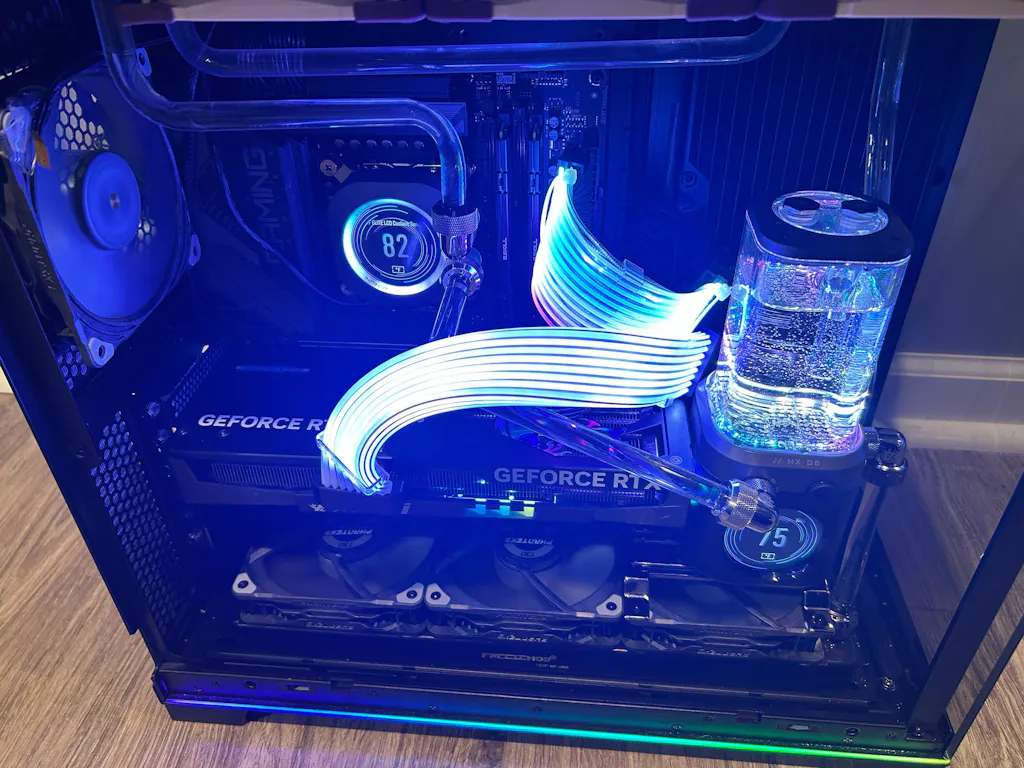

Absolute top quality for pc fans. I’m coming from the industrial noctua 120mm fans and they were good but even the build quality of the T30s is a step above and I’m liking the overall aggressive fan design. Looks very good in my CaseLabs S5.
