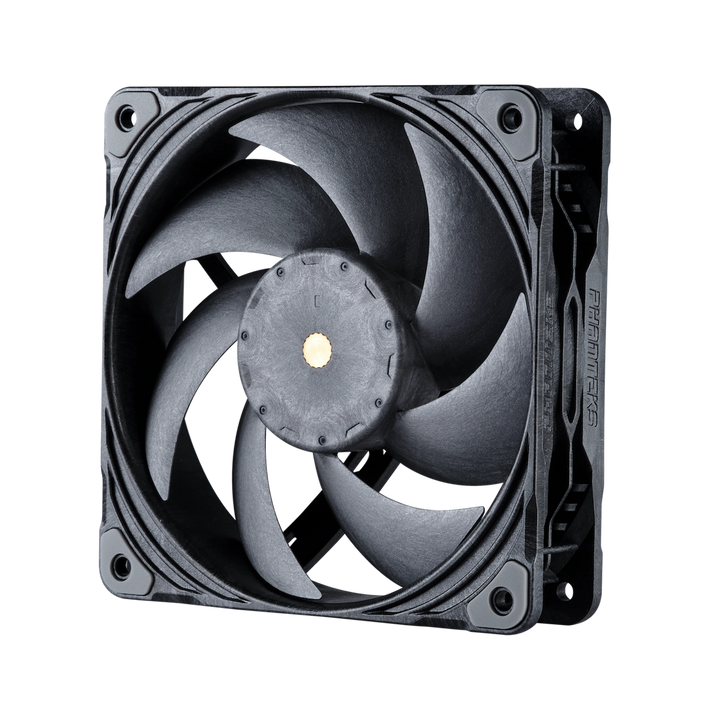

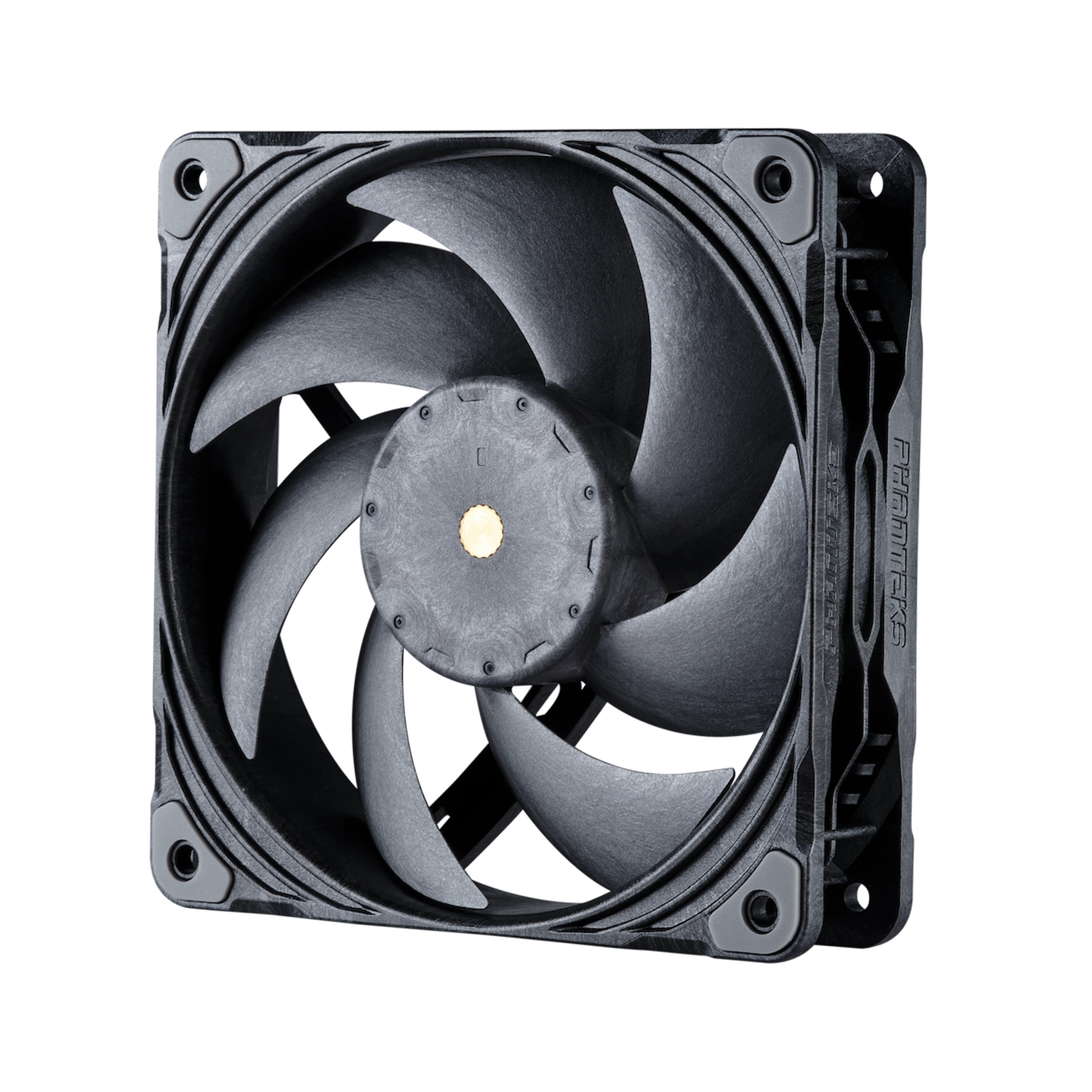

Name: Phanteks T30-120 Fans
Brand: Phanteks
SKU: PH-F120T30_BG-1
Price: 39.99 USD
Availability: InStock

Upgrade your PC cooling with the Phanteks T30-120. Engineered with an innovative 30mm aerodynamic frame and industrial-grade Liquid Crystal Polymer (LCP), this premium 120mm PWM fan delivers industry-leading static pressure and airflow. Perfectly optimized for heavy-duty radiators, heatsinks, and high-end chassis.

Key Features

30mm Aerodynamic Frame: Thicker design provides significantly higher cooling capacity compared to standard 25mm fans.
Premium LCP Construction: Liquid Crystal Polymer fan blades ensure exceptional rigidity and eliminate vibration.
3-Phase Magnetic Motor: Next-generation magnetic levitation technology guarantees whisper-quiet operation and an extended lifespan.
Built-in RPM Profiles: Easily toggle between Hybrid, Performance, and Advanced modes to instantly match your system's exact thermal needs.

$39.99

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Pack

Single

Triple

[{"id":39439636824119,"title":"Single","option1":"Single","option2":null,"option3":null,"sku":"PH-F120T30_BG-1","requires_shipping":true,"taxable":true,"featured_image":{"id":32684136923191,"product_id":6583980654647,"position":3,"created_at":"2025-01-23T10:34:01-08:00","updated_at":"2025-01-30T11:00:53-08:00","alt":null,"width":1500,"height":1000,"src":"\/\/www.phanteks.store\/cdn\/shop\/files\/PH-F120T30_BG-16.png?v=1738263653","variant_ids":[39439636824119]},"available":true,"name":"Phanteks T30-120 Fans - Single","public_title":"Single","options":["Single"],"price":3999,"weight":454,"compare_at_price":null,"inventory_quantity":32,"inventory_management":"shopify","inventory_policy":"deny","barcode":"886523001829","featured_media":{"alt":null,"id":24756924448823,"position":3,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/www.phanteks.store\/cdn\/shop\/files\/PH-F120T30_BG-16.png?v=1738263653"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39439636856887,"title":"Triple","option1":"Triple","option2":null,"option3":null,"sku":"PH-F120T30_BG_3P","requires_shipping":true,"taxable":true,"featured_image":{"id":32684137676855,"product_id":6583980654647,"position":4,"created_at":"2025-01-23T10:34:05-08:00","updated_at":"2025-01-30T11:00:53-08:00","alt":null,"width":1500,"height":1000,"src":"\/\/www.phanteks.store\/cdn\/shop\/files\/PH-F120T30_BG-14.png?v=1738263653","variant_ids":[39439636856887]},"available":true,"name":"Phanteks T30-120 Fans - Triple","public_title":"Triple","options":["Triple"],"price":11499,"weight":1361,"compare_at_price":null,"inventory_quantity":32,"inventory_management":"shopify","inventory_policy":"deny","barcode":"886523001836","featured_media":{"alt":null,"id":24756924907575,"position":4,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/www.phanteks.store\/cdn\/shop\/files\/PH-F120T30_BG-14.png?v=1738263653"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

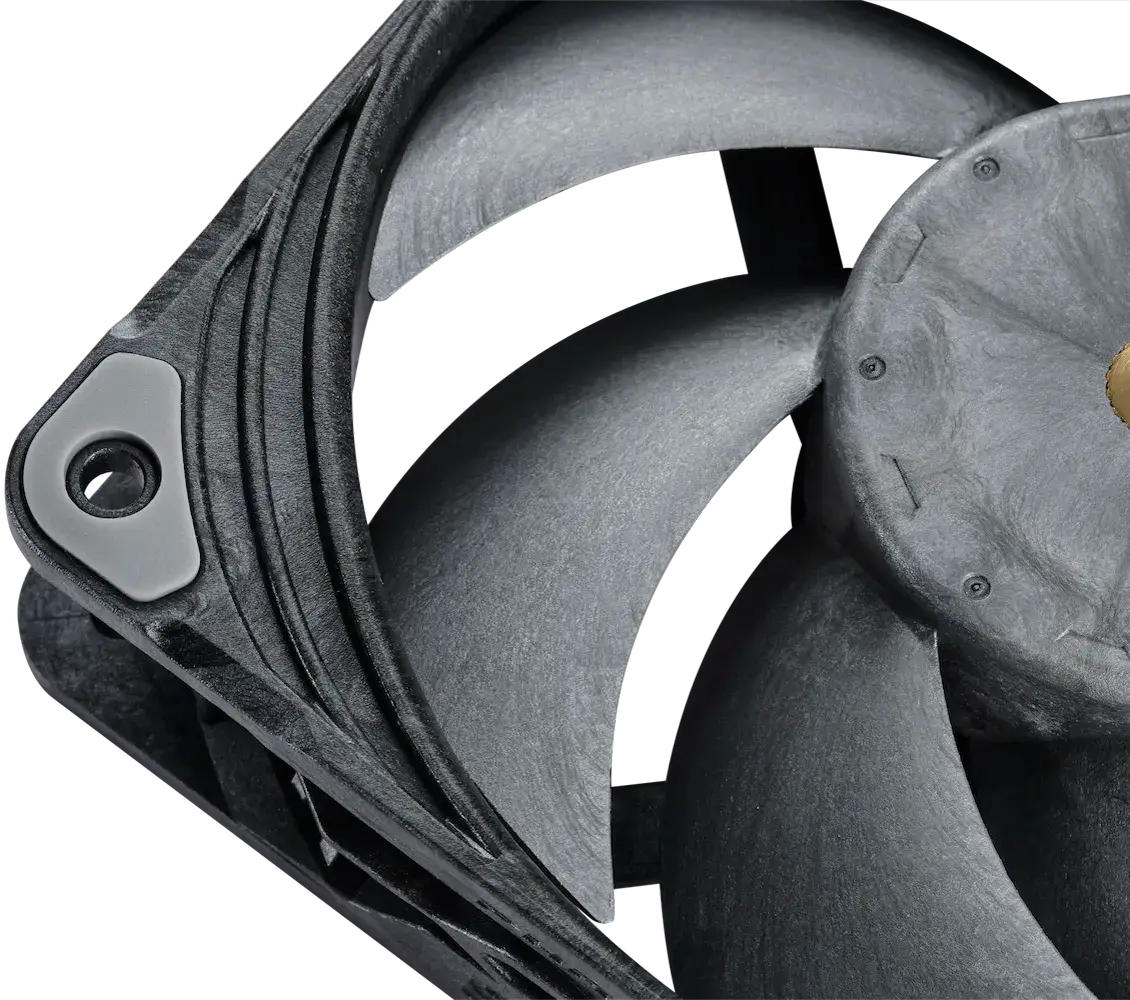

UNCOMPROMISING QUALITY

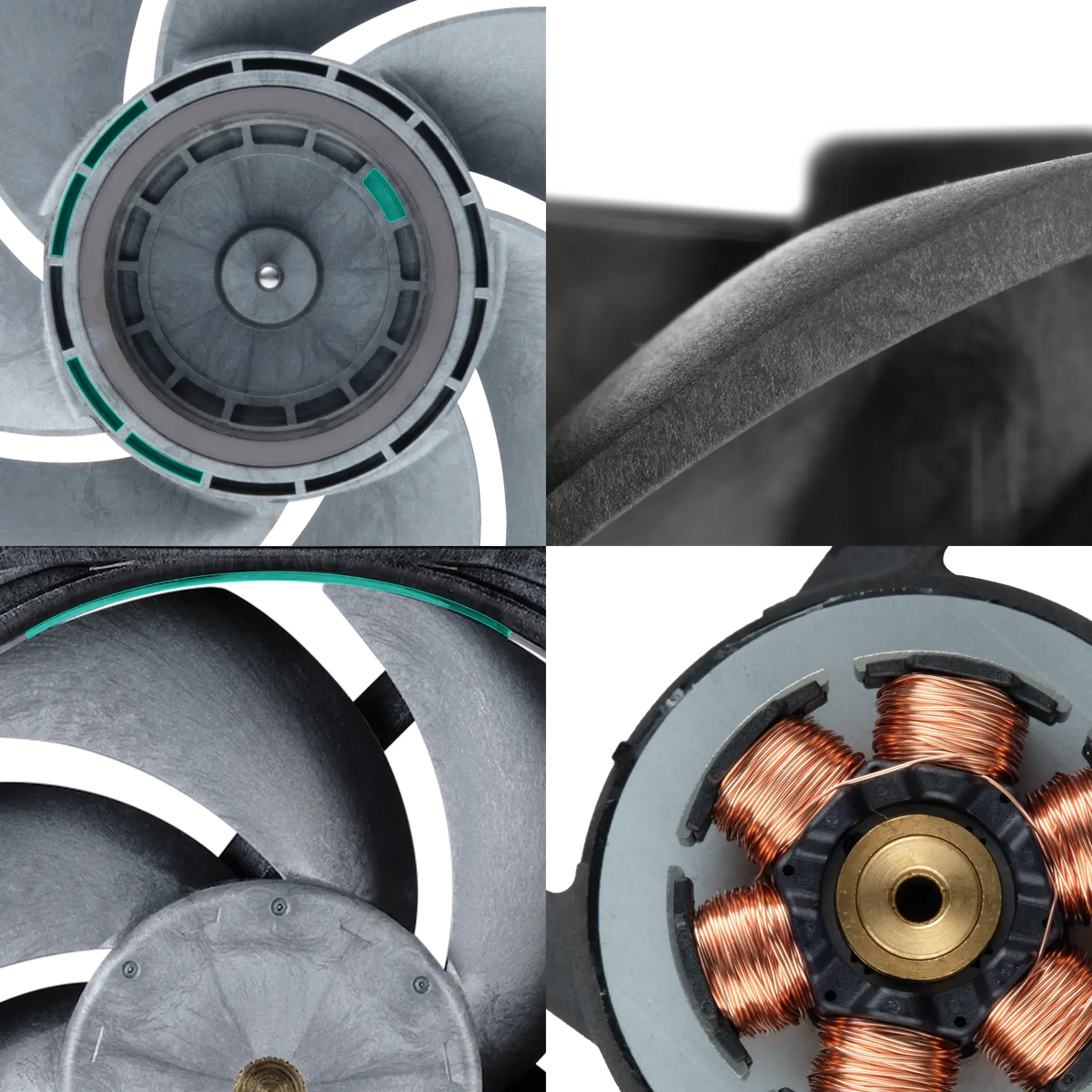

Using glass fiber reinforced LCP (Liquid Crystal Polymer) for the fan blades and fan frame.
Increased thickness of 30 mm results in 25% thicker fan blades for much higher airflowperformance.
Designed for PC cooling with aerodynamic optimizations for uncompromised performance in dust filter-equipped chassis and dense radiators.

UNPARALLELED PERFORMANCE

Precise load balancing to minimize noise from vibrations.
Aerofoil-shaped blades for increased static pressure.
Parallel 0.5 mm gap between blades and frame for improved performance and reduced turbulance.
Smooth and powerful 3-Phase motor (6 poles) operates with a lower frequency response for excellent sound quality.

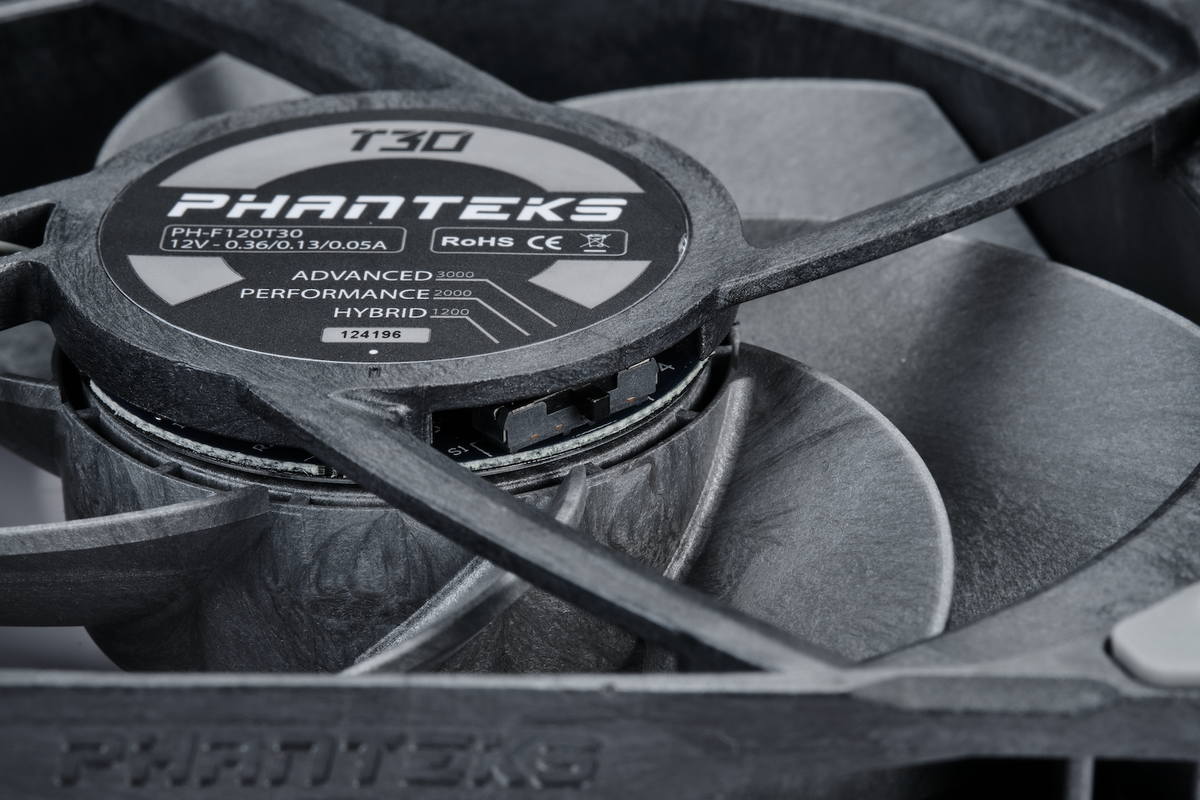

BUILT-IN PWM FAN PROFILES

Hybrid mode (Semi-Passive): Up to 1200 RPM, 0 RPM below 50% PWM signal for absolute silence.
Performance mode (Recommended): Up to 2000 RPM for balanced performance and noise.
Advanced mode (Extreme): Up to 3000 RPM for extreme performance.

General Specifications

Model

PH-F120T30_BG | PH-F120T30_BG_3P

Color

Grey

UPC

886523001829 | 886523001836

FRAME SIZE

120 x 120 x 30 mm | 4.72 x 4.72 x 1.18 in

BLADE GEOMETRY

Seven-blades design

PWM CONNECTOR

4-Pin Daisy-chain

PWM CABLE LENGTH

130 + 500 mm Extension cable

ARGB

Technical Details

BEARING TYPE

VAPO bearing system

RATED VOLTAGE

12V

MAX. NOISE LEVEL

39.7 dBA

MAX. AIRFLOW

100.9 CFM

MAX. AIR PRESSURE

7.37 mm H2O

SPEED

0~3000 ± 10% RPM

MTFB

150,000 hours

MAX. CURRENT | MAX. POWER

0.41A | 4.92W

OPERATING VOLTAGE RANGE

DC 10.2 – 13.2V

FAN PROFILE SPECIFICATIONS

MAX. SPEED (RPM)

Advanced: 3000 ± 150 | Performance: 2000 ± 100 | Hybrid: 1200 ± 75

MAX. AIRFLOW (CFM)

Advanced: 100.9 | Performance: 67.0 | Hybrid: 40.3

MAX. AIRFLOW (M3/H)

Advanced: 171.4 | Performance: 113.8 | Hybrid: 68.5

MAX. STATIC PRESSURE (Inch H2O)

Advanced: 0.29 | Performance: 0.13 | Hybrid: 0.05

MAX. STATIC PRESSURE (mm H2O)

Advanced: 7.37 | Performance: 3.30 | Hybrid: 1.27

MAX. SOUND LEVELdBA

Advanced: 39.7 | Performance: 27.3 | Hybrid: 9.8

MAX. CURRENT (A)

Advanced: 0.41 | Performance: 0.16 | Hybrid: 0.07

MAX. POWER (W)

Advanced: 4.92 | Performance: 1.92 | Hybrid: 0.84

Additional Info

NET WEIGHT

Sinlge Pack: 230 ± 5 g | 8.11 ± 0.17 oz / Triple Pack: 690 ± 5 g | 24.33 ± 0.17 oz

GROSS WEIGHT

Sinlge Pack: 350 ± 5 g | – ± 12.34 oz / Triple Pack: 1110 ± 5 g | 39.15 ± 0.17 oz

SCOPE OF DELIVERY

Single Pack: 1x T30-120 fan | Triple Pack: 3x T30-120 fan

ACCESSORIES

Single Pack: 1x 4-Pin extension cable (500 mm) | Triple Pack: 3x 4-Pin extension cable (500 mm)

SCREWS

Single Pack: 4x Fan screw, 4x Radiator screw UNC6-32 (36 mm), 4x Radiator screw M4 (36 mm) | Triple Pack: 12x Fan screw, 12x Radiator screw UNC6-32 (36 mm), 12x Radiator screw M4 (36 mm)

Phanteks T30-120 Fans

Lots to Like

We chose the T30-120 for our standalone desktop fan based on its reputation and esthetics. Since this is a non-standard application of this unit we ran into a few issues, none of which are major. 1. Just as the Sunon fans have, arrows on the housing indicating direction of rotation and air flow would have been nice. 2. The thickness of the secondary shrouded 3-pin connector to too big to cramp in the housing when not being used. 3. For alternative applications such as ours you should put the model number of PCB connector on your web site and datasheet.
Although we haven't turned it on yet we're really pleased so far. Thx.

Best Fans on the Market.

Hands down the greatest commercial cooling fans on the market. Especially the static pressure they create. If you don' mind the noise when running full tilt then there's nothing better available.

The best fans ever

I’ve had lots of high-end fans from the most popular brands, but the Phanteks T30s are by far the best I’ve used. You can run them at low speed (around 1000 RPM) for near-silent operation while still getting plenty of cooling performance. I can't wait to receive the 140mm version that I ordered to see if it is even better.

Phanteks T30 120mm

Absolute top quality for pc fans. I’m coming from the industrial noctua 120mm fans and they were good but even the build quality of the T30s is a step above and I’m liking the overall aggressive fan design. Looks very good in my CaseLabs S5.
