Showcase your high-performance hardware without sacrificing desk space. The Phanteks XT V5 is a sleek, compact ATX gaming chassis engineered for builders who demand premium aesthetics and optimal thermal performance. Featuring a space-saving footprint and an innovative internal layout, the XT V5 easily houses full-sized ATX power supplies and massive, next-gen graphics cards, making it the ultimate foundation for your next high-end gaming PC build.

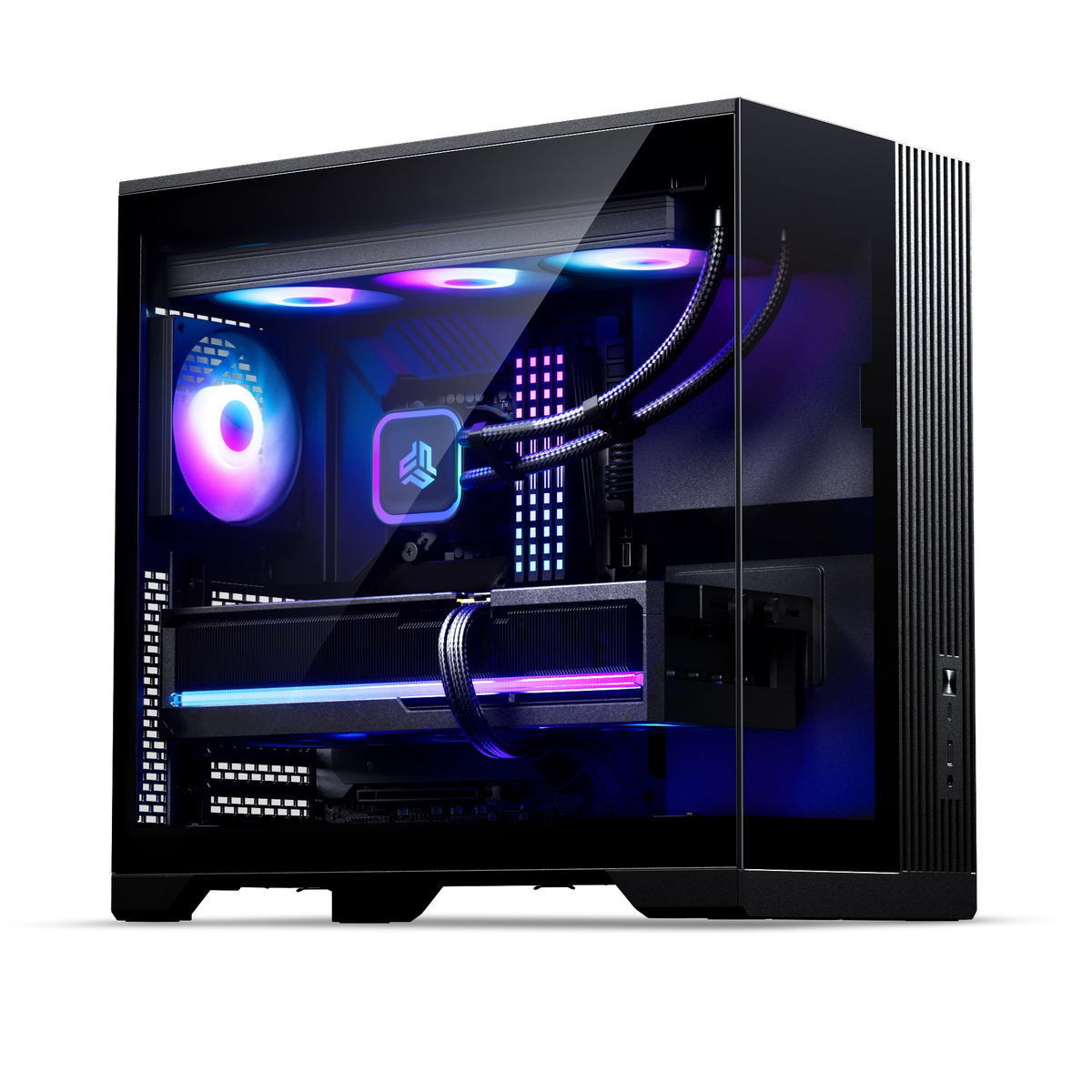

PANORAMIC TEMPERED GLASS: Seamless front and side glass panels offer a crystal-clear, unobstructed view of your entire build.

Pre-installed case fans: Includes 1x S25-120 fan in the rear and 1x S25-360 fan right out of the box with synced RGB lighting.

DIRECT GPU COOLING: Three base-mounted fans pull fresh air from the bottom and direct it straight to your graphics card.

360mm RADIATOR & LARGE GPU SUPPORT: Fits a top-mounted 360mm liquid cooling radiator and easily accommodates massive triple-slot graphics cards.

COMPACT ATX LAYOUT: Space-saving desktop footprint that still houses full-sized ATX power supplies and high-end hardware.



Product Specifications



Dimension  

452 x 235 x 430 mm (DxWxH)

Form Factor  

Mid Tower 

Material(s)  

Steel Chassis, Tempered Glass Window, ABS plastic

Motherboard Support  

ATX, Micro-ATX, mini-ITX

Rear-Side Mainboard

No

Front I/O  

1x USB 3.0, 1x USB-C 3.2 Gen2x2, Microphone/Headphone Combo, Power Button

Connectors 

Front IO, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E

Window  

Yes, Front & Side Tempered Glass

 

Expansion & Drive Bays  

Expansion slots  

7

Vertical GPU support 

No

Internal 3.5”  

1x

Internal 2.5"  

2x

D-RGB Controller output 

N/A

 

Cooling  

120mm fan  

140mm fan  

Front

-

-

Top  

3x

-

Rear  

1x (included)

-

Bottom

3x (included)

-

 

Liquid Cooling  

120mm radiator  

140mm radiator  

Front

- 

-

Top 

Up to 360

-

Rear 

-

-

Bottom

-

-

 

Clearance  

  

Graphic card length 

430mm

Graphic card width

175mm

CPU cooler height 

175mm 

PSU length 

159mm

Top 360 Radiator 

410 x 122 mm

GPU Support Bracket

Min. 298mm / Max. 370mm



$79.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

COMPACT SHOWCASE CASE

clean tempered glass aesthetic

  • Tempered glass front and side panels
  • Minimal, modern exterior design
  • Clear view of internal components
  • Pre-installed S25 ARGB fans with vibrant lighting
  • High-speed USB 3.2 Gen2x2 Type-C front I/O

Compact Footprint, Full-Sized Capability

  • Supports ATX, Micro-ATX and Mini-ITX motherboards.
  • Standard ATX power supply compatibility.
  • GPU clearance up to 430 mm.
  • GPU support bracket included.

Designed for Effortless Builds

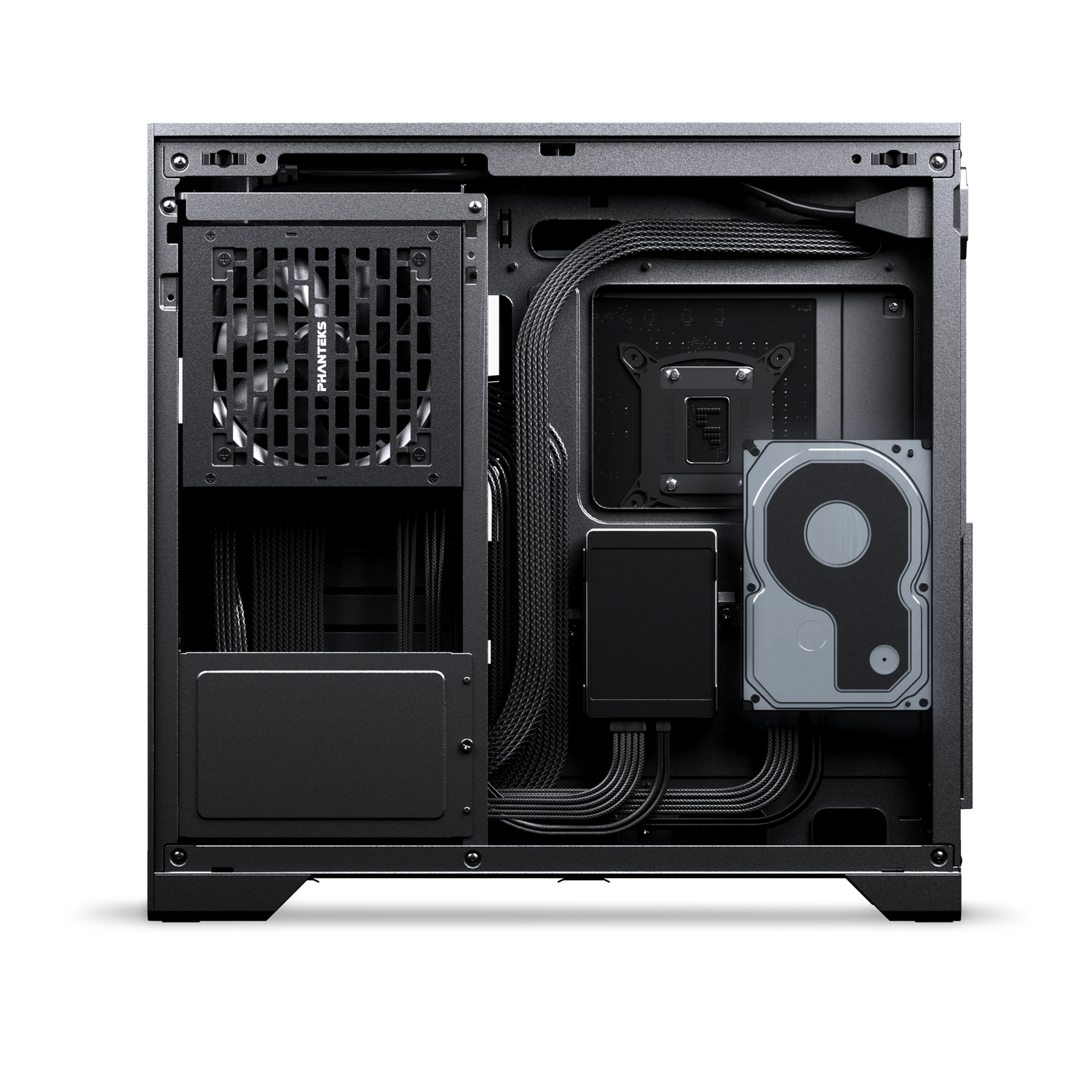

  • Cable Cover completely conceals all PSU cabling.
  • Strategic cutouts for smooth assembly.
  • Guided channels for cabling keep builds tidy.

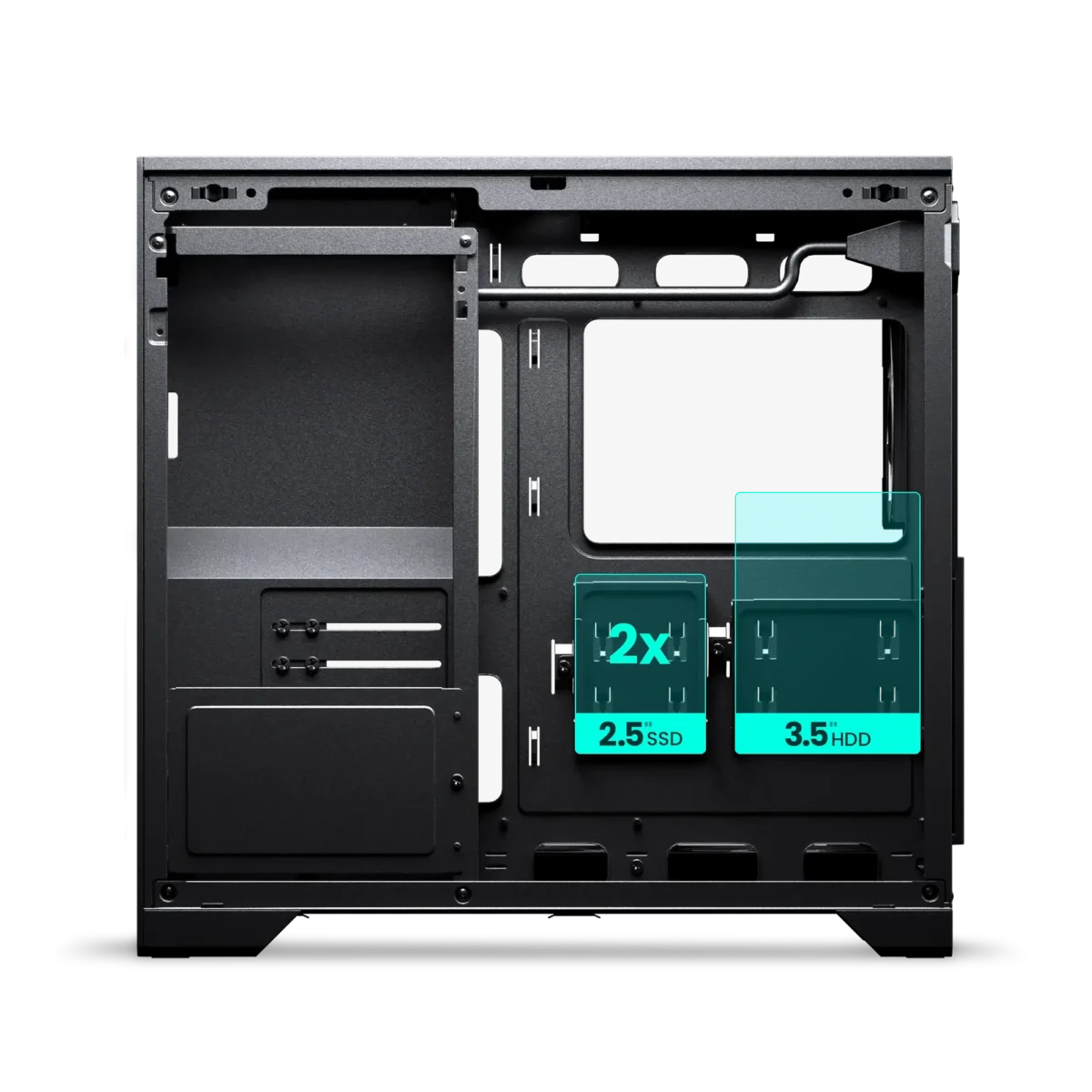

STORAGE Capacity

  • 2.5″ Storage Bracket (Supports 2x 2.5″ SSD drives)
  • 3.5″ Storage Bracket (Supports 1x 3.5″ HDD drives)

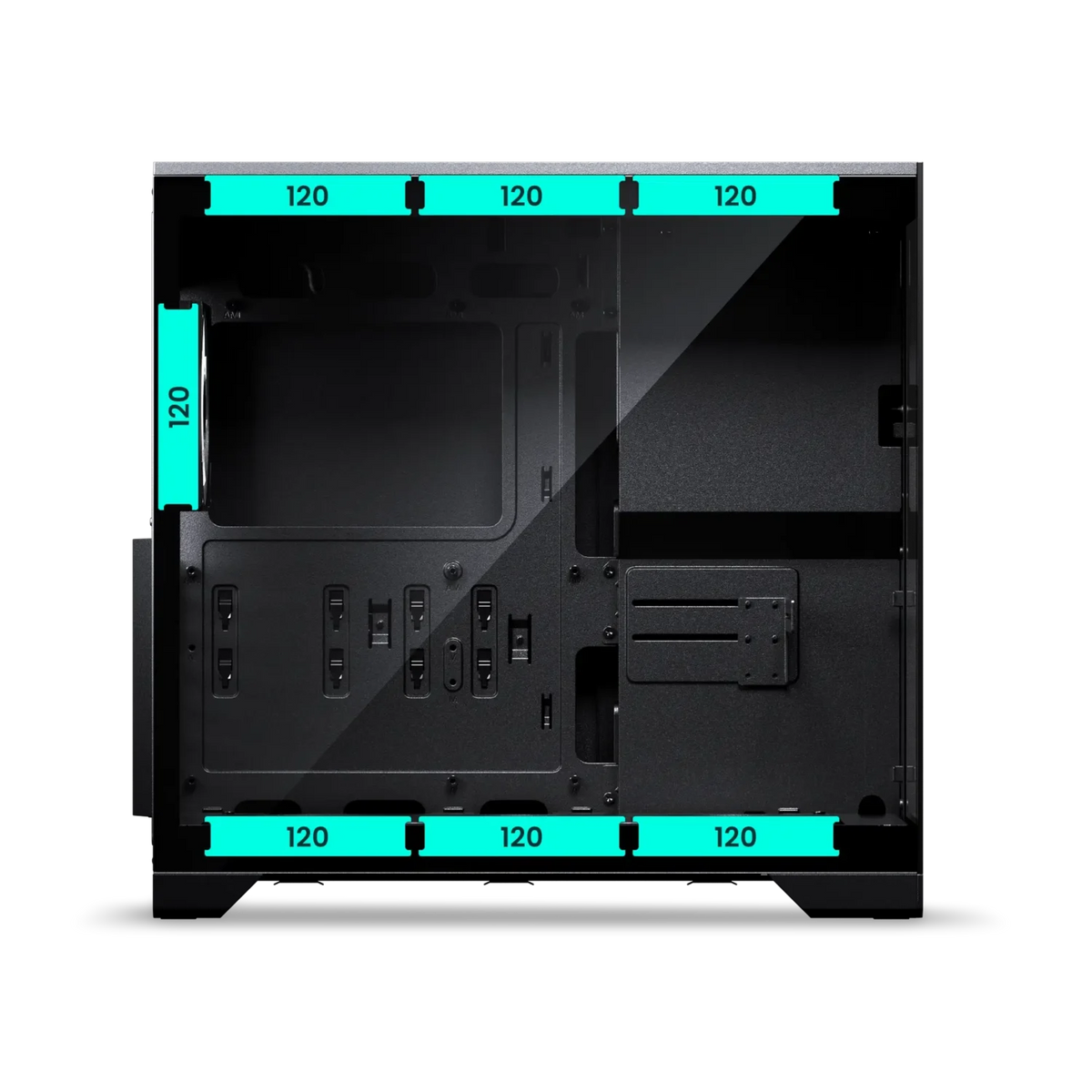

fan | radiator positions

  • 3x 120 mm top fans
  • 1x 120 mm rear fan
  • 3x 120 mm bottom fans

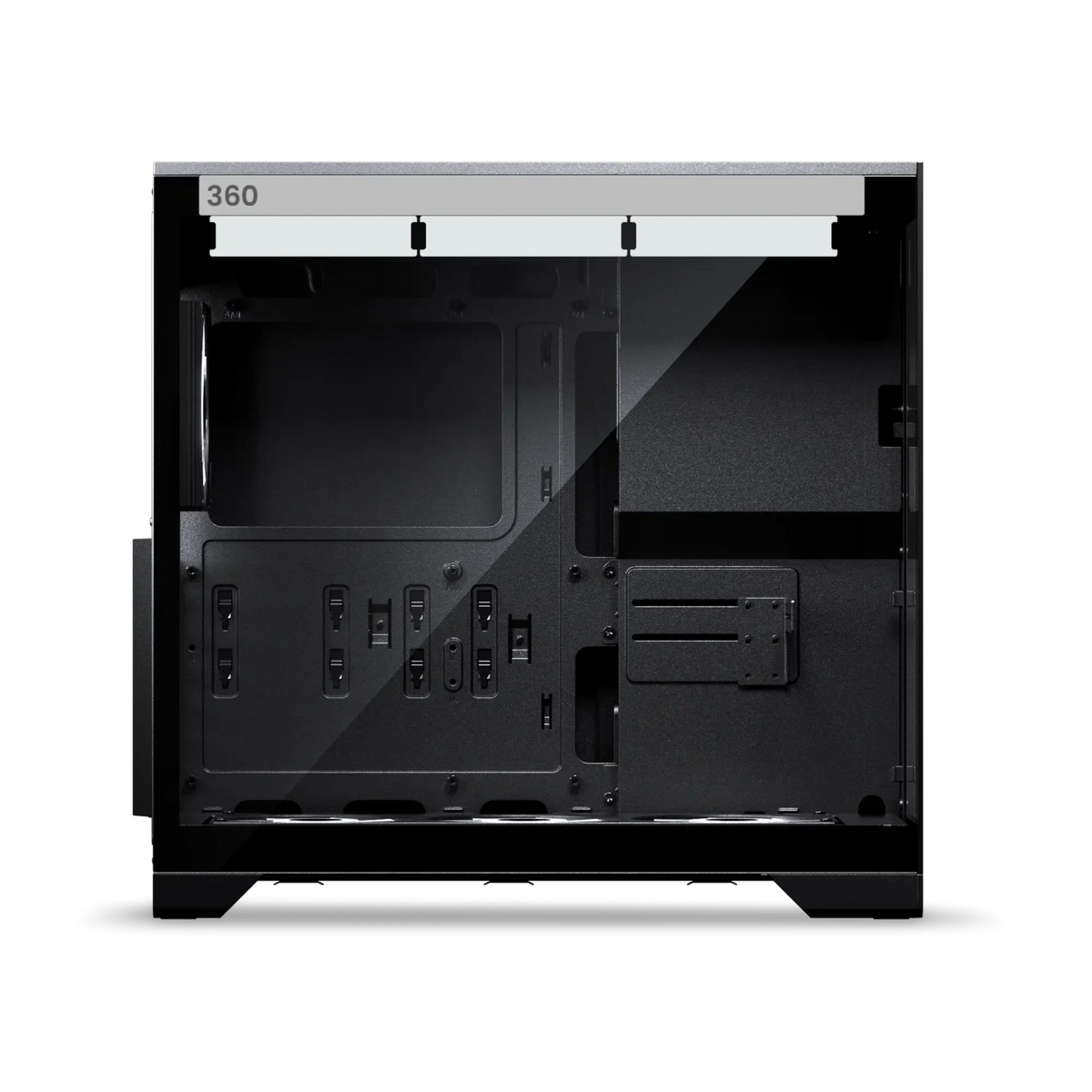

  • 1x 360 top radiator up to 410 x 130 x 38 mm
