The XT M3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including, triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT M3 is a micro-ATX powerhouse ready for any cooling challenge.
|
Case Specifications |
||
|
Dimension |
460 x 235 x 370 mm /18.1 x 9.3 x 14.6 in (DxWxH) |
|
|
Form Factor |
Compact Micro-ATX Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window, ABS Plastic |
|
|
Mainboard Support |
Micro-ATX, Mini-ITX |
|
|
Rear Connect Motherboard |
Micro-ATX |
|
|
Front I/O |
1x USB 3.0, 1x USB-C 3.2 Gen2x2, Microphone/Headphone Combo, Power Button |
|
|
Connectors |
Front IO, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
4 |
|
|
Vertical GPU Support |
No |
|
|
Internal 3.5” |
1x (1x included) |
|
|
Internal 2.5” |
2x (2x included) |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Front |
2x |
- |
|
Rear |
1x |
- |
|
Bottom |
3x |
|
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Front |
- |
- |
|
Rear |
- |
- |
|
Bottom |
- |
- |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
430mm (Without front fans installed) |
|
|
CPU Cooler Height |
175mm |
|
|
PSU Length |
150mm |
|
|
Top Radiator |
410 x 122 x 60mm |
|

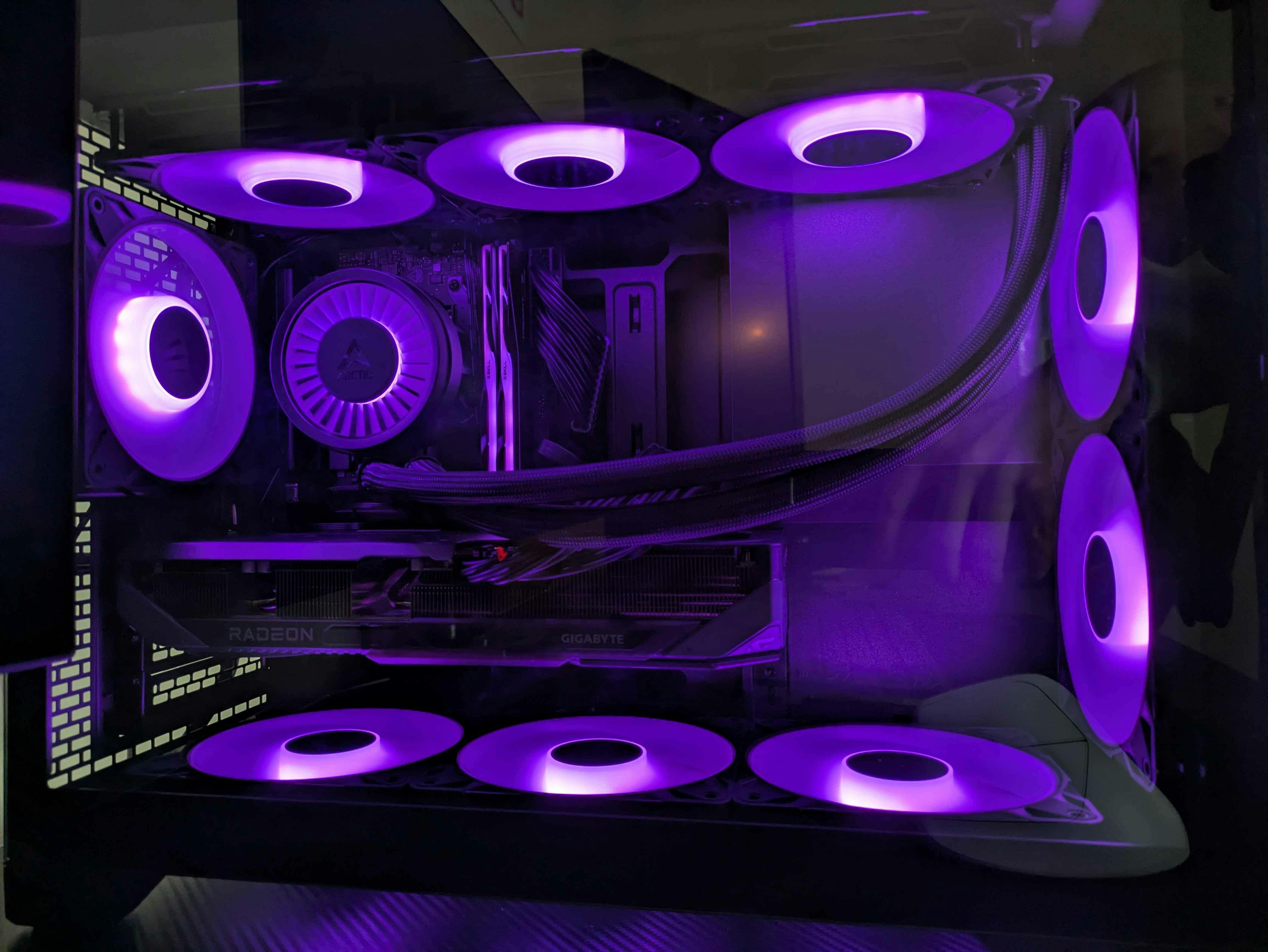

I was looking for a lower-volume case to replace my SFF case that wasn't cooling my hardware as well as I liked. The amount of airflow and cable management this case provides for mATX and ITX components was exactly what I was looking for. Despite the lower price, materials are of relative high quality. Easy tool-less panel access is perfect for upgrades and mods. Only things to note: remember to remove securing screws before attempting side panel removal and the wider footprint of the case caused by cable management channels. Phanteks did extremely well with this one.
