Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.

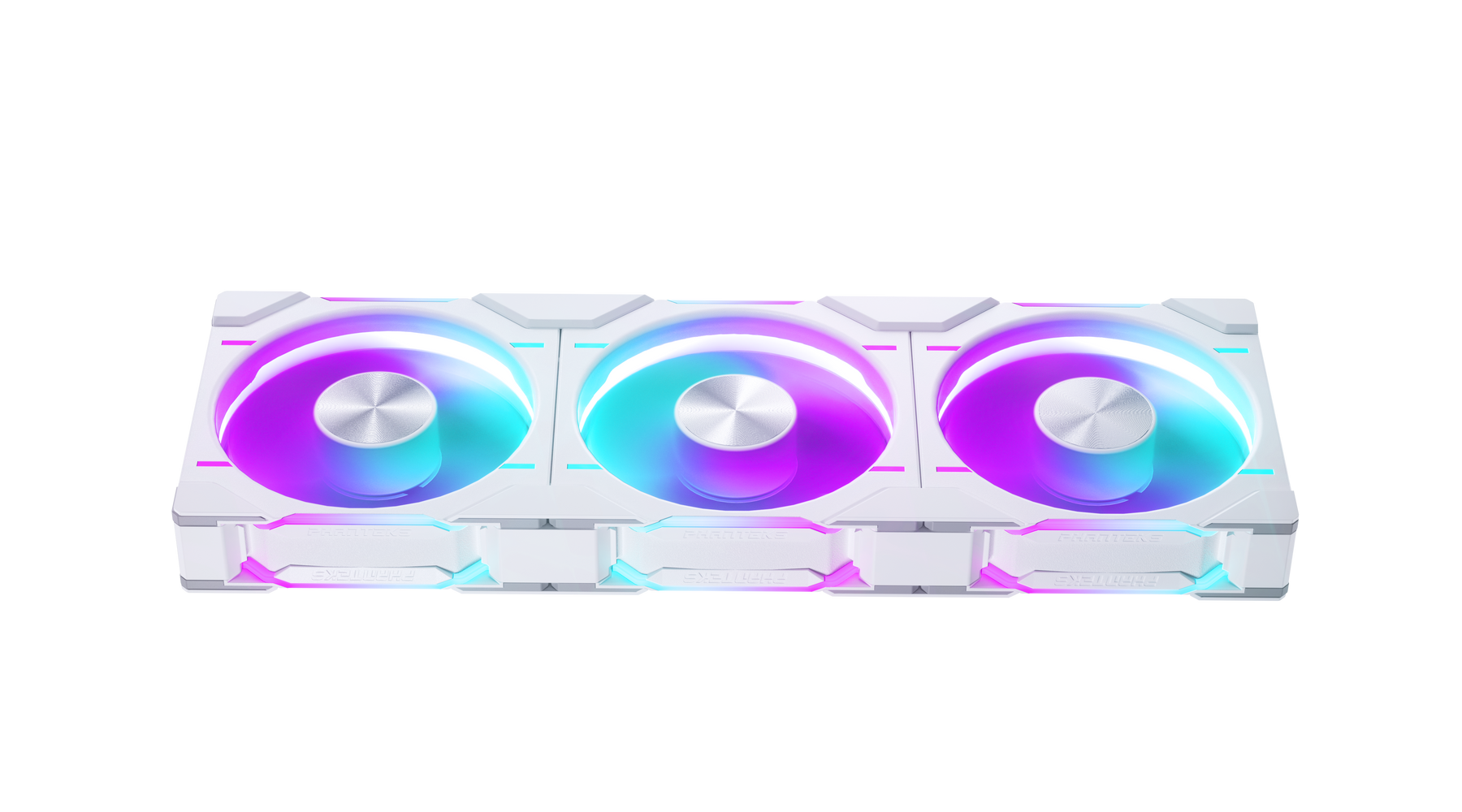

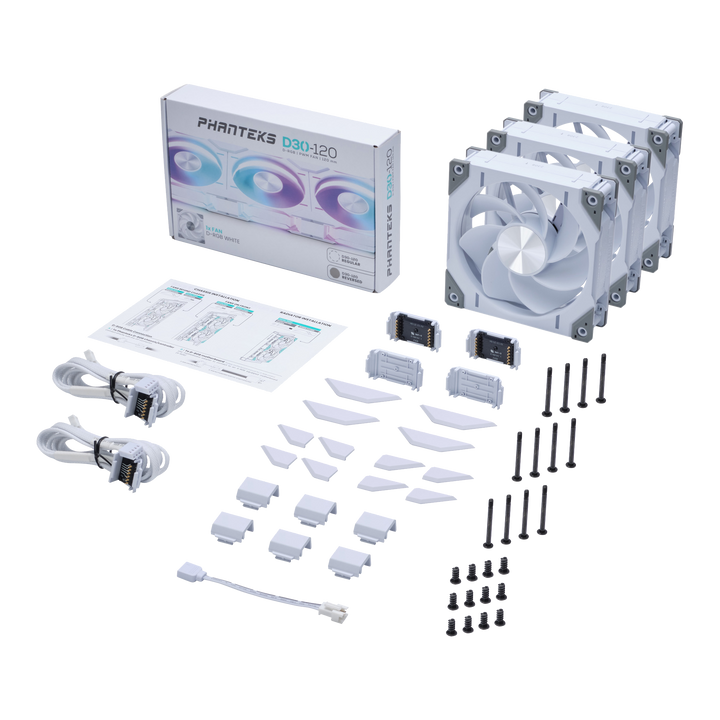

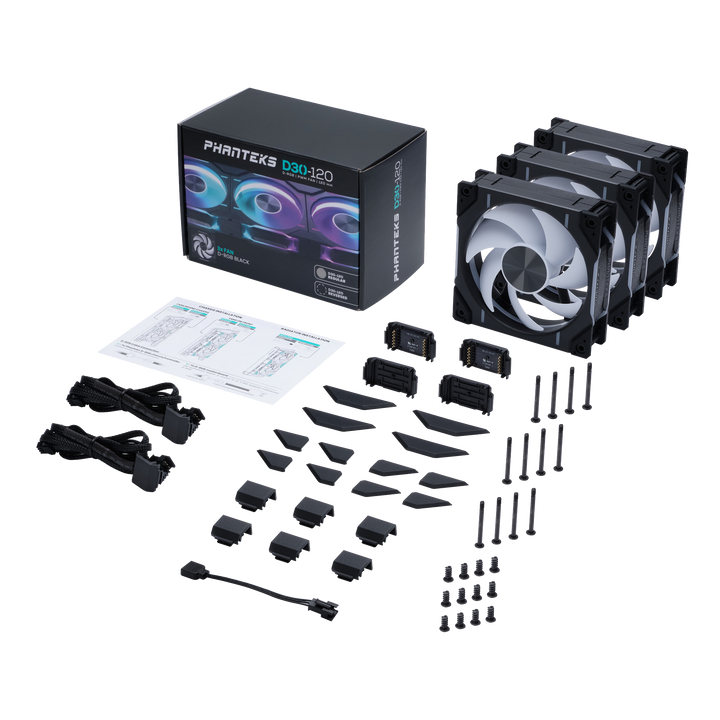

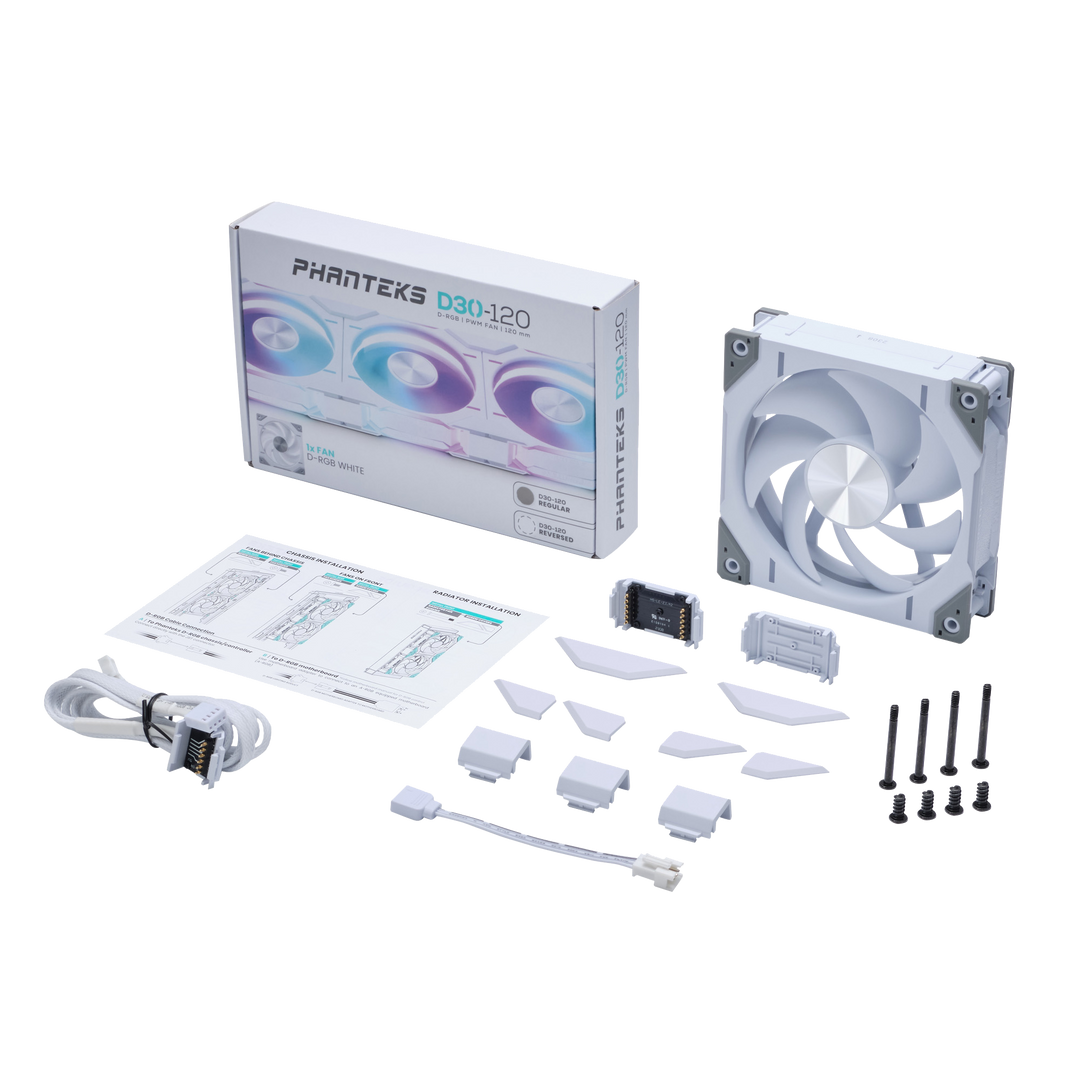

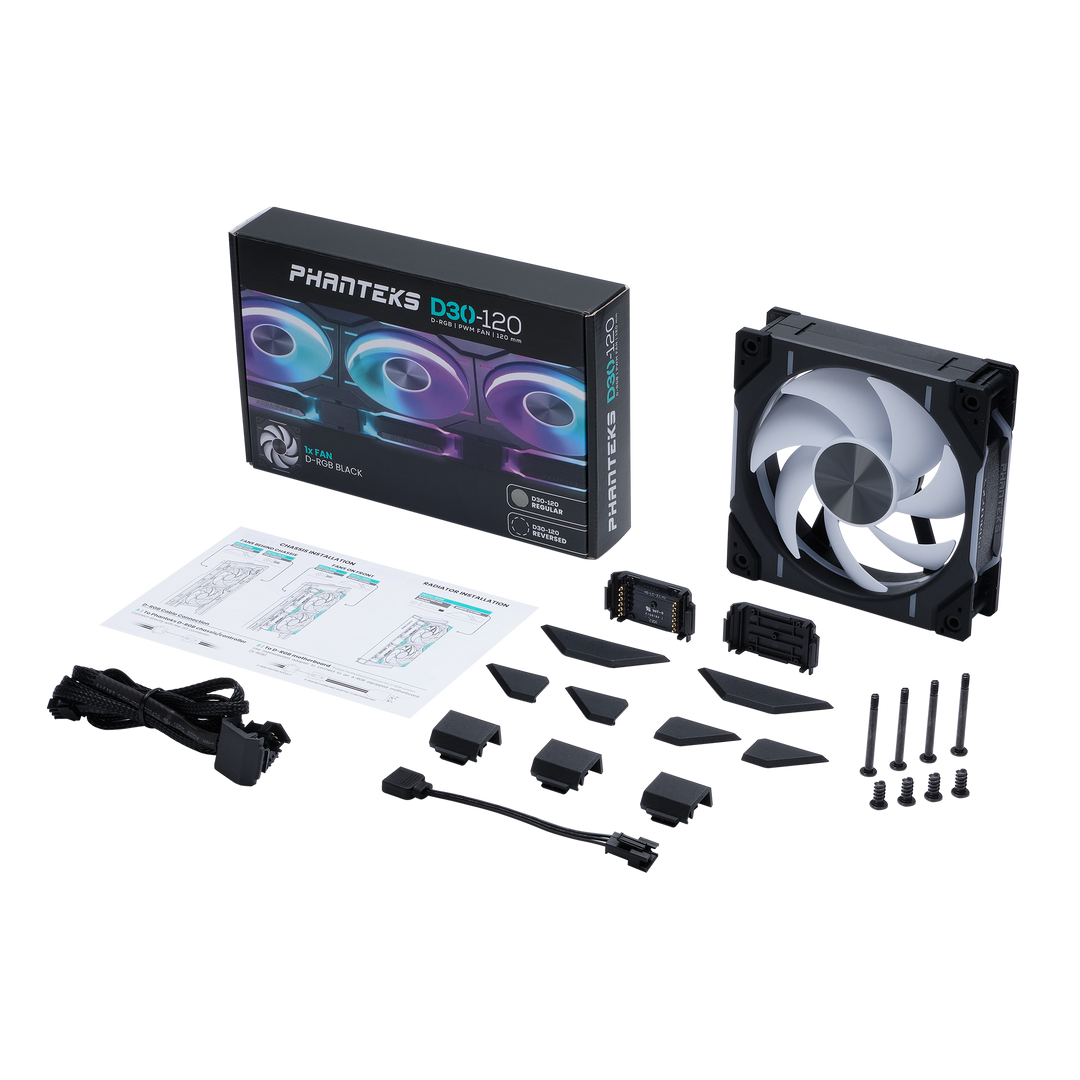

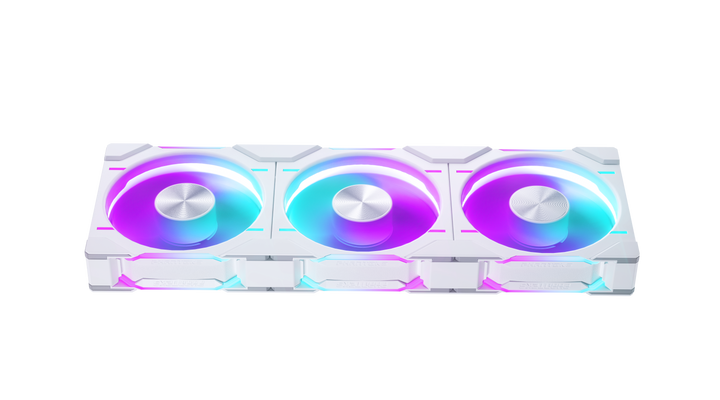

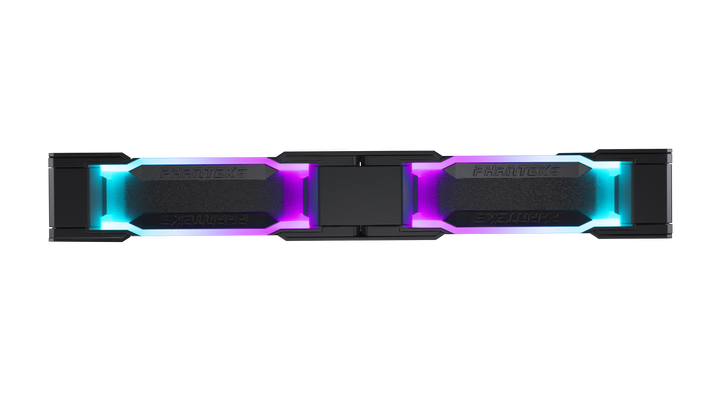

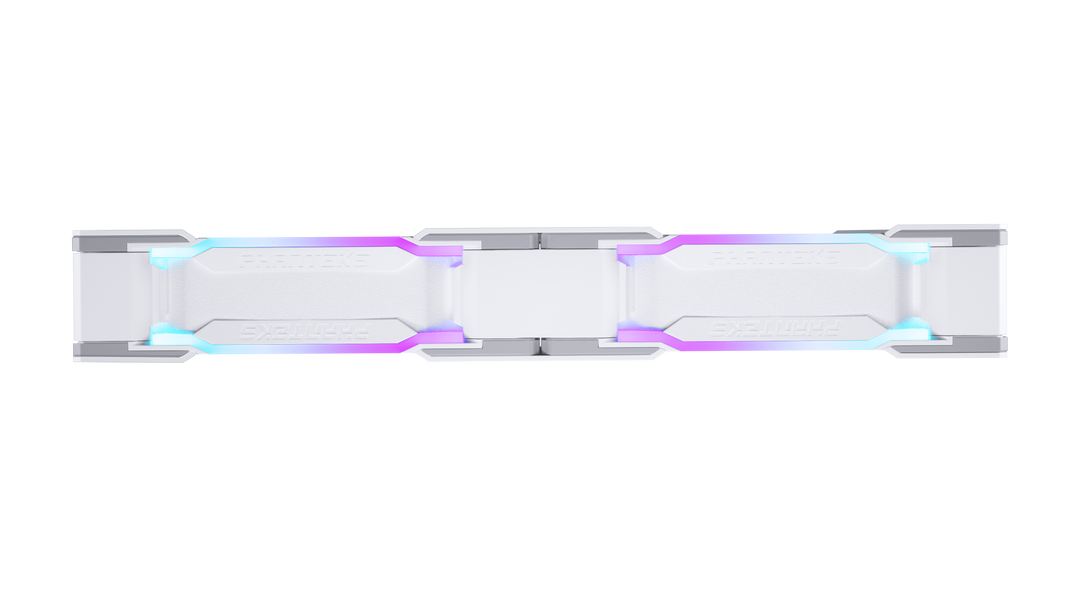

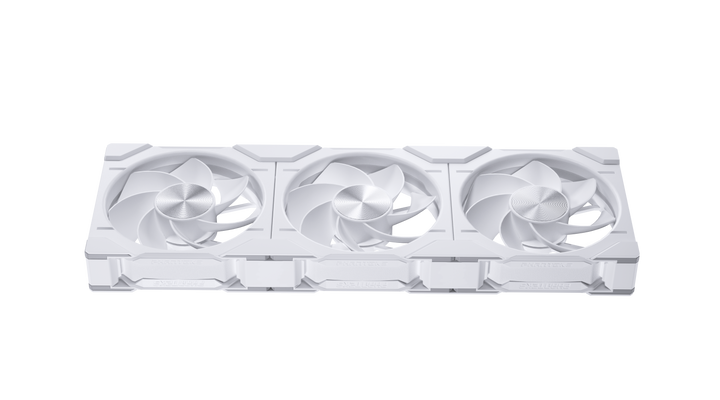

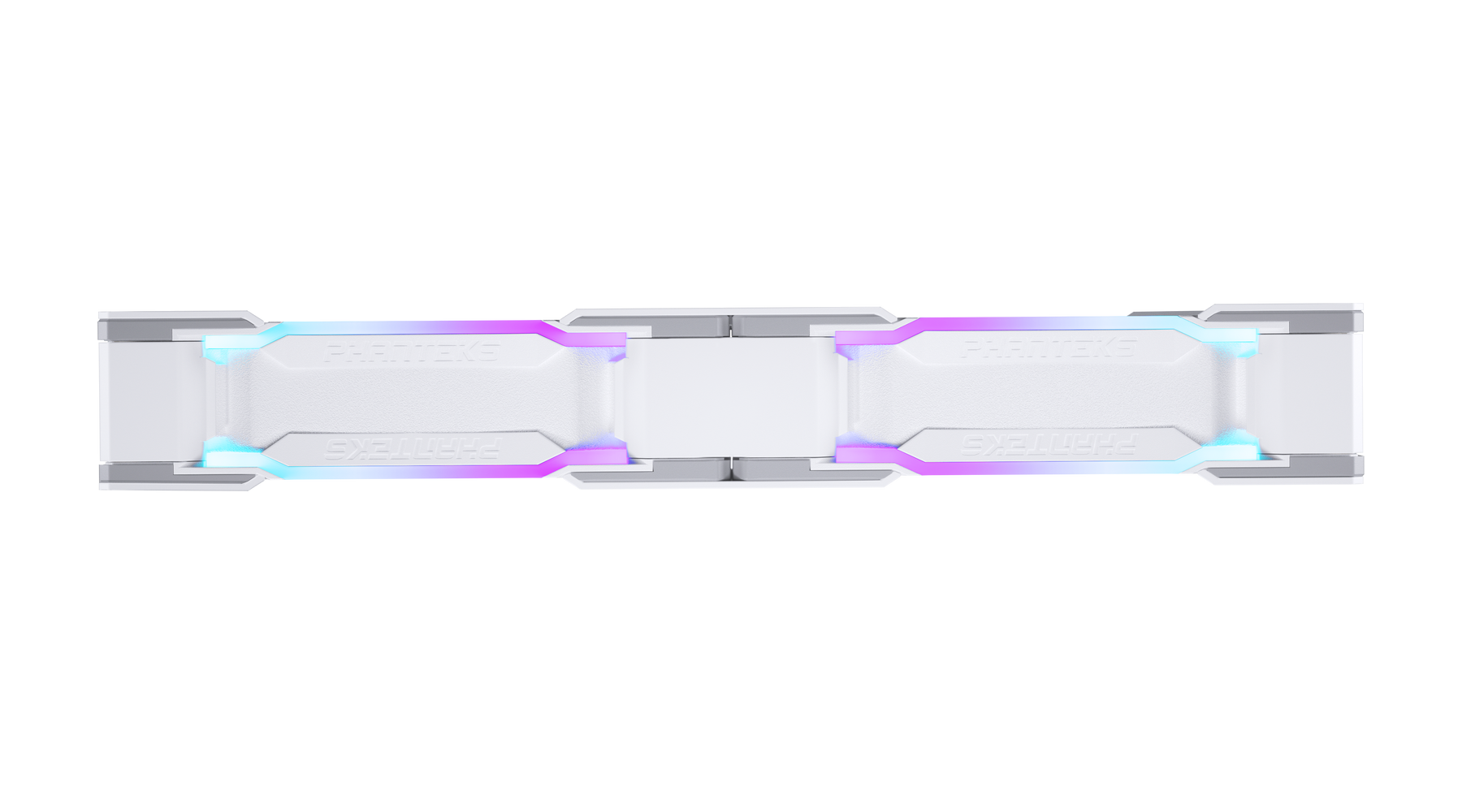

Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.

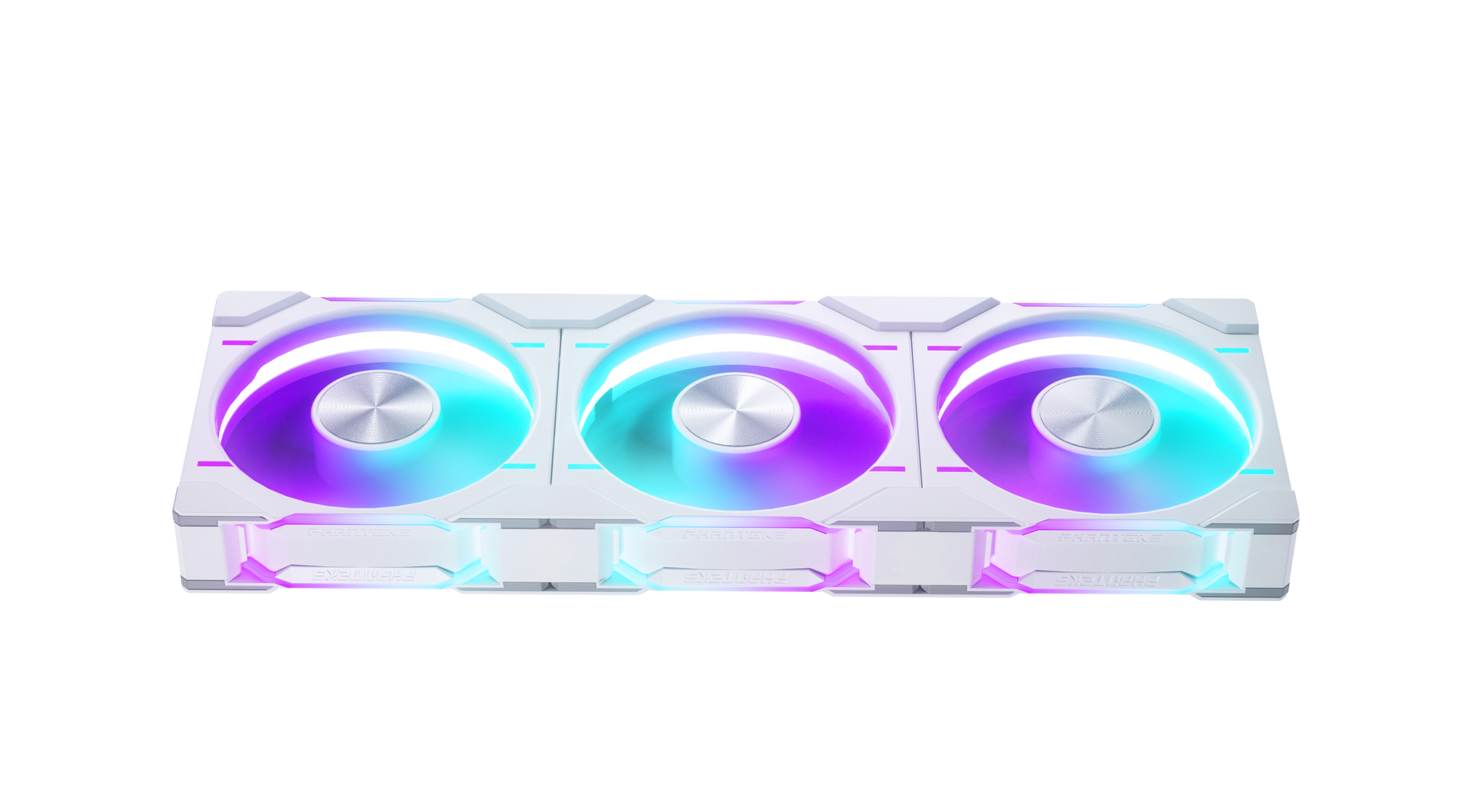

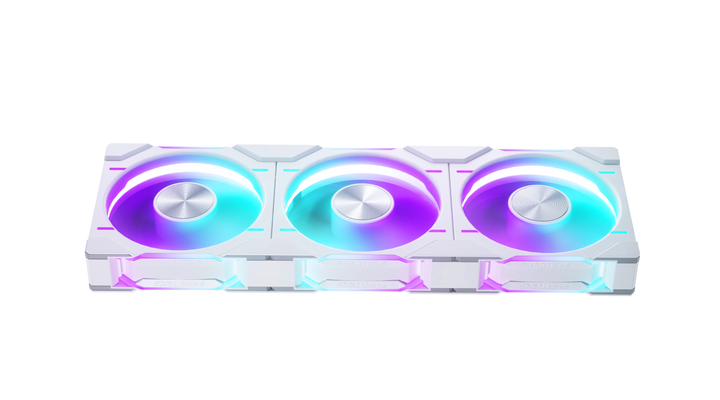

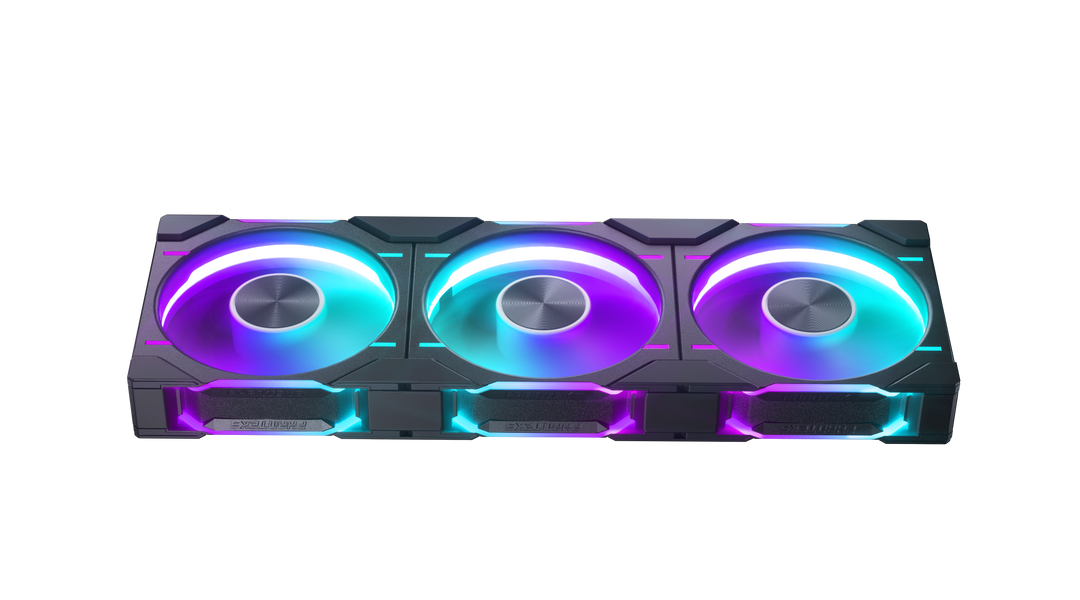

The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

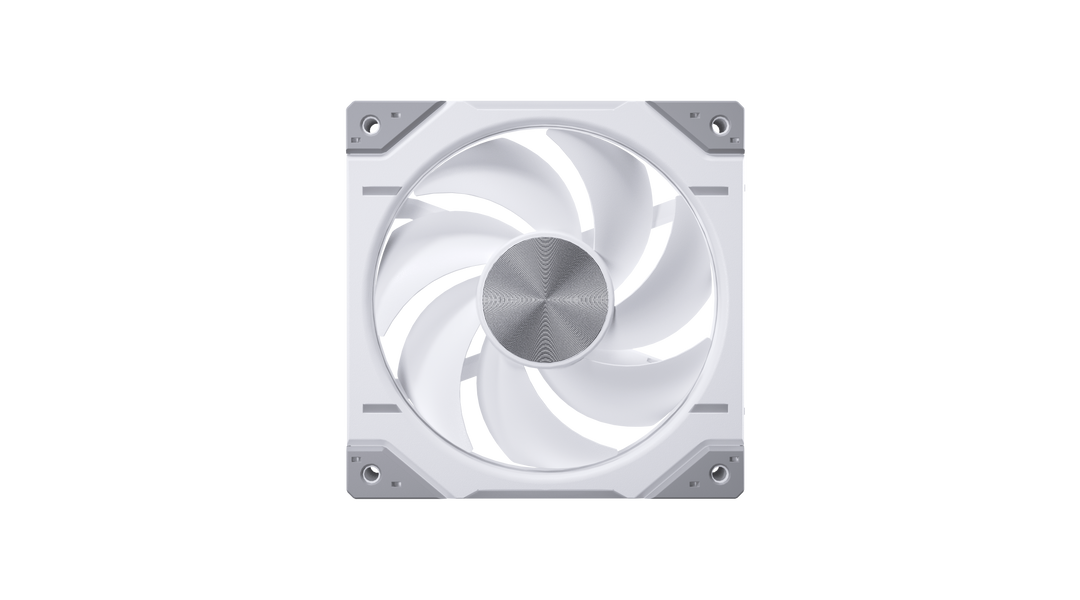

30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.
Description:

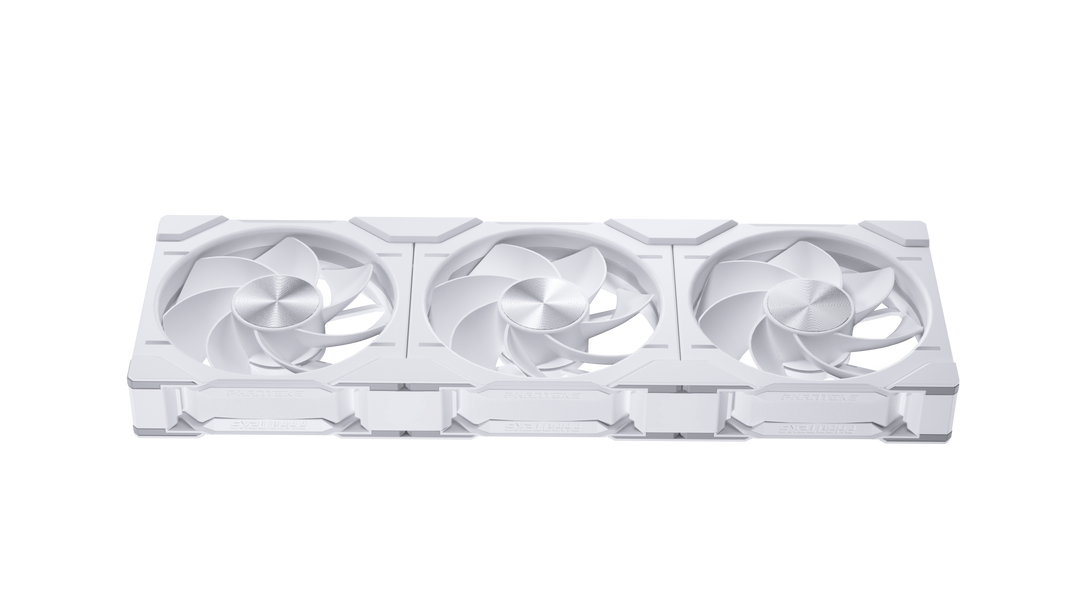

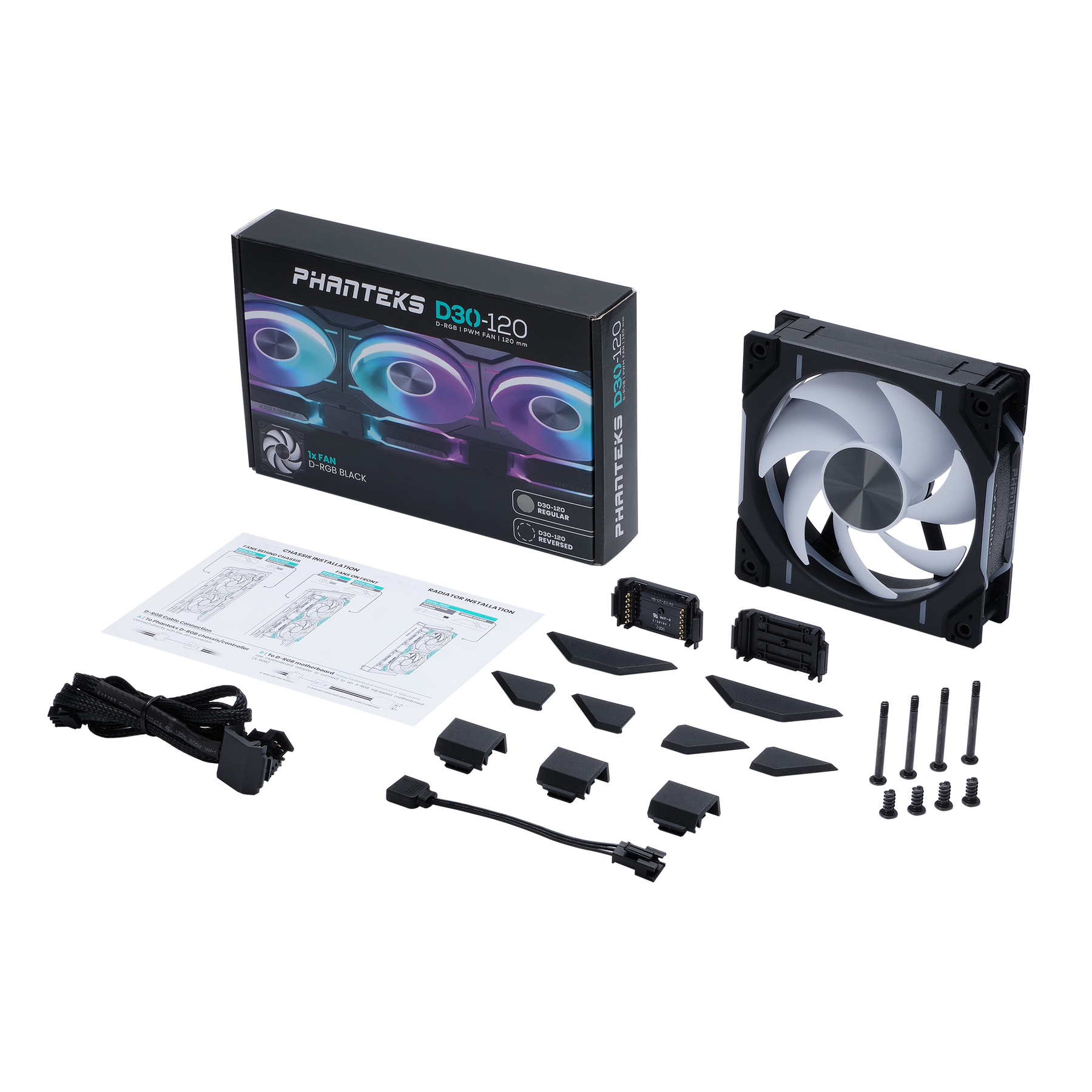

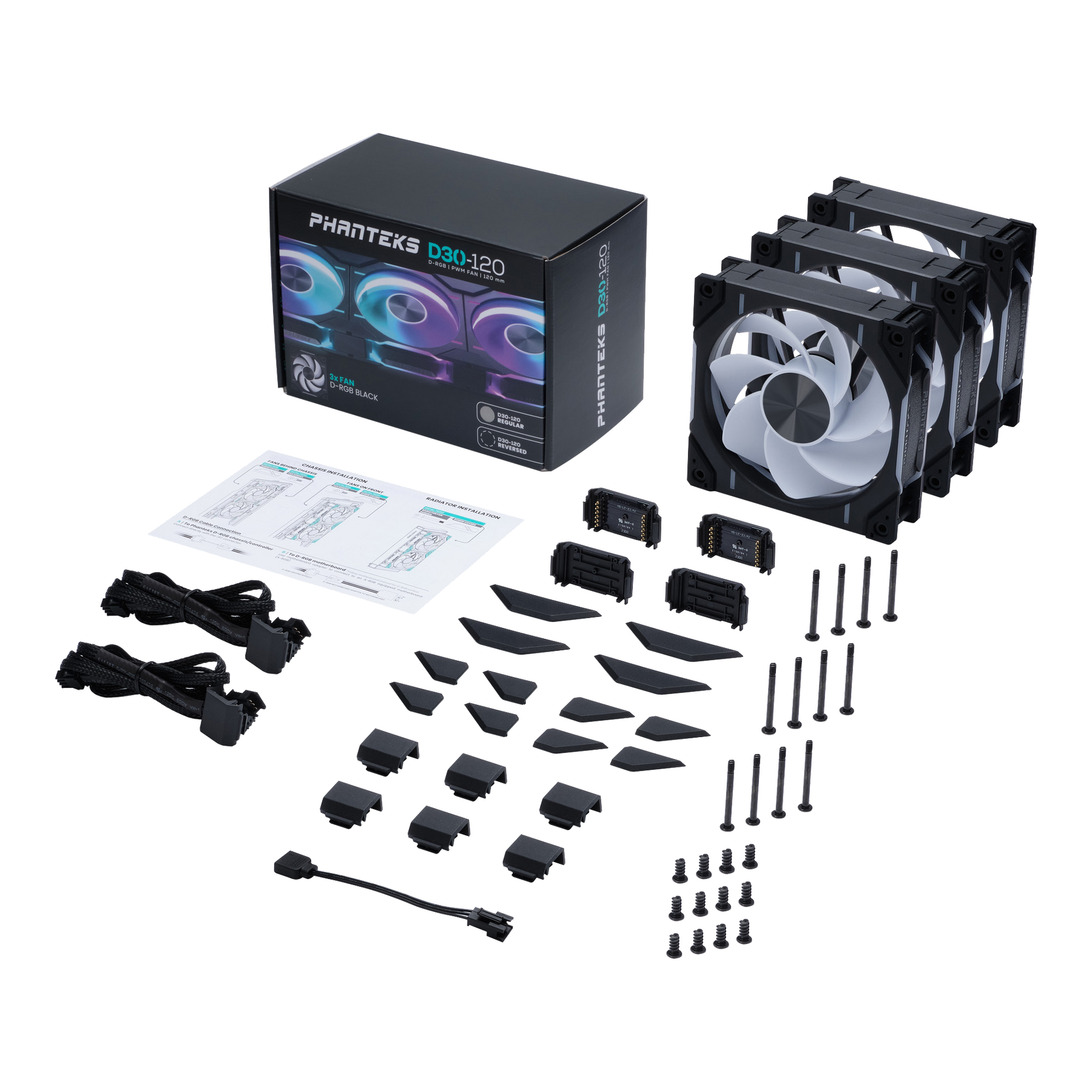

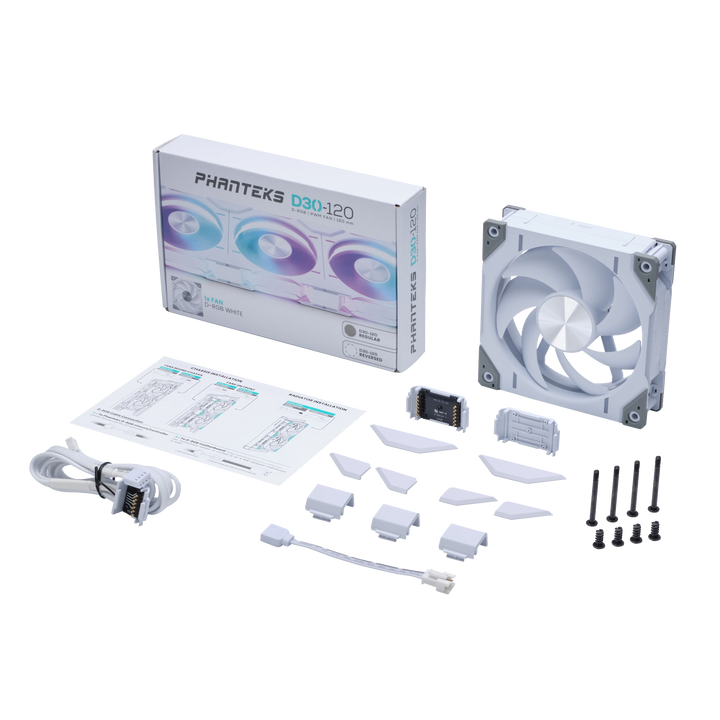

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Brand
Phanteks
Model
PH-F120D30_DRGB_PWM_BK01
Type
Case Fan
Wind Direction
Regular
Color
White Matte blade / Black Fan Frame
Materials:
PBT (Polybutylene terephthalate)
Fan Size
120 x 120 x 30 mm
Bearing Type
FDB (Fluid Dynamic Bearing)
Blade Geometry
Seven Blades Design- White Matte
Rated Voltage
FAN: 12V LED: 5V
Operating Voltage Range
5~13.2V
PWM
Yes
Rated Current (Ampere)
0.15A LED:0.45A(Max)
Locked Current
Polarity Protection
Power Consumption
≦1.8W
Speed
250-2000±10% RPM
Max. Airflow
64.3 CFM
Max. Air Pressure
3.01 mm H2O
Noise Level
30.2 dB(A)
Fan Connector
4-Pin PWN
Fan Cable Length
700 mm / 27.56 in
D-RGB Connector
3-Pin JST Daisy-chain
D-RGB Cable Length
600+100 mm / 23.62+3.94 in
LED Number
30 (D-RGB)
LED Rated Voltage
DC 5V (+5V/D/GND)
LED Rated Current
Max:0.45A
MTBF (Life Expectance)
50,000hrs at 40℃
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
The Good
Packaging is impressively presentable and professional
The DRGB lighting effects look fantastic once set up
The Not-So-Good
Shipping took longer than the advertised 3-4 business days
While instructions were adequate, installation wasn't intuitive enough and required searching YouTube videos for proper examples
Connection mechanism needs design improvement - the force required to connect fans together led to breaking 2 IN connectors due to easy misalignment
RGB implementation is misleading - only features 15 LEDs with mirrored effect, which wasn't clearly advertised on the website (confirmed by SignalRGB and other users)
Potential reliability concerns based on previous experience with Phanteks fans failing after approximately 2 years
Verdict
The D30-120 fans deliver on aesthetics but have some design flaws in the connection system and potentially misleading marketing regarding the RGB implementation. Long-term reliability remains a question mark.
P
Phillip Lo
Good performance but needs better QA checking
Fans are very high quality and runs spectacularly with very little noise and sound even at higher power, however a couple of the corner pieces are shaped incorrectly which causes the little plastic edge pieces to snap off very easily. Luckily all the fans came with extra covers and wires so it wasn’t a super big issue, but very unfortunate since I now have 2 unusable cords due to that. I ended up having to change the wrongly shaped fans (2 of them) and move them into the middle of the 3 fan setup so the corner piece wouldn’t be utilized.
