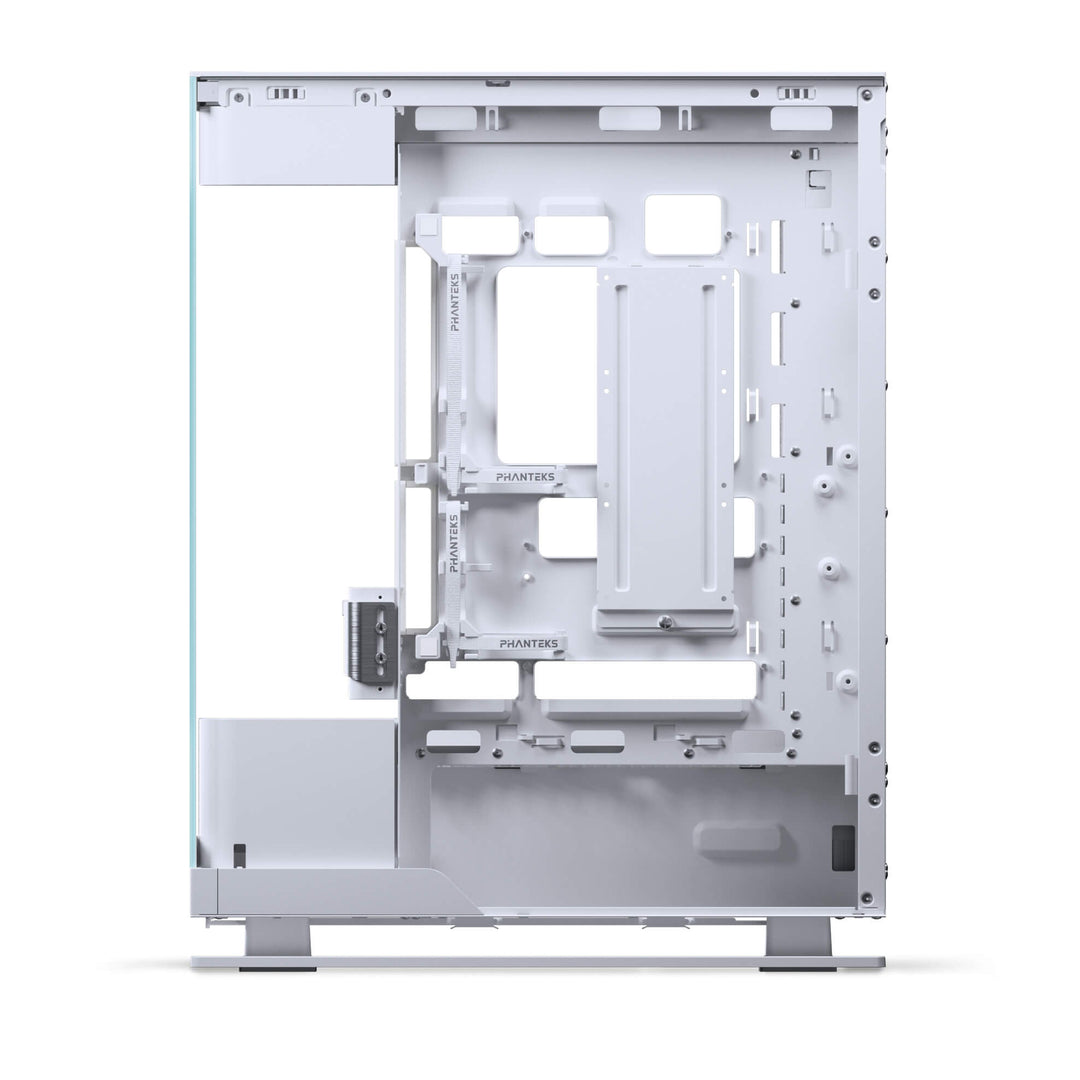

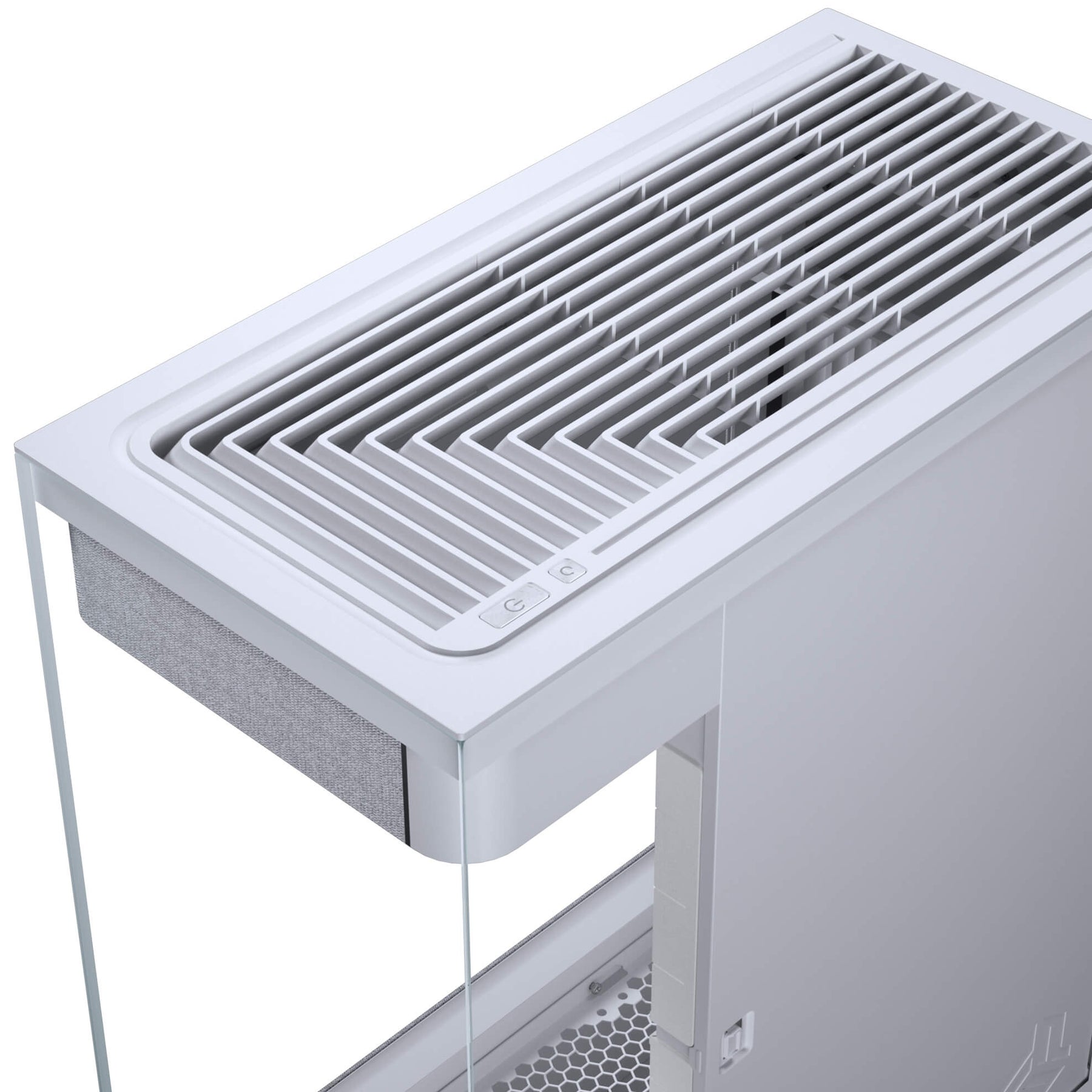

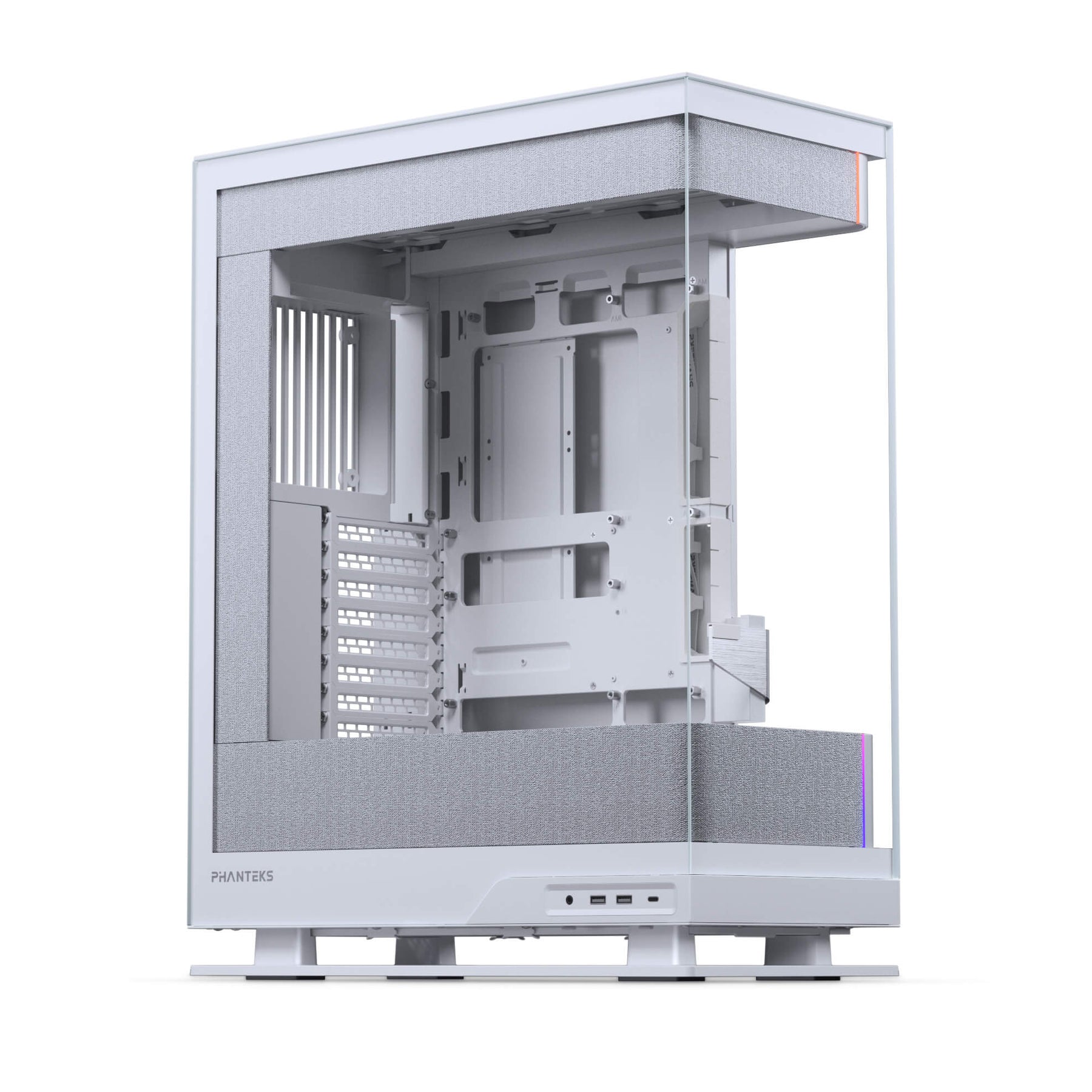

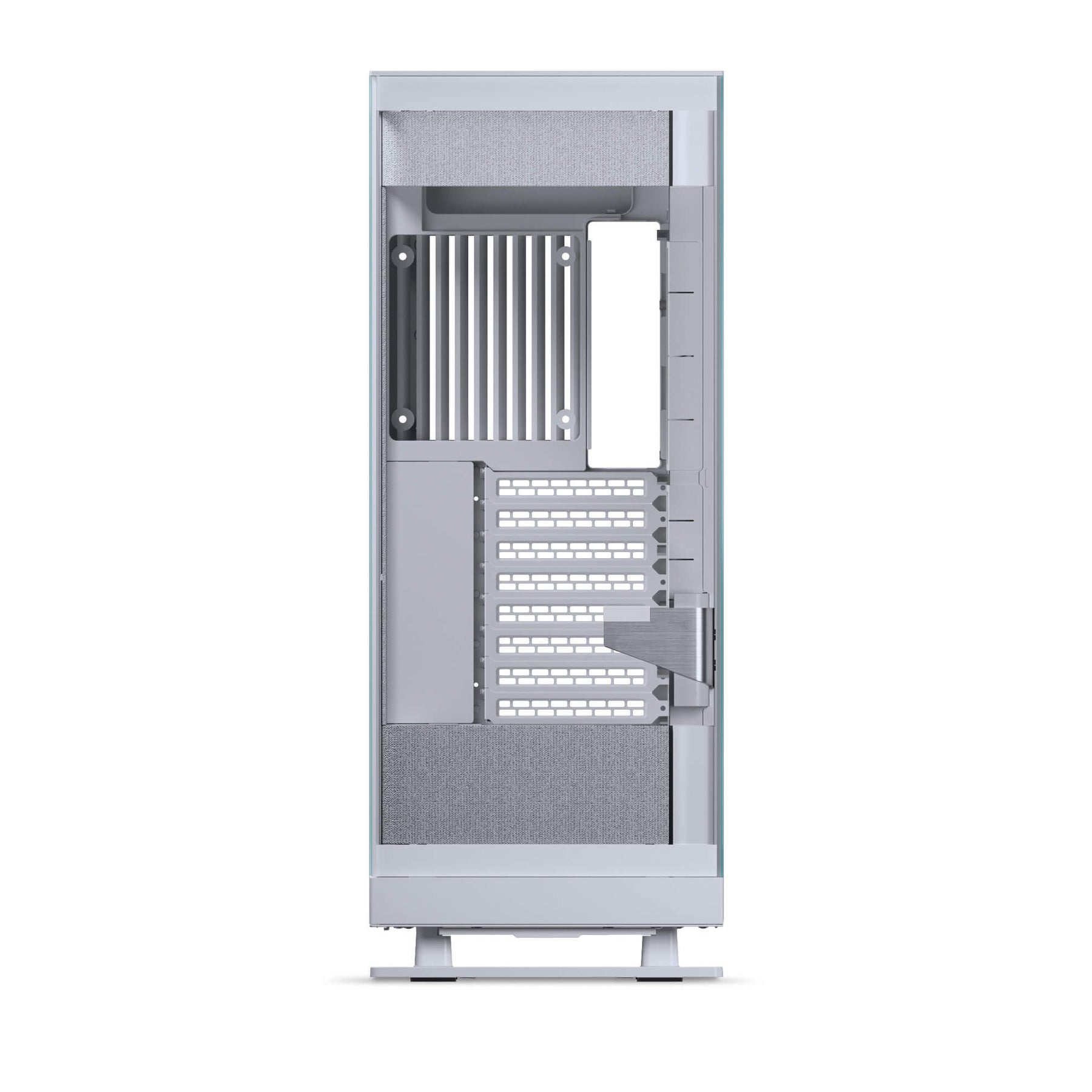

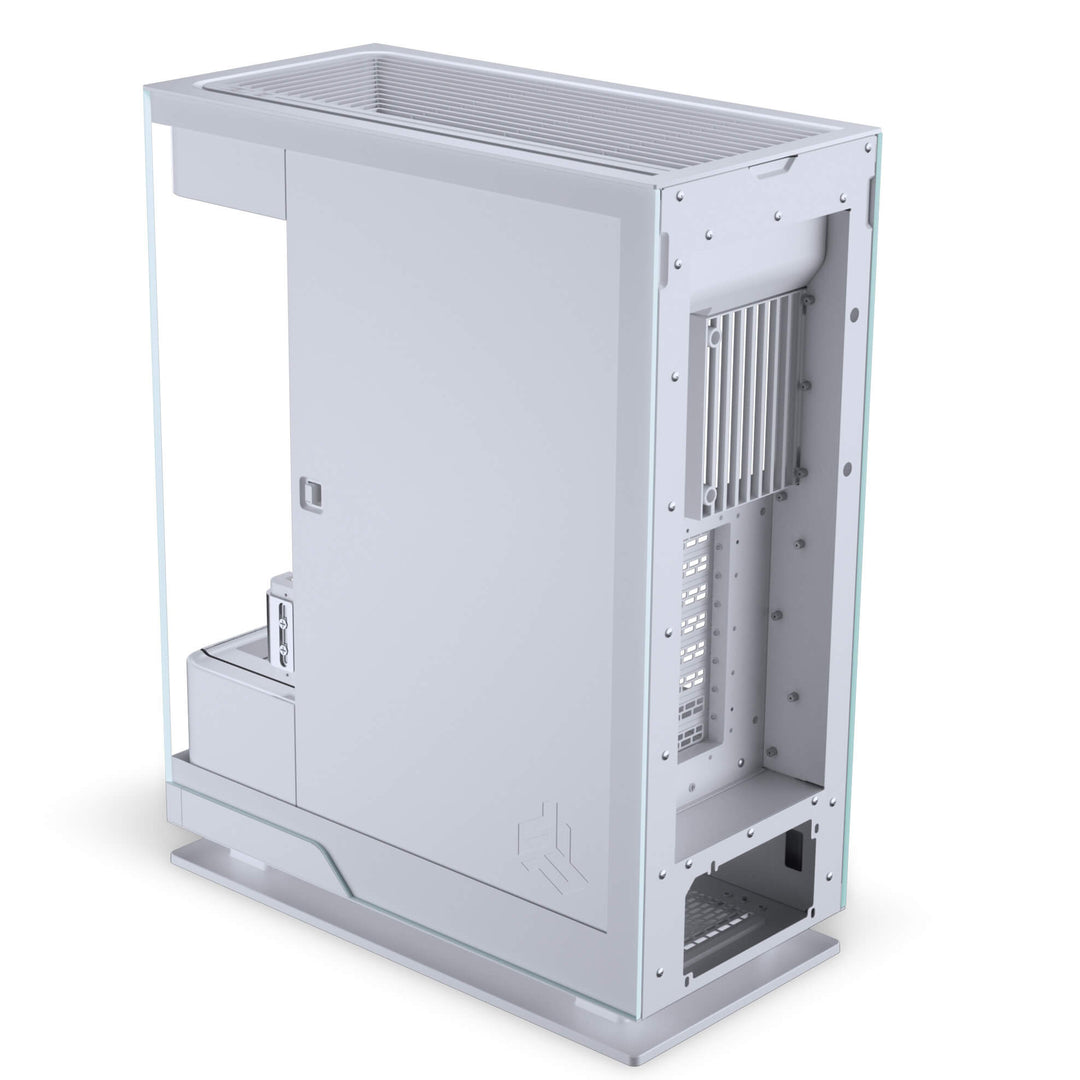

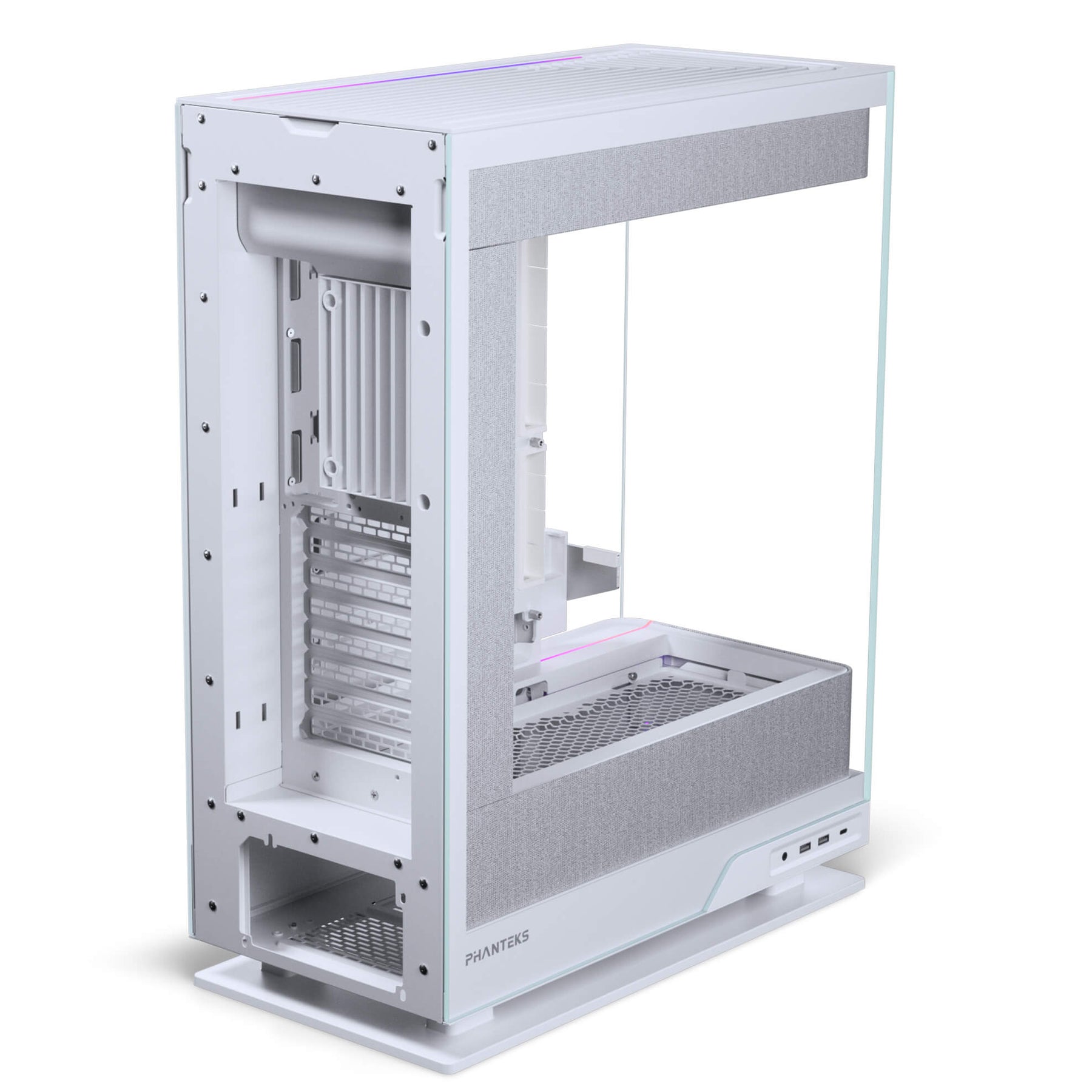

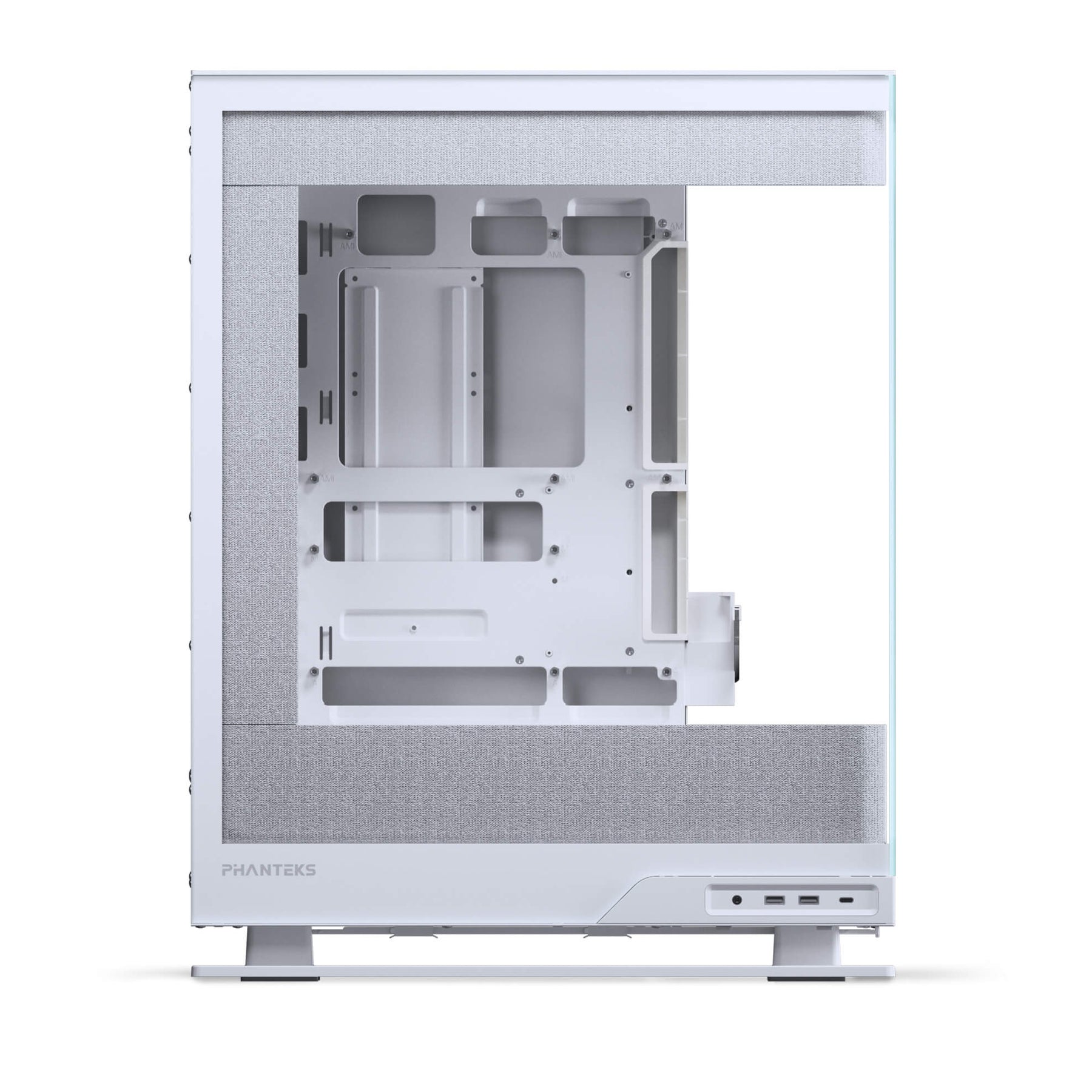

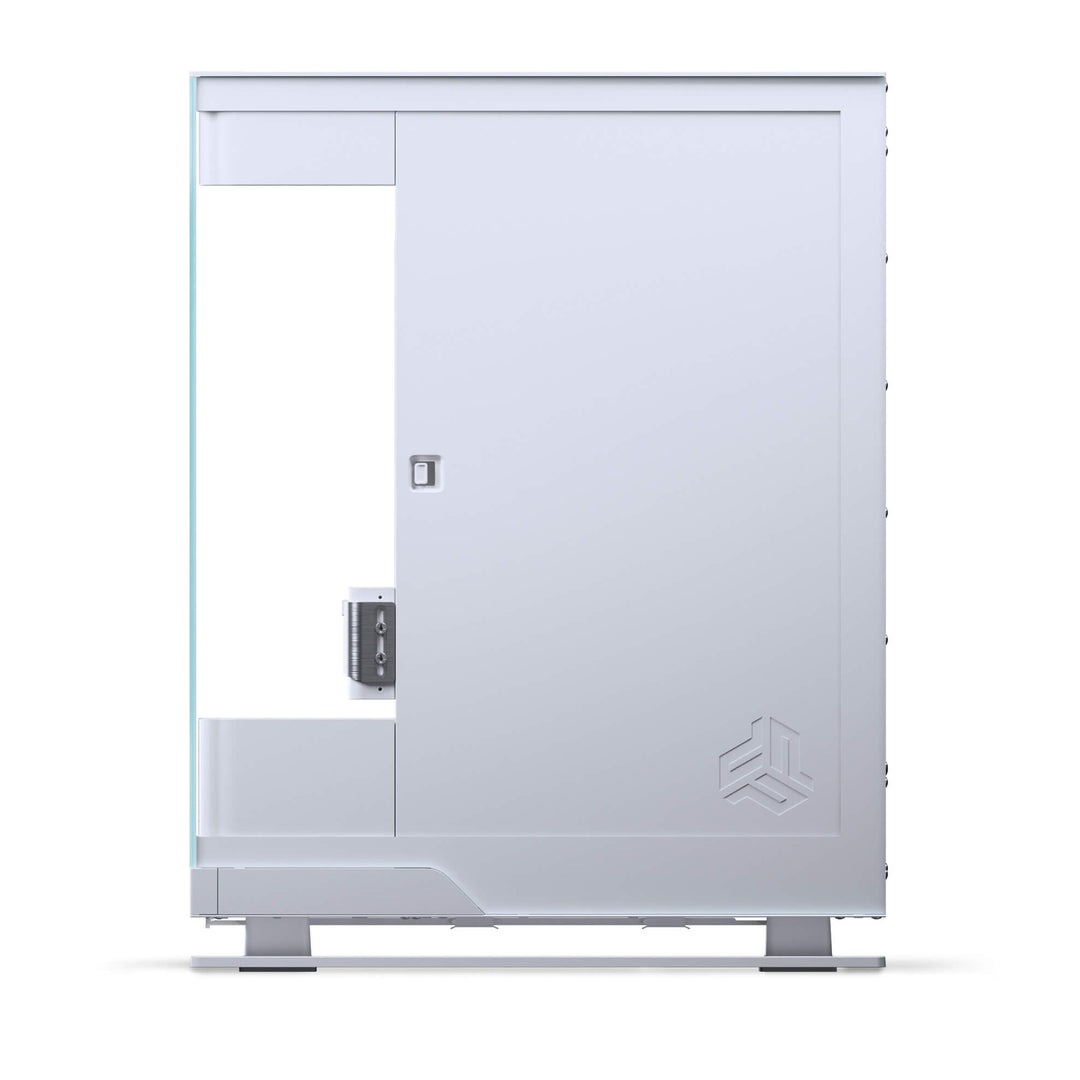

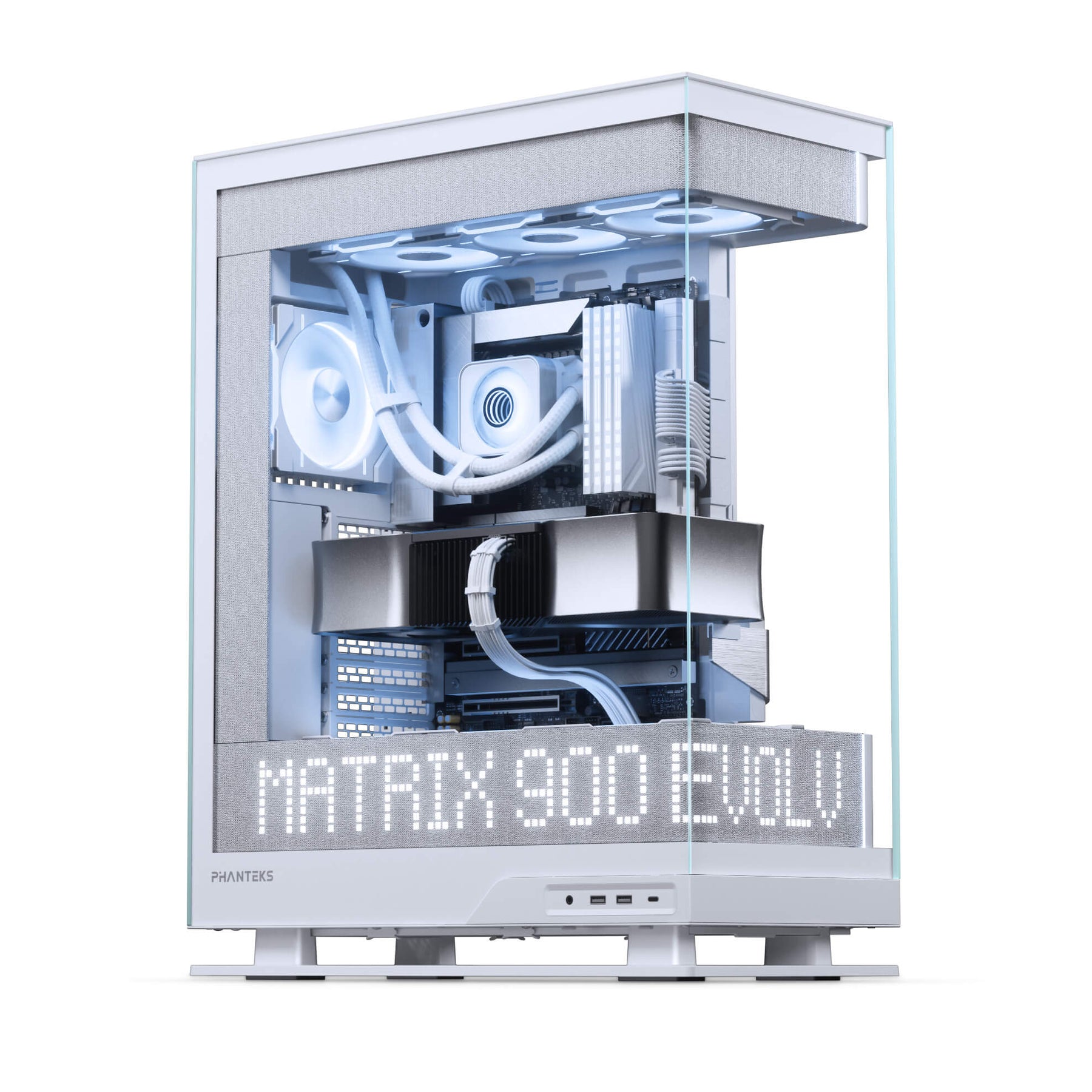

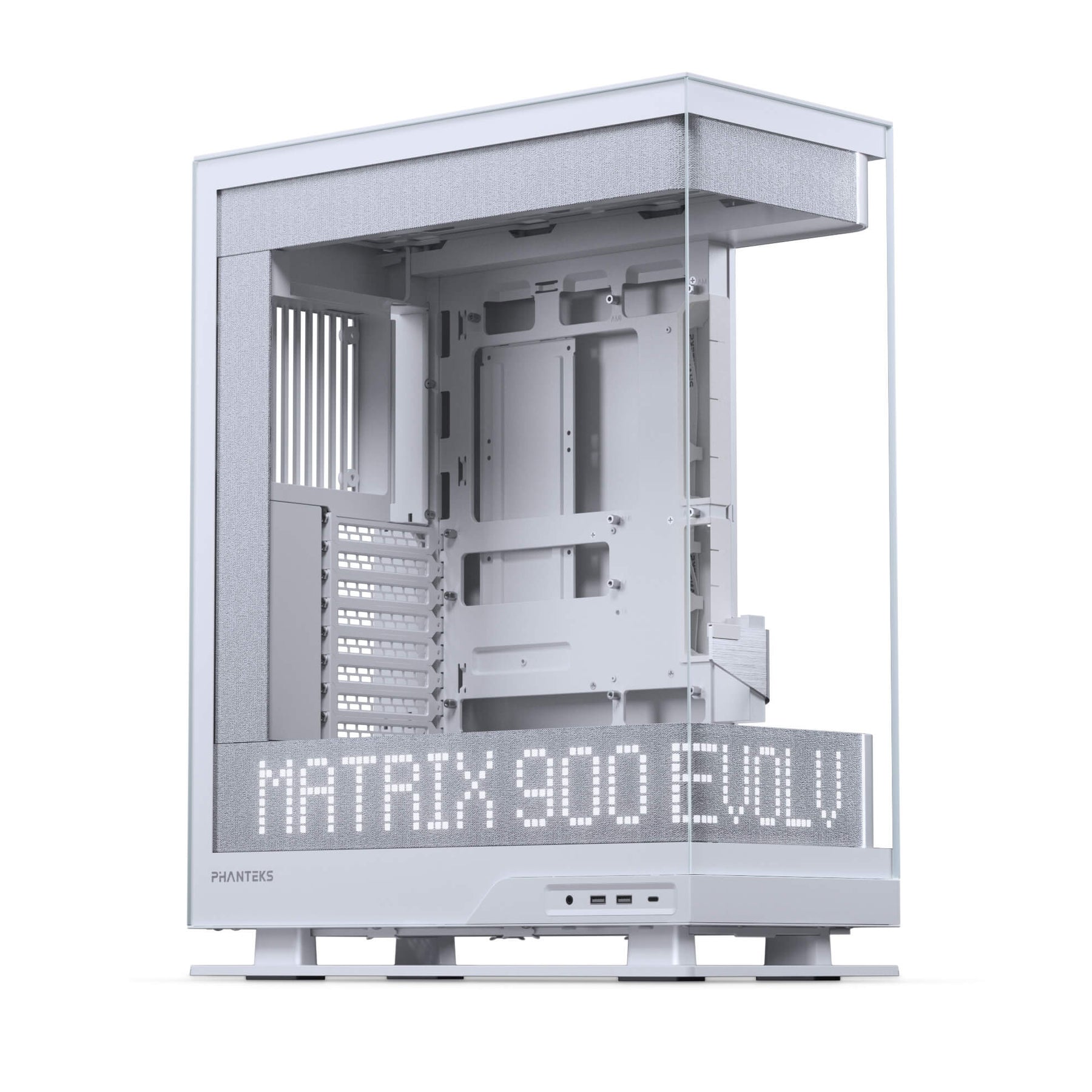

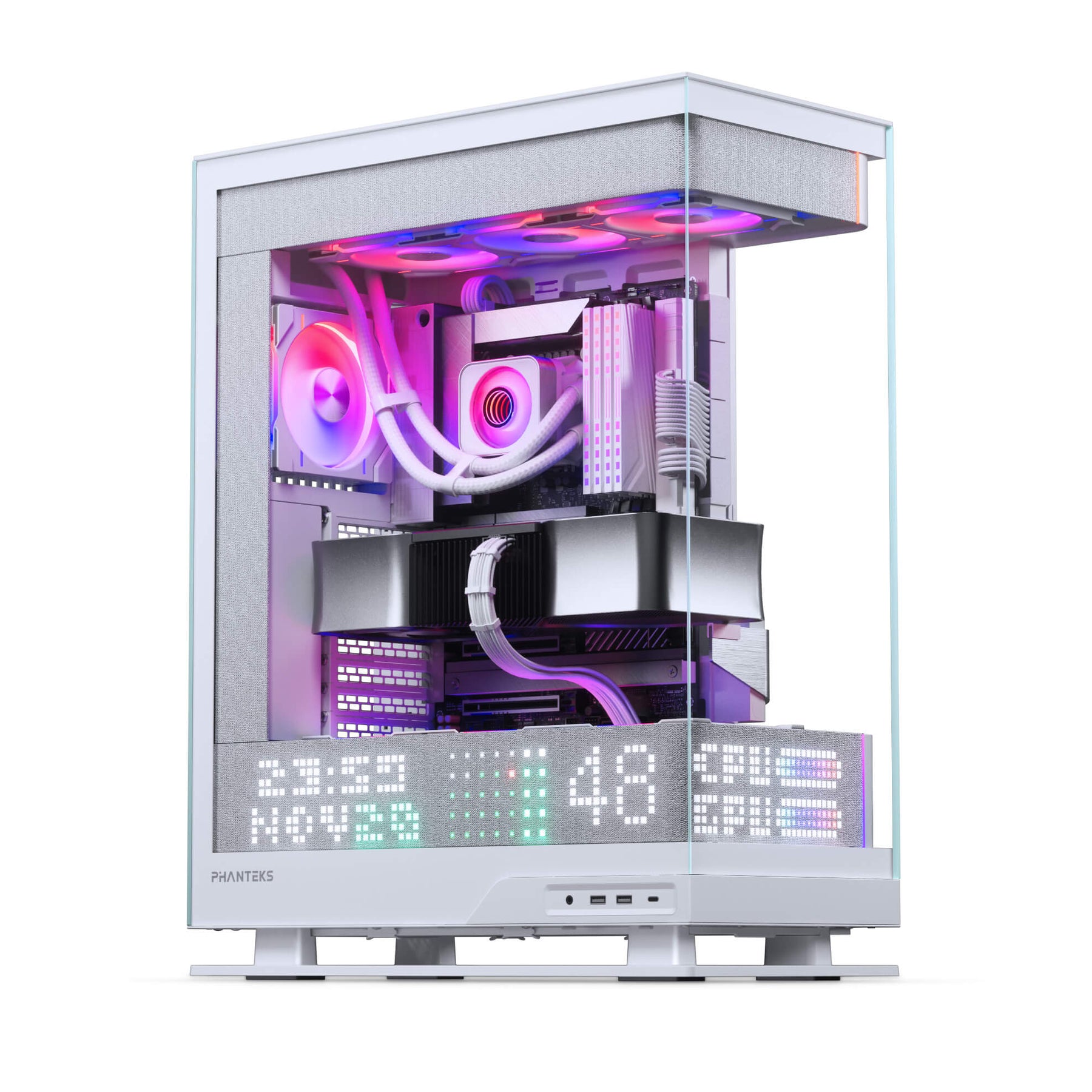

The Evolv X2 Matrix features a see-through tempered glass chassis, a 900 LED Matrix Screen behind fabric panels, and built-in D RGB lighting for a sleek, modern look. Its floating design maximizes airflow, cooling your CPU and GPU while exhausting heat through the top. The interior supports ATX motherboards and multiple fan and radiator configurations, with flush-mounted cooling components for a clean, integrated setup. Perfect for gamers, streamers, and PC enthusiasts seeking high-performance cooling, customizable lighting, visual effects, and showcase-worthy style in one premium mid-tower chassis.
|
Case Specifications |
||
|
Dimension |
454 x 228 x 588mm / 17.87 x 8.97 x 23.15in (DxWxH) |
|
|
Form Factor |
Mid-Tower |
|
|
Material(s) |
Steel Chassis, Fabric Panels, Tempered Glass Window, ABS Plastic |
|
|
Mainboard Support |
ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide) |
|
|
Rear Connect Motherboard |
ATX |
|
|
Front I/O |
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, Reset Button |
|
|
Connectors |
Front I/O, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
2x (1x if 5x SSD installed) |
|
|
Internal 2.5” |
5x (3x if 2x HDD installed) |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Rear |
1x |
- |
|
Bottom |
3x |
- |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Rear |
- |
- |
|
Bottom |
- |
- |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
380mm | 14.96in |
|
|
CPU Cooler Height |
170mm | 6.69in |
|
|
PSU Length |
250mm | 9.84in |
|
|
Top Radiator |
415 x 130 x 32mm | 16.34 x 5.12 x 1.25in |
|
