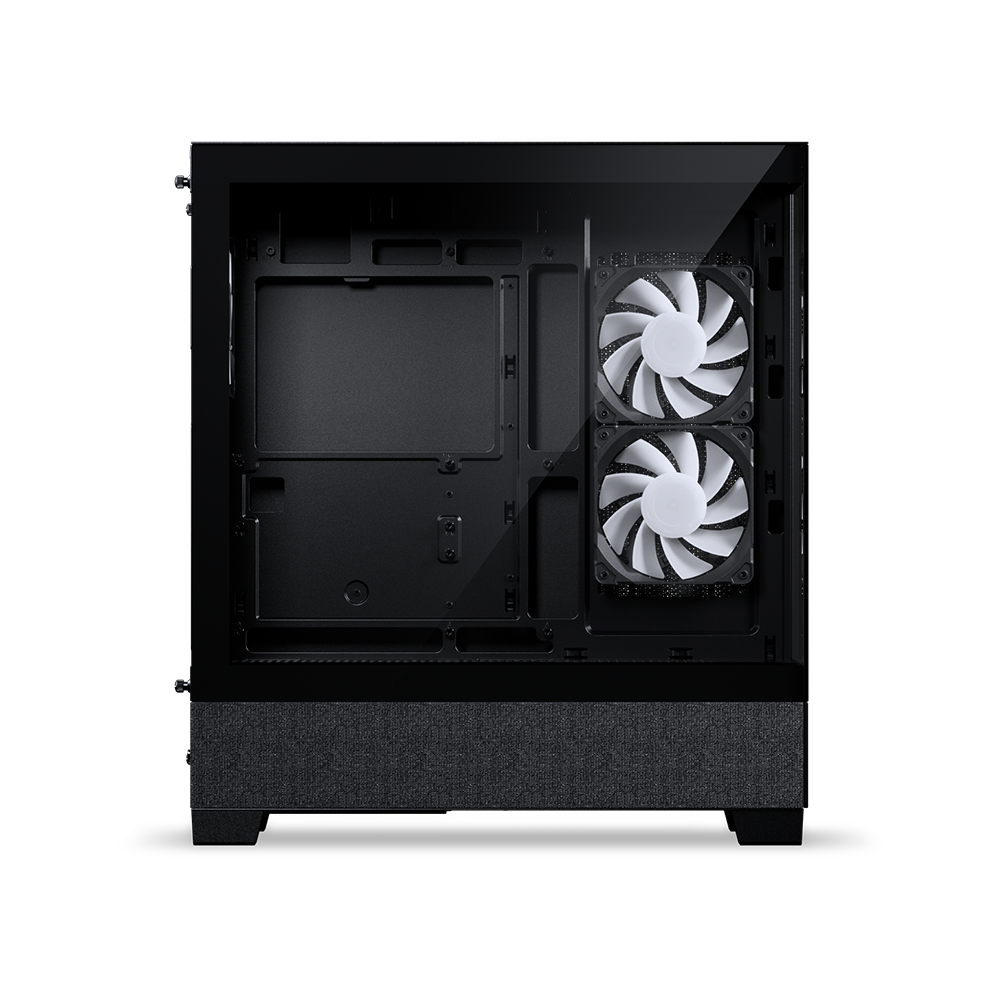

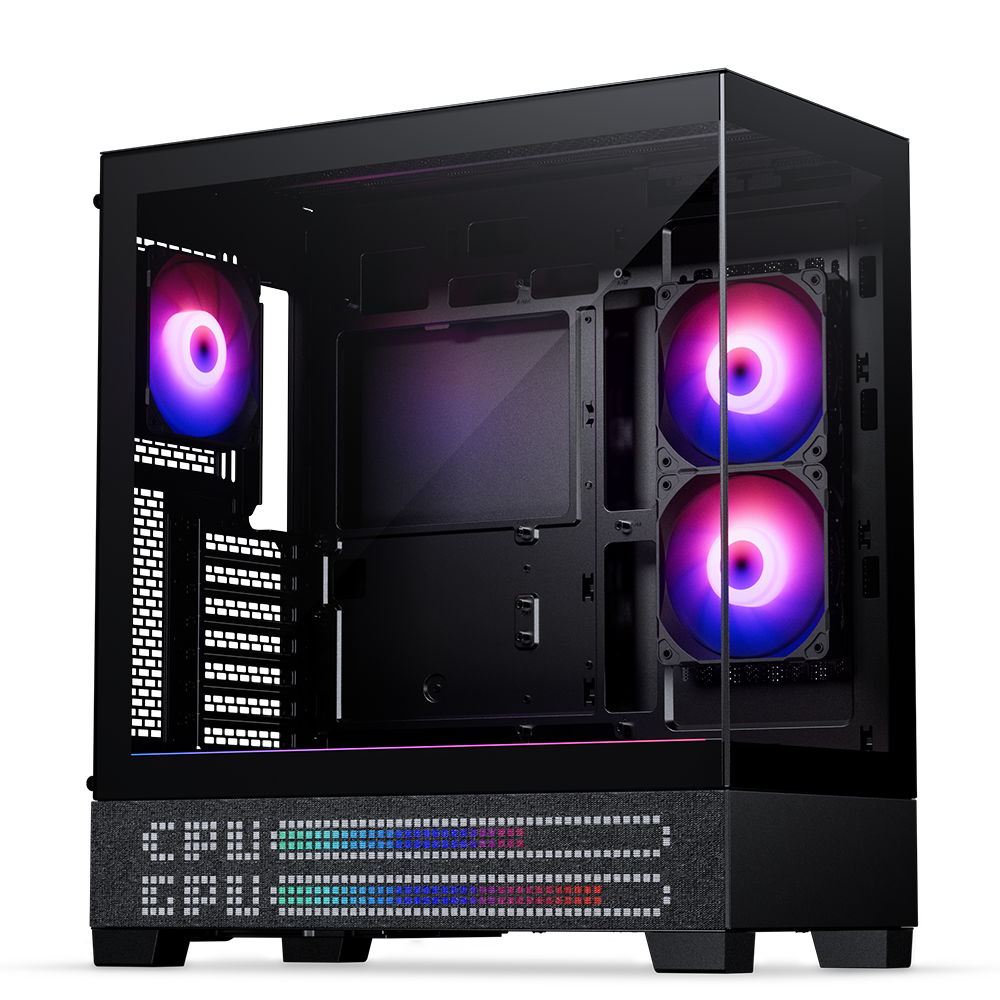

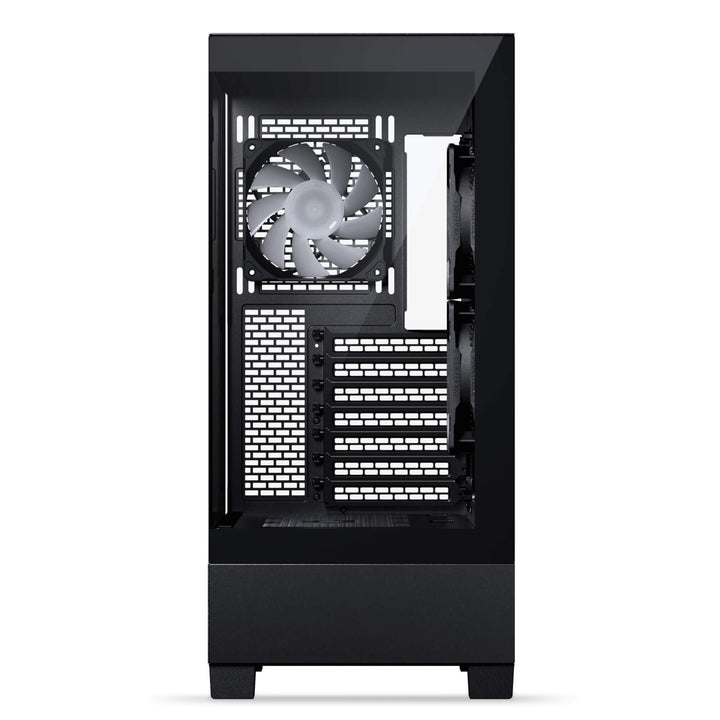

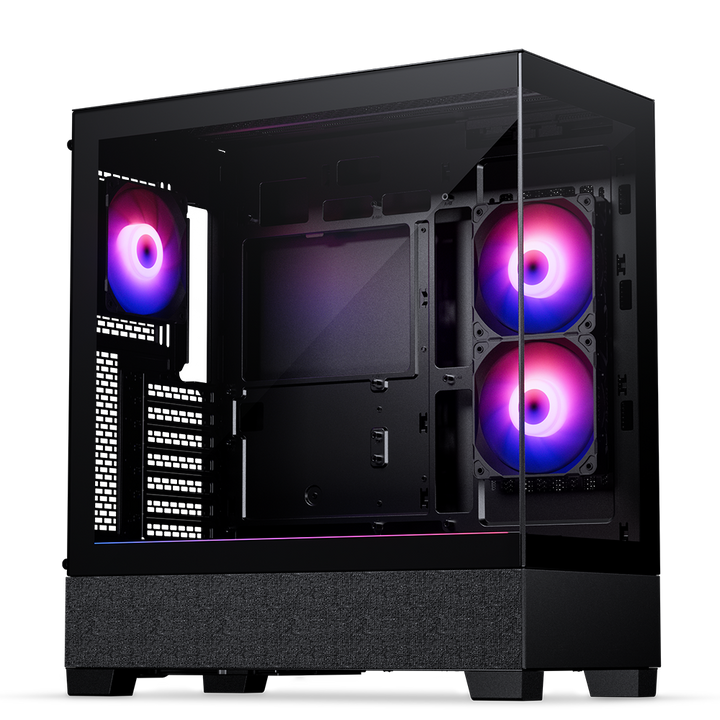

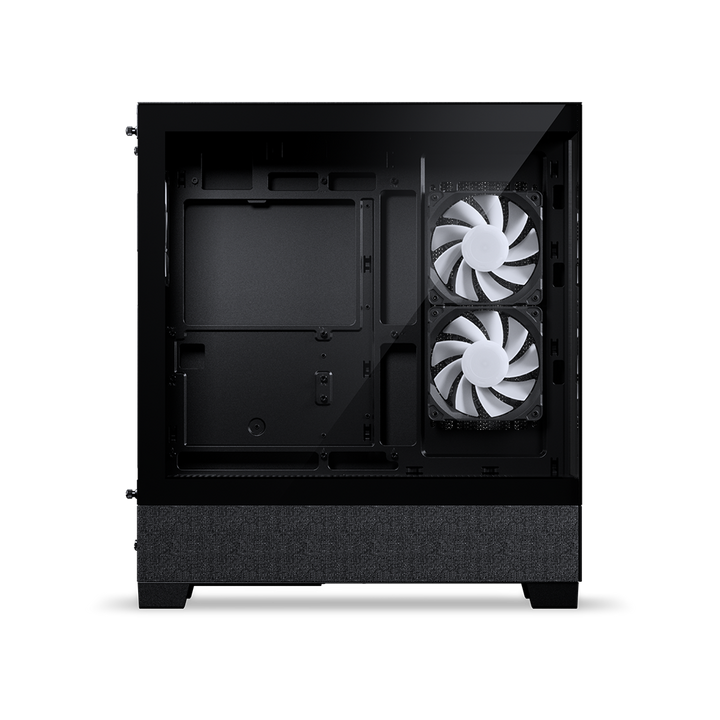

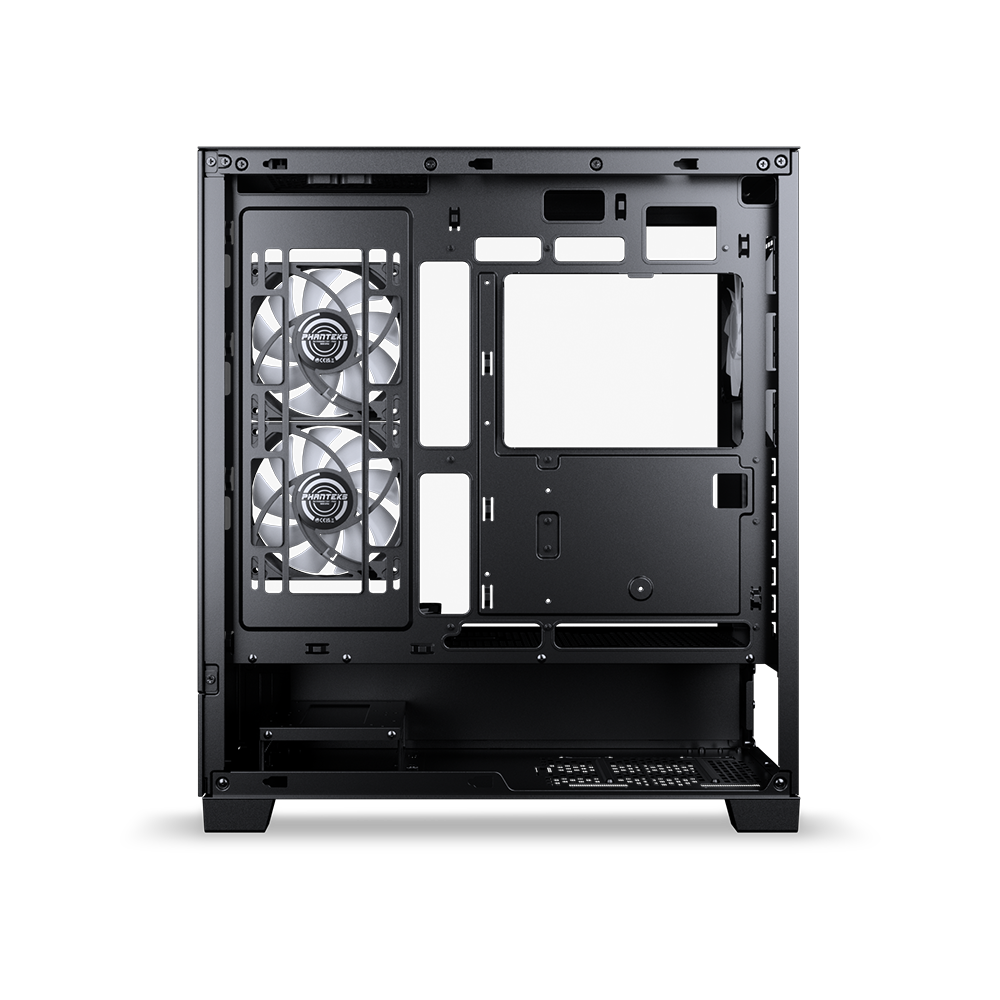

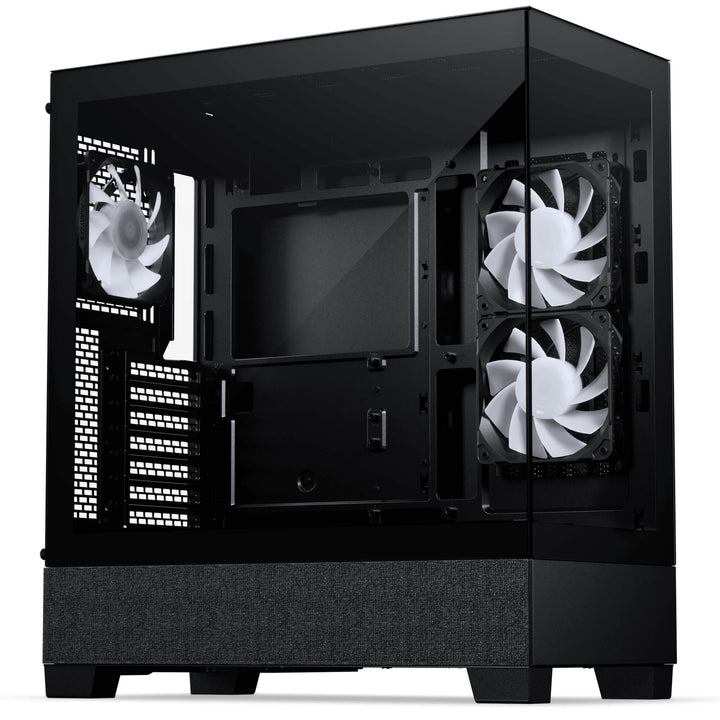

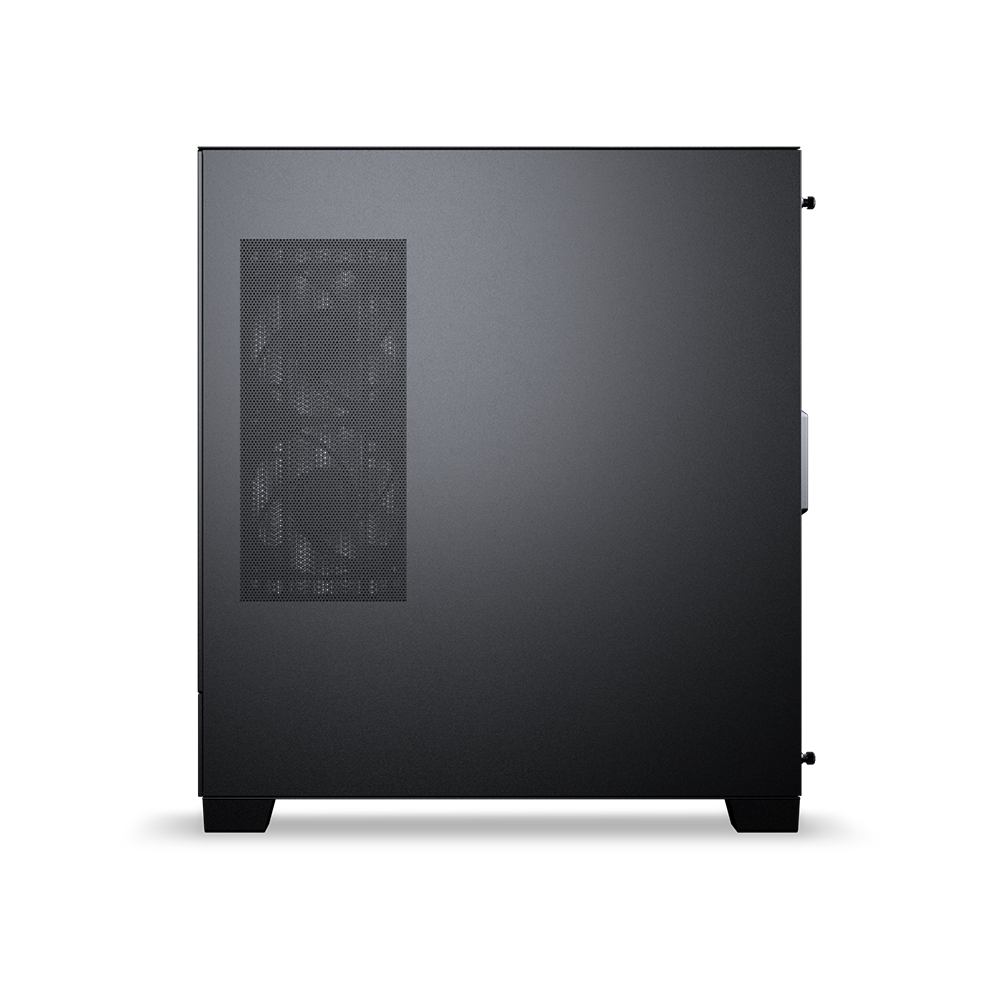

Phanteks XT View Matrix Black

Case Specifications

Dimension

440 x 230 x 500mm / 17.32 x 9.06 x 19.69in (DxWxH)

Form Factor

Mid-Tower

Material(s)

Steel Chassis, Polyester Fabric, Tempered Glass Window, ABS Plastic

Mainboard Support

ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide)

Rear Connect Motherboard

ATX

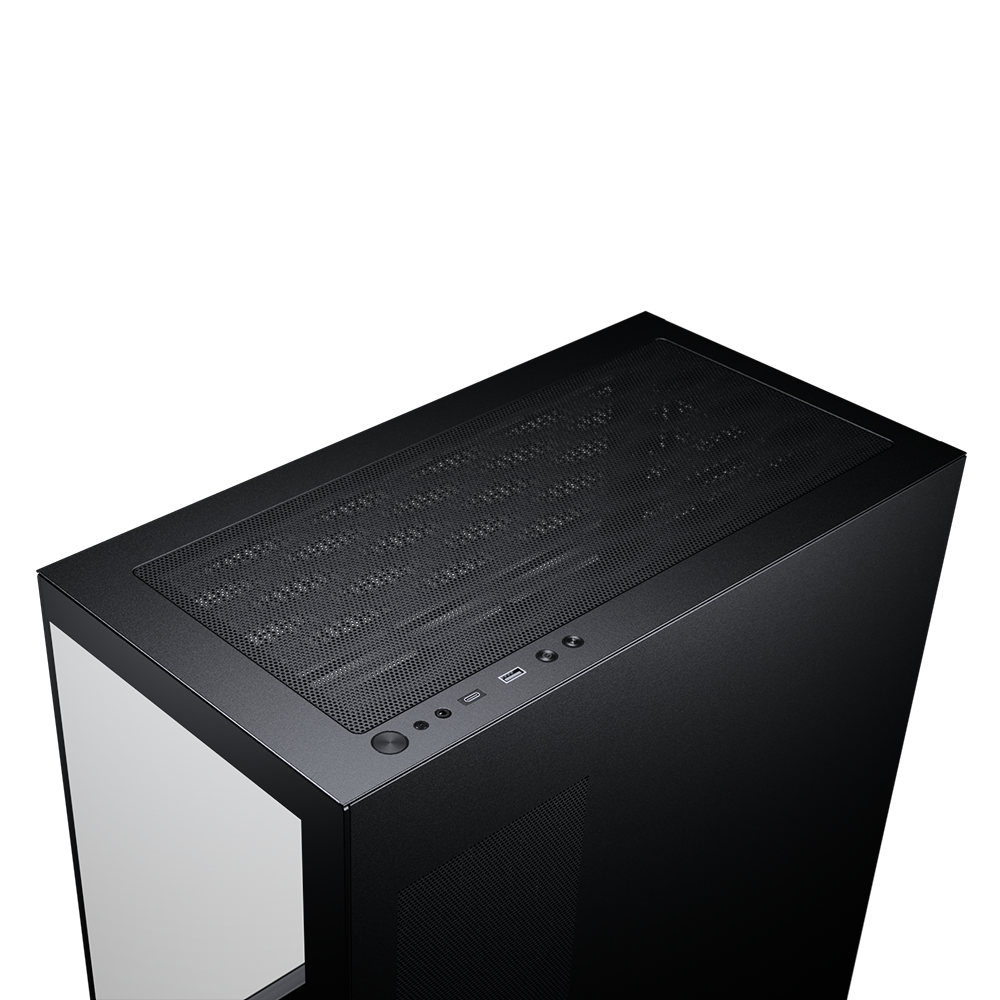

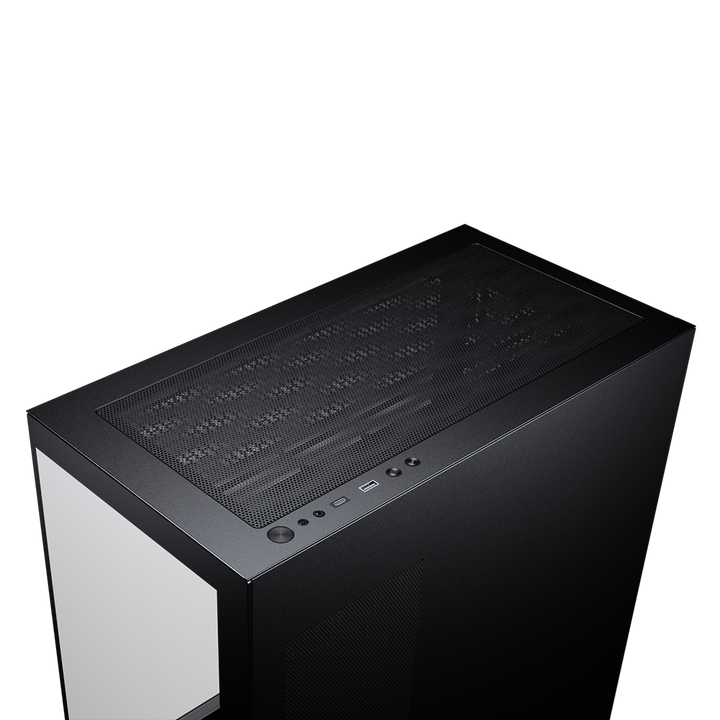

Front I/O

1x USB 3.0, 1x USB-C 3.2 Gen2x2, Microphone/Headphone Combo, Power Button, Reset Button, DRGB Mode Button, DRGB Color Button

Connectors

Front I/O, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E, Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard

Expansion & Drive Bays

Expansion Slots

7

Vertical GPU Support

Yes, with optional bracket (PH-PGPUKT5.0)

Internal 3.5”

2x (if 0x SSD installed)

Internal 2.5”

2x (if 1x HDD installed)

Cooling

120mm (Fan)

140mm (Fan)

Top

3x

2x

Side

2x (2x included)

-

Rear

1x (1x included)

1x

Bottom

3x

-

Liquid Cooling

120mm (Radiator)

140mm (Radiator)

Top

Up to 360

-

Side

Up to 240

-

Rear

-

-

Bottom

-

-

Clearance

Graphic Card Length

415mm

CPU Cooler Height

184mm

PSU Length

270mm

Top Radiator

415 x 138 x 60mm

Side Radiator

305 x 120 x 62mm (only with Vertical GPU)
