Regular price$99.99
/
Shipping calculated at checkout.

  • Low stock - 5 items left
  • Backordered, shipping soon

Description:

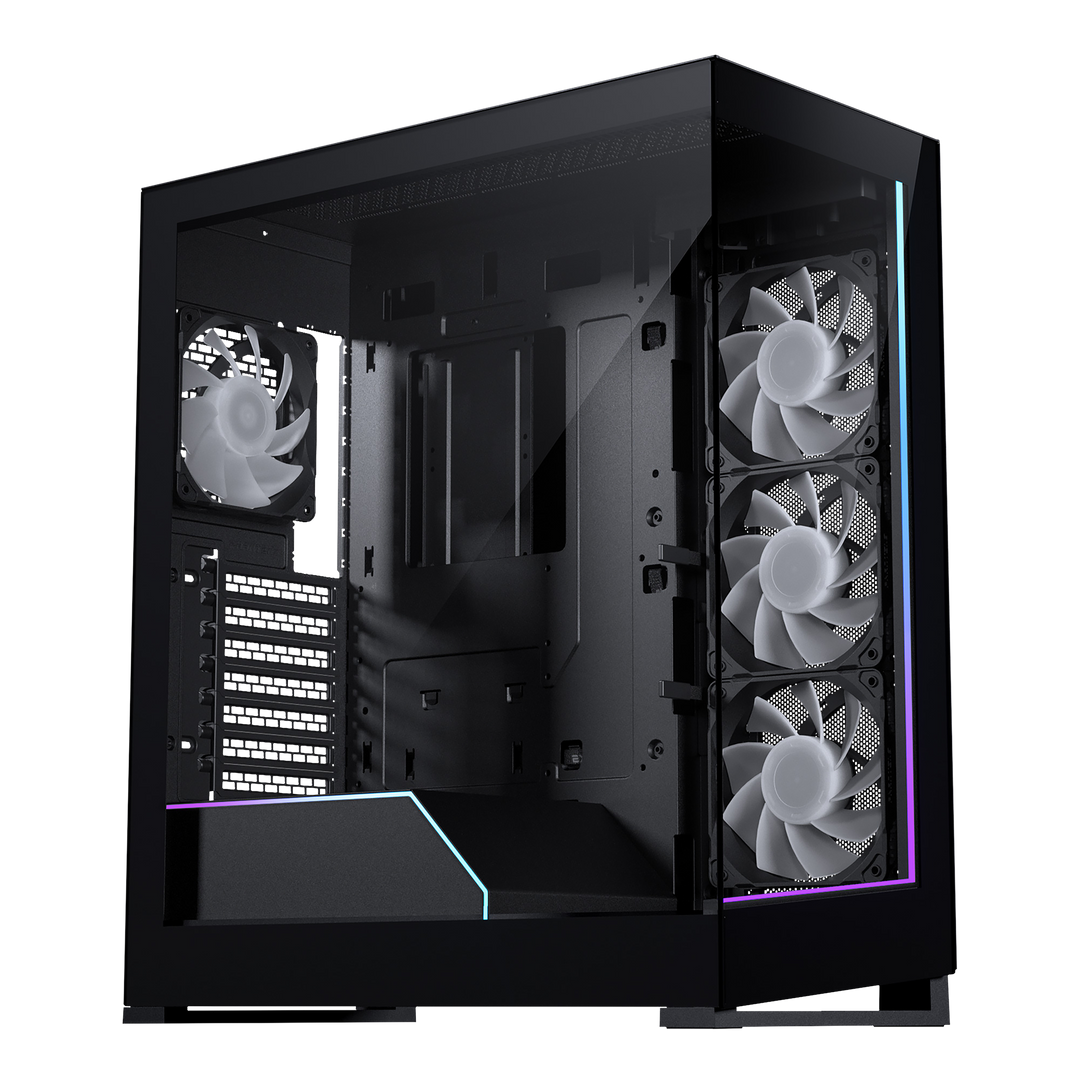

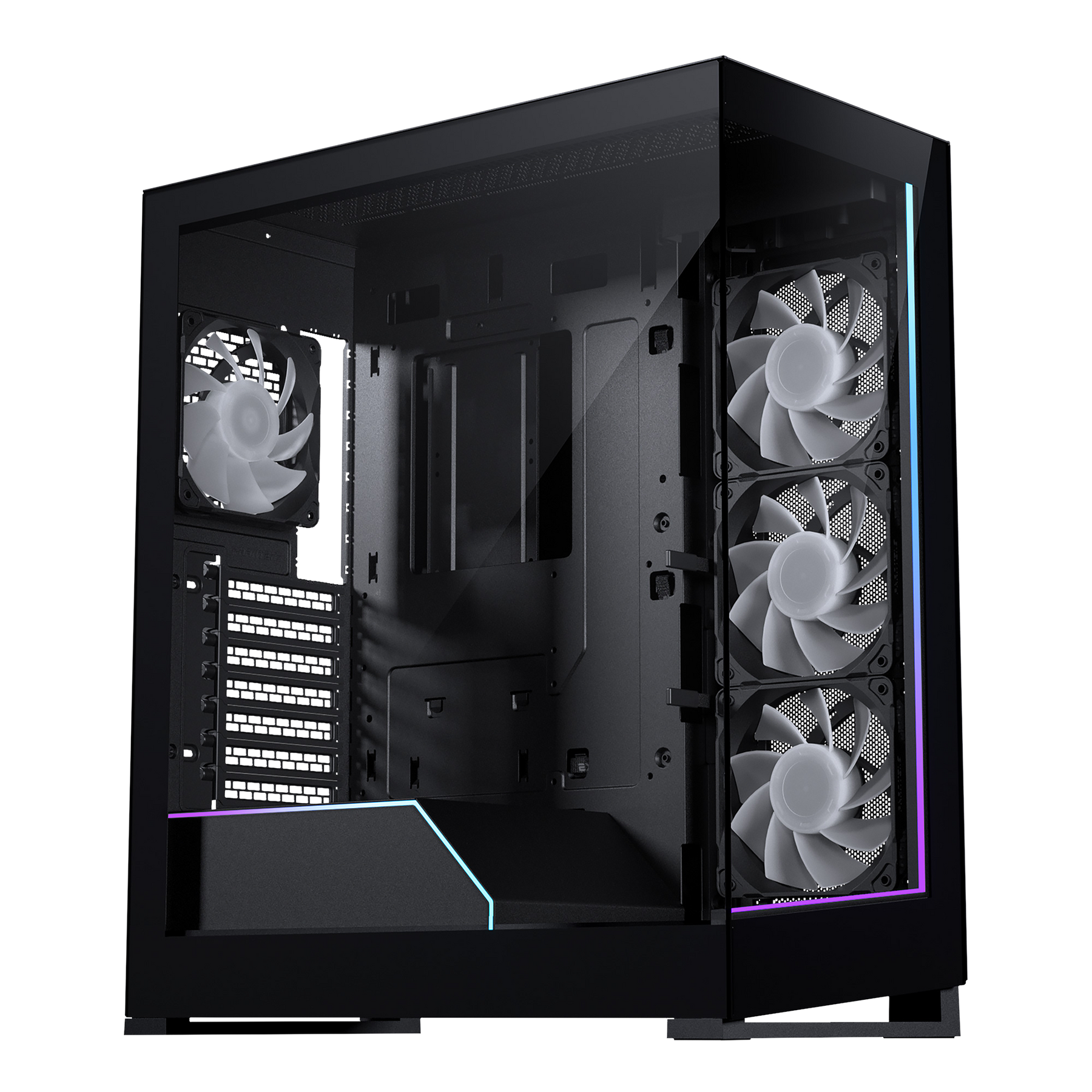

Meet the NV5S mid-tower chassis, featuring a stunning near-seamless glass view and

support for 7 x 120 mm fans and dedicated space for a 360 radiator in the top.

Its PSU cover opens for easy cable management, and its DRGB lighting system is

customizable and easy to sync. With its sleek design and convenient features, the NV5S is the perfect choice for a high-performance PC build that looks as good as it performs

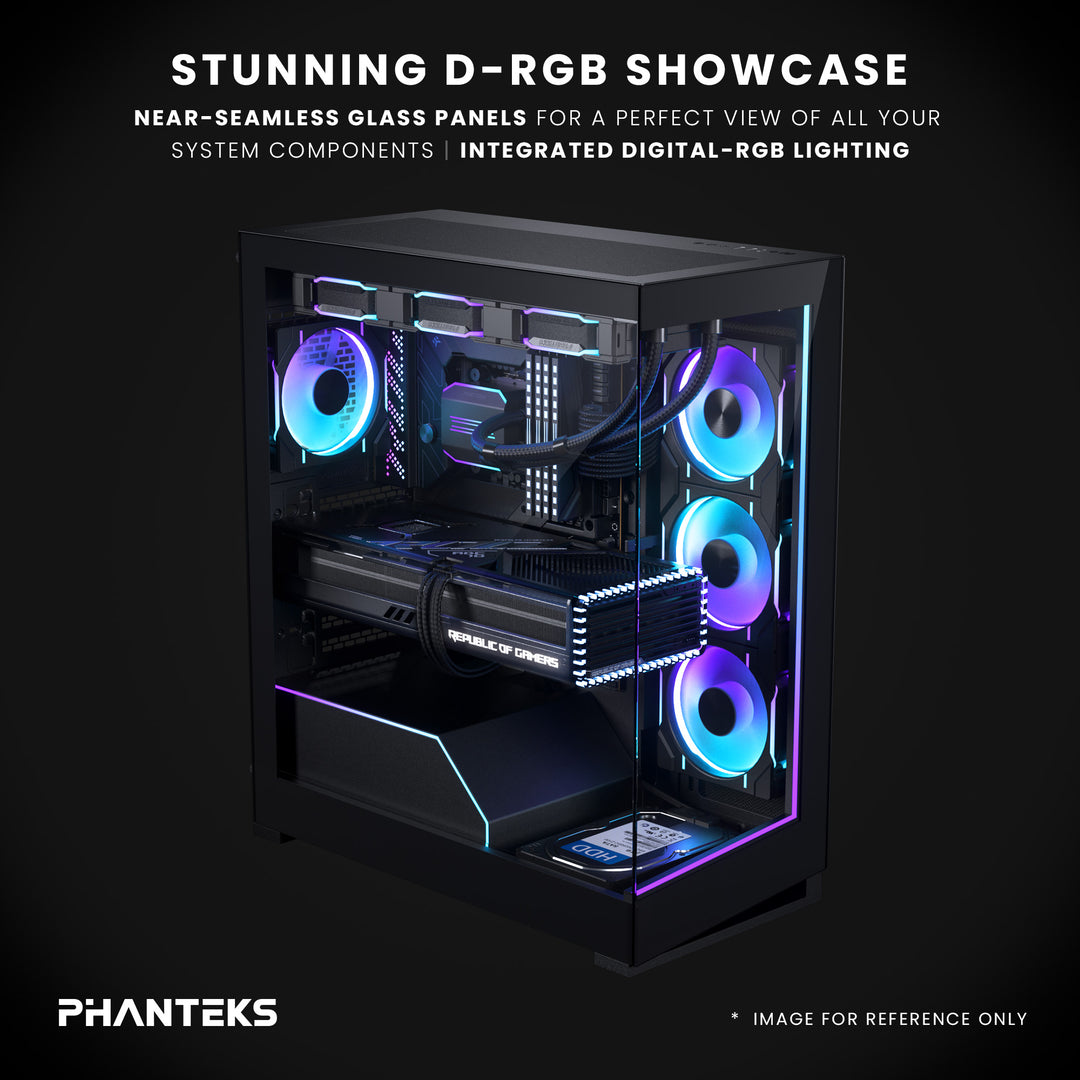

Near-seamless glass panels for a perfect view of all your system components

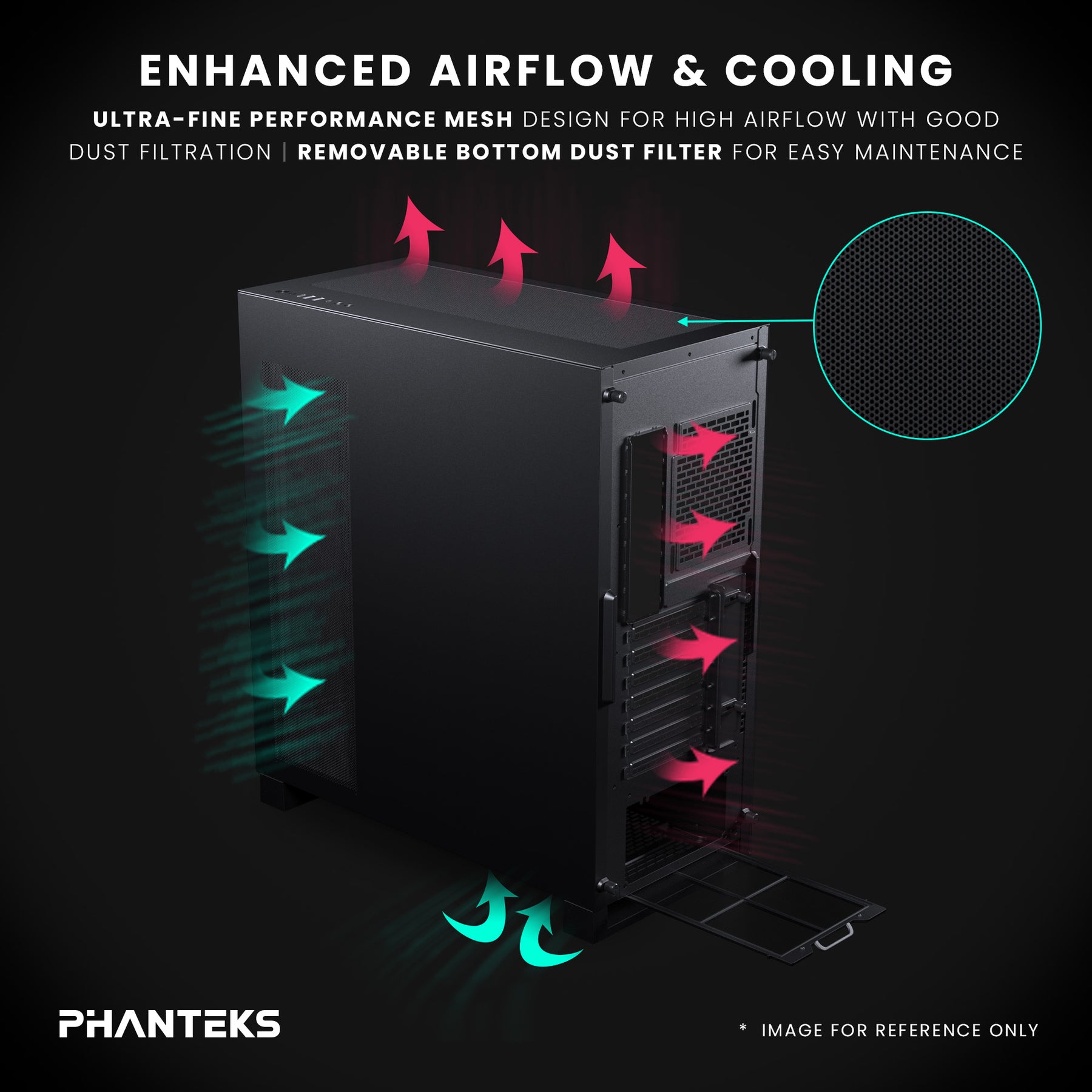

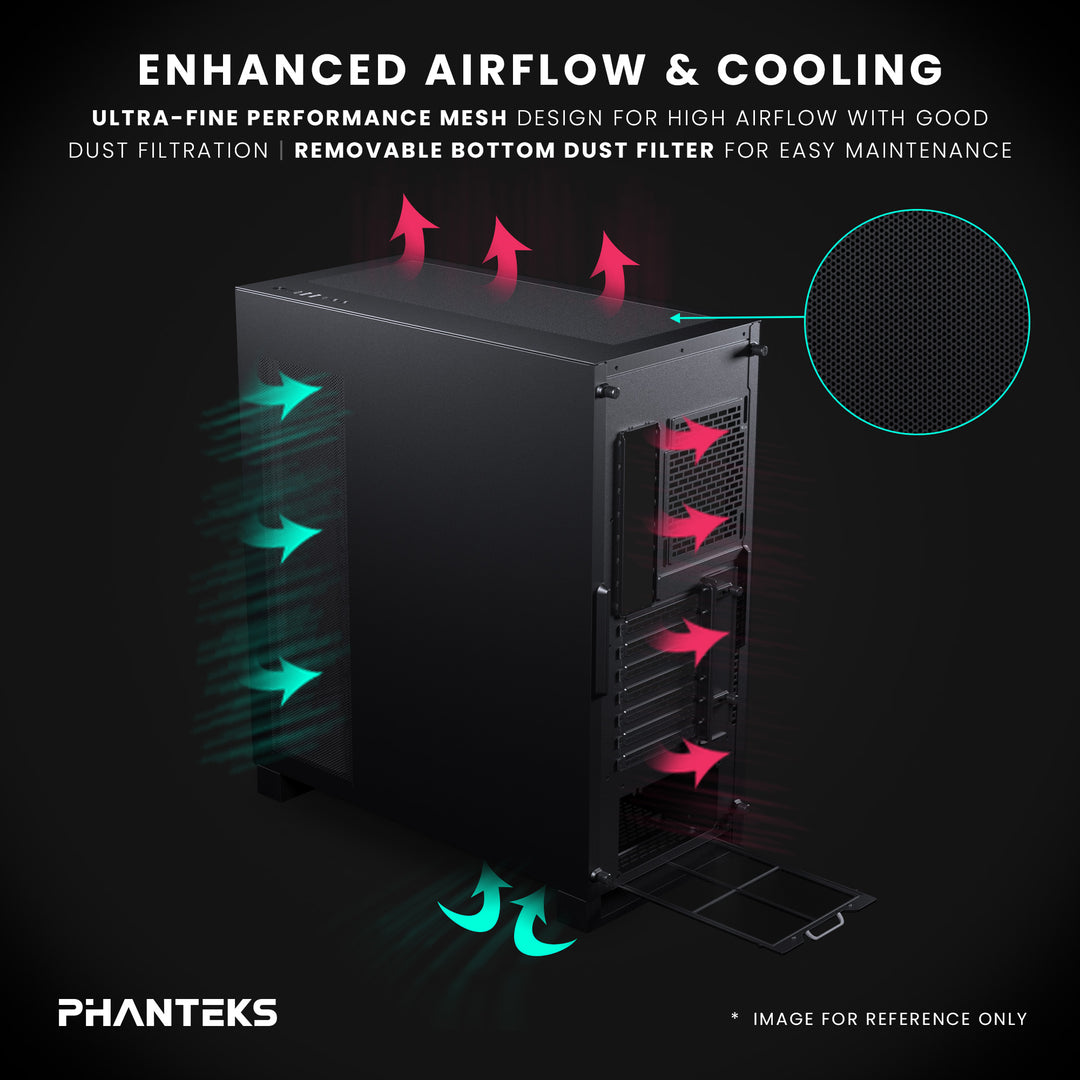

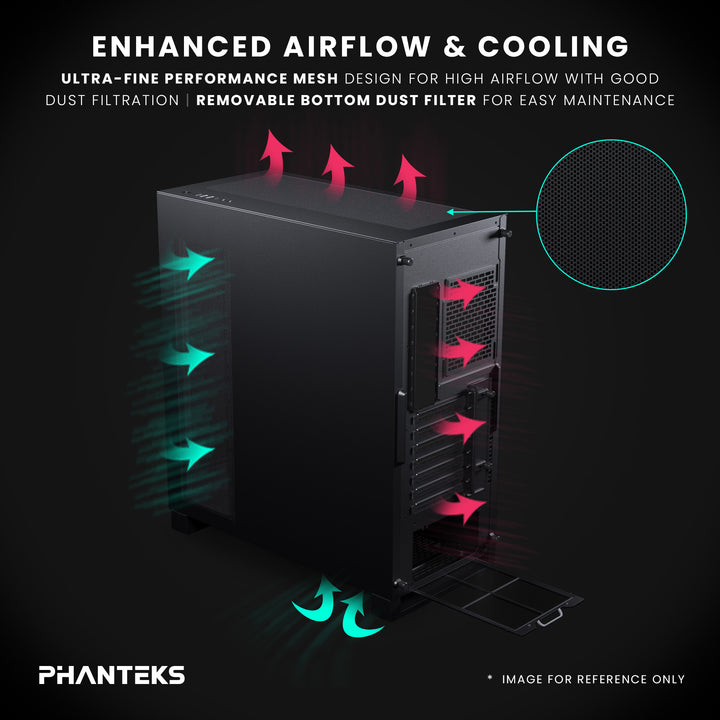

Ultra-fine performance mesh design for high airflow with good dust filtration

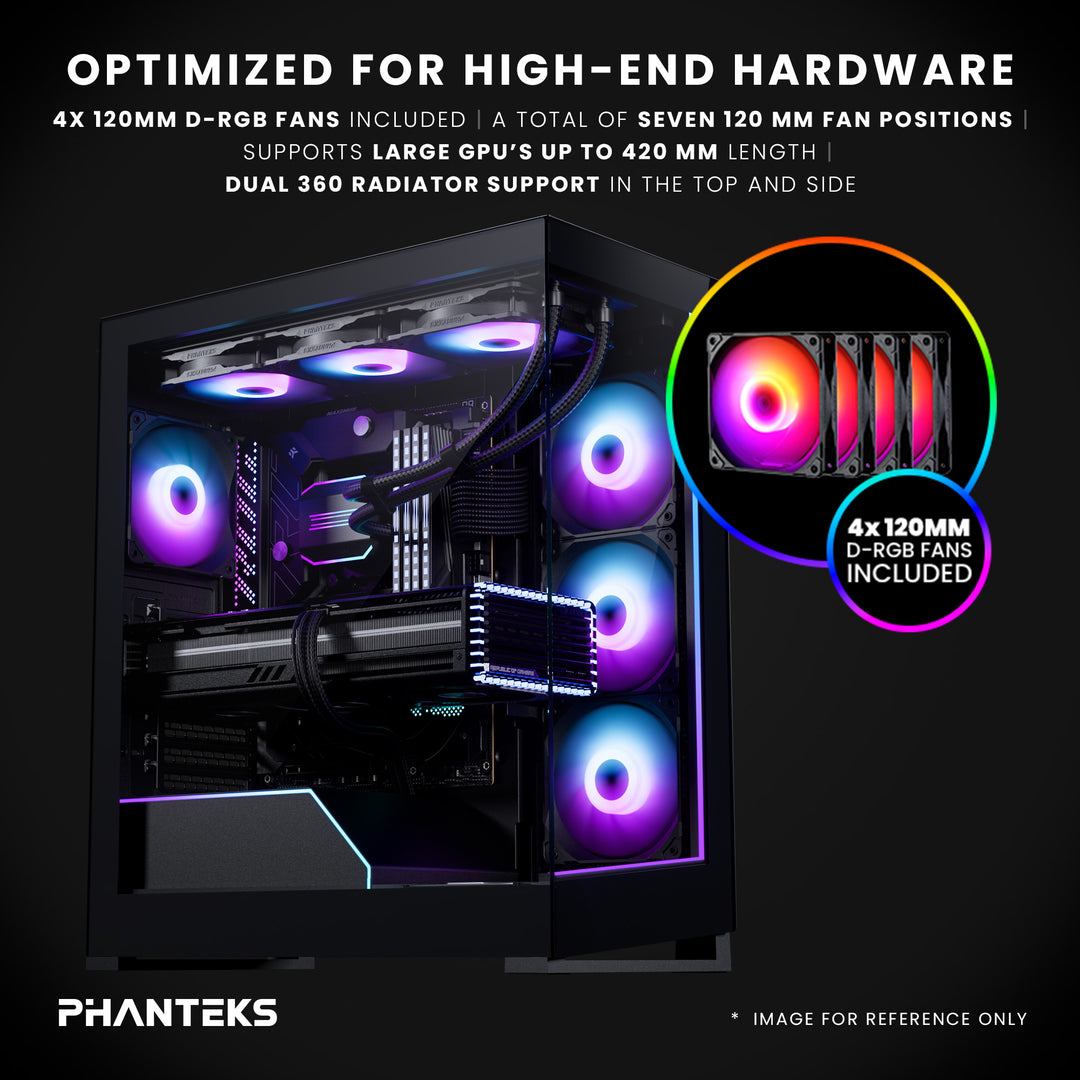

A total of seven 120 mm fan positions for high end cooling performance

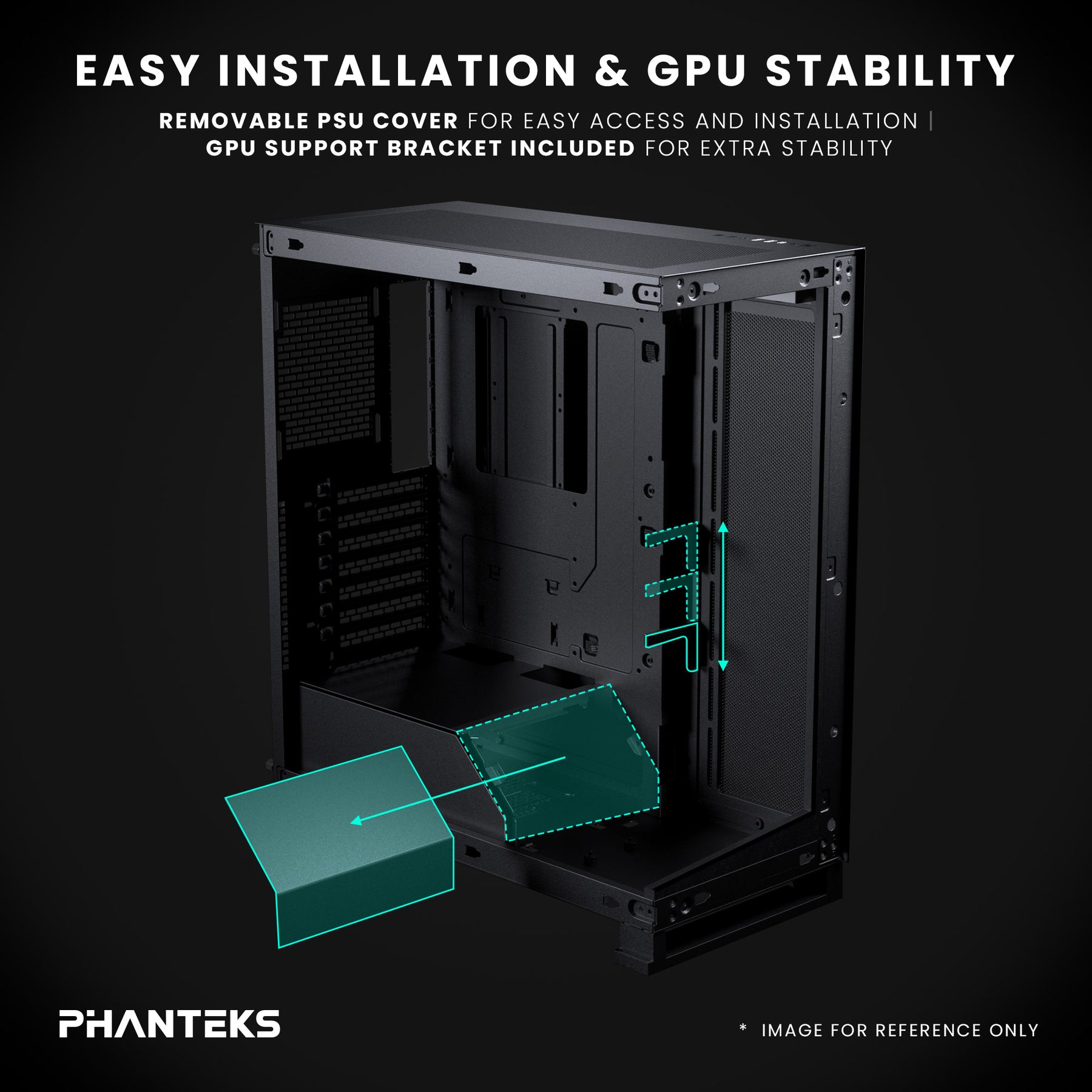

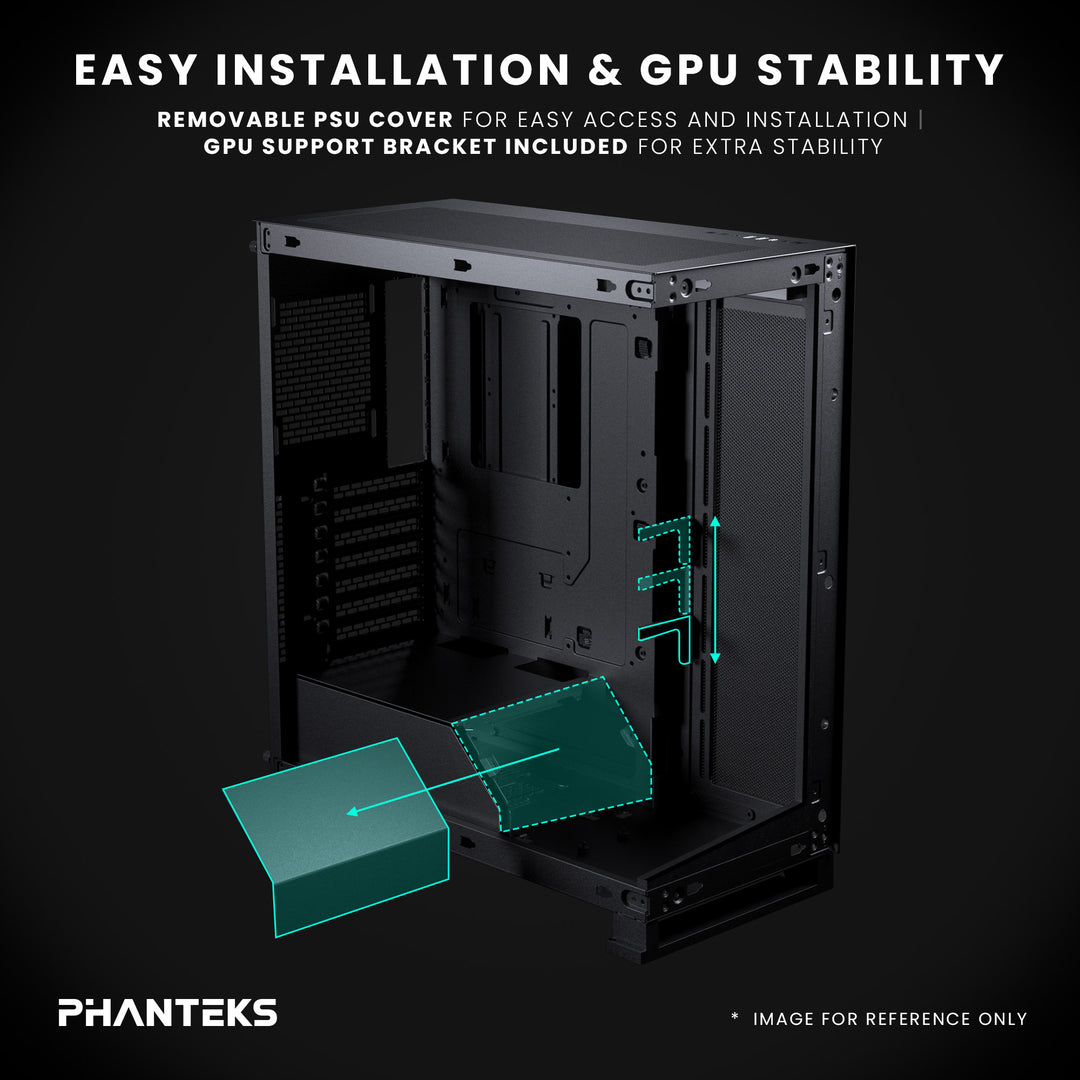

Removable PSU cover for easy access and installation

Integrated Digital-RGB lighting with software free controller

  • GPU support bracket included



Case Specifications





Dimension 

218 x 450 x 505 mm / 8.6 x 17.7 x 19.9 in (WxDxH) 

Form Factor 

MidTower

Material(s) 

Steel Chassis, Tempered Glass 

Motherboard Support 

ATX, micro-ATX, mini-ITX, E-ATX (Up to 280mm with GPU support bracket)

Front I/O 

2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, Reset Button, D-RGB Mode, D-RGB Color

Connectors

Power Switch, D-RGB, HD-audio, USB 3.0, SATA Power, Reset, USB 3.2 GEN 2 Type-C

Window 

Yes, Front and Side Tempered Glass 



Expansion & Drive Bays



Expansion slots 

7

Vertical GPU support

Yes, with optional bracket PH-VGPUKT4.0_03

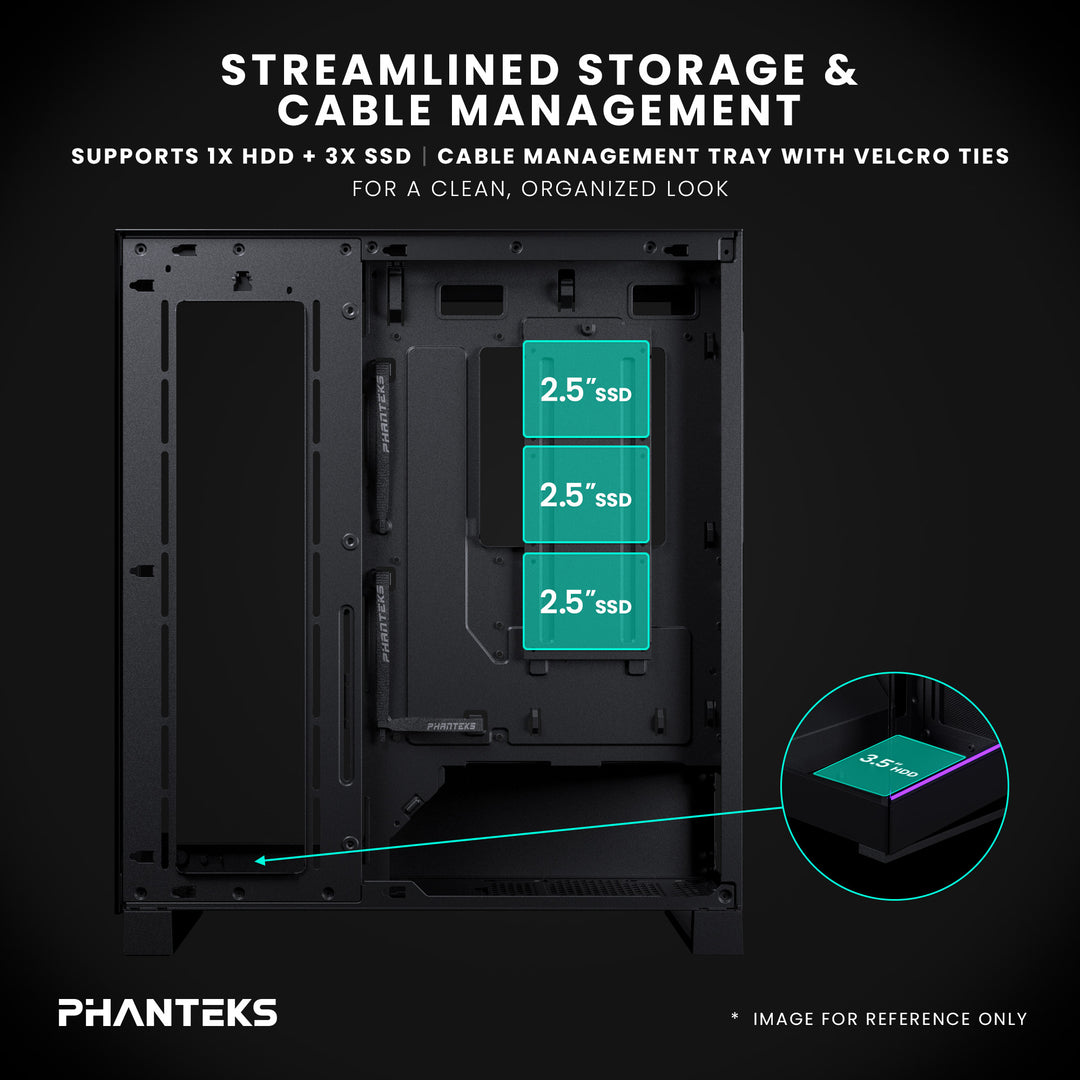

Internal 3.5” 

1

Internal 2.5" 

3

D-RGB Controller output

7A



Cooling

120mm fan 

140mm fan 



Side

3x (included)

-

Top 

3x 

-

Rear 

1x (included)

-

Bottom

-

-



Liquid Cooling

120mm radiator 

140mm radiator 



Side

Up to 360*

(*with vertical GPU only)

-

Top

Up to 360

-

Rear

120

-

Bottom

-

-



Clearance





Graphic card length

430 mm

CPU cooler height

170mm

PSU length

195mm

Side 360 Radiator

120x400x60 mm

Top 360 Radiator

120x400x60 mm

Rear 120 Radiator

120x180 mm









Warranty



Length 

5 years





Scope of delivery



NV5S Chassis



    D-RGB 120 Fans

4x

    D-RGB Controller

1x

    Triple SSD Bracket

1x

    GPU Support Bracket

1x

Accessory Box

1x

    MB/SSD Screw



    Thumb Screw



    HDD Screw



    Standoff Removal Tool



    MB stand-off



    PSU Screw
