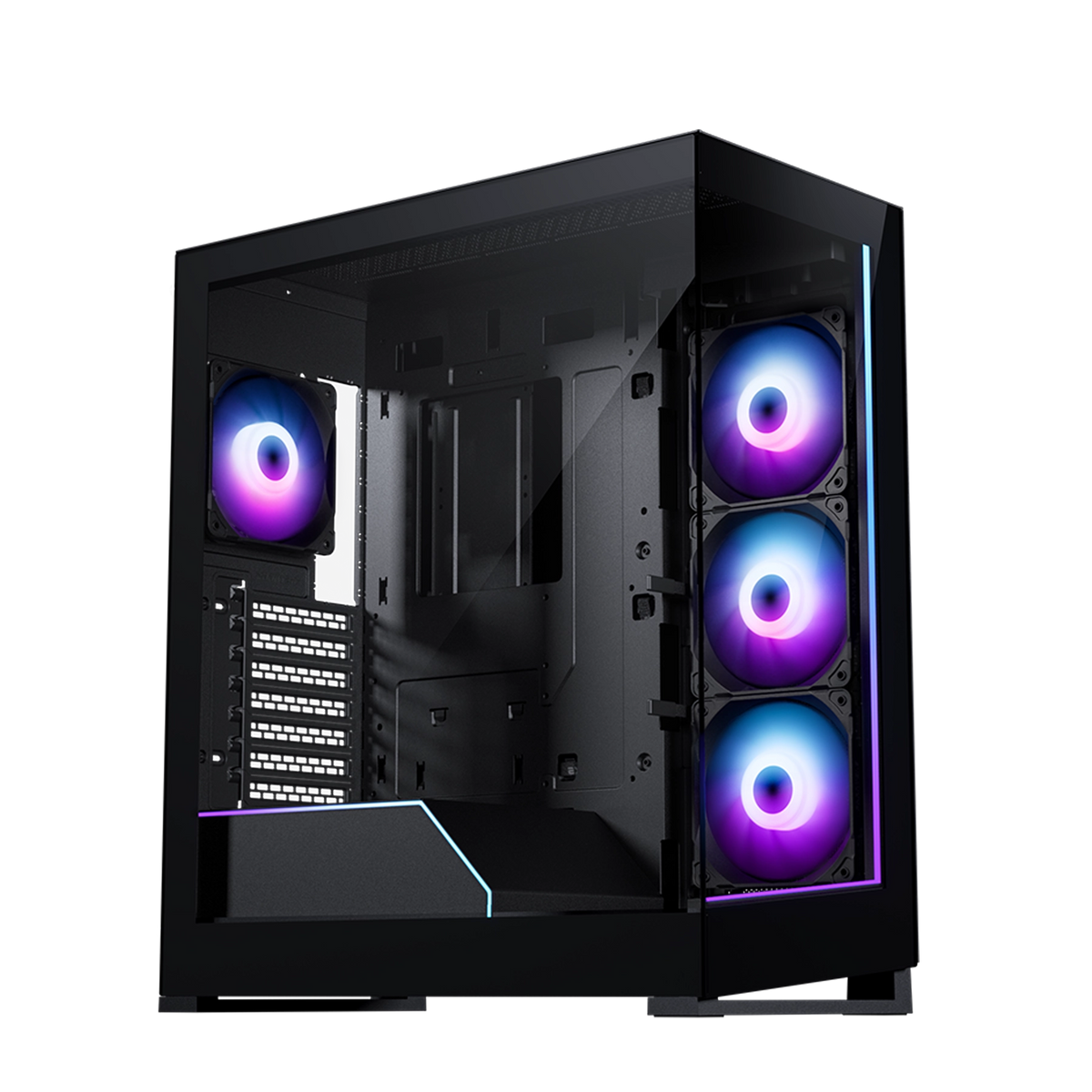

ATX midtower case, phanteks NV5s, ARGB lighting, Black
NV5S Black
NV5S Black
NV5S Black
NV5S Black
NV5S Black
NV5S Black
ATX midtower case, phanteks NV5s, ARGB lighting, Black
NV5S Black
NV5S Black
NV5S Black
NV5S Black
NV5S Black
NV5S Black

NV5S Black

Meet the NV5S mid-tower chassis, featuring a stunning near-seamless glass view and

support for 7 x 120 mm fans and dedicated space for a 360 radiator in the top.

Its PSU cover opens for easy cable management, and its DRGB lighting system is

customizable and easy to sync. With its sleek design and convenient features, the NV5S is the perfect choice for a high-performance PC build that looks as good as it performs



• Near-seamless glass panels for a perfect view of all your system components

• Ultra-fine performance mesh design for high airflow with good dust filtration

• A total of seven 120 mm fan positions for high end cooling performance

• Removable PSU cover for easy access and installation

• Integrated Digital-RGB lighting with software free controller

• GPU support bracket included

$59.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

phanteks nv5s gaming pc case, pc setup, rgb
ATX midtower case, phanteks NV5s, ARGB lighting, Black

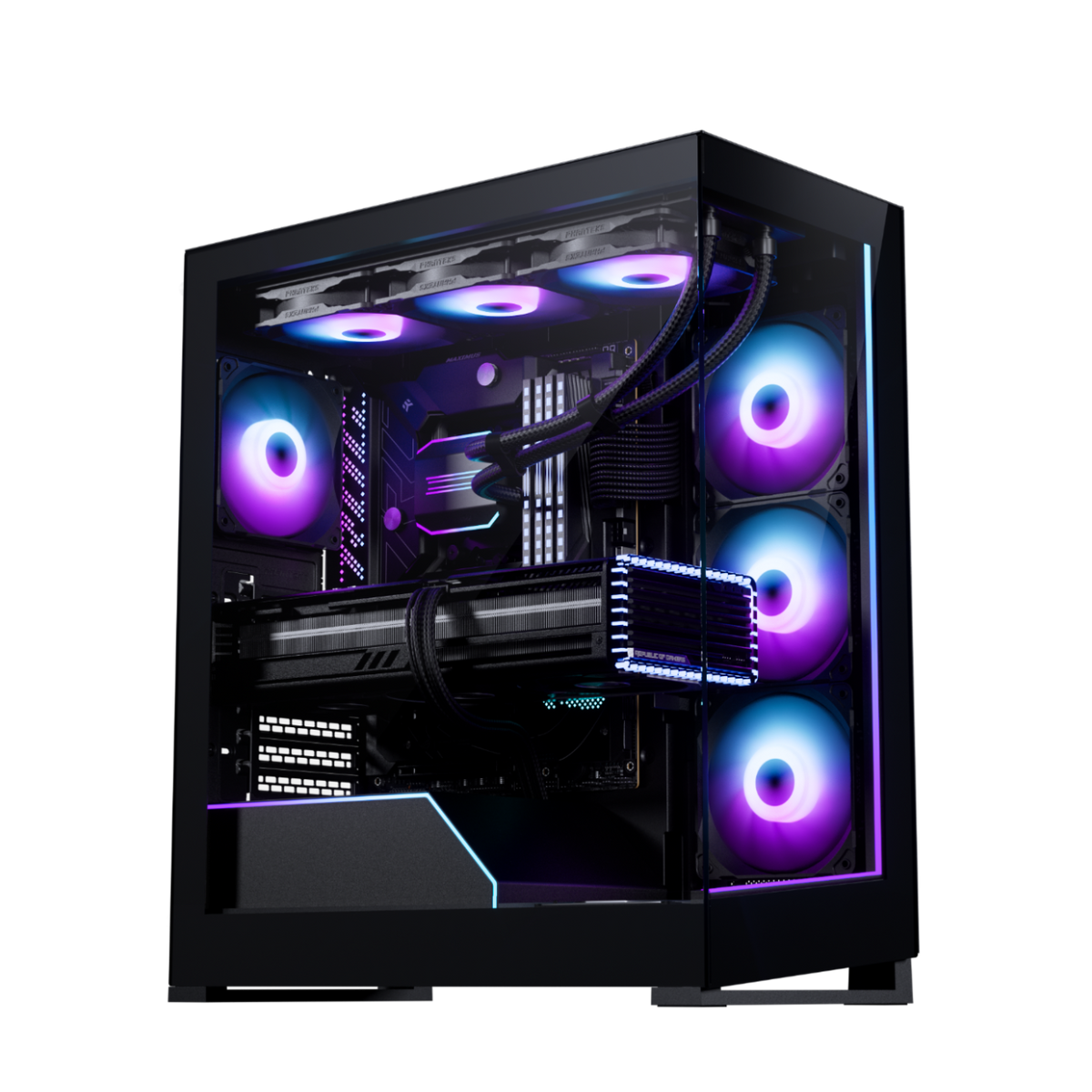

Phanteks, Showcase, atx,gamingpc case, N5Vs, black

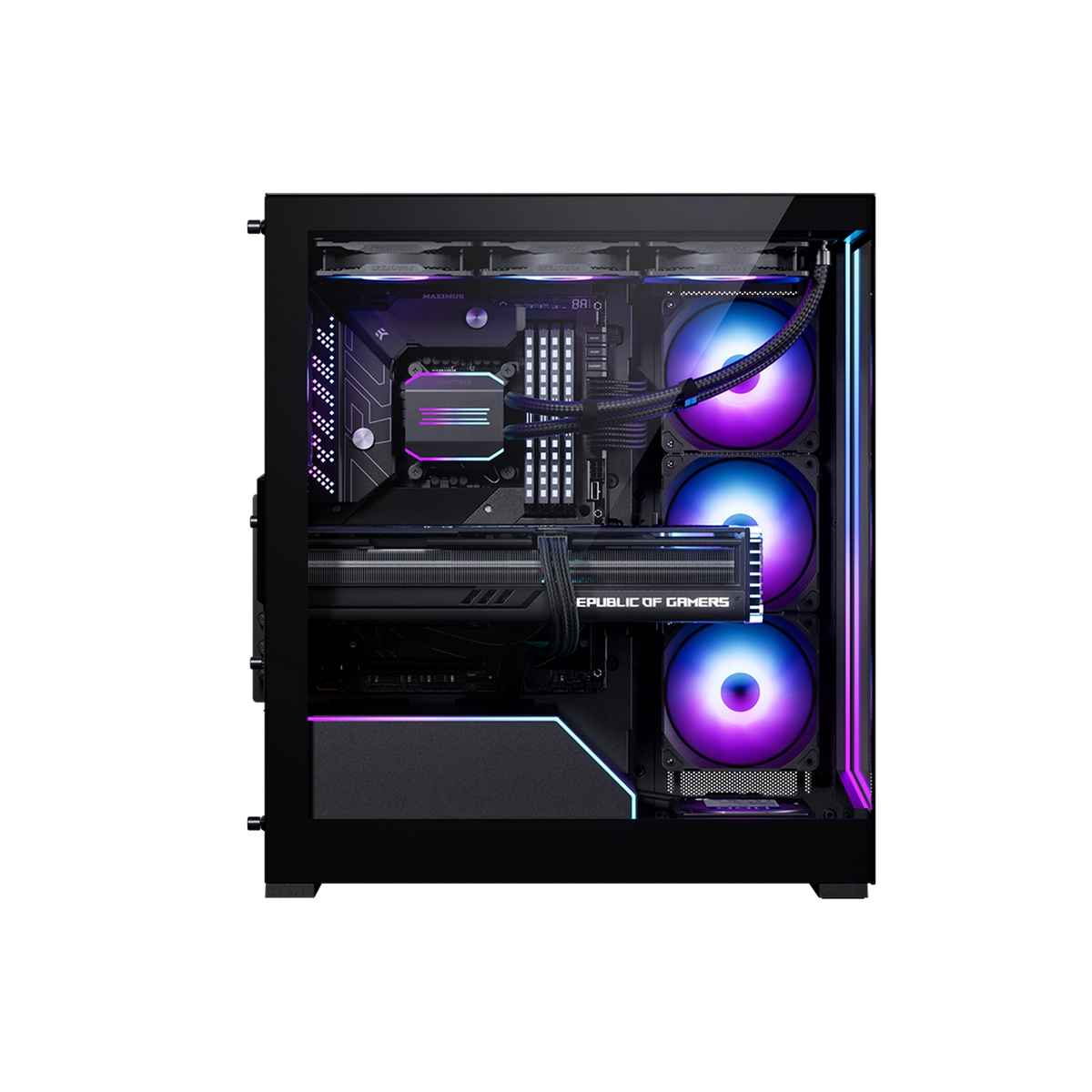

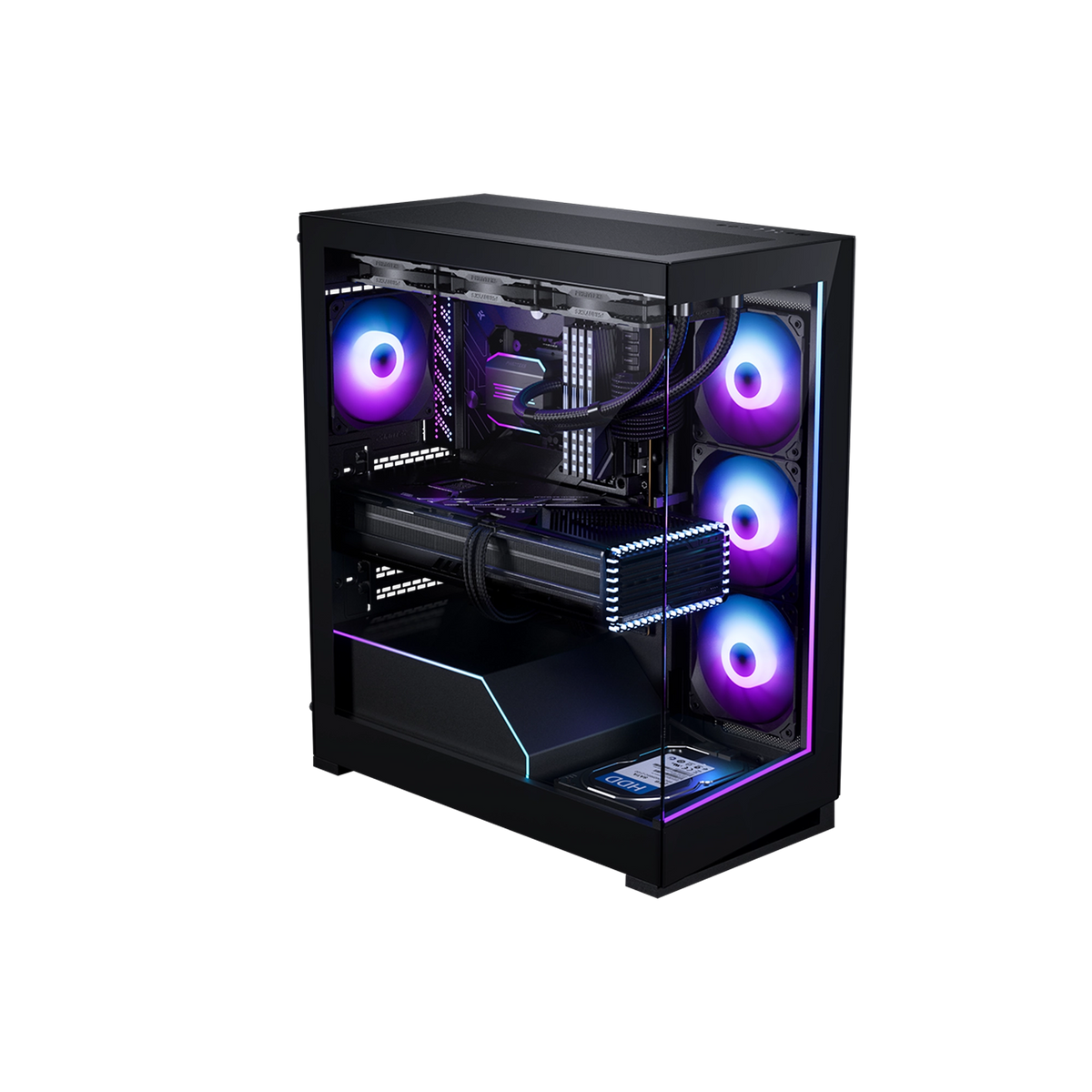

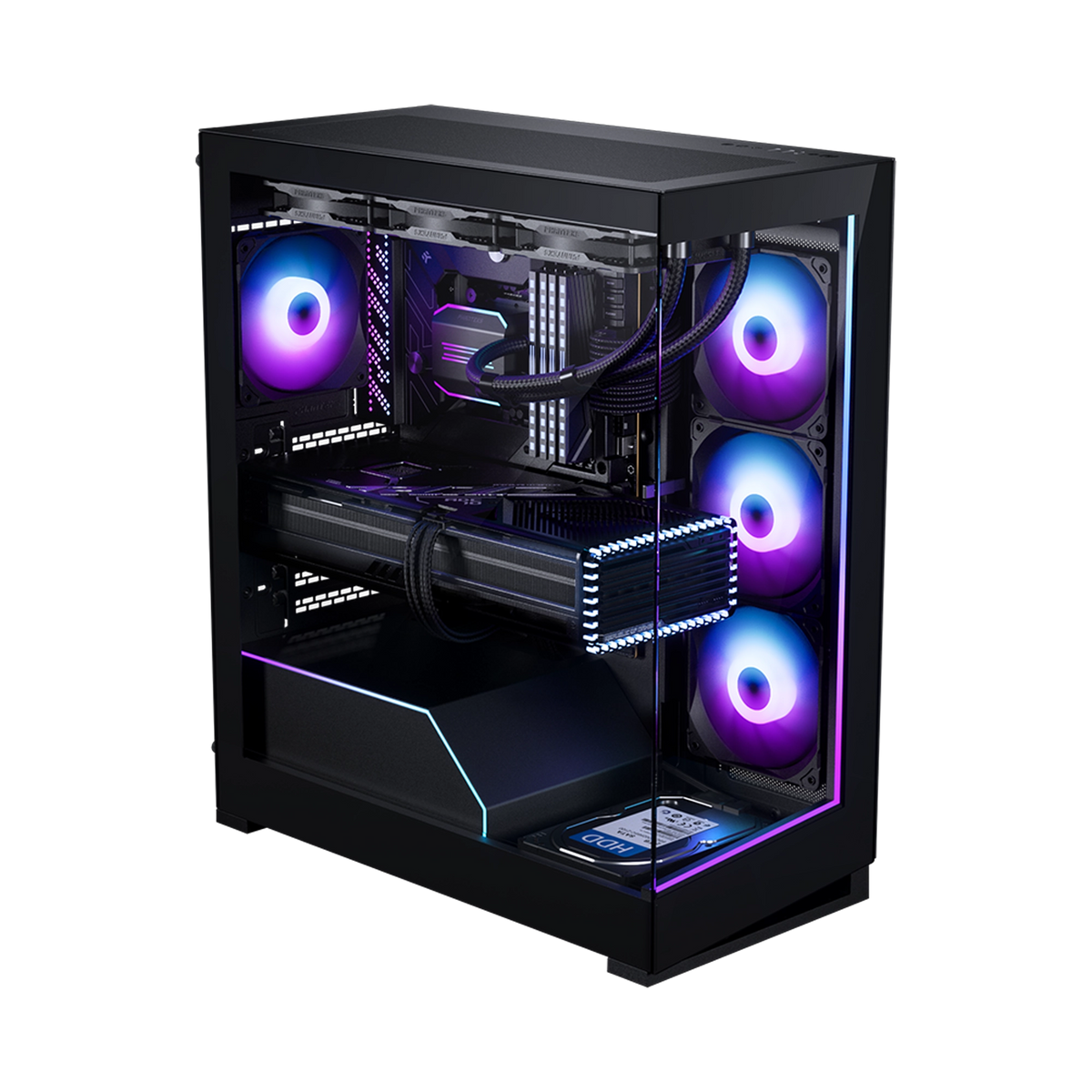

Seamless Glass Showcase: Unobstructed PC Views

  • Enjoy an uninterrupted, panoramic view of your high-end hardware through seamless front and side glass panels.
  • The zero-pillar corner design creates a true edge-to-edge showcase aesthetic for your gaming setup.
  • The sleek, minimalist exterior hides structural clutter so your components remain the center of attention.

High-Performance Cooling & Airflow

  • Keep your system cool with massive mounting support for up to seven 120mm cooling fans.
  • Maximize liquid cooling efficiency with top dedicated space for 360mm radiators
  • Ultra-fine top and side mesh panels perfectly balance stunning visual clarity with maximum airflow.
  • The rear 120mm exhaust position ensures hot air is quickly expelled to prevent thermal throttling.

Built for Modern Hardware & Large GPUs

  • Effortlessly fit the largest modern GPUs with up to 430mm of length clearance and increased chassis width.
  • An integrated, adjustable support bracket prevents GPU sag and protects your motherboard's PCIe slot.

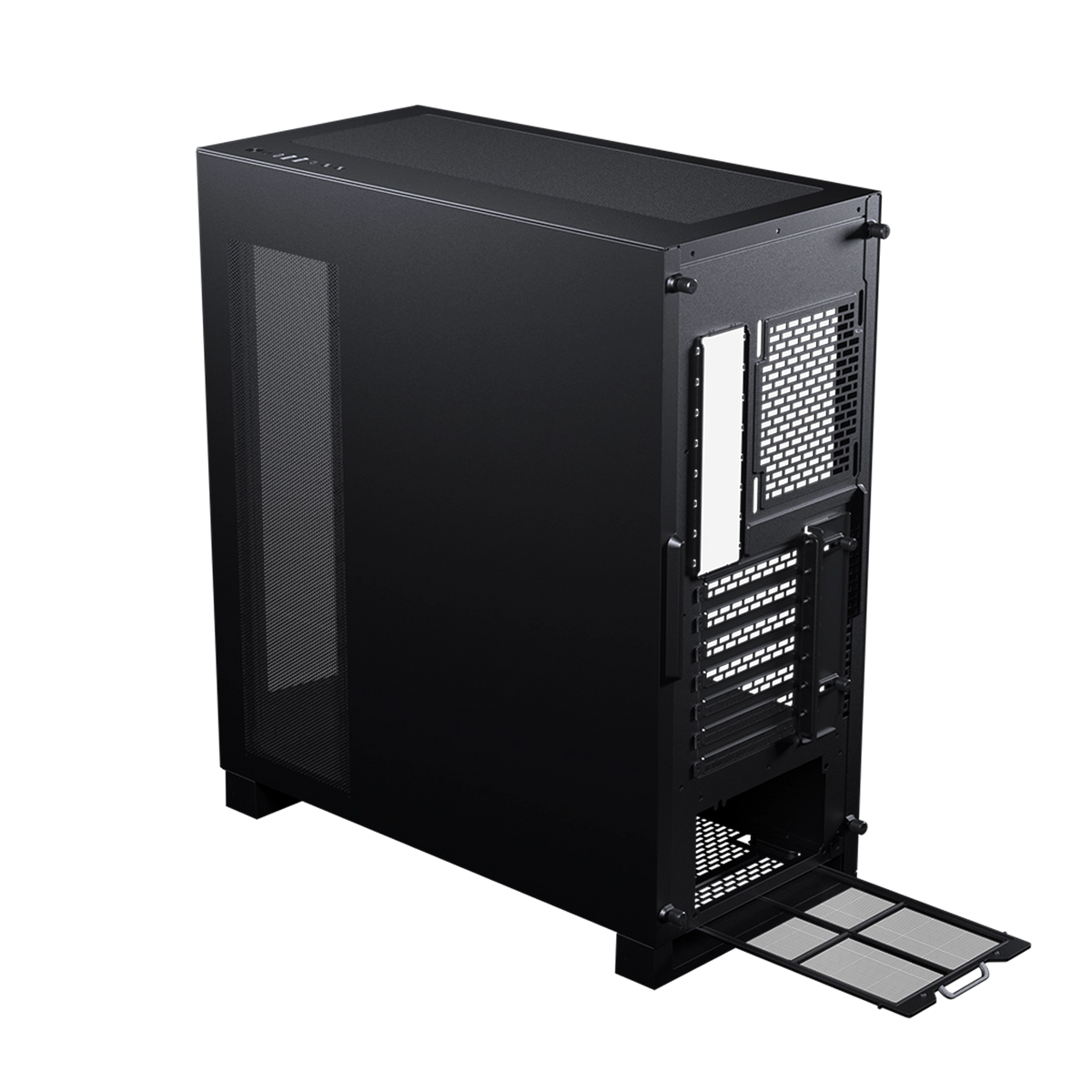

  • The removable PSU cover opens completely for incredibly easy access to your power supply and cables.

Fan and Radiator Configurations

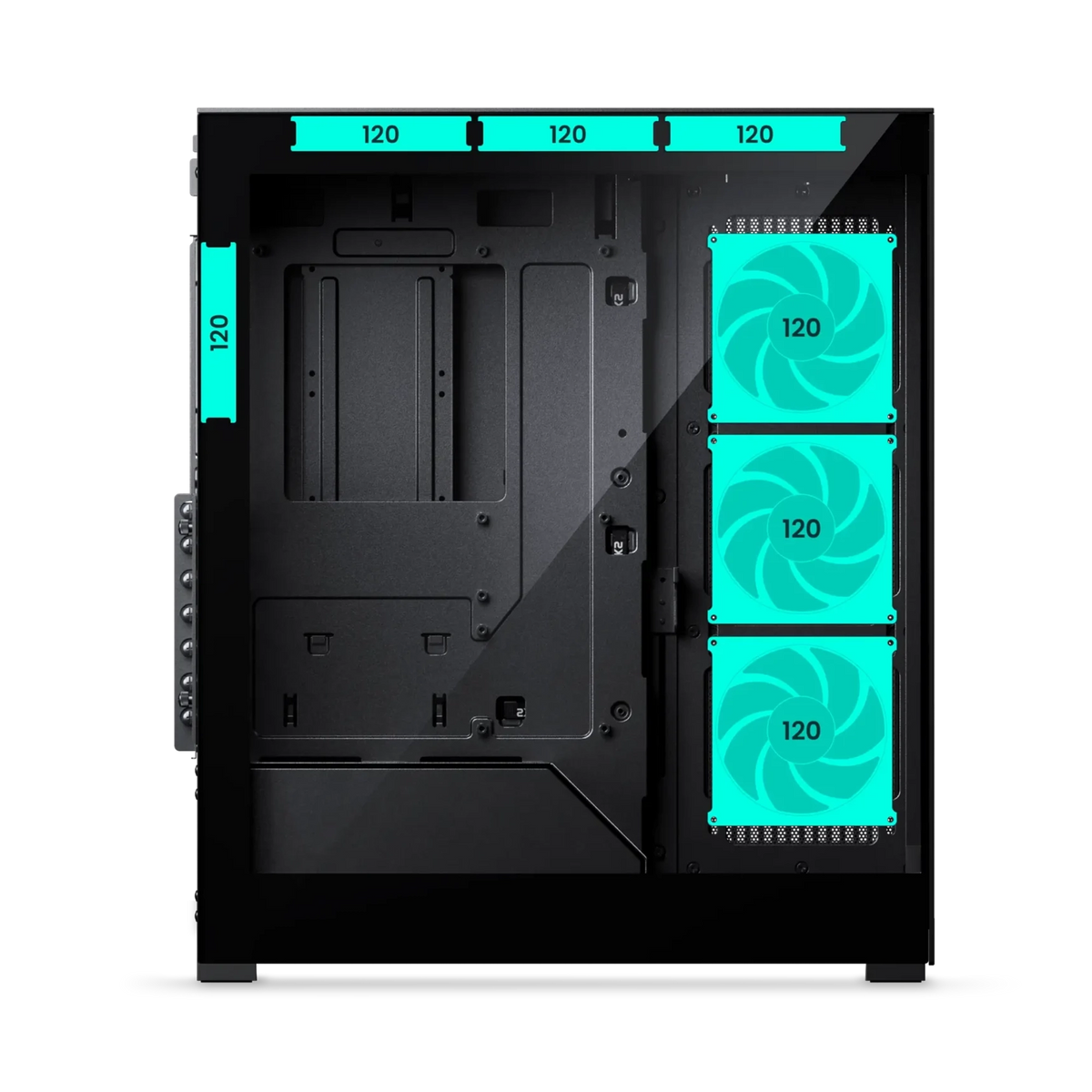

  • 3x 120 mm top fans | 3x 120 mm side fans | 1x 120 mm rear fan.

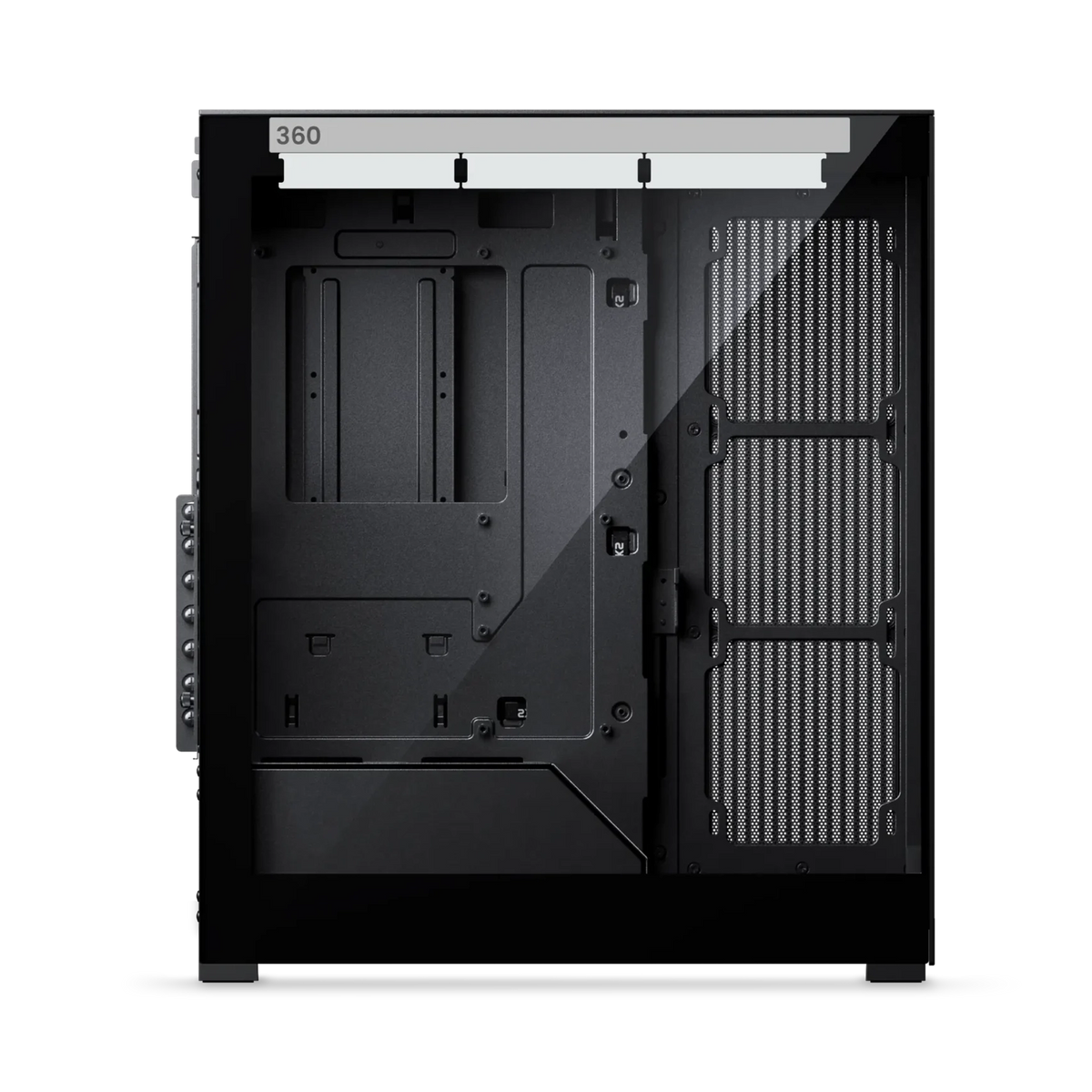

  • 1x 360 top radiator (up to 410 x 130 x 38 mm)

STORAGE Support

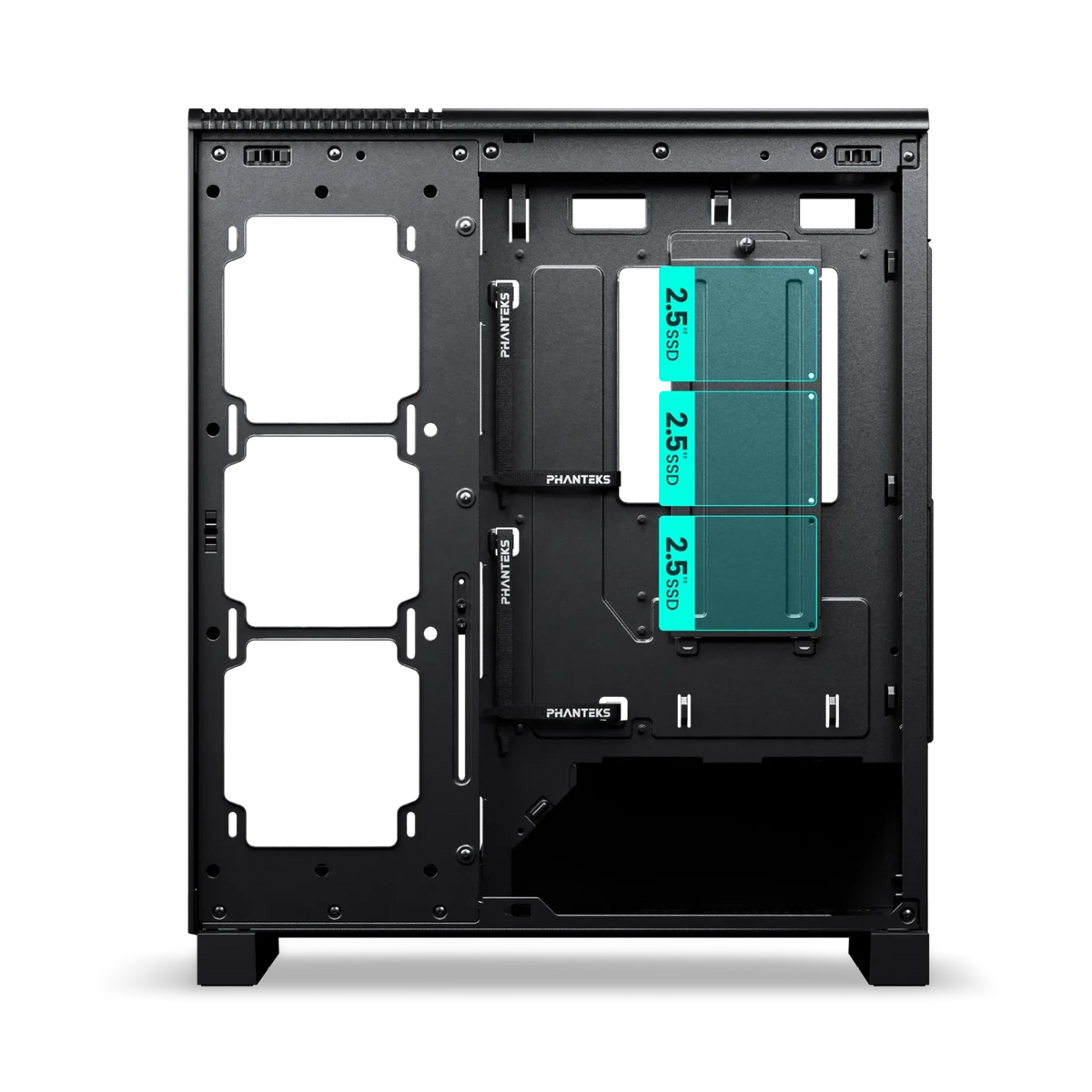

  • Side Storage Bracket: Supports 3x 2.5″ SSD drives.

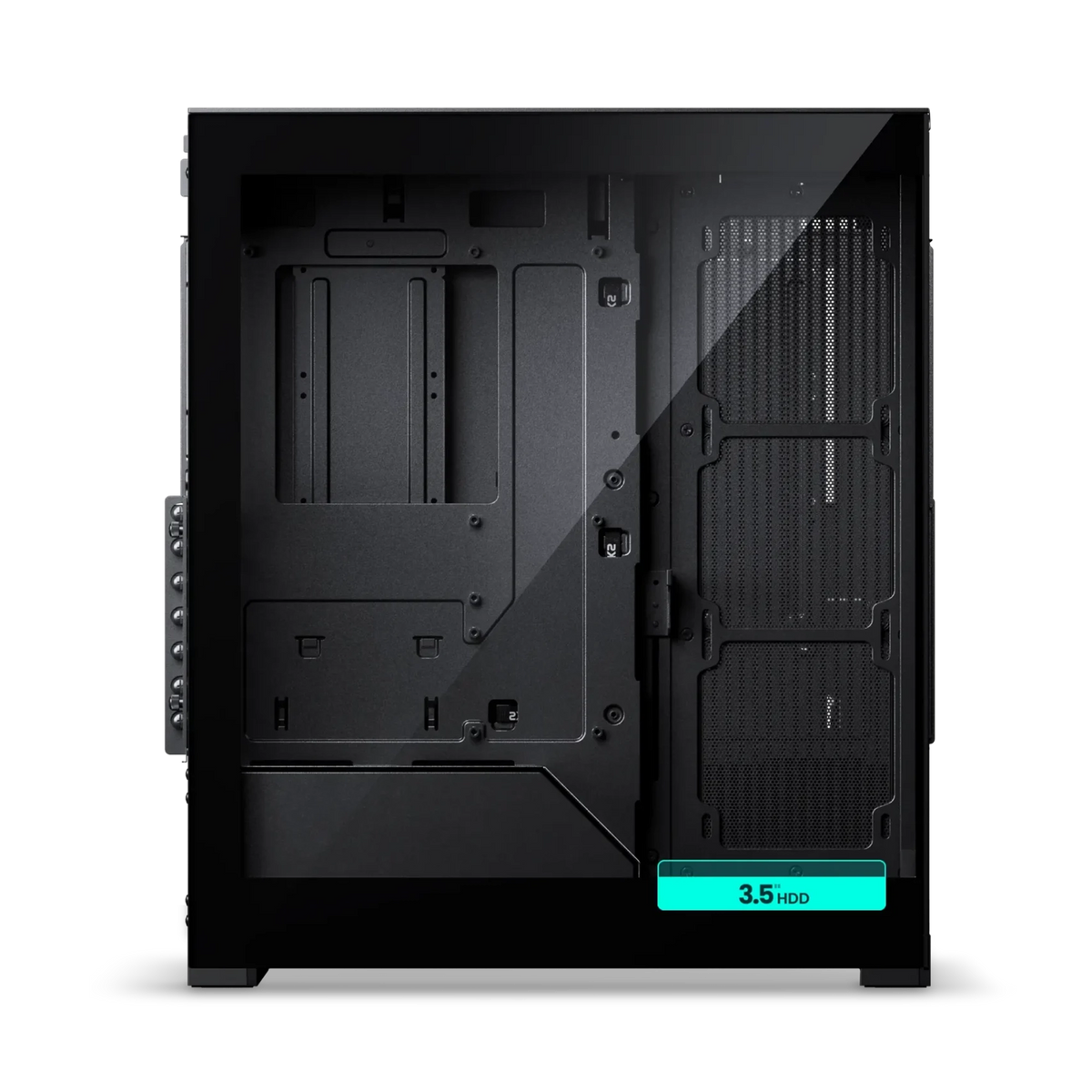

  • Bottom Storage Bracket: Supports 1x 3.5” HDD drive on the bottom position.

Product Specifications

General Specifications

Model
PH-NV523S_DBK01
Color
Black
UPC
886523303664
Case Dimensions
218 x 450 x 505 mm
Form Factor
Mid-Tower
Mainboard Support
ATX, Micro-ATX, Mini-ITX,E-ATX (up to 280mm wide)
Materials
Steel Chassis (Tempered Glass)
Front IO
1x USB-C 3.2 GEN 2 + 2x USB 3.0, Microphone/Headphone combo, Reset Button, Power Button, D-RGB Mode, D-RGB Color
Connectors
Power Switch, Reset Switch, Power LED, HDD LED, HD-audio, USB 3.0, USB 3.2 GEN 2 Type-E
Warranty
5 Years (Limited)

Technical Details

EXPANSION SLOTS
7
VERTICAL GPU SUPPORT
Yes, (Riser and Bracket sold separately)
INTERNAL 2.5″ POSITIONS
3 + 2 on 3.5 HDD Bracket
INTERNAL 3.5″ POSITIONS
1

Clearance

CPU COOLER (Height)
170 mm | 6.69 in
GPU (Height)
430 mm | 16.92 in
GPU (Width)
170 mm | 6.69 in
POWER SUPPLY
195 mm | 7.67 in
TOP 360 RADIATOR (Length x Width x Height)
400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in
SIDE 360 RADIATOR (Length x Width x Height)
400 x 120 x 60 mm | 15.74 x 4.72 x 2.63 in
REAR 120 RADIATOR (Length x Width)
120 x 180 mm | 4.72 x 7.08 in

Additional Info

NET WEIGHT
8.30 kg | 18.30 lbs
GROSS WEIGHT
9.90 kg | 21.83 lbs
SCOPE OF DELIVERY
1x NV5S chassis, 3x M25-120 side fan Pre-installed, 1x M25-120 fan rear Pre-installed, 1x SSD bracket Pre-installed, 1x GPU support bracket Pre-installed
ACCESSORY BOX
6x Zip ties1x Stand-off removal toolSCREWS
Screws
22x Mainboard | SSD screws, 4x Power supply screws, 4x HDD screws, 4x HDD stand-off screws, 4x HDD rubber1x Mainboard stand-off
