Product Specifications
General Specifications
Model
PH-XT325M_BK01
Color
Black
UPC CODE
886523303763
CASE DIMENSIONS
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in
Form Factor
Compact microATX tower
MAINBOARD SUPPORT
Micro-ATX | Mini-ITX
MATERIALS
Steel chassis | Tempered glass window | ABS plastic
Warranty
5 years (limited)
Technical Details
EXPANSION SLOTS
4
VERTICAL GPU SUPPORT
No

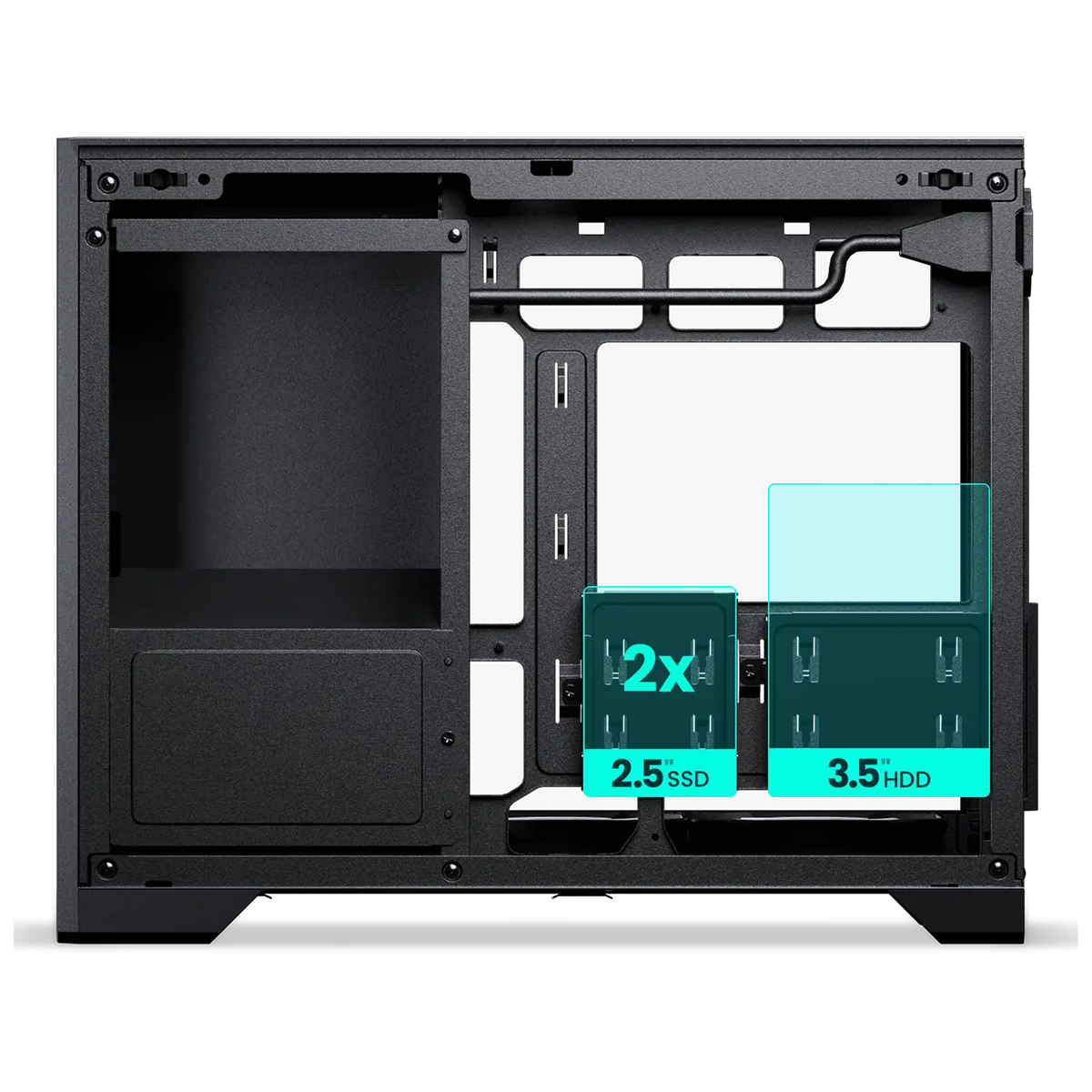

INTERNAL 2.5″ POSITIONS
2 (+1x 3.5 HDD)
INTERNAL 3.5″ POSITIONS
1
FRONT I/O
1x USB 3.0, 1x USB-C 3.2 Gen2x2, 1x Microphone | Headphone combo, Power button

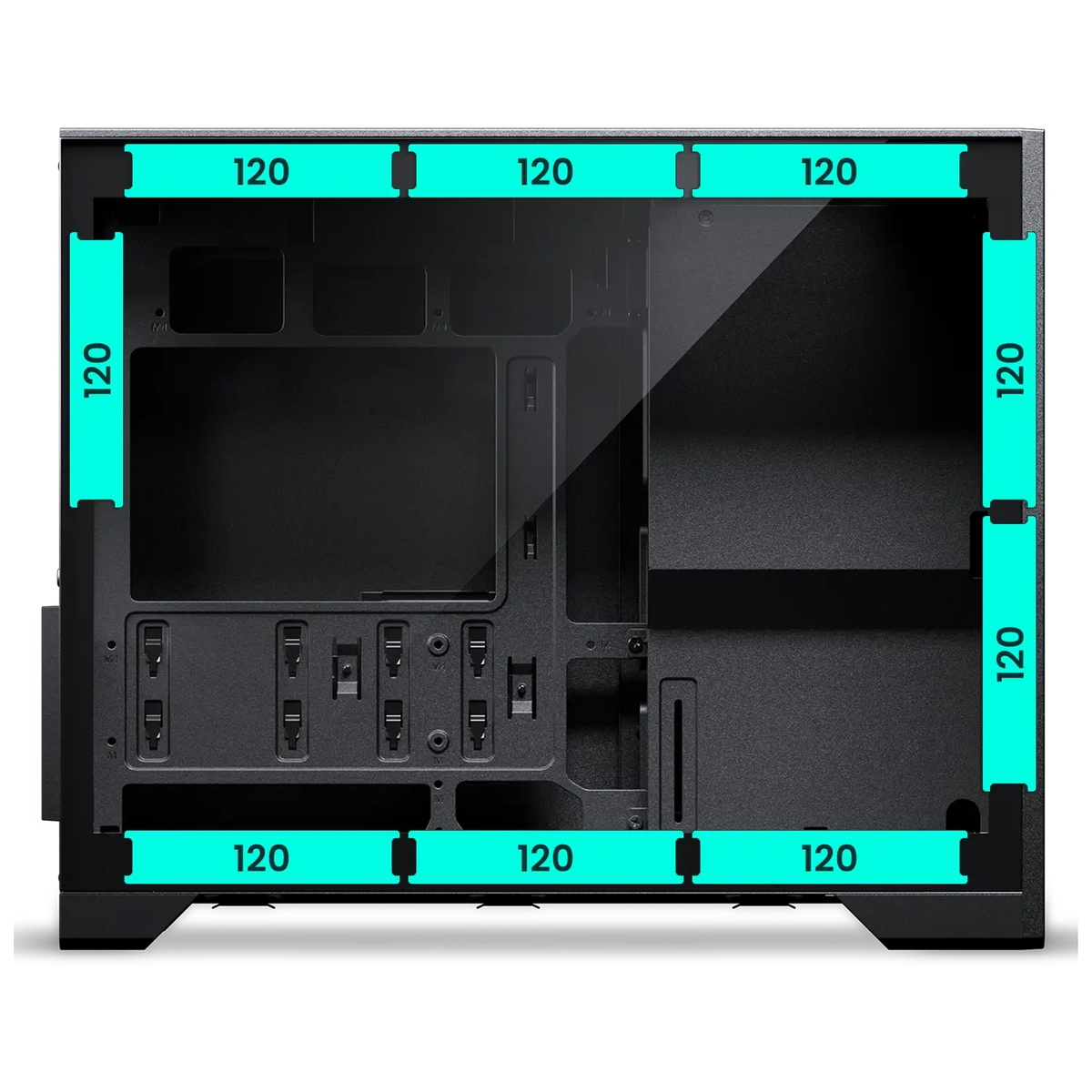

Total Fans
9x 120mm
Fans (120mm)
Top: 3x | Front: 2x | Rear: 1x | Bottom: 3x

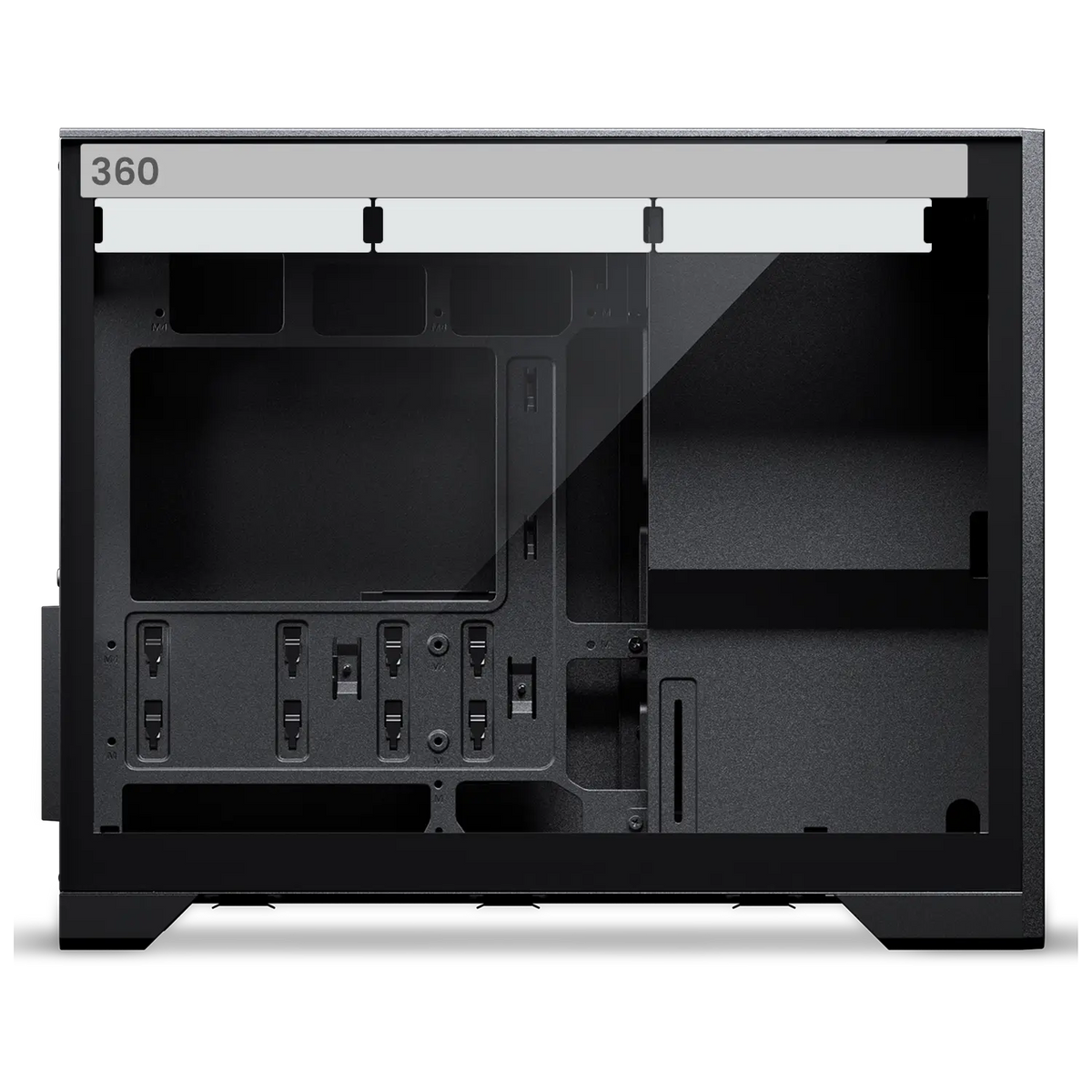

Radiator (120mm)
Top: Max 360mm
Clearance
CPU COOLER (Height)
175 mm | 6.88 in
GPU (Length)
430 mm | 15.94 in (Without front fans installed)
GPU (Width)
175 mm | 6.88 in
POWER SUPPLY
150 mm | 5.90 in
TOP 360 RADIATOR (LengthxWidthxHeight)
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in
Additional Info
NET WEIGHT
5.57 kg | 12.28 lbs
GROSS WEIGHT
6.90 kg | 15.21 lbs
SCOPE OF DELIVERY
1x XT M3 chassis, 1x SSD bracket Pre-installed, 1x HDD bracket Pre-installed
ACCESSORY BOX
9x Zip ties, 1x Stand-off removal tool, 1x GPU support
SCREWS
17x Mainboard | SSD screws, 5x Power supply screws, 4x HDD screws, 1x Mainboard stand-off
