Description:
The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for Eleven 140mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the motherboard at its center. Combined with a strong and defining outer frame it captures and accentuates the hardware components.
With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
|
Case Specifications |
||
|
Dimension |
575 x 280 x 615mm | 22.63 x 11.02 x 24.21 (DxWxH) |
|
|
Form Factor |
Full Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window |
|
|
Mainboard Support |
ATX, Micro-ATX, Mini-ITX, SSI-CEB, E-ATX (up to 280mm wide) |
|
|
Rear Connect Motherboard |
ATX |
|
|
Front I/O |
2x USB 3.0, USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel |
|
|
Connectors |
Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-Audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
Max 3* (3x included) (*Max 24mm HDD height when SSDs installed) |
|
|
Internal 2.5” |
Max 6 (6x included) (*2x if 3x HDD positions are used) |
|
|
D-RGB Controller Output |
7A per Channel, 4A per port (Total 14 Watt) |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
4x |
3x |
|
Side |
3x |
3x |
|
Rear |
2x |
2x |
|
Bottom |
3x |
3x |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
Up to 420 |
|
Side |
Up to 480 |
Up to 420 |
|
Rear |
Up to 240 |
Up to 280 |
|
Bottom |
Up to 360 |
Up to 420 |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
490mm | 19.29in |
|
|
CPU Cooler Height |
205mm | 8.07in |
|
|
PSU Length |
210mm | 8.26in |
|
|
Top 360 Radiator |
515 x 154mm | 20.27 x 6.06in |
|
|
Side 480 Radiator |
525 x 154mm | 20.66 x 6.06in |
|
|
Rear 240 Radiator |
325 x 154mm | 12.79 x 6.06in |
|

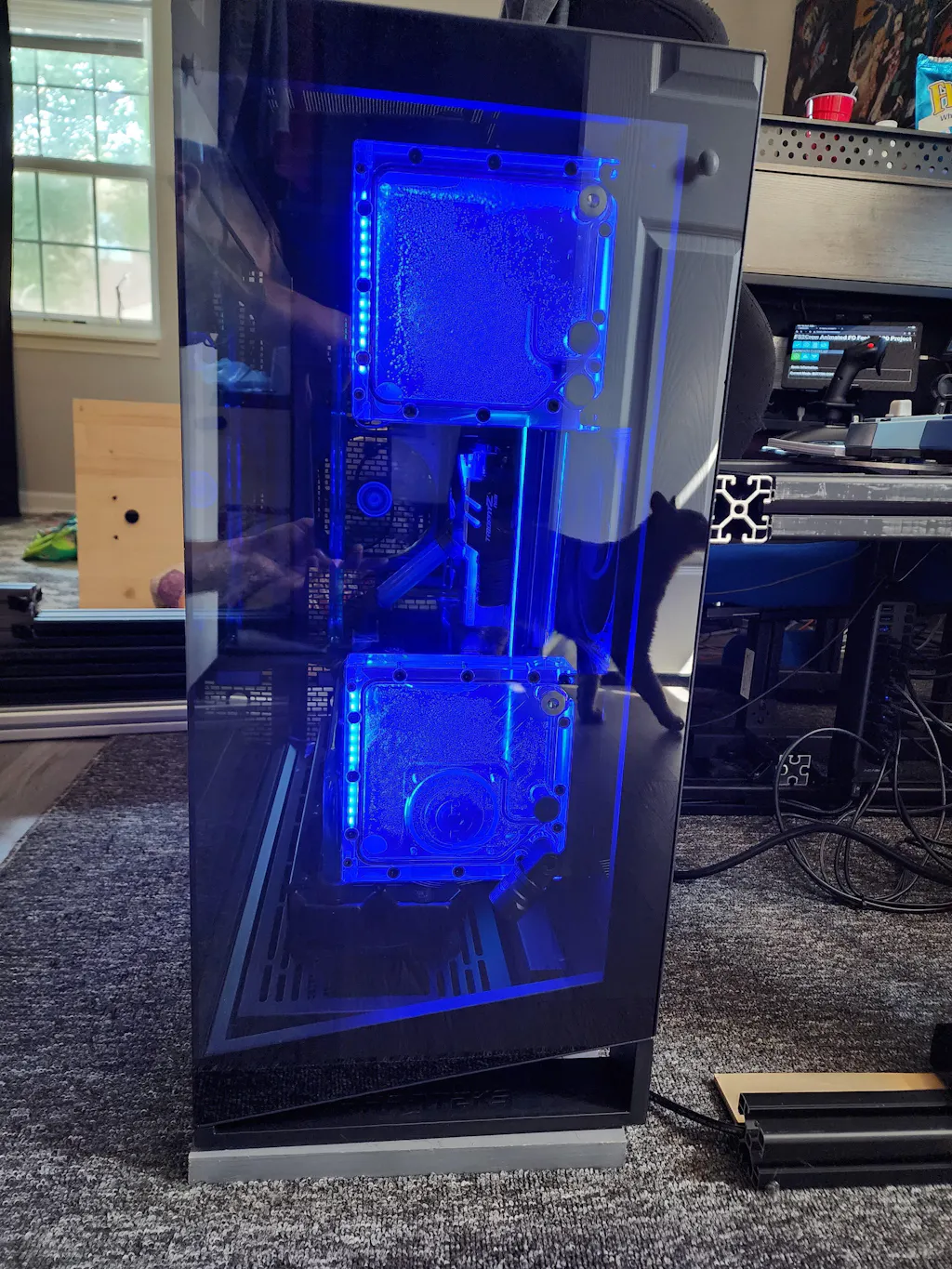

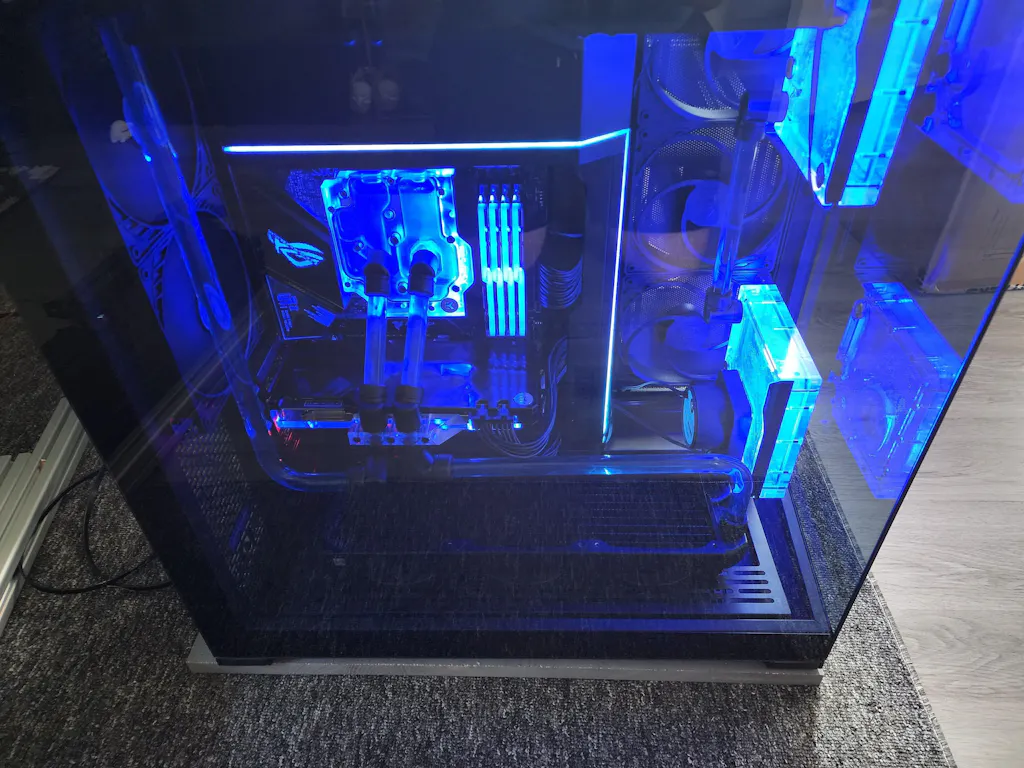

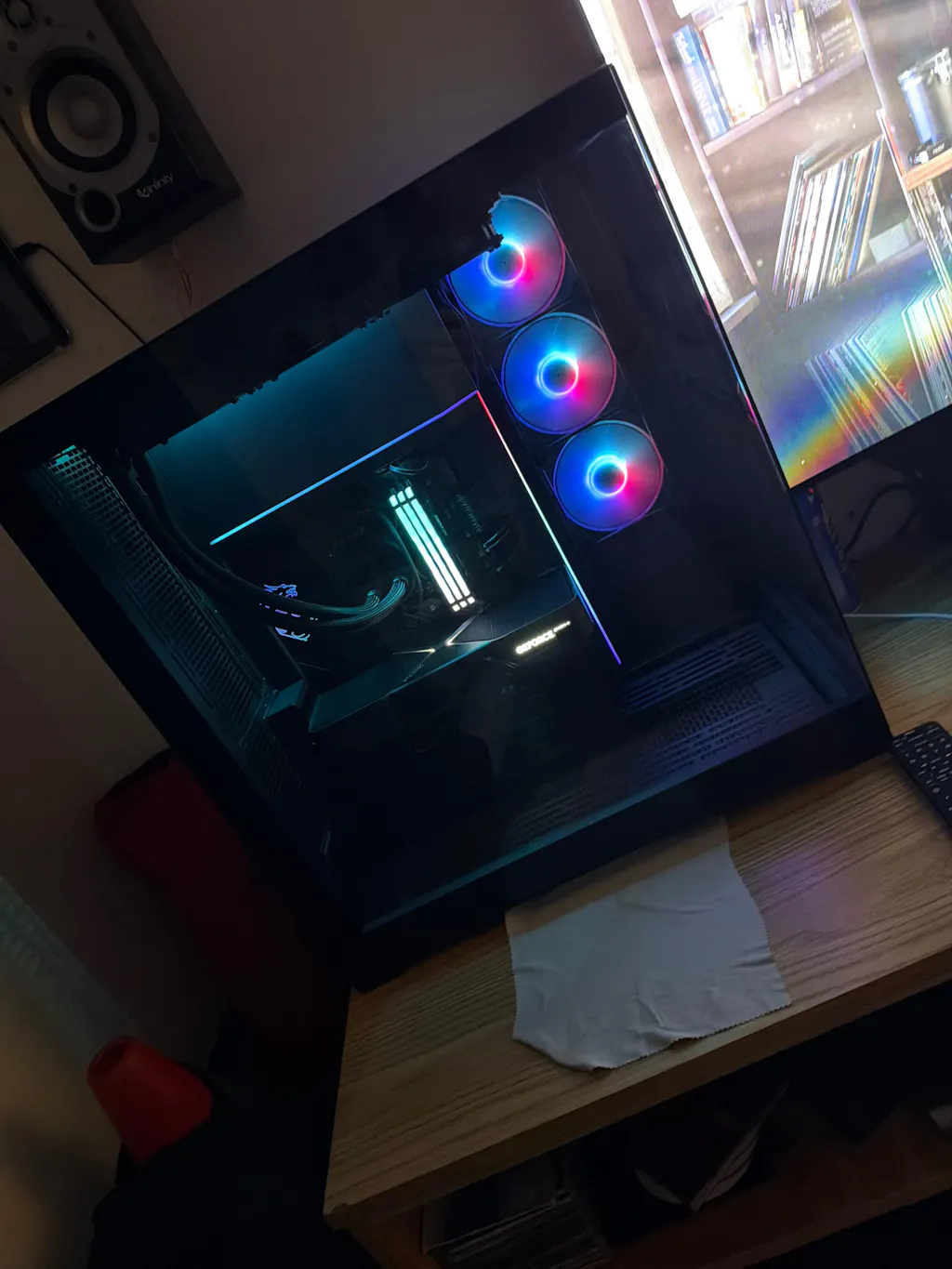

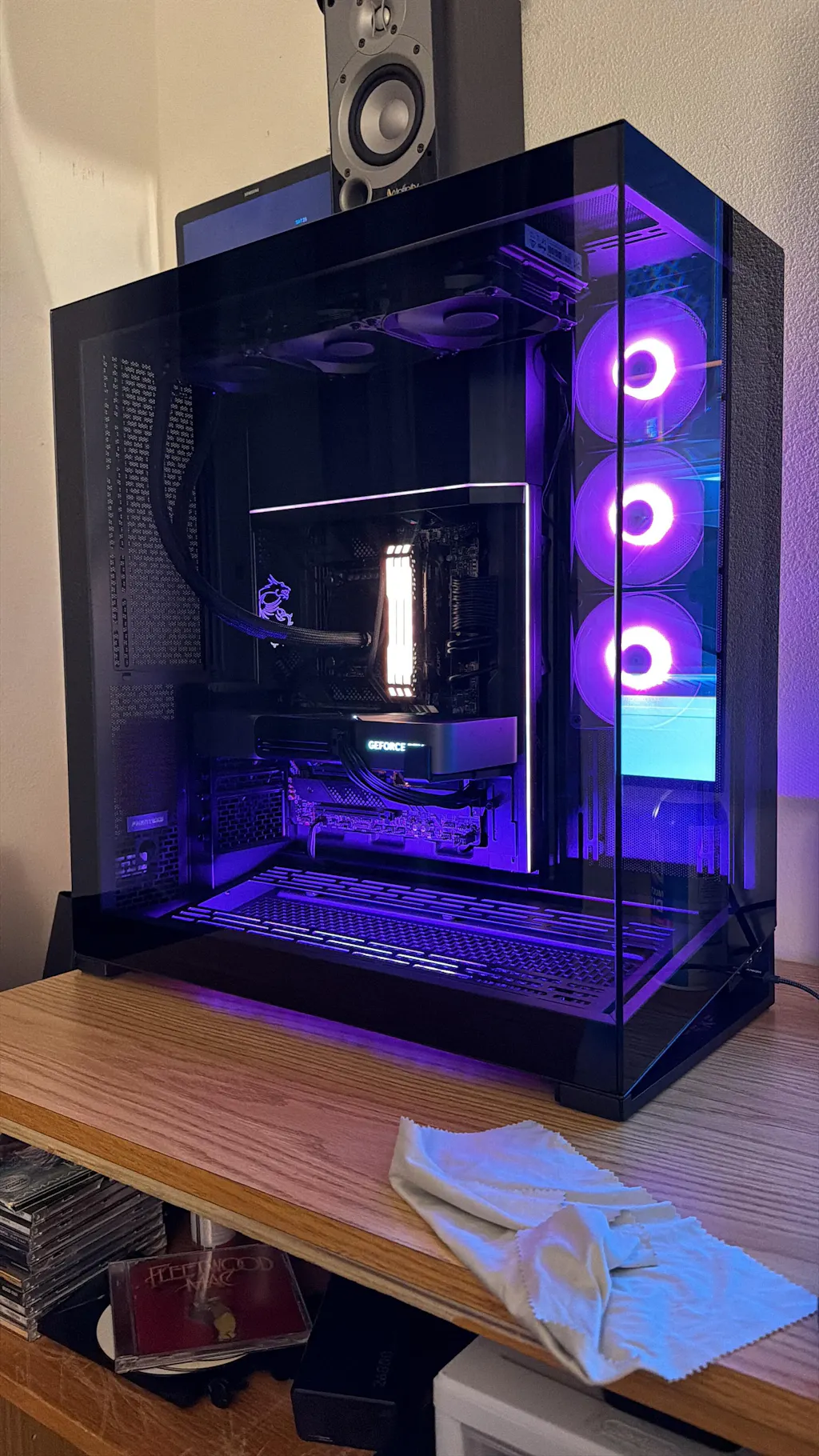

Took me a bit to setup as my old case was a EZ install setup but this case is nice and big and shows off my graphics card so nicely and also looks clean and professional especially love the hidden cable aspect of it as my old case looked like spaghetti on the rear end
Phanteks NV9 Black MKII
Using UPS was a great choice, packaged really secure
This thing is a beast. I love it.
