Evolv Shift XT Satin Black


Price:
Sale price$169.99
Stock:
Sold out

Description

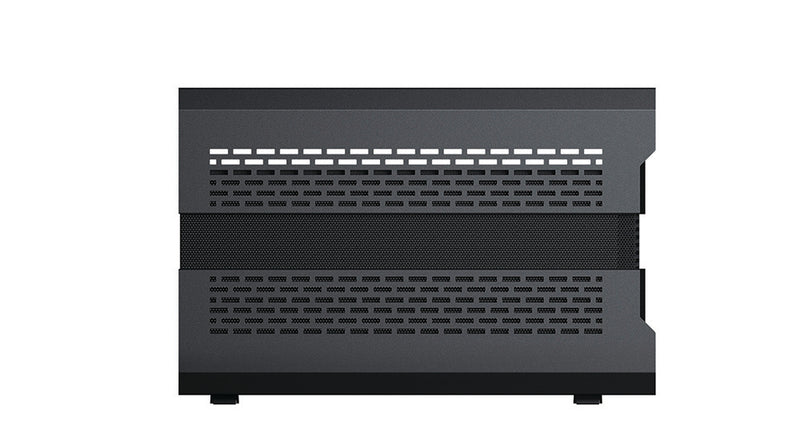

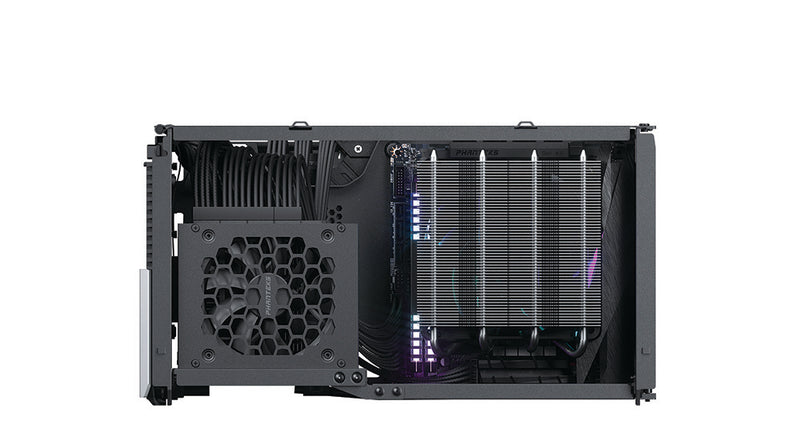

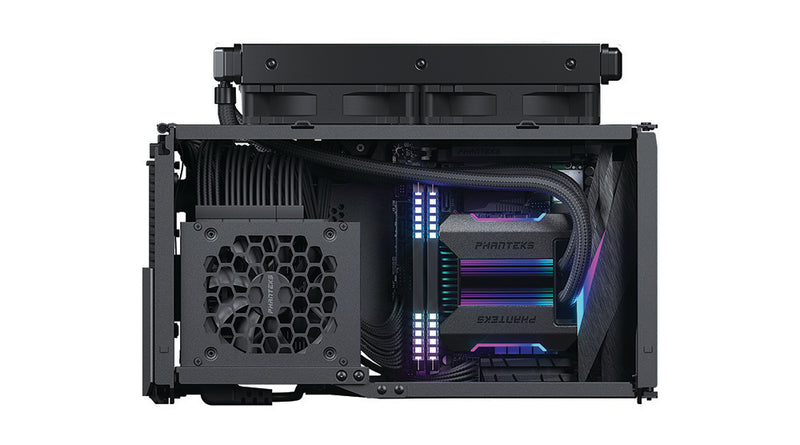

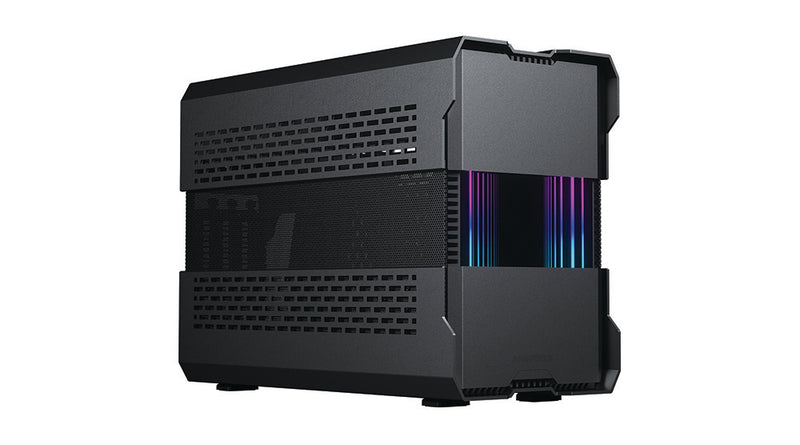

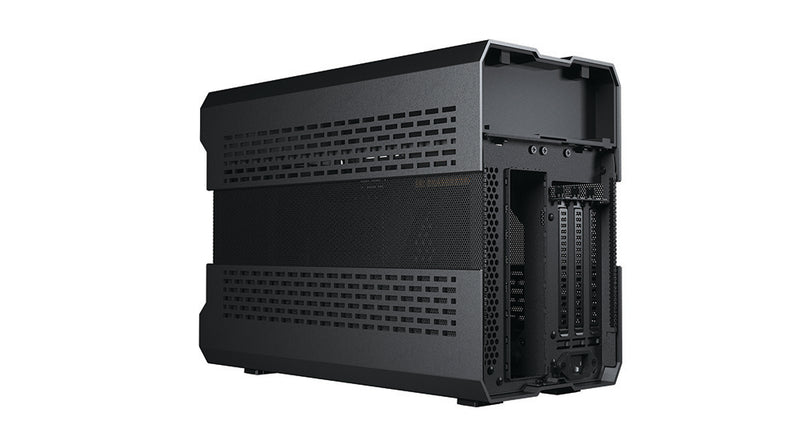

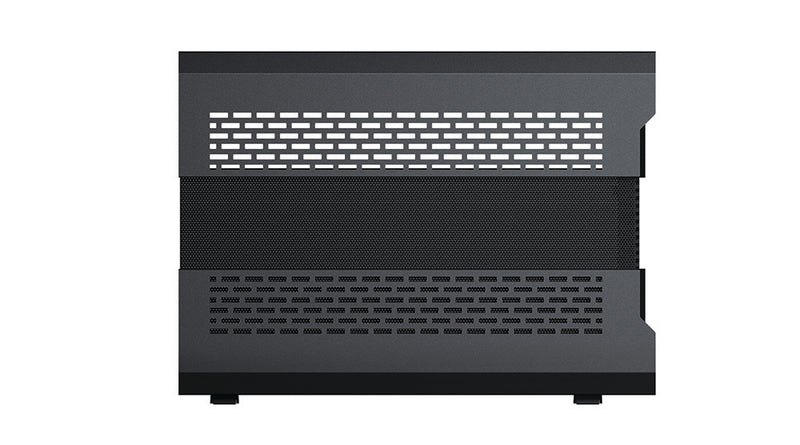

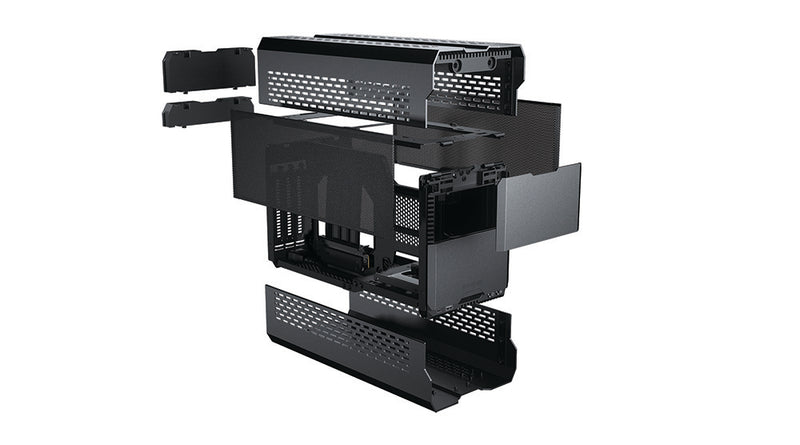

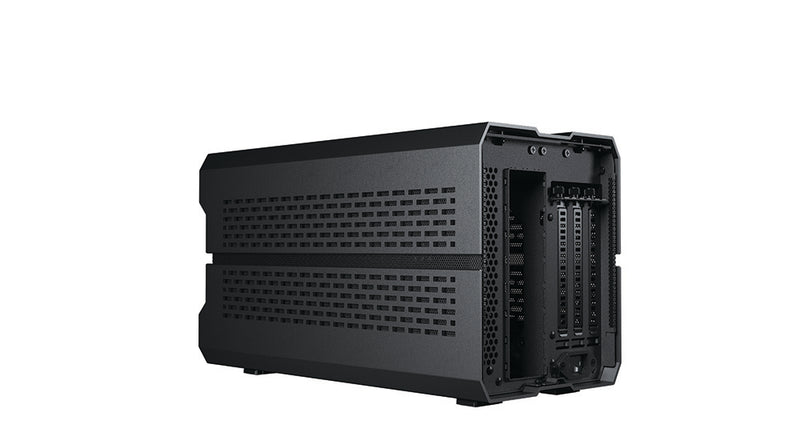

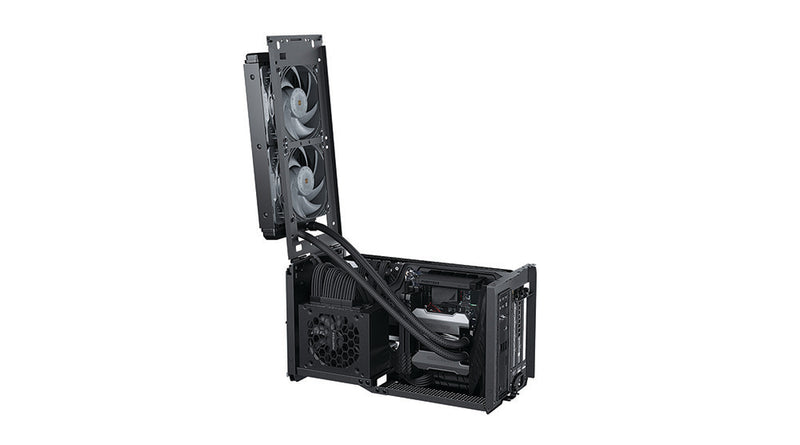

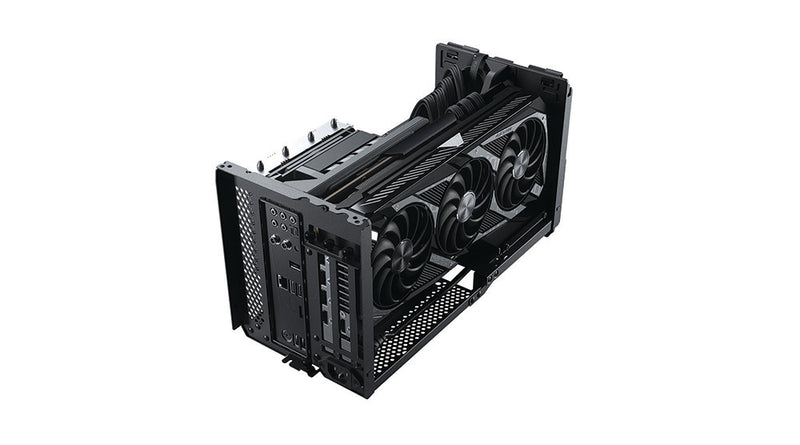

The Phanteks Evolv Shift XT is a truly unique small form-factor chassis that extends to tailor the cooling performance to your need. Even in its ultra-compact mode there is no compromise on performance with support for powerful hardware such as 324mm long triple-slot GPUs and 72mm tall CPU air coolers. The Evolv Shift XT has the unique capability to extend the height of the chassis to boost the air-cooling performance with two 120 or 140 fans at the top. When fully extended the Evolv Shift XT can house a 240 radiator in the top to cool even the most powerful systems.

Being part of the Phanteks Evolv series, the Evolv Shift XT offer premium build quality and components using thick anodized aluminum panels, PCI-e X16 Gen4 riser cable and USB-C Gen2 front IO. Performance is uncompromised with Ultra-Fine Mesh panels and vented aluminum panels while providing a clean and stylish appearance with the tempered glass infinity mirror.

Case Specifications

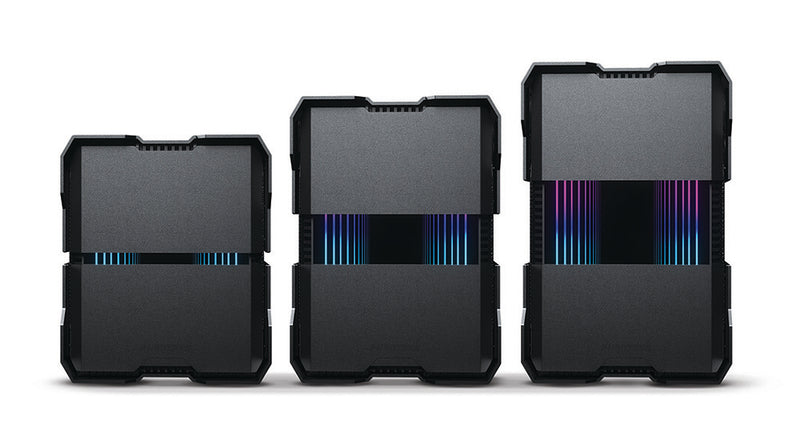

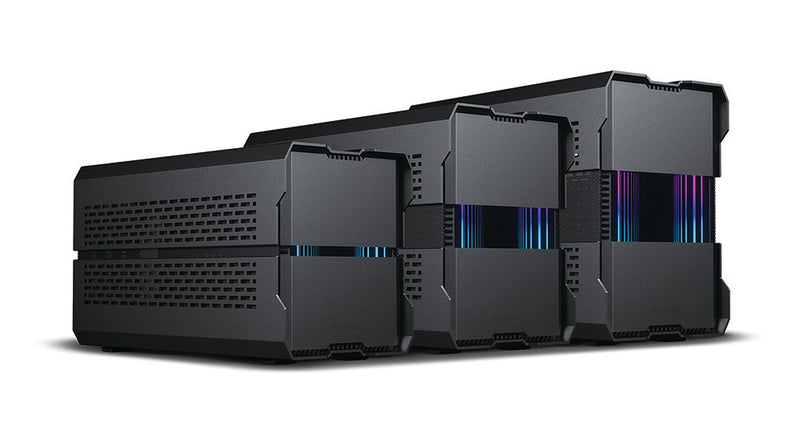

Dimension (DxWxH)

(Outside dimensions)

Small:     371 mm x 173 mm x 211 mm / 14.60 in x 6.81 in x 8.31 in

Medium: 371 mm x 173 mm x 244 mm / 14.60 in x 6.81 in x 9.61 in

Large:     371 mm x 173 mm x 272 mm / 14.60 in x 6.81 in x 10.71 in

Volume

Small:     13.5L

Medium: 15.6L

Large:     17.4L

Form Factor

Small Form-Factor Mini-ITX Chassis

Material(s)

Aluminum Panels, Steel Chassis, Tempered Glass Infinity Mirror

Motherboard Support

mini-ITX

Front I/O

USB-C GEN 2, 1x USB 3.0, LED Mode Button, LED Color Button, Power Button

Internal Connectors

Power Switch, D-RGB Expansion, D-RGB Third Party, D-RGB MB Adapter, USB 3.0, USB 3.2 GEN 2 Type-E

Riser Cable

PCI-e 4.0 X16 pre-installed

Side Window

No, mesh side panels



PCI slots & Storage bays

PCI slots

3

Internal 3.5” bay



Internal 2.5" bay





Fan Positions

120mm fan

140mm fan

Top

2x

2x







Radiator Positions

120mm radiator

140mm radiator

Top

Up to 240

-



Clearances



GPU length

324 mm / 12.76 in

GPU thickness

3-slot, 62mm / 2.44 in

GPU height (from PCI fingers)

147mm / 5.79 in

CPU cooler height

72mm / 2.83 in

Top Radiator Clearance

315x150mm

Top fan Clearance

32mm thickness

Top radiator+fan Clearance

60mm thickness

PSU size

SFX, SFX-L (SFX is recommended)



Tags: sff, mini-ITX, ITX, DRGB, Infinite mirror, compact, airflow, transforming case, liquid cooled, air cooled
