Description

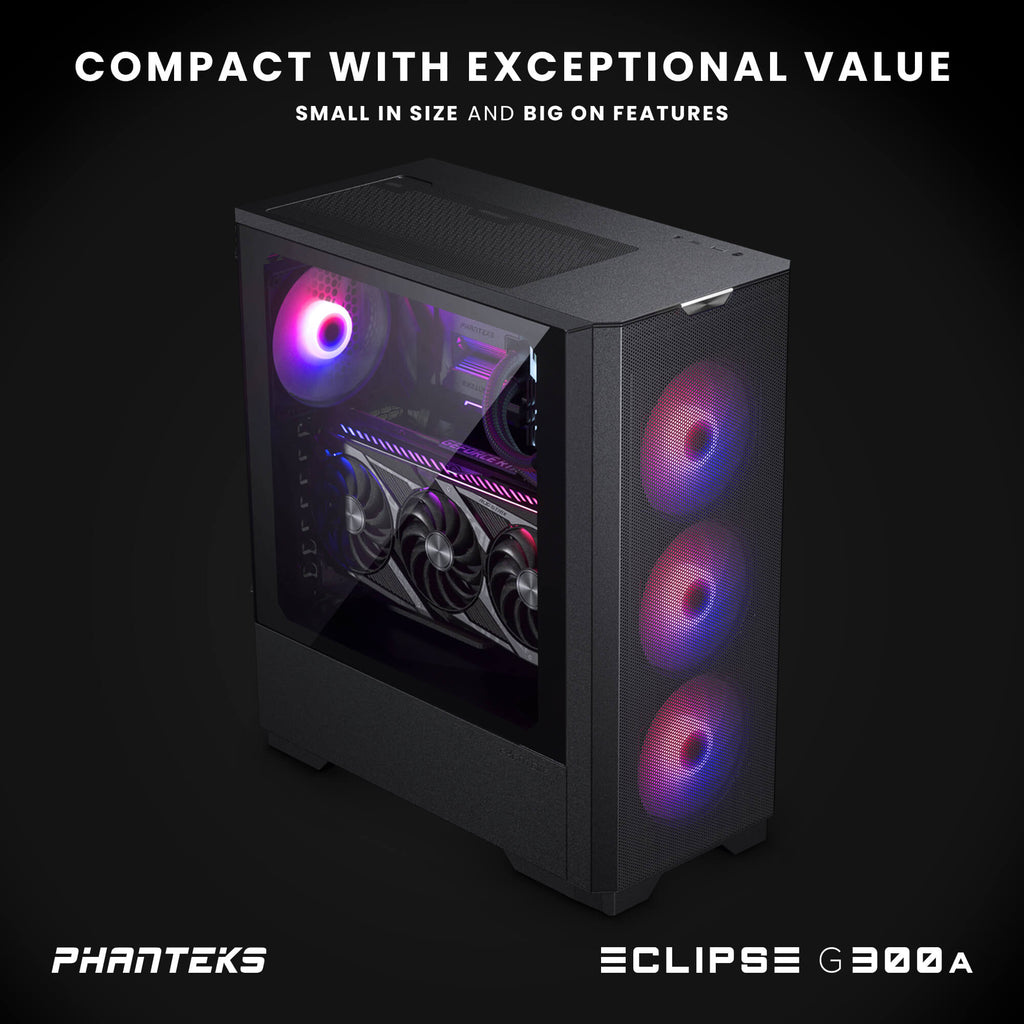

Small in size and big on features, the Phanteks Eclipse G300A brings high airflow performance in a compact ATX chassis. Large GPUs, like the ASUS RTX4090 STRIX, fit perfectly with front fans installed and even high-end CPUs can be cooled easily with front 360 or top 240 radiator support.

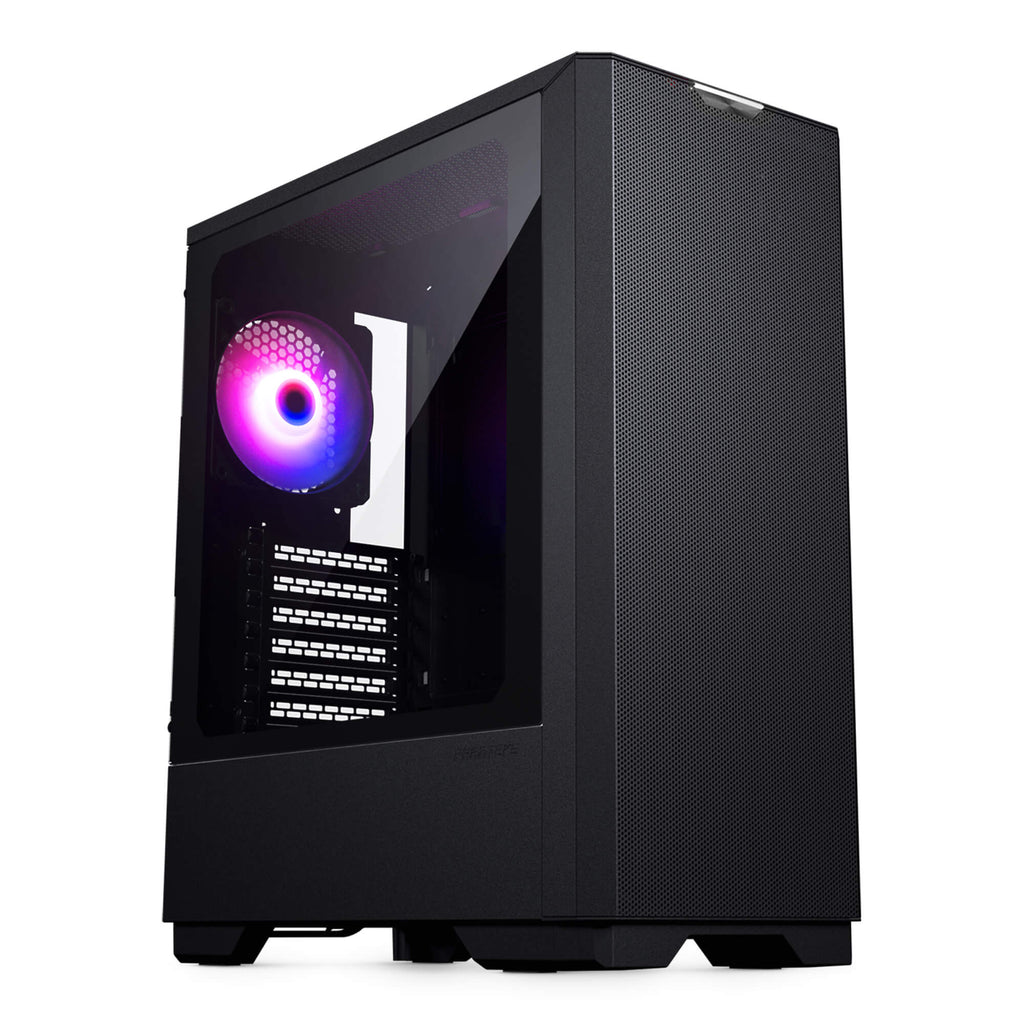

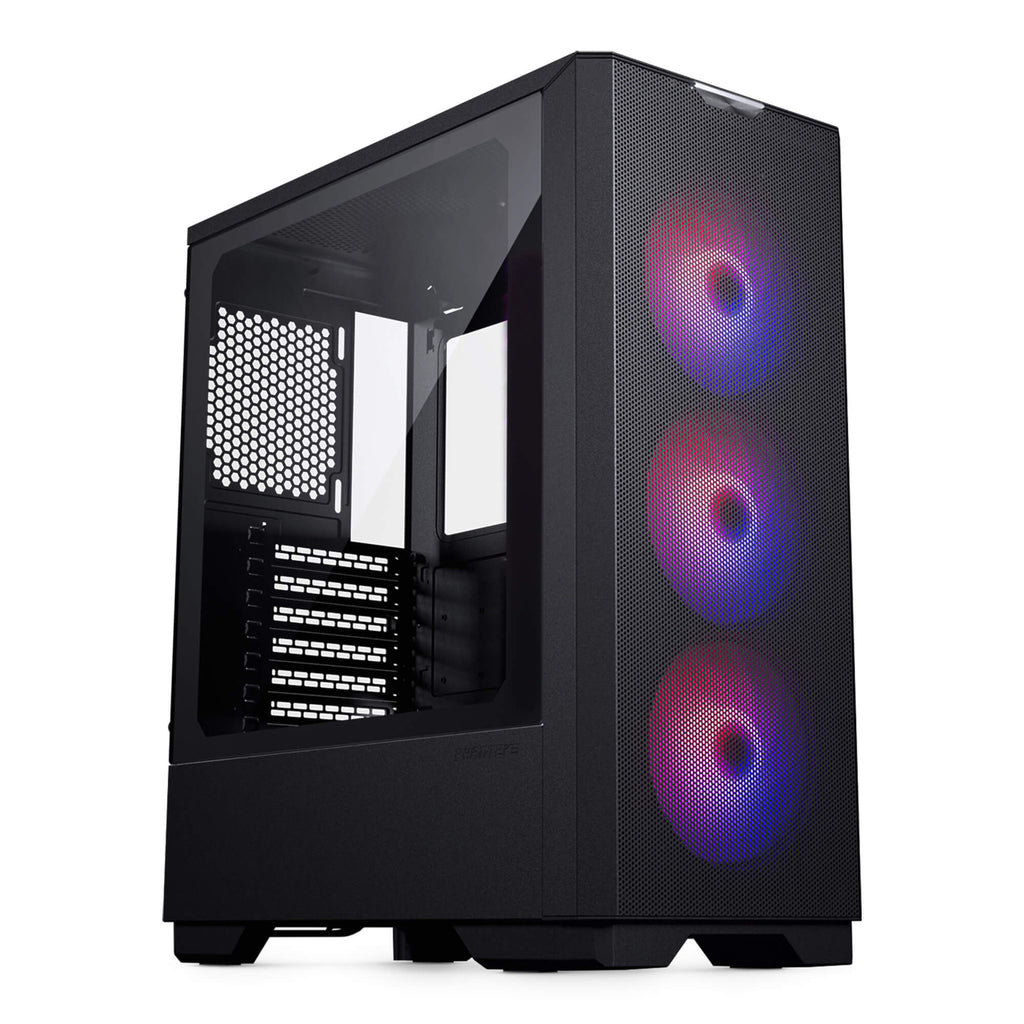

The G300A comes equipped with a single rear D-RGB fan or triple front D-RGB fans and a D-RGB Motherboard Adapter to connect it directly to a motherboard.

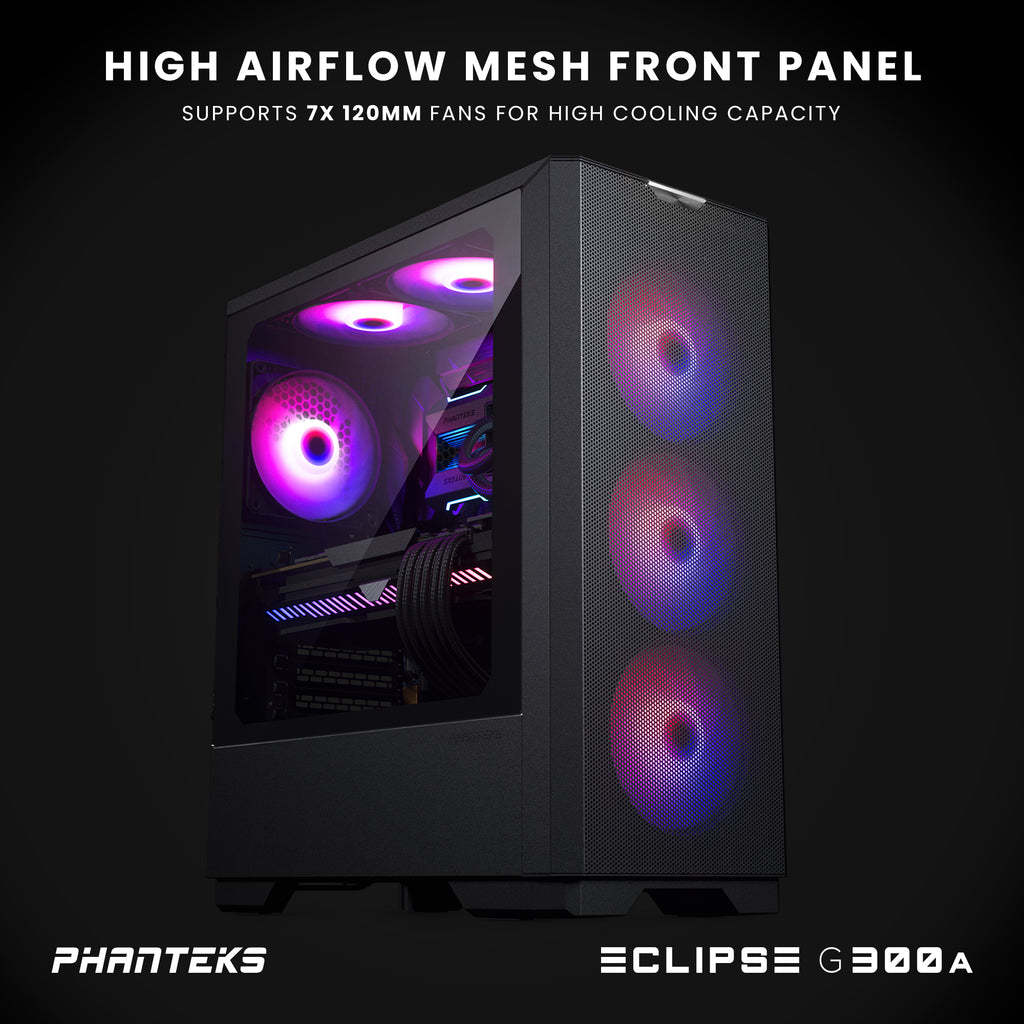

- High airflow mesh with triple 120mm front fan support.

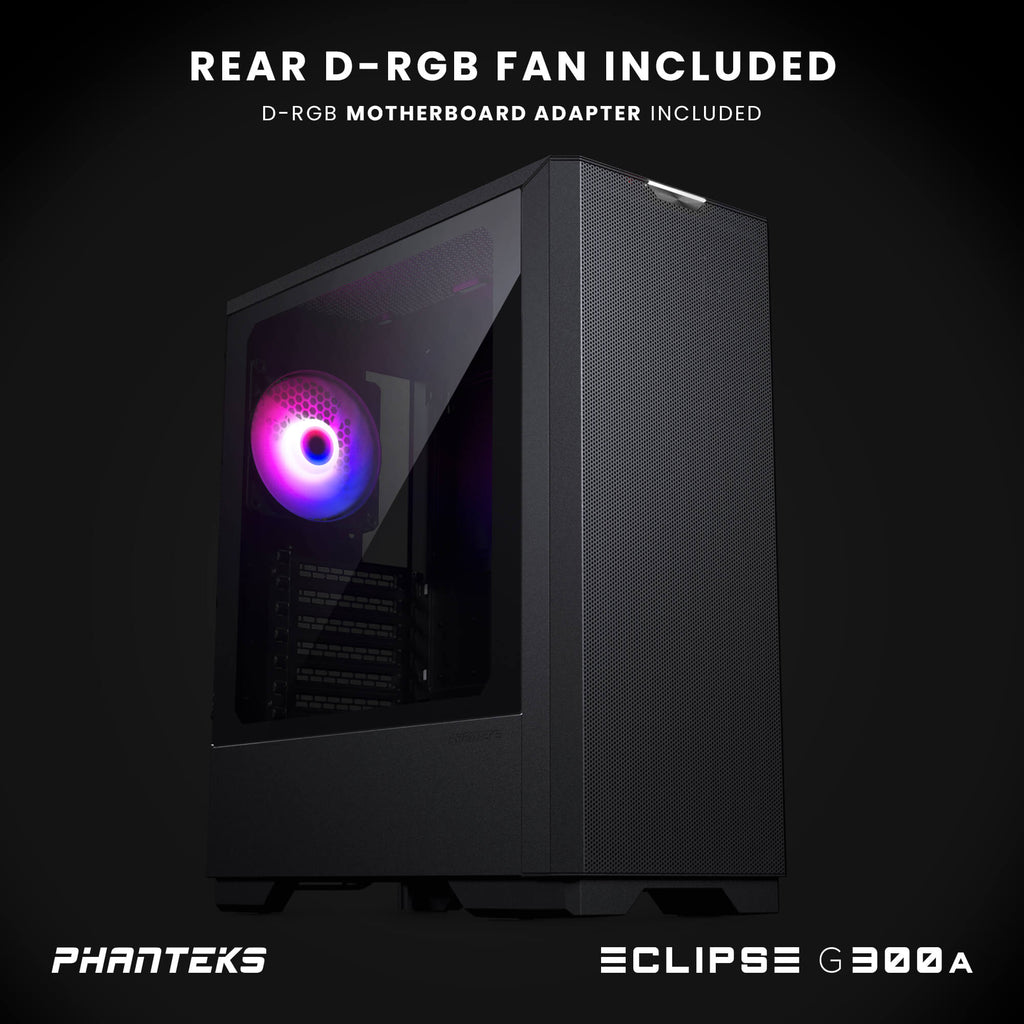

- Single rear or triple front D-RGB fans and D-RGB MB adapter included.

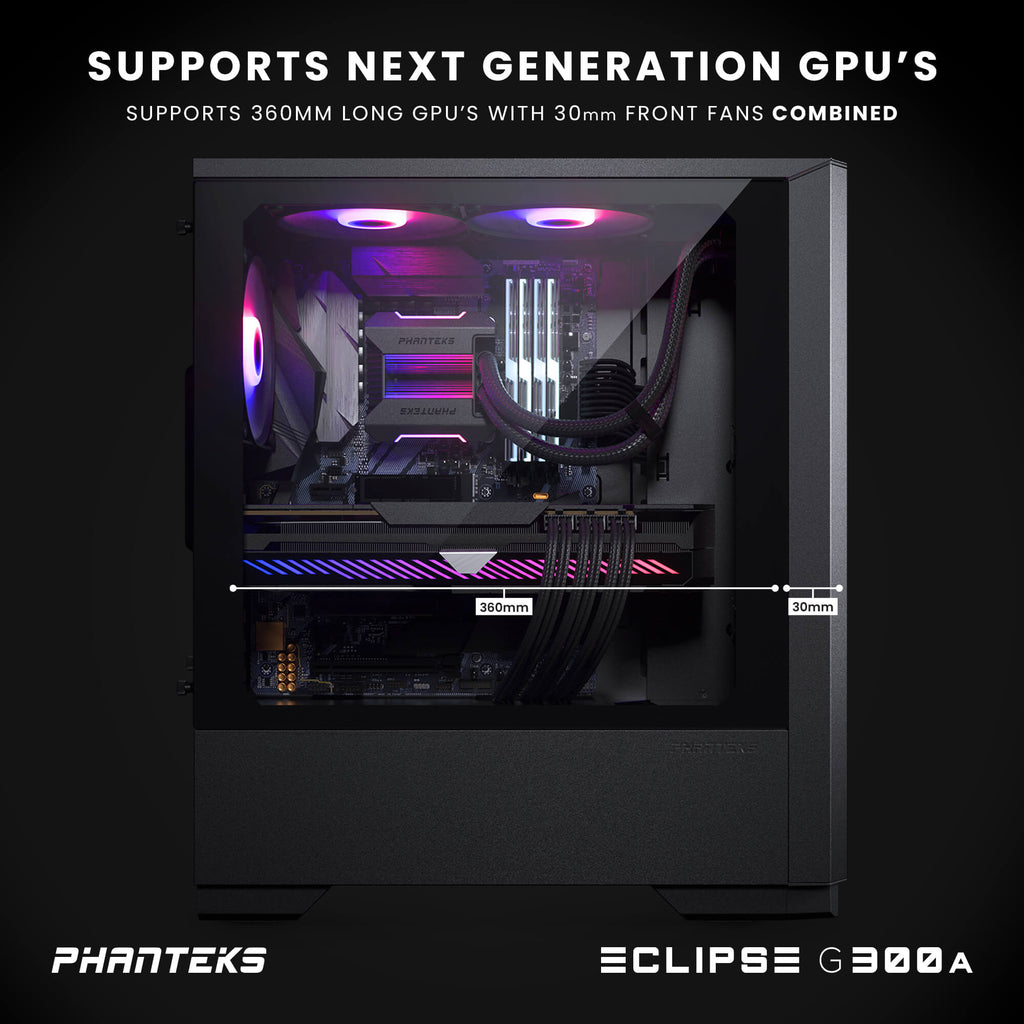

- 360mm GPU support with 30mm front fans combined.

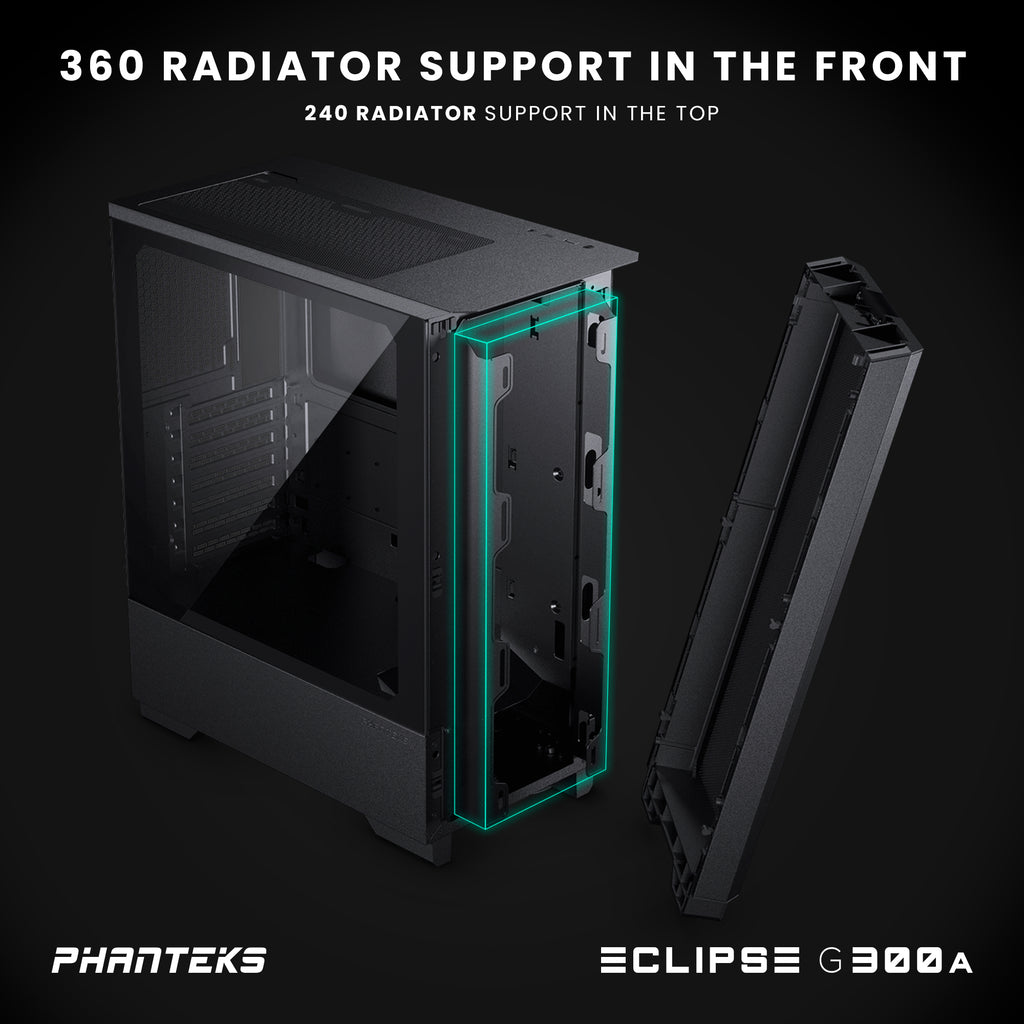

- 360 radiator support in the front, 240 radiator support in the top.

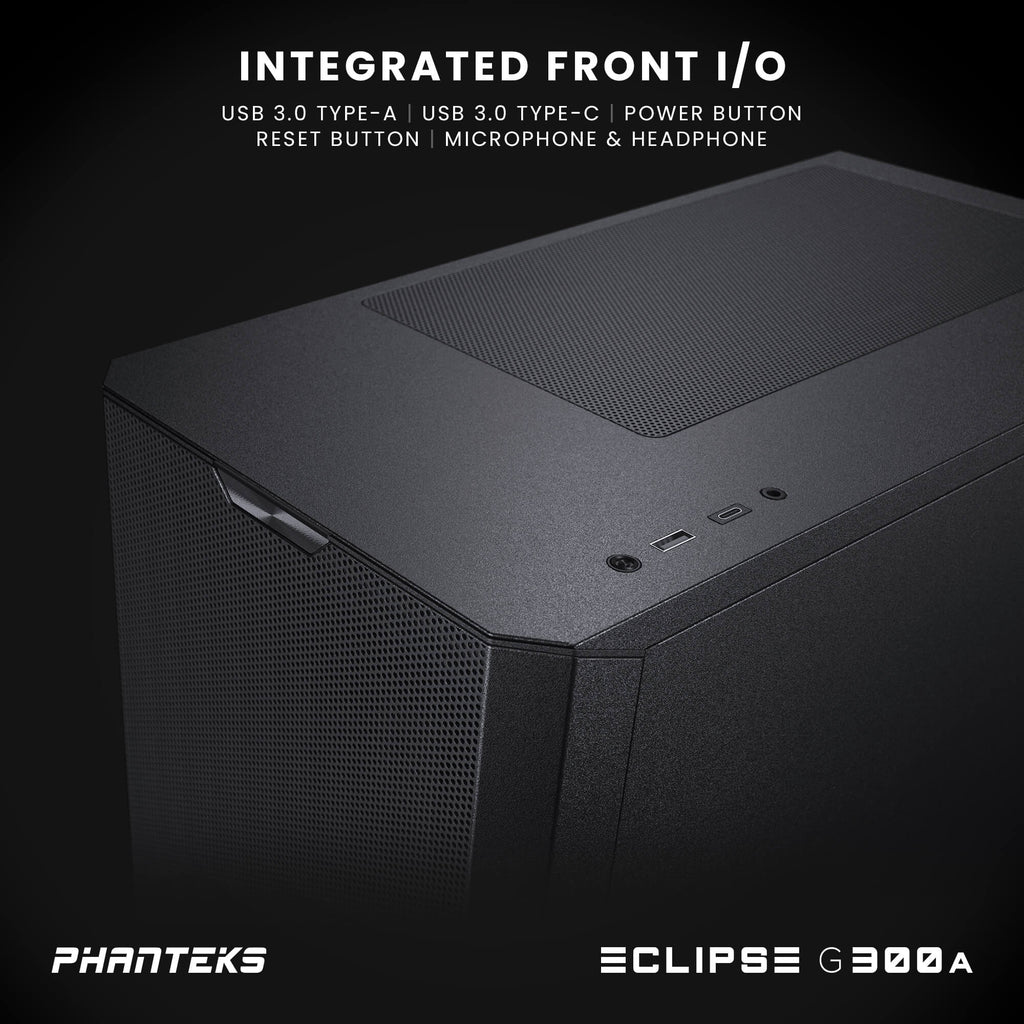

- Easily accessible front I/O featuring a USB 3.0 Type A and Type C, Microphone/Headphone Combo, Power button, and Reset button.
- Storage support with 3x dedicated SSD locations and a 3.5” HDD location.
Case Specifications
- Dimensions: 200 x 400 x 465mm / 7.9 x 15.7 x 18.3in (WxDxH)
-
Form Factor: Mid Tower
- Materials: Steel Chassis, Tempered Glass
- Motherboard Support: ATX, micro-ATX, mini-ITX
- Front I/O: 1x USB 3.0 Type A, 1x USB 3.0 Type C, Microphone/Headphone Combo, Power Button, Reset Button
- Side Window: Tempered Glass
Expansion & Drive Bays
- Expansion Slots: 7
- Vertical GPU Support: Yes, with optional bracket (PH-VGPUKT4.0_03R)
- Internal 3.5": 1
- Internal 2.5": 3
Clearance
- Graphic Card Length: 390mm / 15.4in (without front fans)
- CPU Cooler Height: 162mm / 6.3in
- Cable Management: 36mm / 1.4in
- PSU Length: 220mm (with HDD installed)
- Front 360 Radiator: 122 x 398mm
- Top 240 Radiator: 122 x 320mm with 42mm RAM height clearance
